Overview

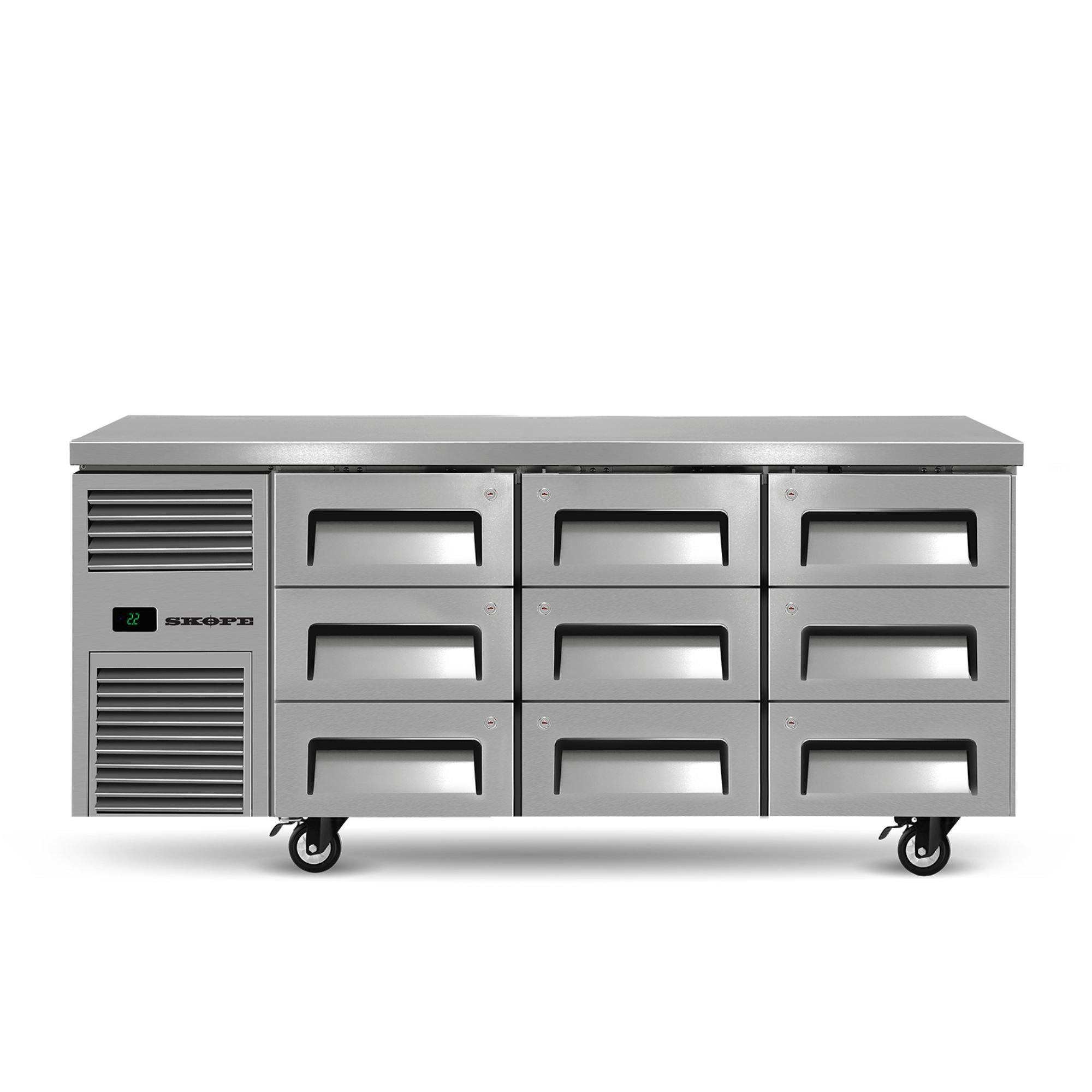

Skope RF7.UBR.3.D9 ReFlex 9 Drawer Underbench GN 1/1 Fridge

The Skope RF7.UBR.3.D9 is a high-performance underbench refrigerator from the ReFlex range, purpose-built for demanding commercial kitchens. Its nine fully extendable and lockable drawers, constructed from food-grade 304 AISI stainless steel throughout, accommodate GN 1/1 pans up to 100mm deep, making it ideal for organised ingredient storage directly at the point of preparation in restaurants, cafes, bars, quick service restaurants, accommodation venues, schools and aged care facilities.

Powered by the natural R290 refrigerant and controlled via the SCS Connect platform with Bluetooth wireless technology, the RF7.UBR.3.D9 delivers precise temperature management alongside meaningful energy savings. SKOPE-connect's enhanced preset modes allow kitchen staff to switch instantly between storage profiles for general food safety, fresh seafood, live seafood, chocolate, beverages, dairy and desserts, while the side-mounted removable refrigeration cartridge makes servicing straightforward and minimises downtime.

Key Benefits

• Nine individually lockable, fully extendable drawers keep ingredients organised and accessible at the prep line, reducing movement and improving kitchen workflow.
• GN 1/1 compatibility up to 100mm deep allows direct storage of standard gastronorm pans, eliminating the need to decant product and streamlining service.
• SKOPE-connect preset modes let staff switch temperature profiles for different food categories at the press of a button, ensuring correct storage conditions without manual adjustment.
• R290 natural refrigerant with a minimal environmental impact significantly reduces the unit's carbon footprint compared to synthetic refrigerants.
• A GEMS Class 4M1 energy rating and low 0.48 kW power draw keep running costs to an estimated $358 per year, supporting operational cost control.
• The side-mounted, removable refrigeration cartridge simplifies routine maintenance and allows the unit to be serviced in place, minimising kitchen disruption.
• Full 304 AISI stainless steel interior and exterior construction withstands the rigours of back-of-house use and meets stringent food safety hygiene requirements.
• A stainless steel benchtop is included as standard, providing an immediately usable work surface above the unit and maximising the value of limited kitchen space.
• Supplied with castors as standard for easy repositioning during cleaning, with optional legs also available.

Key Features

• Nine fully extendable, individually lockable stainless steel drawers sized for GN 1/1 pans up to 100mm deep.
• Full 304 AISI stainless steel interior and exterior body for durability and food-safe hygiene.
• Stainless steel benchtop included as standard.
• Self-contained, side-mounted refrigeration unit with an integral, removable refrigeration cartridge for easy servicing.
• SCS Connect controller, fully compatible with SKOPE-connect app via Bluetooth wireless technology.
• SKOPE-connect enhanced presets for general food safe, fresh seafood, live seafood, chocolate, beverages, dairy and desserts temperature ranges.
• Temperature range of 1°C to 4°C standard; adjustable from -2°C to 15°C via SKOPE-connect.
• R290 natural refrigerant (95g charge) with virtually no global warming impact.
• Fan-assisted cooling with automatic defrost for consistent temperature distribution.
• Climate Class 4 (tropical), rated for maximum ambient temperatures of 40°C.
• GEMS Class 4M1 certified, with an energy consumption of 3.27 kWh/24h.
• 397-litre gross capacity.
• Total floor area of 1.23 m².
• Supplied with castors as standard; legs available as an option.
• Power supply: 220-240 V AC, 50 Hz, single phase; current draw 2.0 A (unit 1.5 A).
• Supplied with a 2m, 10 Amp plug and lead.
• Suitable for restaurants and cafes, clubs, pubs and bars, quick service restaurants, hospitality venues, accommodation, schools, and medical or aged care facilities.

Specifications

• Width (mm): 1750
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 184
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 135
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 1800.0
• Capacity (Litres): 397
• Power (kW): 0.48
• Amps (A): 2
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 2
• No. of Doors: 1
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect -2°C to 15°C)
• Refrigerant: R290 / 95g (natural refrigerant)
• Refrigeration Type: Drawer Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• GEMS Class: 4M1
• GEMS Energy Consumption: 3.27
• GEMS Annual Running Cost: $358 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
• Interior Lighting: LED
