Overview

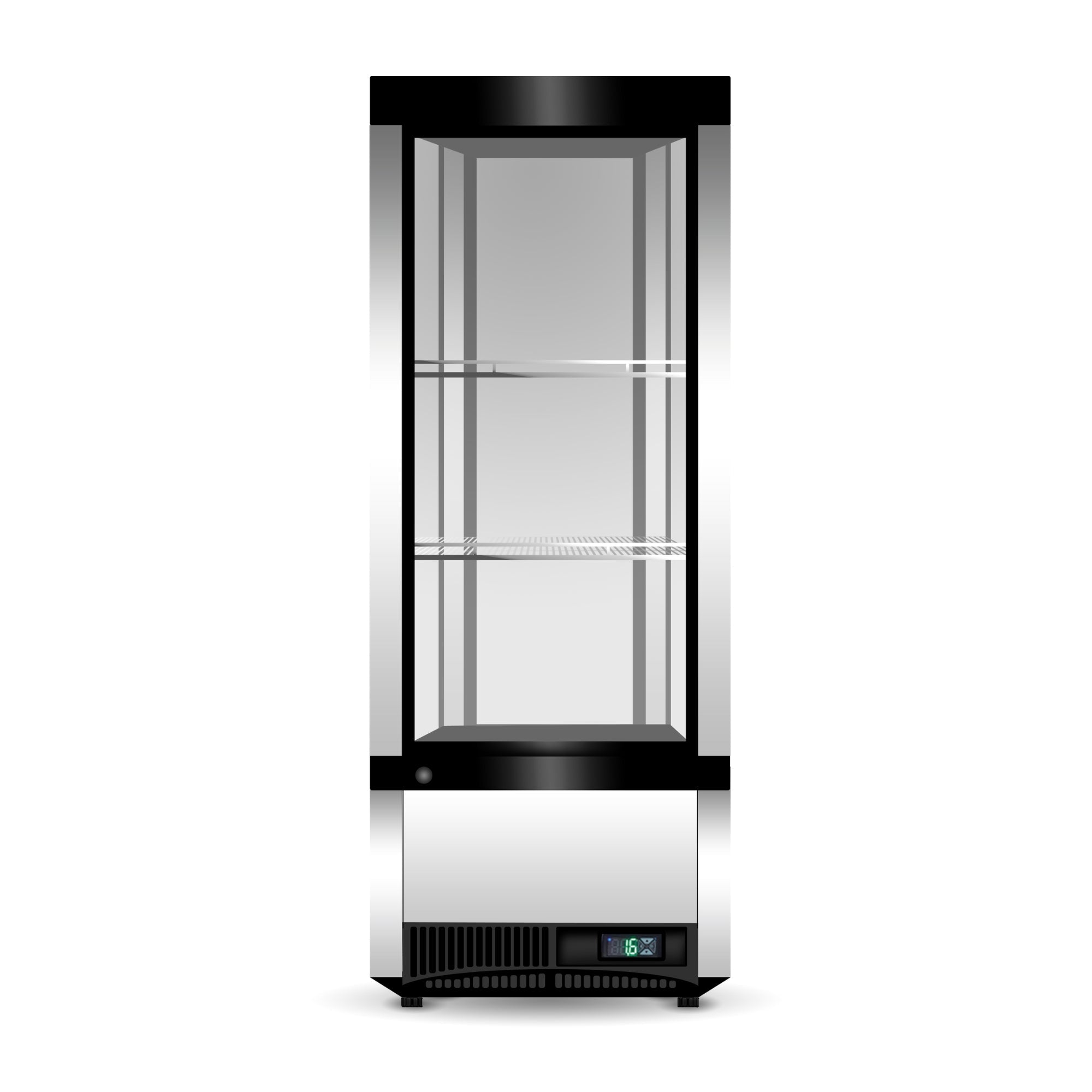

Skope SC112N-A Ascend Bottom Mount Display Fridge 109L 4-Sided Glass Single Door

The Skope SC112N-A Ascend is a compact 109-litre four-sided glass display fridge designed to maximise impulse sales at the point of purchase. Its all-glass construction provides 360-degree product visibility, making it ideal for showcasing chilled drinks and snacks on countertops in cafes, bars, convenience stores, quick service restaurants, schools, medical and aged care facilities, and hospitality venues of all sizes.

The self-contained, bottom-mounted refrigeration system uses a natural refrigerant and is electronically controlled via a CAREL S4 controller, delivering reliable temperature performance between 0°C and 5°C with minimal environmental impact. GEMS certified and built for everyday commercial use, the SC112N-A combines energy efficiency, easy installation, and a footprint small enough to fit where space is at a premium.

Key Benefits

• Four glass sides deliver unobstructed 360-degree visibility of chilled products, encouraging impulse purchases from multiple angles.
• Natural refrigerant technology lowers both operating costs and carbon footprint compared to conventional synthetic refrigerants.
• Bottom-mounted refrigeration unit keeps the display area clean and unobstructed while providing efficient, even cooling throughout the cabinet.
• Compact 470 x 470 mm footprint occupies only 0.22 m² of floor space, fitting easily on countertops or in tight floor positions where larger units cannot.
• GEMS certified energy consumption of 3.03 kWh/24h reduces electricity costs, equating to an estimated annual running cost of approximately $332 at $0.30/kWh.
• Four vertical corner LED lights (10 W total) brightly illuminate product from all sides, enhancing presentation without generating excess heat.
• Adjustable feet (20 mm) allow the unit to be levelled on uneven surfaces and simplify installation and relocation.
• Three height-adjustable shelves provide flexible product arrangement to suit bottles, cans, or packaged foods of varying sizes.
• Supplied with a 3-metre 10-amp plug and lead for straightforward connection to a standard power outlet with no specialist wiring required.

Key Features

• Four-sided glass construction for all-round product visibility and maximum merchandising impact.
• Single swing glass door for easy customer or staff access.
• 109-litre gross capacity across three adjustable shelves.
• Self-contained, bottom-mounted refrigeration system with electronic control.
• CAREL S4 electronic controller for precise temperature management.
• Temperature range: 0°C to 5°C.
• Natural refrigerant R600a (40 g charge), reducing environmental impact.
• GEMS Class 3M1 certified; energy consumption 3.03 kWh/24h.
• Climate Class 3 rated for operation up to 25°C ambient / 60% relative humidity.
• Power supply: 220-240 V AC, 50 Hz, single-phase; 0.2 kW power consumption, 1.2 A current draw.
• 4 x vertical corner LED lights (total 10 W) for bright, even interior illumination.
• Front and rear illuminated bottom sign panel for branding or promotional messaging.
• 20 mm adjustable feet for levelling on uneven surfaces.
• Includes 3-metre 10-amp plug and lead.
• Automatic defrost for low-maintenance operation.
• Fan-assisted cooling for consistent temperature distribution.
• Dimensions: 470 mm (W) x 470 mm (D) x 1080-1095 mm (H); total floor area 0.22 m².
• Suitable for restaurants, cafes, clubs, bars, quick service restaurants, convenience and petrol outlets, supermarkets, food production, hospitality venues, accommodation, schools, and medical/aged care environments.

Specifications

• Width (mm): 470
• Depth (mm): 470
• Height (mm): 1095
• Weight (kg): 120
• Colour: Stainless Steel
• Gas Type: R290
• Material: 304 Stainless Steel
• Door Type: Glass
• No. of Shelves: 4
• No. of Doors: 1
• Country of Origin: China
• Warranty (months): 24
• Energy Consumption (kWh/24h): GEMS Certified
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Display Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Interior Lighting: LED
