Overview

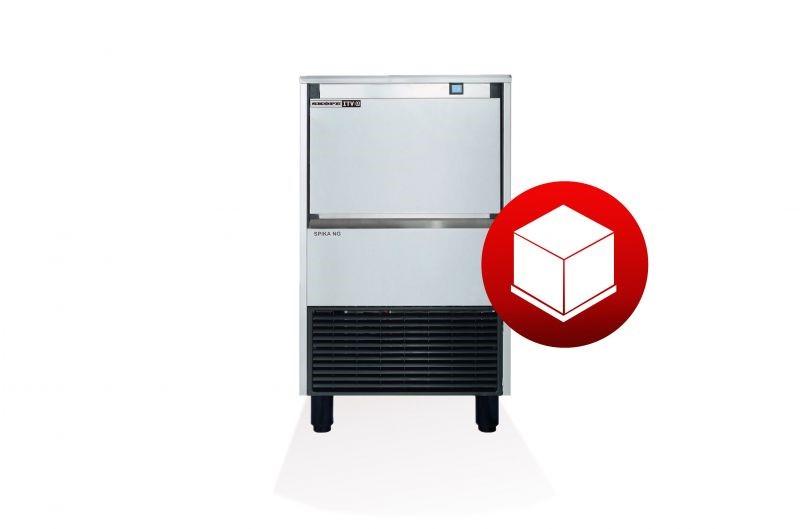

Skope SPIKA NG70A FD Full Dice Self-Contained Ice Cube Maker with Drain Pump – R290

The Skope SPIKA NG70A FD is a self-contained full dice ice cube maker designed to produce up to 76 kg of ice per 24 hours, making it a high-output solution for bars, restaurants and hospitality venues that rely on a steady supply of premium ice. It produces the iconic SPIKA full dice cube measuring 26 x 23 x 26 mm – a slow-melt, high-clarity cube widely preferred for cocktails and drinks service worldwide.

Powered by R290 hydrocarbon natural refrigerant, the NG70A FD delivers strong energy efficiency with virtually zero environmental impact compared to synthetic refrigerants. Built from AISI 304 stainless steel and engineered to operate across ambient temperatures from 10°C to 43°C, this unit is equally at home in cool back-of-house areas or warm open kitchens. It pairs directly with Skope SILO ice storage bins for expanded capacity and a streamlined workflow.

Key Benefits

• Produces up to 76 kg of full dice ice per 24 hours, keeping pace with high-volume drink service during peak periods.
• The 26 x 23 x 26 mm full dice cube melts slowly, preserving drink quality and reducing ice consumption over a service period.
• R290 natural refrigerant significantly reduces the unit's environmental footprint while delivering improved power efficiency at just 0.63 kW.
• Integrated drain pump removes the need for a floor drain directly beneath the unit, offering greater flexibility in placement.
• Self-contained refrigeration means no remote condenser is required, simplifying installation and reducing ongoing maintenance complexity.
• Built-in 20 kg ice storage bin provides immediate on-demand access to ice without requiring a separate storage vessel for lower-volume operations.
• Compatible with Skope SILO ice storage bins for venues that need greater reserve capacity and a fully integrated ice station.
• Electronic controller provides straightforward operation and consistent ice production monitoring.
• AISI 304 stainless steel construction ensures durability and hygiene compliance in demanding commercial kitchen environments.

Key Features

• Ice production capacity: 76 kg per 24 hours
• Ice storage capacity: 20 kg
• Full dice cube dimensions: 26 x 23 x 26 mm
• Self-contained refrigeration system – no remote condenser required
• Integrated drain pump for flexible installation without the need for a below-unit floor drain
• R290 hydrocarbon natural refrigerant – low global warming potential and high energy efficiency
• Ambient operating temperature range: 10°C to 43°C
• Electronic control system for reliable, consistent ice production
• Power supply: 230 V AC, 50 Hz, single phase
• Power consumption: 0.63 kW
• Current draw: 2.29 A
• Noise level: 64 dB
• Body material: AISI 304 stainless steel
• Solid door construction
• Dimensions: 535 W x 595 D x 789 H mm (with legs: 894 to 944 mm height)
• Total floor area: 0.36 m²
• Weight: 53 kg
• Compatible with Skope SILO ice storage bins for expanded capacity

Specifications

• Width (mm): 535
• Depth (mm): 595
• Height (mm): 789
• Weight (kg): 53
• Power (kW): 0.63
• Amps (A): 2.29
• Power Supply: 230 Volts a.c. 50 Hz, single phase
• Refrigeration Type: Self-Contained
• Temperature Range: 10°C to 43°C
• Refrigerant: R290 (natural refrigerant)
• Door Type: Solid
• Body Material: AISI 304 stainless steel body
• Noise (dB): ​64​
• Control Type: Electronic control
• Warranty (months): 2 Year
