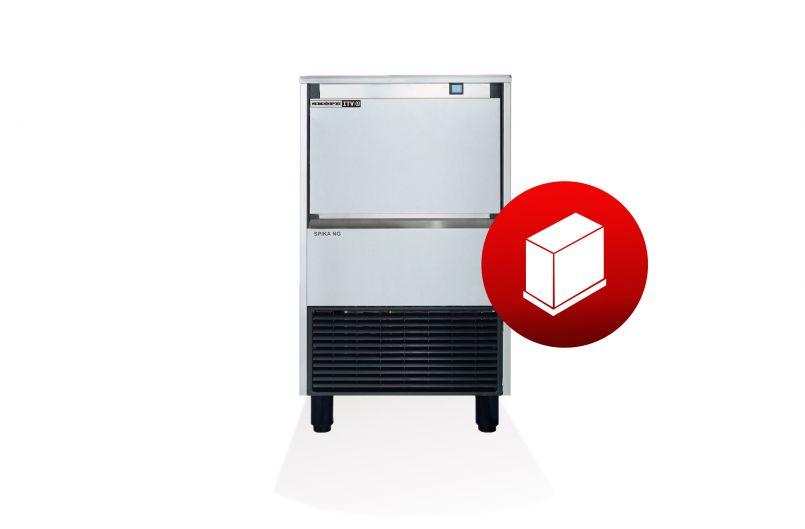

Skope SPIKA NG70 A Half Dice Self-Contained Ice Cube Maker R290
Couldn't load pickup availability
Overview
Create 76kg/24 hours of the sought-after SPIKA Half Dice, the preferred slow-melt drinks cube for bars around the world. Now uses R290 Hydrocarbon natural refrigerant for even more power efficiency and virtually zero impact on the environment. Partner with a SILO ice storage bin for ultimate convenience and capacity.
- Now with R290 Hydrocarbon natural refrigerant technology for even lower bills and virtually zero impact on the environment
- Make crystal clear ice every time using a patented spray system
- Ice type: SPIKA Half Dice - designed for scaled-up beverage service
- Suitable for very hot climates (ambient temperatures up to 43°C)
- Has 20kg of convenient built in ice storage capacity
- Designed for commercial bar, restaurant, pub and night club spaces - 535 W x 595 D x 789 H (894 - 944 with legs) (mm)
- Easily build into joinery with front and rear-facing ventilation (100mm clearance required)
- Easy access panels for service and installation
- Best suited to: Restaurants / Cafes, Clubs / Pubs / Bars, Quick Service Restaurants, Convenience / Petrol / Supermarkets, Food Production, Hospitality / Venues, Accommodation, Schools, Medical / Aged Care, Bakery / Pastry
- Dimensions: 535 W x 595 D x 789 (with legs 894 - 944) H (mm)
- Refrigeration Unit: Self Contained
- Ice Production (kg/24h): 76
- Ice Storage (kg): 20
- Ice Cube Dimensions: 23 x 11 x 26
- Temperature Range: 10°C to 43°C
- Refrigerant: R290 (natural refrigerant)
- Door Type: Solid
- Material: AISI 304 stainless steel body
- Total Floor Area (m2): 0.36
- Weight (kg): 53
- kW: 0.63
- Current Draw (Amps): 2.29
- Controller: Electronic control
- Power Supply: 230 Volts a.c. 50 Hz, single phase
Product Dimensions: 535(W) x 789(H) x 595(D)mm
Options Available:
- 10mm screwfix levelling feet ITV-33007
- Castors ITV-31703
- Drain pump SXX11725-P
- Replacement filter cartridge SXX11696
- Water filter kit SXX11695
Contact Us for more Information
All Ice machines MUST be maintained to ensure high performance.
The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.
This maintains the quality of the ice shape and thickness.
This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
-
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. -
Sanitise water reservoir, distribution tubes, and bin interior. -
Clean and flush condenser coils (air-cooled units). -
Inspect condenser fan motor and blades. -
Check inlet water valve, float, and filters for correct operation. -
Verify ice thickness probe or sensor calibration.
-
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. -
Test compressor amperage and general performance. -
Inspect water pump operation and clean pump housing. -
Check harvest cycle operation (heater or hot gas valve). -
Inspect electrical connections, relays, and contactors. -
Replace inline water filter cartridge.
Key features
Specifications
Documents & downloads
No documents have been added for this product.
Delivery & install
Ice production capacity: 76 kg
Ice production capacity: 76 kg per 24 hours
Ice cube format: half dice, 23 x 11 x 26 mm
a slow-melt shape preferred by bartenders worldwide
Onboard ice storage: 20 kg
Onboard ice storage: 20 kg
Self-contained refrigeration system
no remote condenser required
