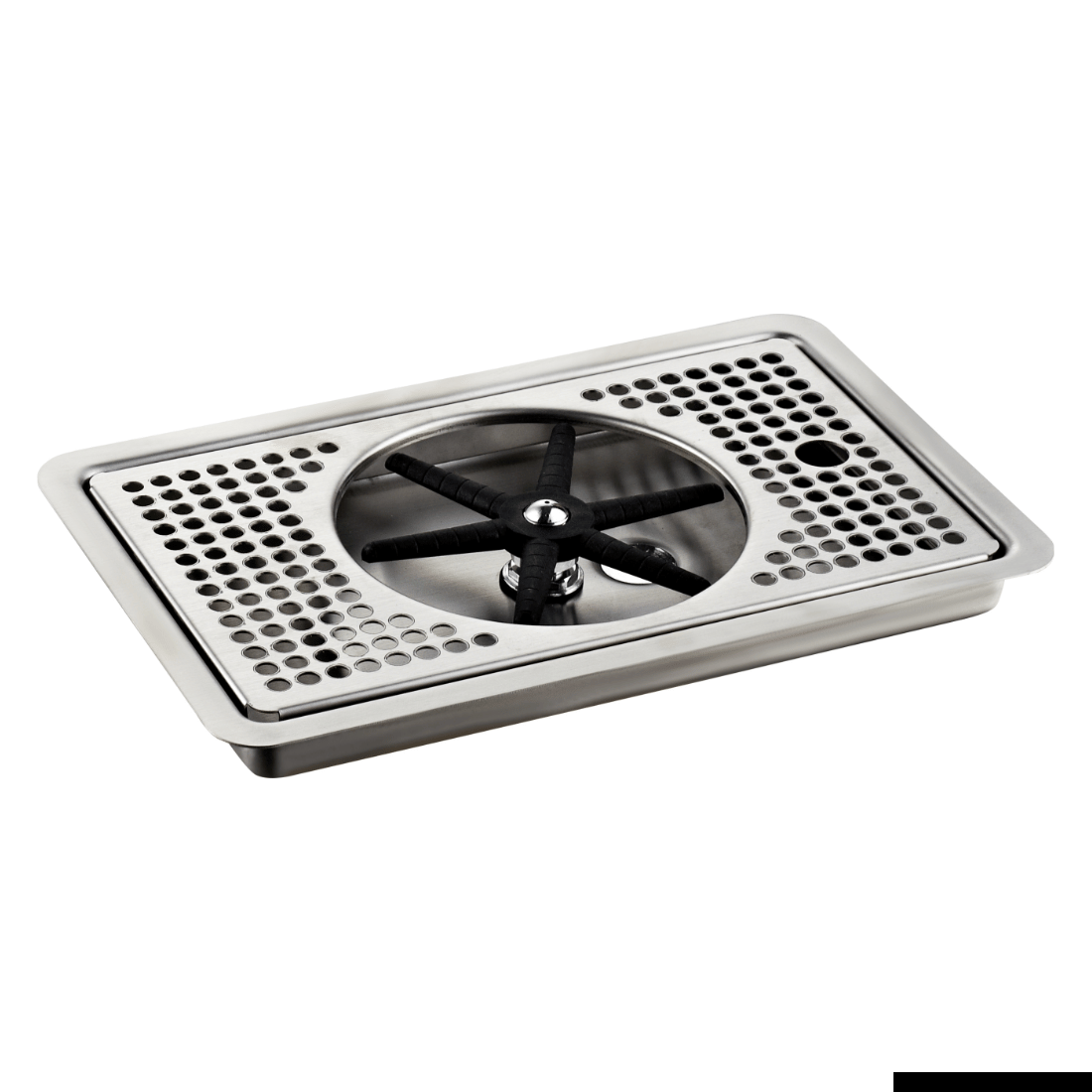

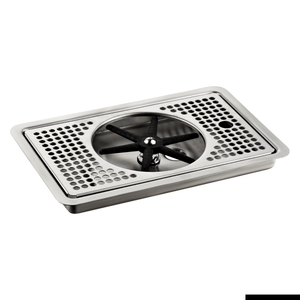

Sunmixer T9860-D Glass Rinser Counter Top Model

The Sunmixer T9860-D is a compact countertop glass rinser built from 304 stainless steel, designed for fast and hygienic rinsing of glassware in busy commercial environments such as bars, cafés, restaurants, and hotels. Its low-profile 30mm height makes it straightforward to integrate into existing bar counters or service stations without consuming valuable workspace.

Featuring a 150mm diameter centre rinser with push-down activation and a tray with 20mm diameter drainage holes, this unit delivers reliable spray coverage for continuous, high-volume operation. It carries Watermark certification, confirming it meets Australian plumbing standards, and connects via a standard G1/2 water supply fitting.

Key Benefits

• Push-down activation allows staff to rinse glasses quickly between uses, keeping service moving during peak periods.
• 304 stainless steel construction resists corrosion and is easy to wipe down, supporting strict hygiene standards in food service environments.
• Low 30mm profile integrates neatly into bar tops and counter cutouts without disrupting the workflow or aesthetics of the service area.
• Watermark certified for peace of mind that the unit complies with Australian plumbing regulations.
• A tray with 20mm diameter drainage holes allows water to drain continuously, preventing pooling and supporting uninterrupted operation during busy service.
• Round corners on the tray reduce the risk of injury to staff and minimise areas where grime can accumulate, simplifying cleaning.
• Rated to a working temperature of 85°C and a safety pressure of 0.4 MPa (with a tolerance of ±10%), making it suitable for demanding commercial water supply conditions.
• Genuine Sunmixer accessory engineered to complement Sunmixer equipment for a correct fit and consistent performance.

Key Features

• 304 stainless steel construction throughout for durability and hygiene
• 150mm diameter centre rinser head
• Each rinse arm measures 115.5mm in length
• Tray drainage holes of 20mm diameter for continuous water clearance
• Round corners on the tray for safer handling and easier cleaning
• Push-down activation mechanism for rapid, one-handed rinsing
• Safety pressure rating of 0.4 MPa with a hyper pressure tolerance of ±10%
• Maximum working temperature of 85°C
• G1/2 water supply connection for straightforward installation
• Watermark certified product
• Integrated drain outlet supports continuous operation
• Compact low-profile design at 30mm height for counter or bar integration
• Genuine Sunmixer accessory
• 12 months parts-only warranty

Specifications

• Width (mm): 298
• Depth (mm): 207
• Height (mm): 30
• Weight (kg): 1.583
• Packed Width (mm): 380
• Packed Depth (mm): 470
• Packed Height (mm): 53
• Warranty (months): 12 Months Parts only Warranty
• Mounting Type: Benchtop
