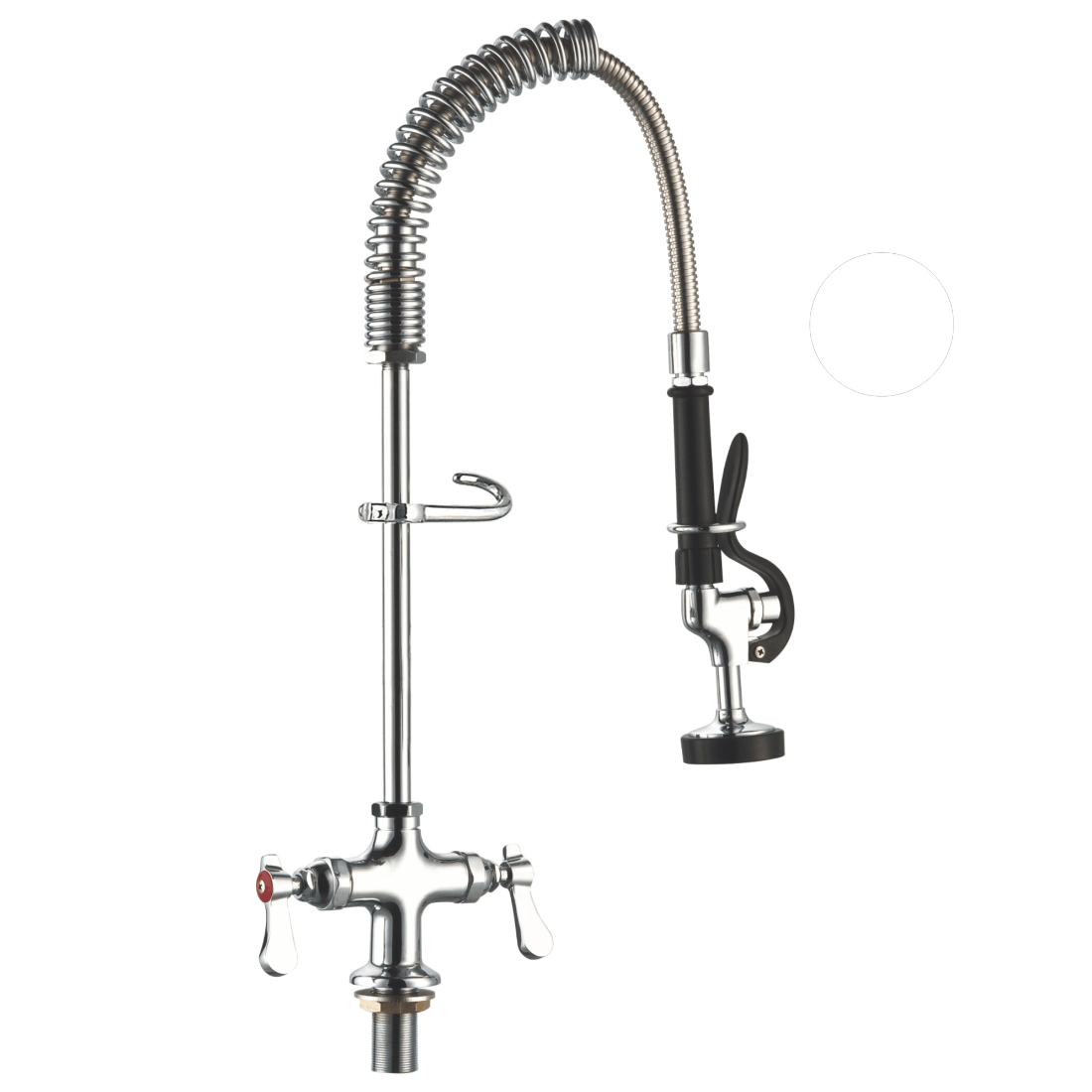

Sunmixer T98001MN-1 Mini Pre Rinse Unit with 180mm Riser and 560mm Hose

The Sunmixer T98001MN-1 is a compact, deck-mounted mini pre-rinse unit built for the demands of commercial kitchens, restaurants, cafés, bars, and hotel food service operations. Featuring a 180mm (7-inch) riser and a 560mm (22-inch) flexible stainless-steel hose, it delivers effective rinsing performance in a smaller footprint, making it well suited to tight prep areas and busy dish stations alike.

Constructed for heavy-duty use with chrome-plated brass and a stainless-steel hose, this unit carries a 3-Star Water Efficiency rating and is Watermark certified, meeting Australian plumbing compliance requirements. The spray valve conforms to ANSI/ASTM F2324-03, and a built-in check valve prevents cross-flow contamination, giving operators confidence in both hygiene and water management.

Key Benefits

• Compact mini footprint makes it practical for space-limited prep areas, cafés, and bar stations without sacrificing rinsing power.
• 3-Star Water Efficiency rating helps reduce water consumption during busy service periods, lowering operating costs.
• Connects to both hot and cold water supplies, providing flexibility across a range of rinse and cleaning tasks.
• Built-in check valve prevents cross-flow contamination between supply lines, supporting food-safe and hygienic operation.
• Self-closing spray valve stops water flow the moment the operator releases the trigger, eliminating accidental waste.
• Finger hook on the spray head allows easy, one-handed hanging between uses, keeping the workstation tidy during service.
• Watermark certification confirms compliance with Australian plumbing standards, simplifying installation approval.
• Heavy-duty chrome-plated brass body and stainless-steel hose resist corrosion and withstand the rigours of continuous commercial use.
• 2-year parts-only warranty provides peace of mind for commercial operators investing in long-term kitchen infrastructure.

Key Features

• Mini pre-rinse unit with compact design suited to smaller commercial kitchen and bar installations.
• Deck-mounted configuration for stable, fixed installation at sink or prep stations.
• 180mm (7-inch) riser height.
• 560mm (22-inch) flexible stainless-steel hose for manoeuvrable reach.
• Chrome-plated brass body construction for durability and a hygienic finish.
• Spring body design maintains hose position and returns the spray head after use.
• Finger hook on the spray head for convenient one-handed hanging between tasks.
• Self-closing spray valve ensures water flows only while the operator is actively using the unit.
• Integrated check valve prevents cross-flow between hot and cold water supply lines.
• Compatible with both hot and cold water connections.
• Spray valve conforms to ANSI/ASTM F2324-03 standard.
• 3-Star Water Efficiency star rating.
• Watermark certified product, meeting Australian plumbing compliance requirements.
• Suitable for food service, commercial kitchens, restaurants, hotels, cafés, and catering environments.
• Warranty: 2 years parts only.
• Country of origin: China.

Specifications

• Weight (kg): 5.4
• Packed Width (mm): 330
• Packed Depth (mm): 800
• Packed Height (mm): 37
• Shipping Weight: 4
• Shipping Cubic: 0.235620000m3
• Warranty (months): 2 Years Parts Only
• Country of Origin: CN
