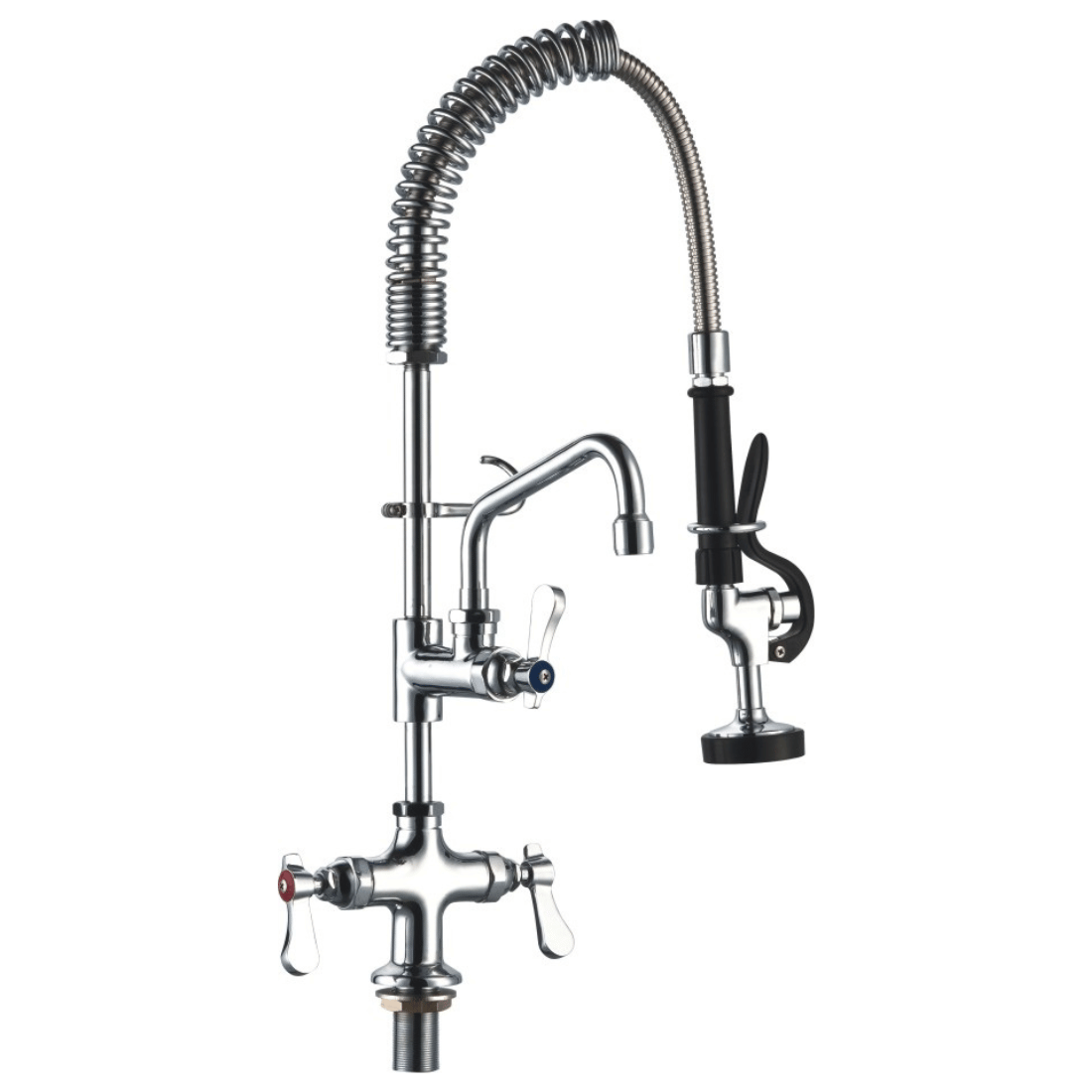

Sunmixer T98001MN-2 Pre Rinse Unit with Add-on Faucet and 152mm Swing Nozzle

The Sunmixer T98001MN-2 is a deck-mounted mini pre-rinse unit combining a flexible spray arm with a 152mm (6 inch) swing nozzle add-on faucet, purpose-built for busy commercial kitchens, restaurants, hotels, and catering operations. The unit connects to both hot and cold water supplies and features a 180mm riser with a 560mm flexible stainless steel hose, giving operators excellent reach and manoeuvrability at the sink.

Constructed for heavy-duty commercial use, the T98001MN-2 carries a 3-star Water Efficiency rating and includes a built-in check valve to prevent cross-flow contamination. The spray valve conforms to ANSI/ASTM F2324-03 and the unit holds WaterMark certification, making it a compliant and reliable choice for any professional kitchen environment. Backed by a 2-year parts-only warranty.

Key Benefits

• Dual-function design combines a pre-rinse spray arm and a 152mm swing nozzle faucet, allowing quick switching between high-pressure rinsing and pot or pan filling without changing fixtures.
• 3-star Water Efficiency rating helps reduce water consumption and running costs in high-volume kitchen environments.
• Built-in check valve prevents cross-flow between hot and cold water supplies, protecting water quality and plumbing integrity.
• Compatible with both hot and cold water connections, offering flexible installation across a wide range of sink setups.
• WaterMark certified and spray valve conforming to ANSI/ASTM F2324-03, ensuring the unit meets recognised plumbing and performance standards.
• Spring body on the hose and a finger hook on the spray head provide smooth, controlled operation and reduce operator fatigue during repetitive rinsing tasks.
• Flexible 560mm stainless steel hose provides generous reach across the sink area, improving workflow efficiency during busy service periods.
• Deck-mounted installation suits standard commercial sink configurations and keeps the work area tidy and accessible.

Key Features

• Mini pre-rinse unit with deck-mounted configuration
• Add-on faucet with 152mm (6 inch) swing nozzle
• 180mm (7 inch) riser
• 560mm (22 inch) flexible stainless steel hose
• Spring body supporting the hose for smooth retraction and control
• Finger hook on spray head for comfortable single-handed operation
• Built-in check valve to prevent cross-flow between supply lines
• Spray valve conforming to ANSI/ASTM F2324-03
• 3-star Water Efficiency Star Rating
• Connects to both hot and cold water supplies
• WaterMark certified product
• Heavy-duty construction suited to continuous commercial use
• Suitable for food service, commercial kitchens, restaurants, hotels, and catering venues
• Warranty: 2 years parts only
• Country of origin: China

Specifications

• Weight (kg): 5.84
• Packed Width (mm): 330
• Packed Depth (mm): 800
• Packed Height (mm): 37
• Shipping Weight: 4
• Shipping Cubic: 0.255997000m3
• Warranty (months): 2 Years Parts Only
• Country of Origin: CN
