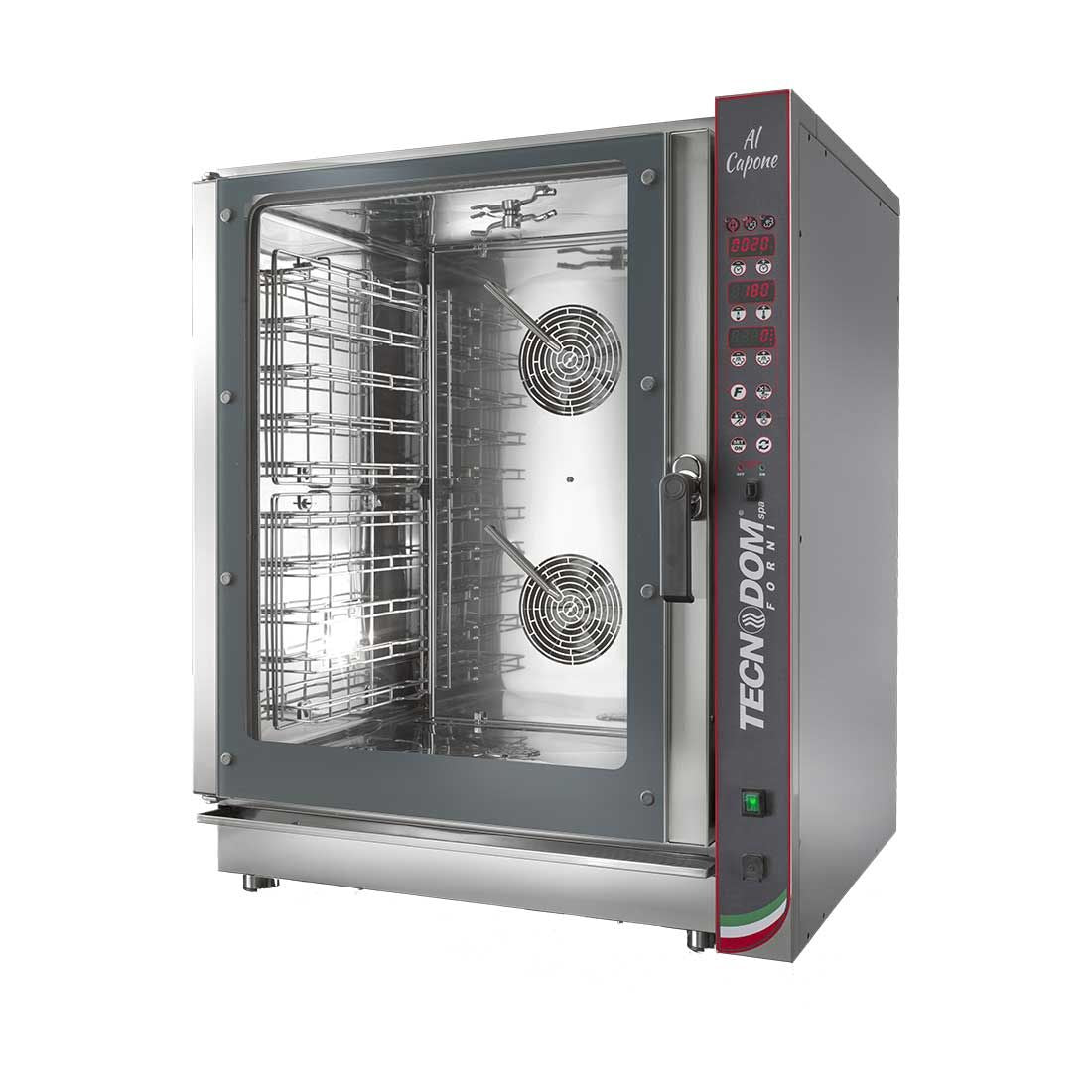

Tecnodom TDC-10VH Nerone CL Digital 10 Tray Combi Oven

The Tecnodom TDC-10VH is part of the Nerone CL Digital range, a line engineered to deliver outstanding performance and versatility for modern commercial catering. Holding 10 trays at GN 1/1 capacity, it supports convection, steam, and combination cooking modes across a wide temperature range, making it equally suited to restaurants, hotels, and high-volume catering operations. The chamber also accepts 600 x 400 mm trays, expanding its practical usefulness across different kitchen workflows.

Designed with a focus on ease of use, consistent results, and straightforward maintenance, the TDC-10VH combines a user-friendly digital interface with advanced cooking modes including Delta T, Stove Cooking Mode, and continuous infinity mode for uninterrupted service periods. An auto 4-stage cleaning system with liquid lines, a multi-sensing core probe as standard, and a stainless steel interior with removable chromed steel tray supports all contribute to a kitchen workhorse that is as easy to keep clean as it is to operate.

Key Benefits

• Ten GN 1/1 tray positions deliver high-volume output suited to busy restaurants, hotels, and catering kitchens
• Convection, steam, and combination cooking in a single unit reduces the need for multiple appliances and saves valuable kitchen space
• Up to 99 programmable recipes with five stages each ensures consistent, repeatable results across every shift and every operator
• Auto reversing fans with 4-speed control promote even heat distribution throughout the chamber, including at lower fan settings
• 100% moisture steam function at 100°C provides precise humidity control for delicate products such as fish, vegetables, and pastries
• Delta T and infinity cooking modes give chefs greater control over slow-cooking and allow continuous operation during peak service
• Two-stage door opening releases steam and hot air safely before fully opening, reducing the risk of operator burns
• Auto 4-stage cleaning system with liquid lines minimises manual labour and helps maintain food safety standards with minimal downtime
• Chamber compatibility with both GN trays and 600 x 400 mm baking trays adds flexibility for diverse menus without additional equipment

Key Features

• 10-tray GN 1/1 capacity for high-volume cooking
• Compatible with both GN 1/1 trays and 600 x 400 mm trays for versatile use
• Convection cooking with variable temperature from 30°C to 280°C
• Steam function at 100°C with 100% moisture capability via direct injection steam system
• Combined convection and steam cooking mode for a full temperature range of 30°C to 300°C
• Maximum preheating temperature of 280°C
• Delta T (ΔT) cooking mode for precise internal temperature control
• Stove Cooking Mode for flexible cooking approaches
• Infinity mode for continuous, uninterrupted operation during busy service periods
• Auto reversing fans with 4-speed control for uniform cooking results across all tray positions, including at low fan speeds
• Multi-sensing core probe included as standard for accurate internal product temperature monitoring
• 99 programmable and editable recipe slots, each supporting up to 5 sequential cooking stages

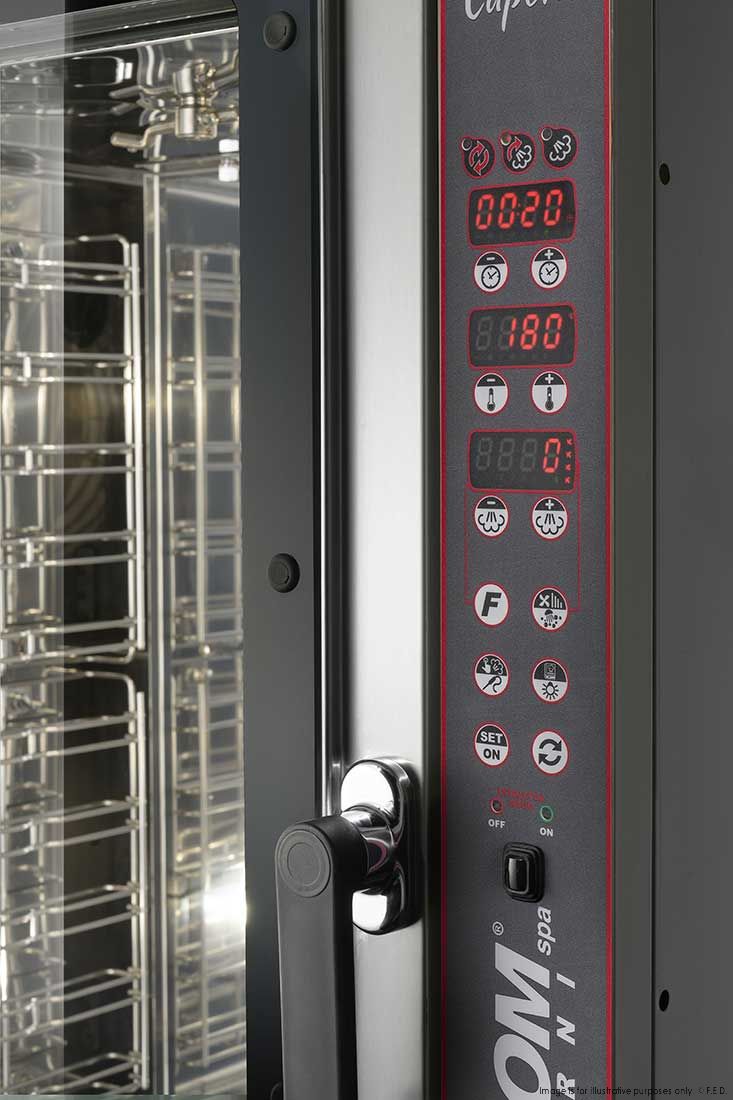

• User-friendly digital display with straightforward controls
• Auto 4-stage cleaning system with liquid lines included as standard

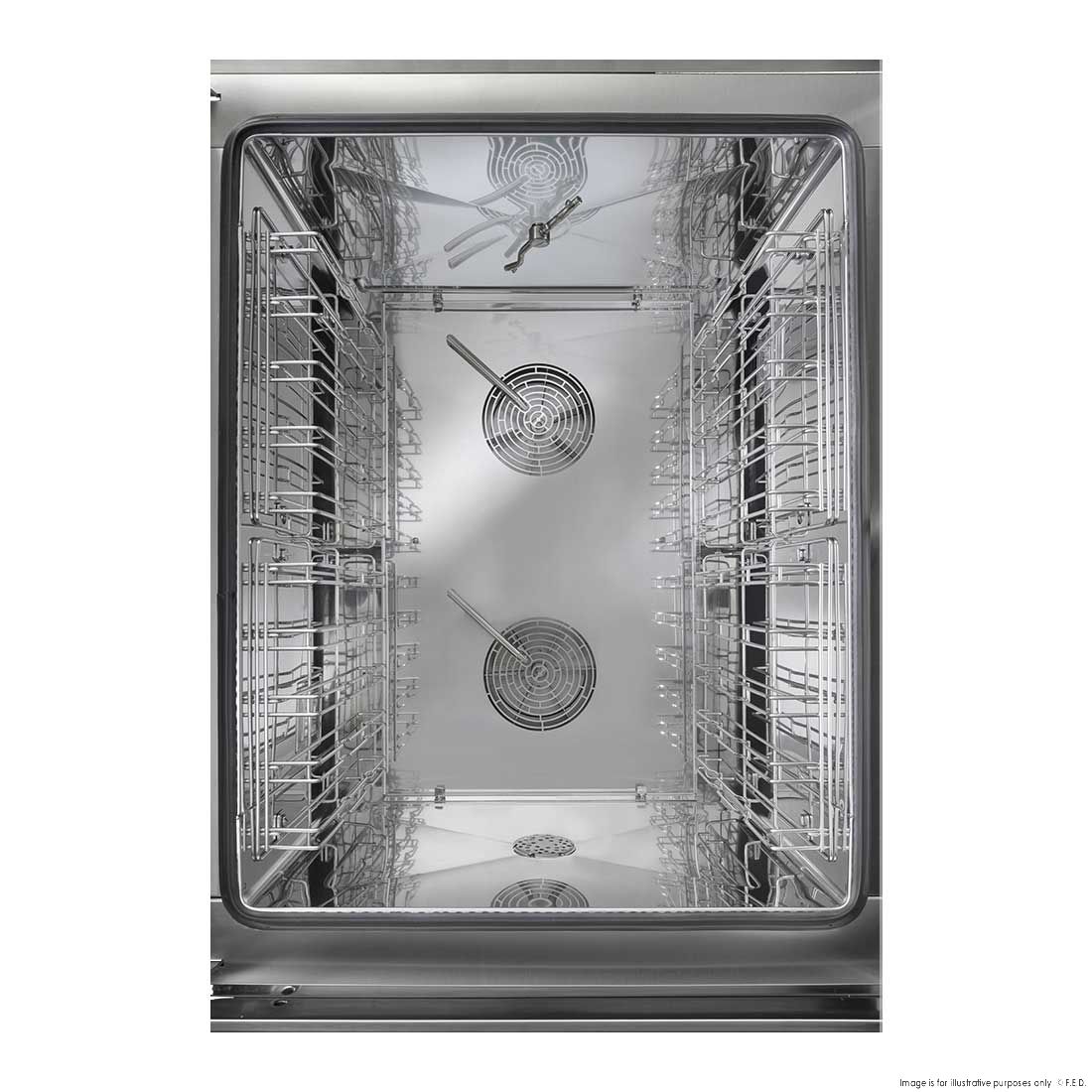

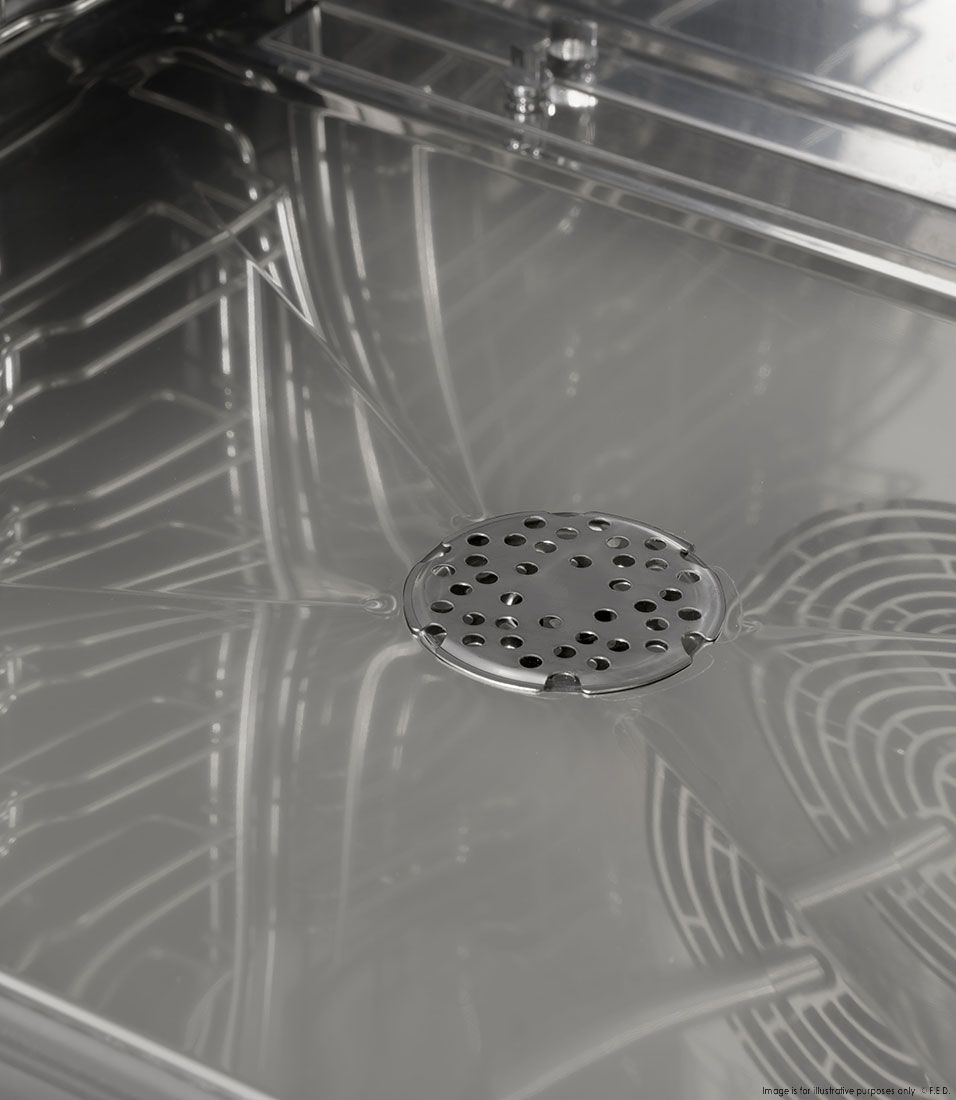

• Full stainless steel cooking chamber for durability and hygiene
• Removable tray supports in chromed steel for easy cleaning

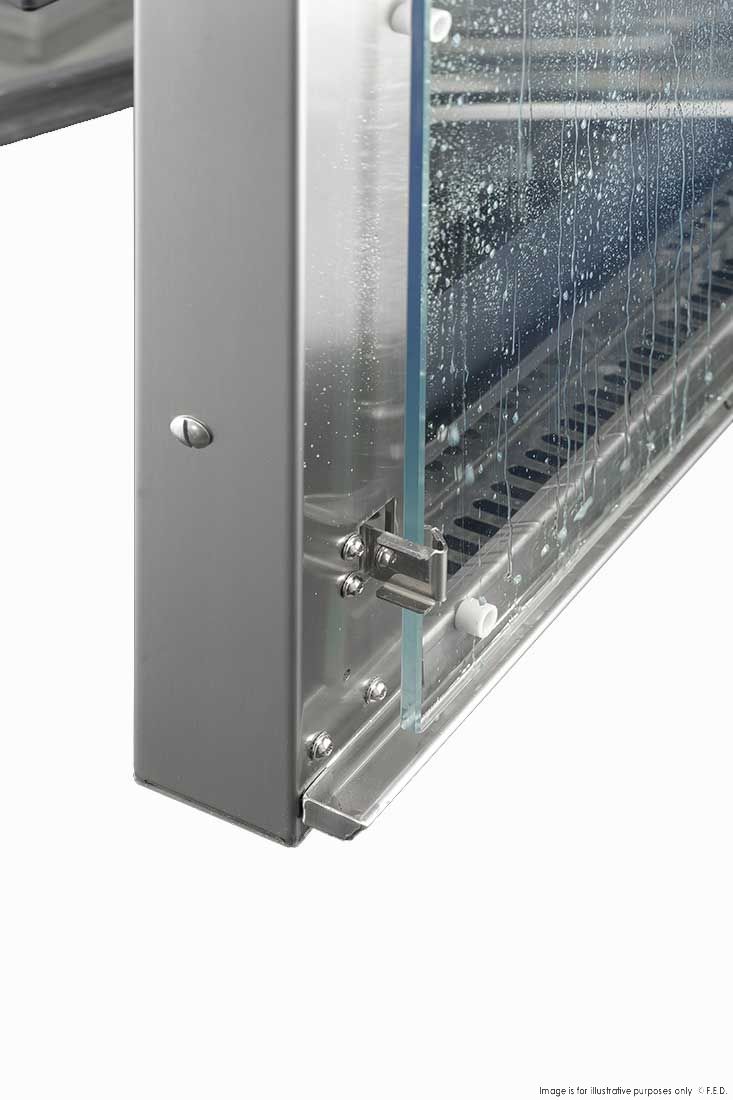

• Twin front glass panels on the door reduce external heat on the viewing window

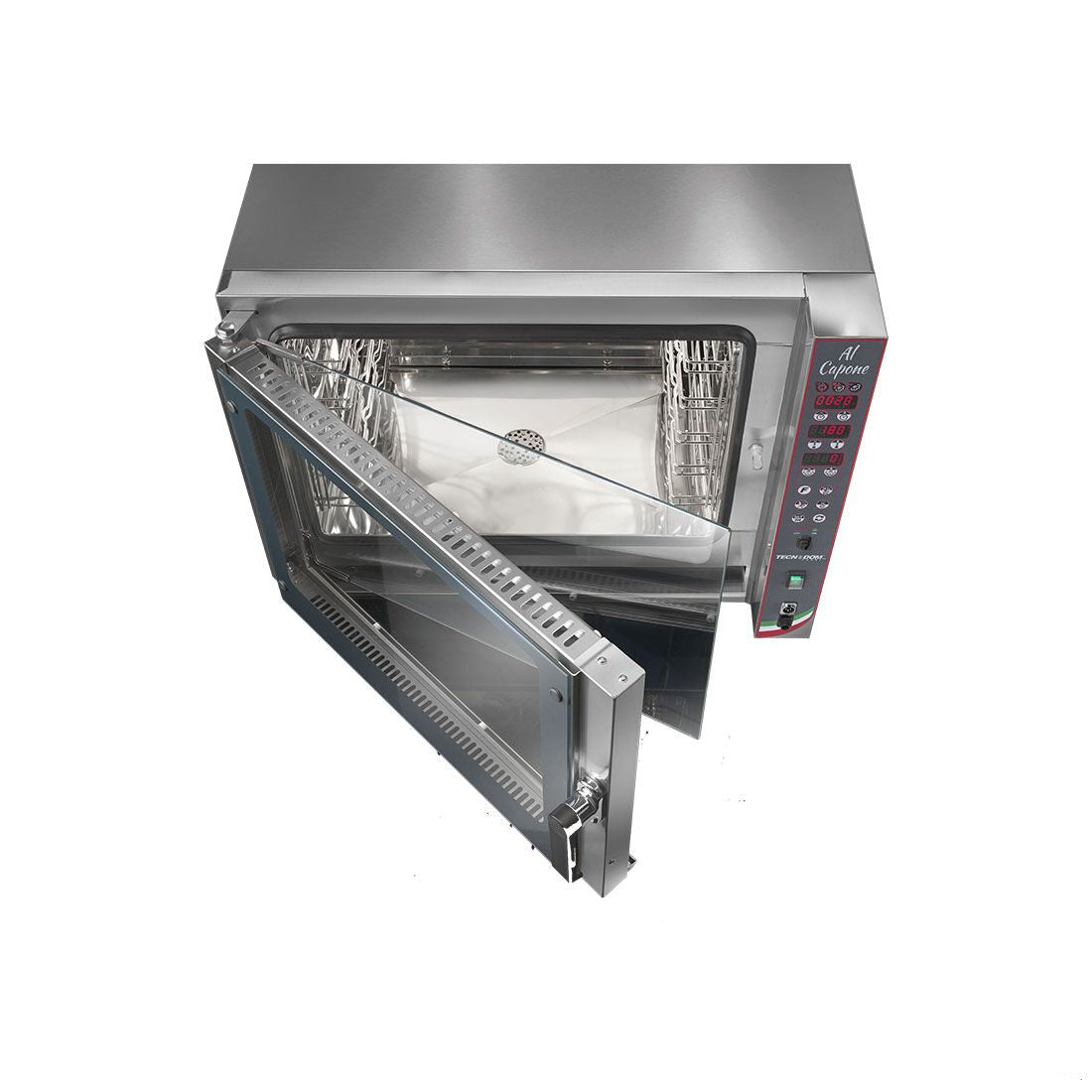

• Two-stage door opening mechanism allows steam and hot air to safely escape before the door is fully opened
• Double-glass insulated door construction
• Optional integrated condenser hood available
• Optional electric hood available
• Stainless steel exterior and interior construction throughout
• Pans and trays not included
• Power supply: 415V, 12.7kW, 3N
• 1-year parts and labour warranty

Specifications

• Width (mm): 920
• Depth (mm): 840
• Height (mm): 1170
• Weight (kg): 112
• Packed Width (mm): 880
• Packed Depth (mm): 955
• Packed Height (mm): 1300
• Shipping Weight: 200
• Shipping Cubic: 0.768000000m3
• Power Delivery: 415V, 12.7kW / 3N
• Power (kW): 415
• Warranty (months): 1 Year Parts and Labour
• Temperature Range: +30°C to +300°C
