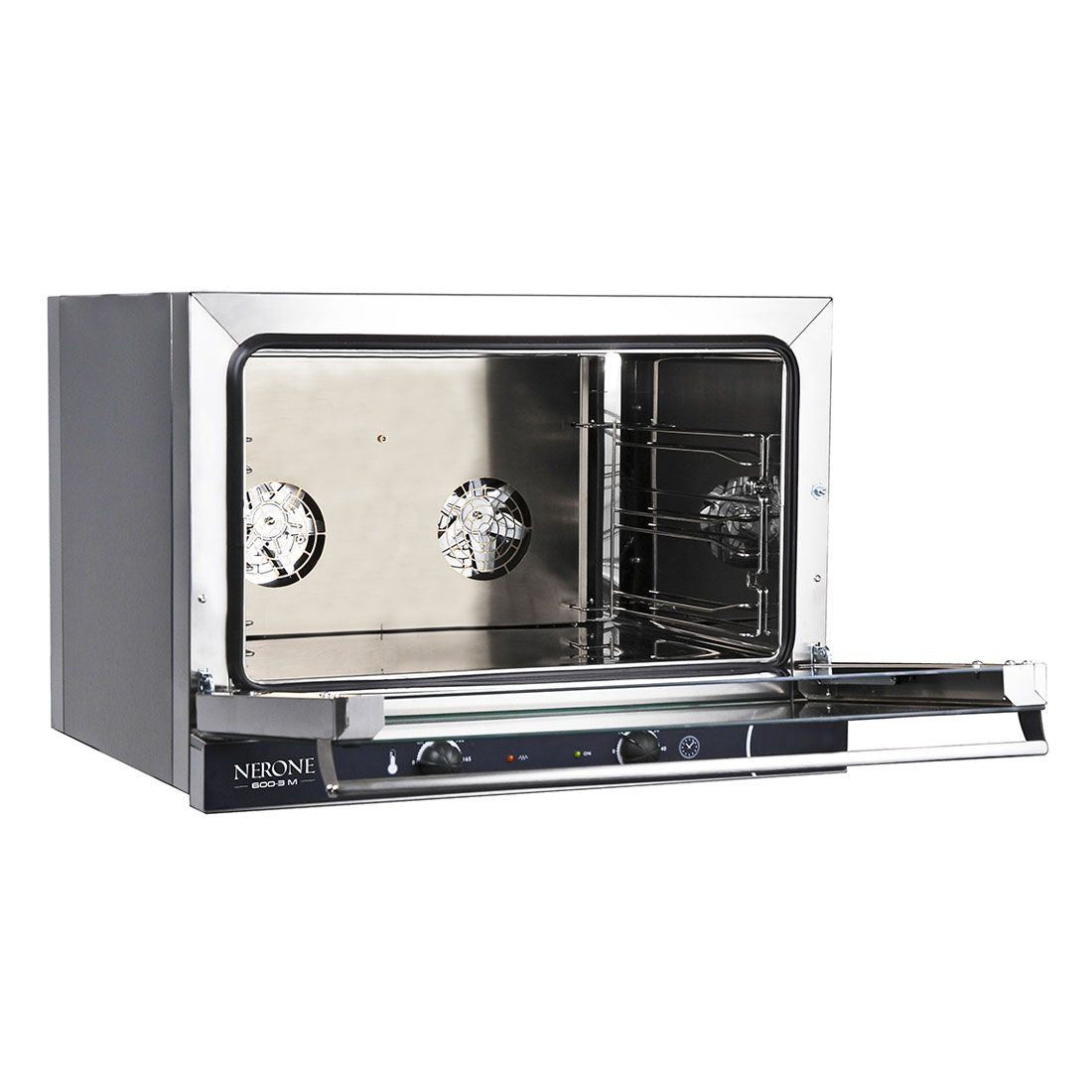

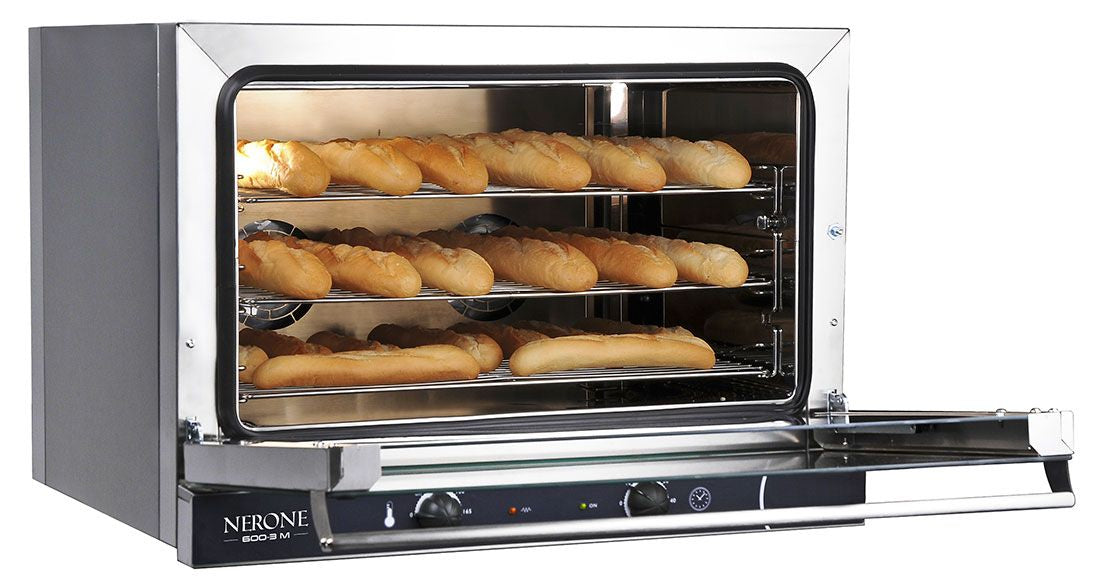

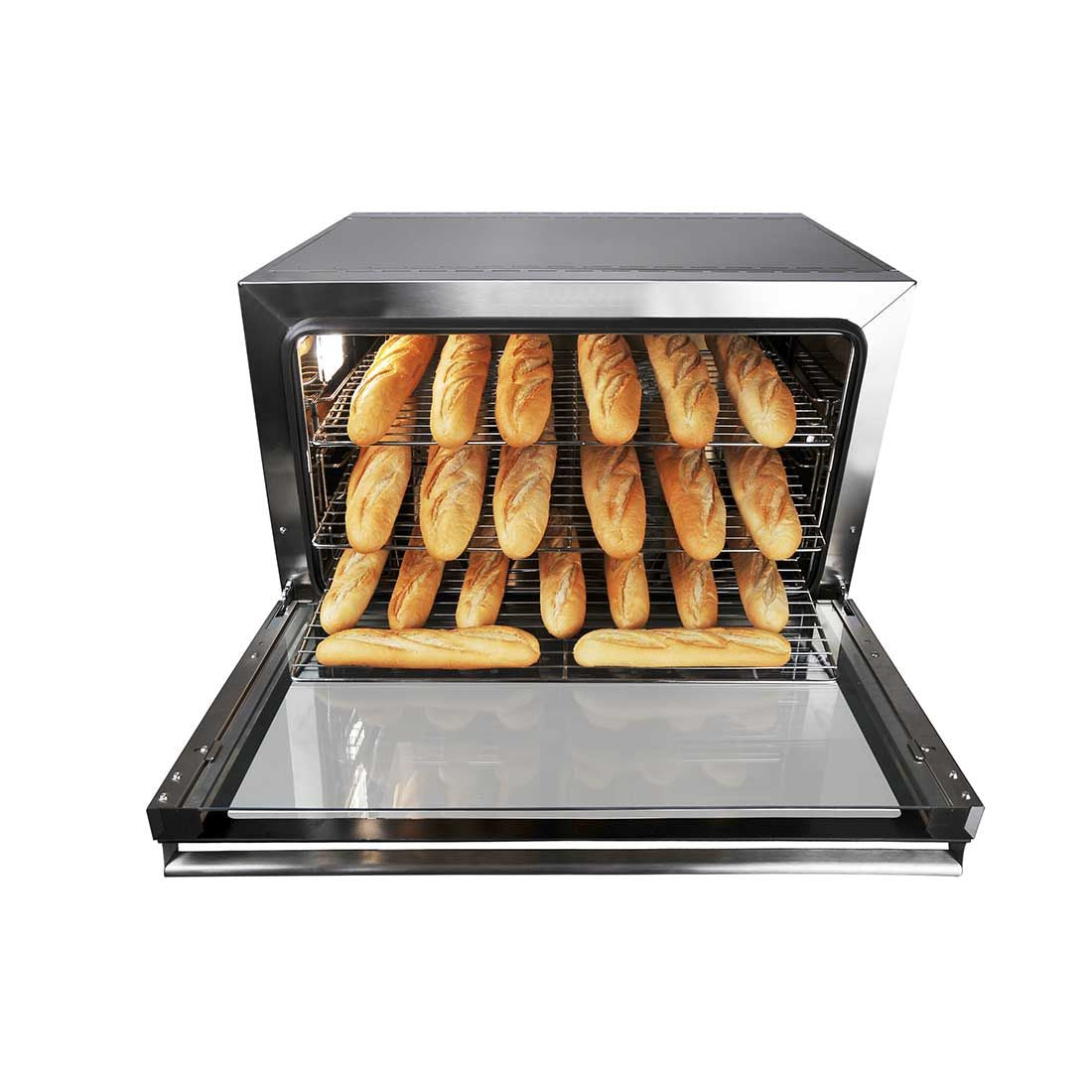

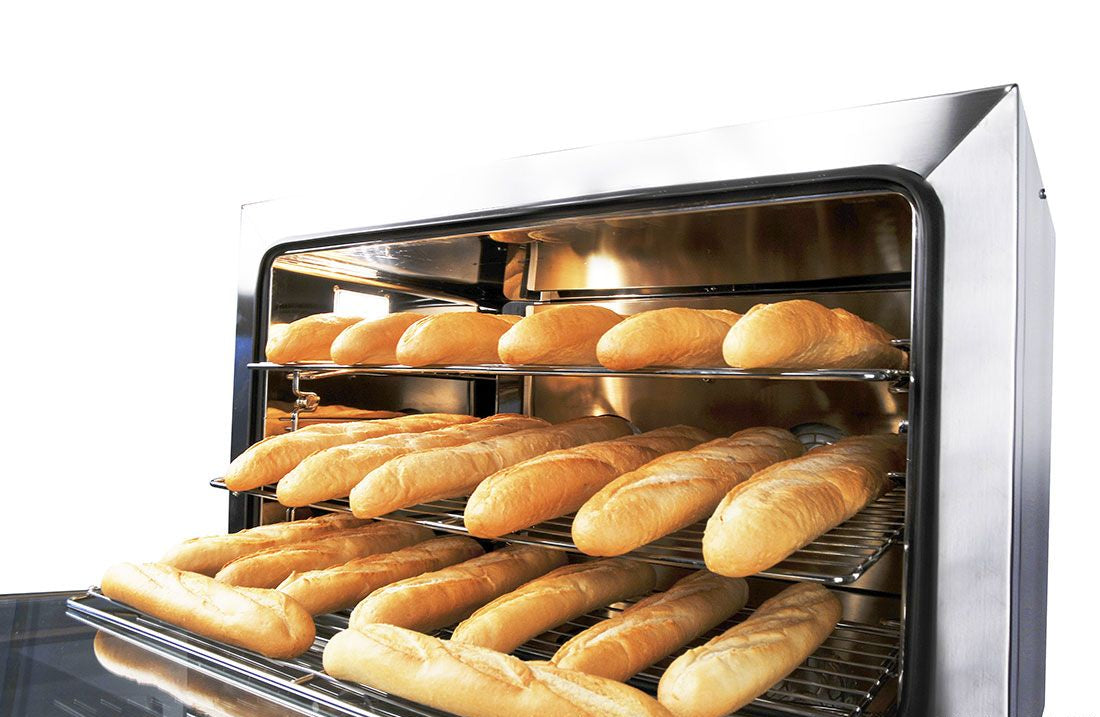

Tecnodom TDE-3B Nerone EKO 600x400 Tray Convection Oven

The Tecnodom TDE-3B is part of the NERONE EKO range, engineered to deliver optimal performance and consistency for modern commercial catering. Designed with essentiality and practicality in mind, it accommodates 600x400mm trays within a stainless steel cooking chamber, making it well suited to cafes, bakeries, restaurants and other busy food service operations.

Built to IPX3 standard norms and featuring a wide temperature range of +50°C to +280°C, the TDE-3B handles everything from gentle warming through to high-heat roasting and baking. Its compact external footprint, thoughtful internal layout and durable construction make it a reliable workhorse where kitchen space and cooking consistency both matter.

Key Benefits

• Fan-forced convection heat circulates evenly throughout the cooking chamber, delivering consistent results across every tray with no hot spots.
• Wide temperature range of +50°C to +280°C makes the oven suitable for a broad variety of tasks including baking, roasting, reheating and proving.
• A 60-minute countdown timer or infinite hold setting gives operators flexible control over cook times and holding periods.
• Stainless steel interior with rounded corners simplifies cleaning and reduces the build-up of food residue between service periods.
• The Overture folding door design provides a wide, unobstructed opening for easy loading and unloading of full-size 600x400mm trays.
• Tempered low-e glass and double-glass construction retains heat efficiently, reducing energy consumption and keeping the door surface cooler to the touch.
• IPX3-rated construction allows safe wash-down cleaning, reducing the time and effort required for daily maintenance.
• Includes one solid tray and two wire racks straight out of the box, so the oven is ready for a variety of cooking applications immediately.
• Compact external dimensions suit kitchens where bench or floor space is limited without compromising on cooking capacity.

Key Features

• Accommodates 600x400mm gastronorm-style trays with 84mm spacing between tray positions
• Stainless steel cooking chamber with rounded internal corners for easy cleaning
• Stainless steel construction inside and out for hygiene and durability
• Internal cavity dimensions: 650x460x350mm
• External machine dimensions: 775x700x560mm
• Overture folding door design provides a large opening for straightforward tray access
• Tempered low-e double glass door for thermal efficiency and operator safety
• Interlocking gasket fixing system ensures a reliable door seal
• High-resistance hinges for long-term door durability under frequent use
• Temperature range: +50°C to +280°C
• 60-minute timer with option for infinite/continuous operation
• Meets IPX3 standard norms for water ingress protection, suitable for wash-down cleaning
• Supplied with 1 solid tray and 2 wire racks
• Part of the Tecnodom NERONE range, designed for modern catering performance
• 1-year parts and labour warranty

Specifications

• Width (mm): 775
• Depth (mm): 700
• Height (mm): 560
• Weight (kg): 44
• Packed Width (mm): 740
• Packed Depth (mm): 800
• Packed Height (mm): 710
• Power Delivery: 240V, 3.1kW / 15A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour
