Overview

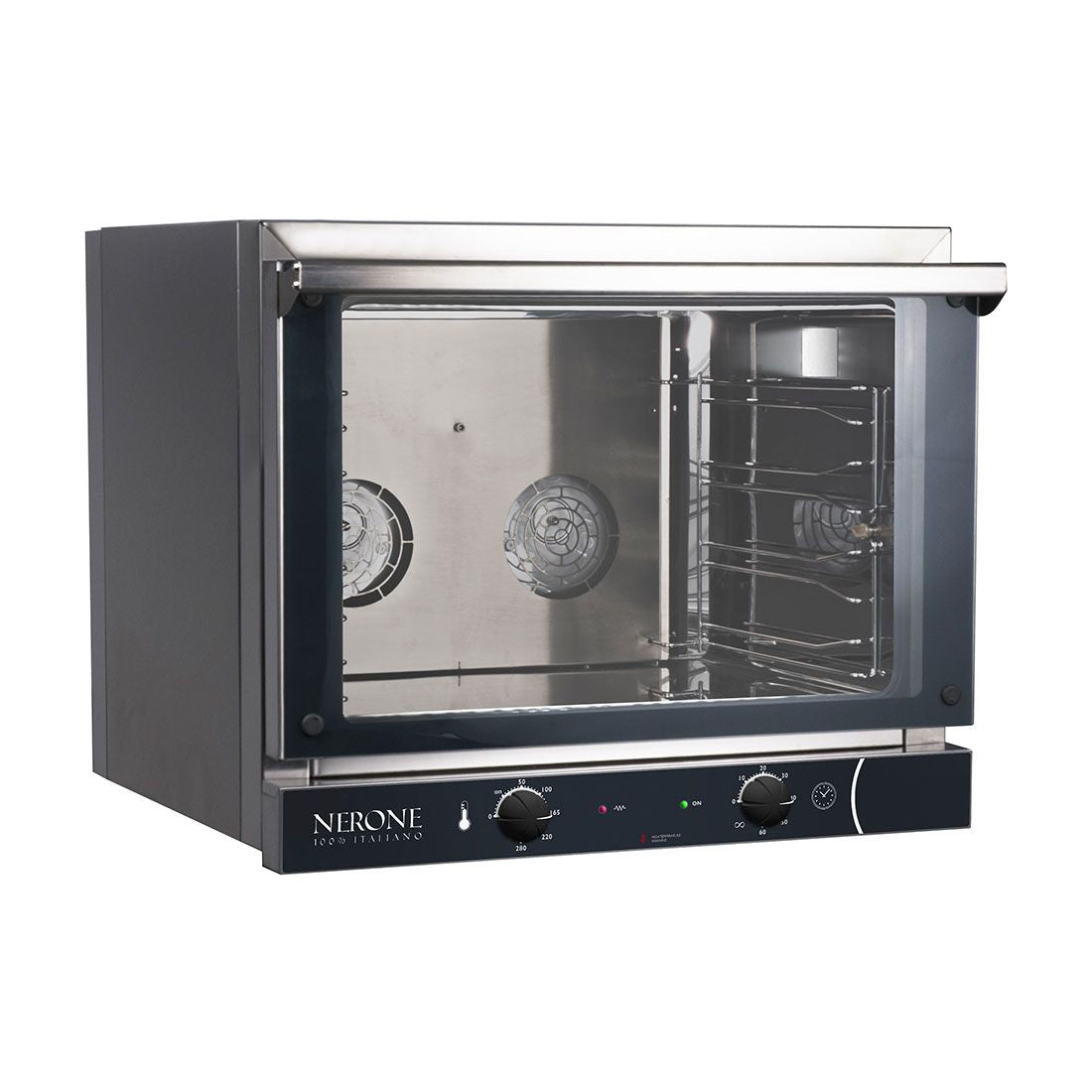

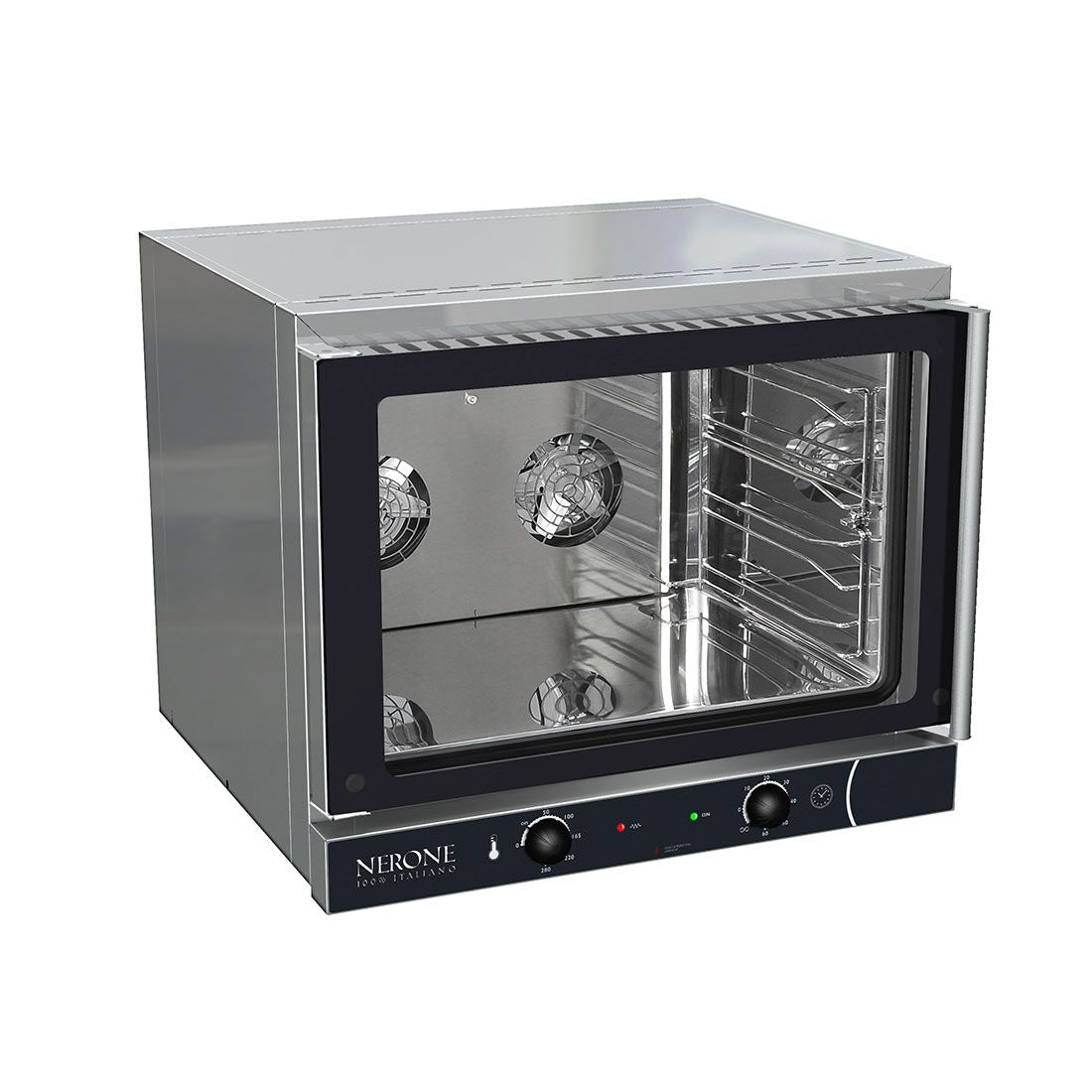

Tecnodom TDE-4CGN Nerone EKO GN 1/1 Tray Convection Oven

The Tecnodom TDE-4CGN is part of the Italian-engineered Nerone EKO range, purpose-built to deliver consistent, fan-forced convection cooking for modern commercial kitchens. With a temperature range of 50°C to 280°C, a generously sized GN 1/1 cooking chamber, and manual analogue controls for straightforward operation, this compact oven suits cafés, bakeries, restaurants, and catering operations that demand reliable, repeatable results across baking, roasting, reheating, and finishing applications.

Designed with practicality and hygiene at the forefront, the Nerone EKO features a stainless steel cooking chamber with rounded corners for easy cleaning, an innovative Overture folding door for wide access, and an interlocking gasket fixing system for a secure seal. Rated to IPX3 standard, fitted with high-resistance hinges and LED alarms, and backed by a one-year parts and labour warranty, this oven combines Italian precision engineering with the durability and ease of maintenance required in high-demand foodservice environments.

Key Benefits

• Fan-forced convection circulates heat evenly throughout the cooking chamber, delivering uniform results across every tray for consistent baking and roasting.
• Wide temperature range from 50°C to 280°C provides the versatility to handle everything from gentle reheating through to high-heat roasting in a single unit.
• The Overture folding door opens fully for unobstructed access to trays, speeding up loading and unloading during busy service periods.
• Rounded corners inside the stainless steel cooking chamber minimise food and grease build-up, significantly reducing cleaning time between sessions.
• Compact 686mm-wide footprint allows the oven to sit comfortably on standard commercial benchtops without consuming excessive kitchen space.
• Manual analogue controls with a 60-minute timer or infinite setting give operators straightforward, intuitive control without complex programming.
• IPX3-rated construction allows safe cleaning with water spray, simplifying end-of-day kitchen hygiene routines.
• Includes one solid tray and three wire racks straight out of the box, so the oven is ready for immediate use across a variety of cooking tasks.
• Low-e tempered double-glazed glass door retains heat effectively, supporting energy efficiency while allowing operators to monitor cooking without opening the oven.

Key Features

• GN 1/1 tray convection oven with fan-forced heating system
• Stainless steel cooking chamber (304-grade) with rounded corners for hygiene and easy maintenance
• Stainless steel exterior construction for durability and a professional finish
• Tempered low-e double-glazed glass door for heat retention and clear cooking visibility
• Overture folding door design for wide opening and improved access
• Temperature range: +50°C to +280°C
• 60-minute timer with infinite (continuous) setting option
• 84mm distance between tray runners for accommodating varied food heights
• Internal cooking chamber dimensions: 560 x 420 x 370mm
• Machine dimensions: 686 x 660 x 580mm
• Power: 240V, 3.1kW, 15A
• Interlocking gasket fixing system for a reliable door seal
• High-resistance hinges for long-term durability under frequent use
• LED alarms for operational alerts
• Internal light for monitoring the cooking process without opening the door
• Rated to IPX3 standard for water-spray resistance
• Includes 1 solid GN 1/1 tray and 3 wire racks
• Made in Italy
• 1-year parts and labour warranty

Specifications

• Width (mm): 589
• Depth (mm): 660
• Height (mm): 580
• Weight (kg): 43
• Packed Width (mm): 720
• Packed Depth (mm): 725
• Packed Height (mm): 725
• Shipping Weight: 37
• Power Delivery: 240V, 3.1kW / 15A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour
