Overview

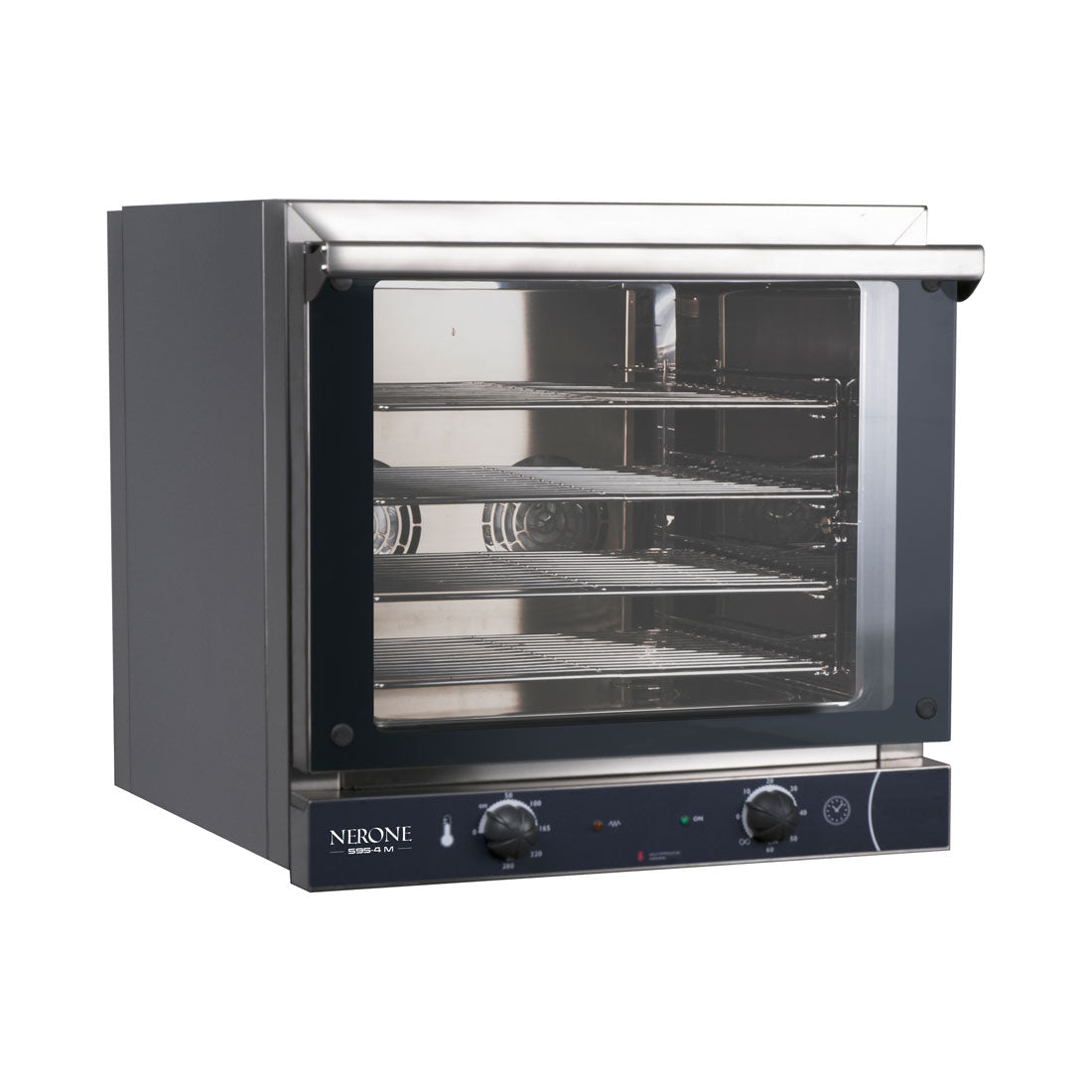

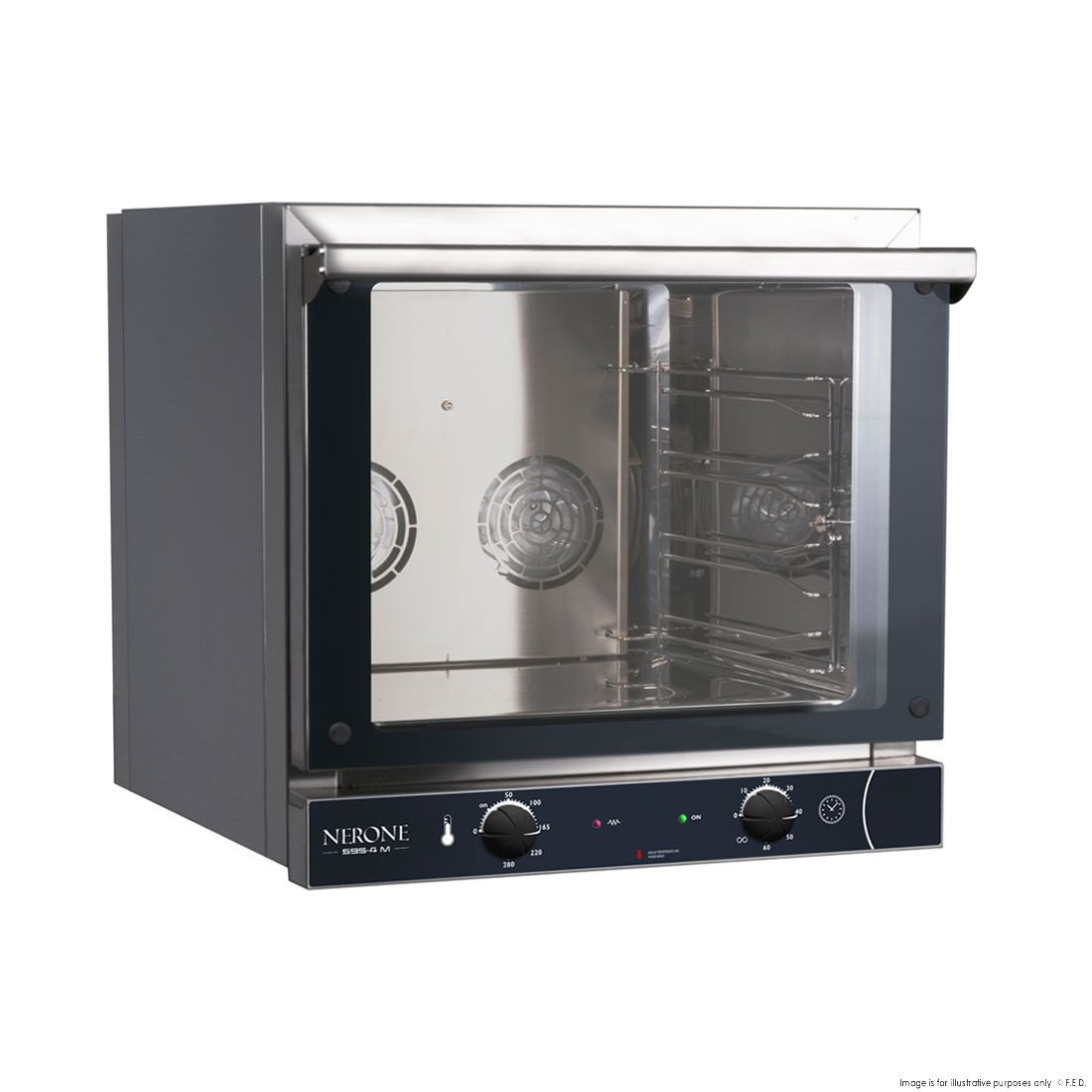

Tecnodom TDE-4C Nerone EKO 435x350 Tray Convection Oven

The Tecnodom TDE-4C is a compact fan-forced convection oven from the Nerone EKO range, purpose-built for professional catering environments including cafes, bakeries, and commercial kitchens. Accommodating 435x350mm trays with 84mm between tray levels, it delivers consistent, even heat distribution across every batch while occupying a minimal benchtop footprint.

Designed with a focus on operational simplicity and easy maintenance, the TDE-4C features a stainless steel cooking chamber with rounded corners, a tempered low-e glass Overture folding door, and IPX3-rated water-resistant construction. A temperature range of +50°C to +280°C combined with a 60-minute timer or infinite hold setting gives operators precise control for a wide variety of cooking applications.

Key Benefits

• Fan-forced convection circulates heat evenly throughout the chamber, producing consistent results for baked goods, roasted dishes, and pastries across every tray simultaneously.
• Wide temperature range from +50°C to +280°C suits diverse cooking tasks, from gentle warming through to high-heat roasting and baking.
• The 60-minute countdown timer or infinite hold mode allows operators to match the oven's behaviour precisely to the task at hand, reducing the risk of over- or under-cooking.
• Rounded corners in the stainless steel cooking chamber minimise food and grease traps, making routine cleaning faster and more thorough.

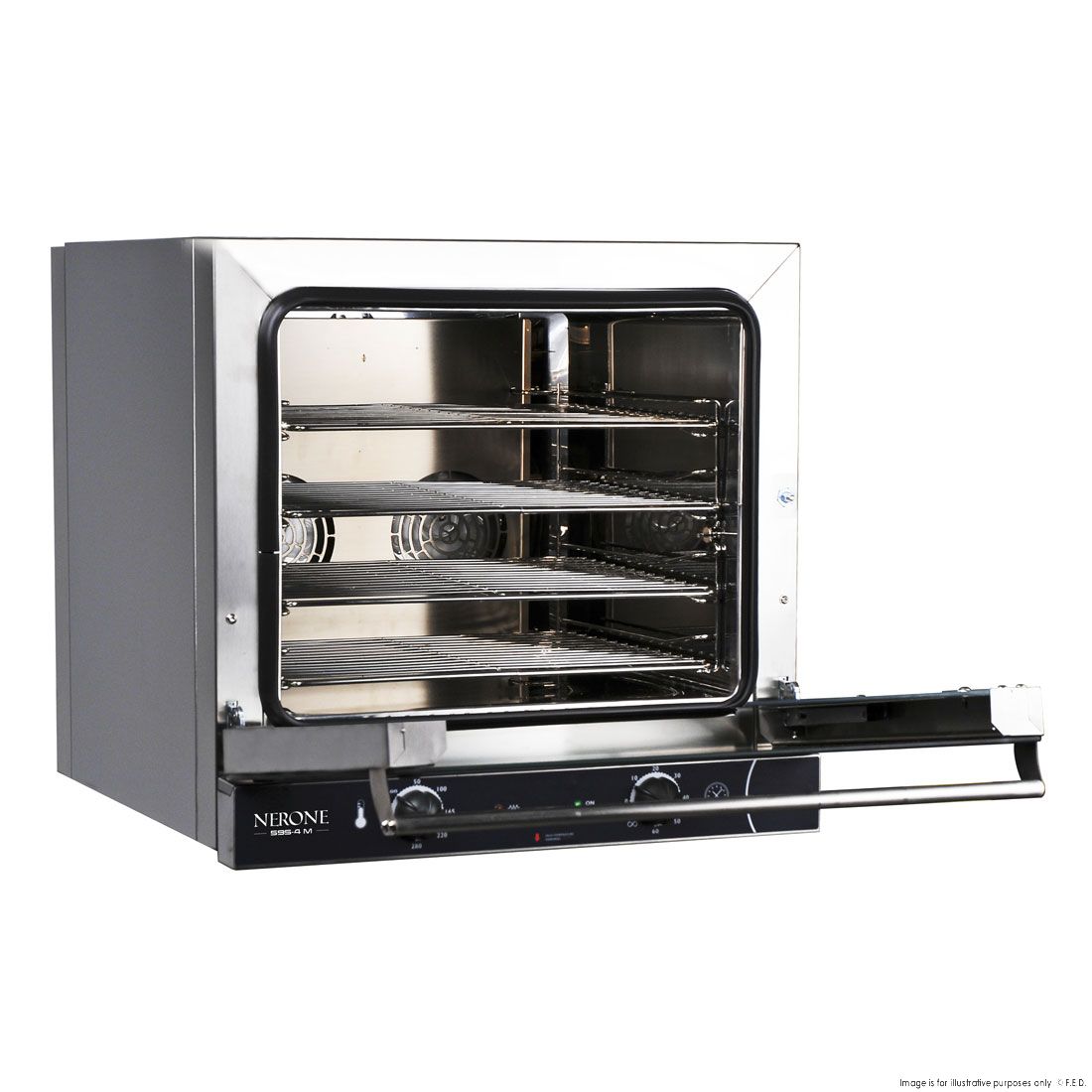

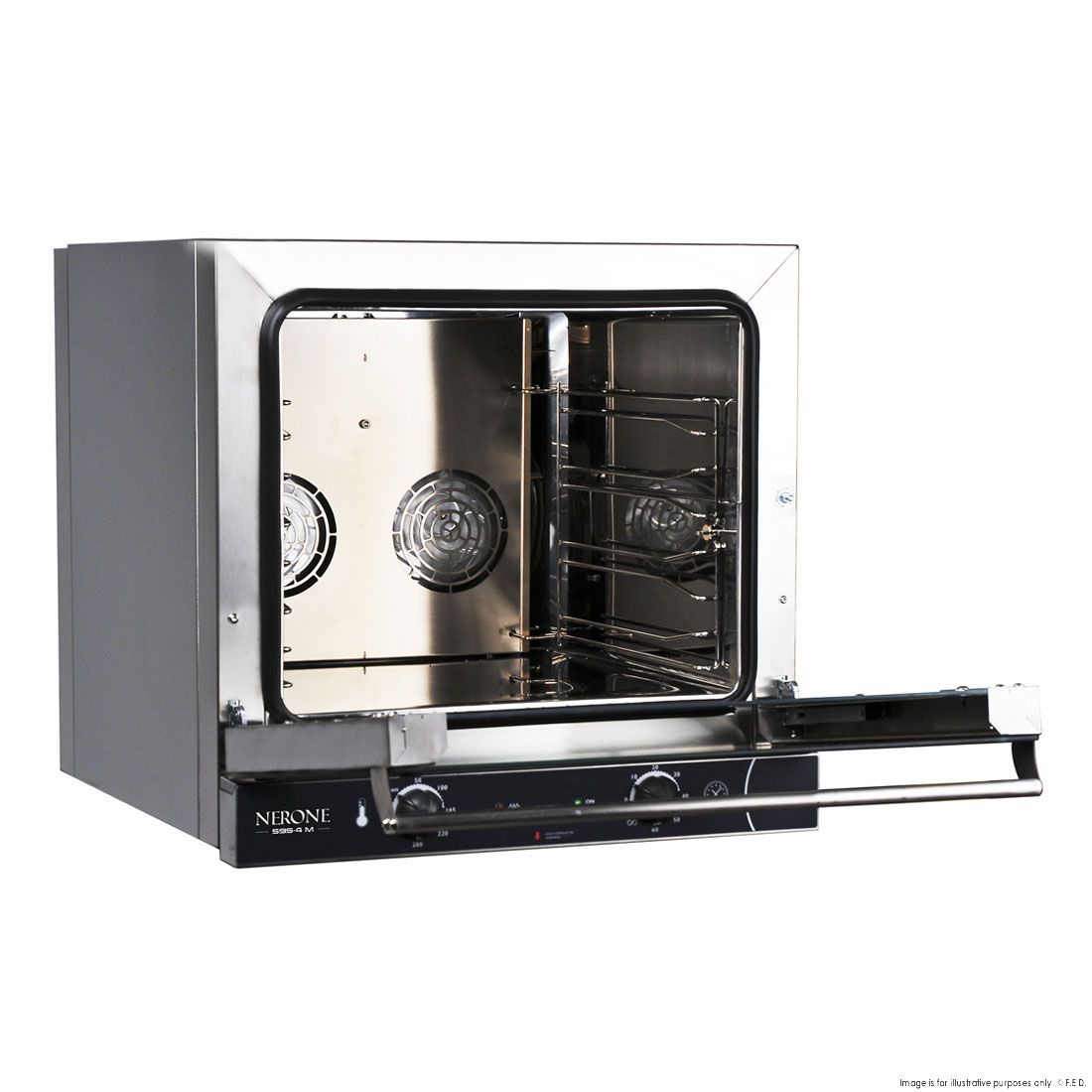

• The Overture folding door design provides a wide, unobstructed opening for easy tray loading and unloading, reducing handling time during busy service periods.
• IPX3-rated water-resistant construction allows for confident hosing-down during cleaning without risk of damage to electrical components.
• LED alarms and an interlocking gasket fixing system support both operator awareness and consistent door sealing for efficient heat retention.
• Compact external dimensions of 589x660x580mm make the unit well suited to kitchens where bench space is at a premium.
• Supplied with one solid tray and three wire racks, the oven is ready to use immediately across a range of cooking styles straight out of the box.

Key Features

• Accepts 435x350mm trays with 84mm clearance between tray levels
• Stainless steel cooking chamber with rounded corners for easy cleaning and hygiene
• Internal chamber dimensions: 464x420x370mm
• Fan-forced convection heating system for uniform heat distribution
• Temperature range: +50°C to +280°C
• 60-minute countdown timer with an infinite (continuous) hold option
• Tempered low-e glass for improved thermal insulation and door visibility
• Overture folding door design for wide-access loading and unloading
• High-resistance hinges for long-term door durability under heavy use
• Interlocking gasket fixing system ensures a consistent, airtight door seal
• LED alarms to alert operators to key operating states
• IPX3-rated water-resistant construction
• Double-glass insulated door for operator safety and energy efficiency
• Internal light for clear visibility of food during the cooking cycle
• External dimensions: 589x660x580mm (W x D x H)
• Power supply: 240V, 2.35kW, 10A
• Supplied with 1 solid tray and 3 wire racks
• Part of Tecnodom's Nerone EKO range, designed for simplicity in operation and maintenance
• HACCP compliant
• 1 year parts and labour warranty

Specifications

• Width (mm): 589
• Depth (mm): 660
• Height (mm): 580
• Weight (kg): 39
• Packed Width (mm): 720
• Packed Depth (mm): 625
• Packed Height (mm): 725
• Power Delivery: 240V, 2.35kW /10A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour
