Overview

Tecnodom TDC-5VH Nerone CL Digital 5 Tray Combi Oven

The Tecnodom TDC-5VH Nerone CL Digital is a professional 5-tray combi oven built to deliver consistent, high-quality results across a full range of cooking methods, including convection, steam, combination cooking, and food regeneration. Part of Tecnodom's premium Nerone range, it brings together advanced technology, thoughtful engineering, and practical simplicity to meet the demands of modern commercial kitchens, cafés, restaurants, and catering operations.

Designed with essentiality and ease of maintenance in mind, the TDC-5VH features a fully stainless steel cooking chamber, fans that automatically reverse direction across four selectable speed settings, and an automatic four-stage cleaning system included as standard. Its flexible tray compatibility, a digital control interface storing up to 99 recipes each comprising as many as five individual cooking stages, and a multi-sensing core probe make it a highly capable and efficient cooking solution for busy service environments.

Key Benefits

• Convection, steam, and combination cooking modes in a single unit reduce equipment footprint and capital outlay for smaller operations.
• Fans that automatically reverse direction across four selectable speed settings ensure even heat distribution throughout the chamber, maintaining cooking consistency even at low fan speeds.
• Storage for 99 fully editable recipes, each structured across as many as five sequential cooking stages, allows kitchen teams to lock in precise parameters and deliver repeatable results service after service.
• The multi-sensing core probe monitors internal food temperature in real time, reducing the risk of over or undercooking and supporting food safety compliance.
• The automatic four-stage cleaning system with liquid lines removes the burden of manual scrubbing, saving labour time and supporting hygiene standards at the end of service.
• Two-stage door opening releases steam and hot air in a controlled manner, reducing the risk of burns and improving operator safety during busy periods.
• Infinity mode enables continuous operation during extended service periods, keeping the oven ready without interruption.
• Compatibility with both 600 x 400 mm trays and standard GN trays provides flexibility across diverse menu requirements without needing separate equipment.
• The twin front glass viewing window keeps the outer surface cool to the touch while allowing chefs to monitor cooking progress without opening the door.

Key Features

• 5-tray GN 1/1 capacity, suitable for smaller restaurants, cafés, catering businesses, and bakeries
• Convection mode with a temperature range spanning 30°C up to a maximum preheat of 280°C
• Steam function at 100°C with 100% moisture capability for precise humidity control
• Delta T (ΔT) cooking mode and Stove Cooking Mode for specialised cooking techniques
• Infinity mode for uninterrupted continuous operation during extended service
• Up to 99 fully editable recipe slots, each configurable across as many as five cooking stages
• Multi-sensing core probe included as standard for accurate internal food temperature monitoring
• Fan motors that automatically reverse direction with four selectable speed settings for uniform heat distribution at all fan settings
• Automatic 4-stage cleaning system with dedicated liquid lines, included as standard

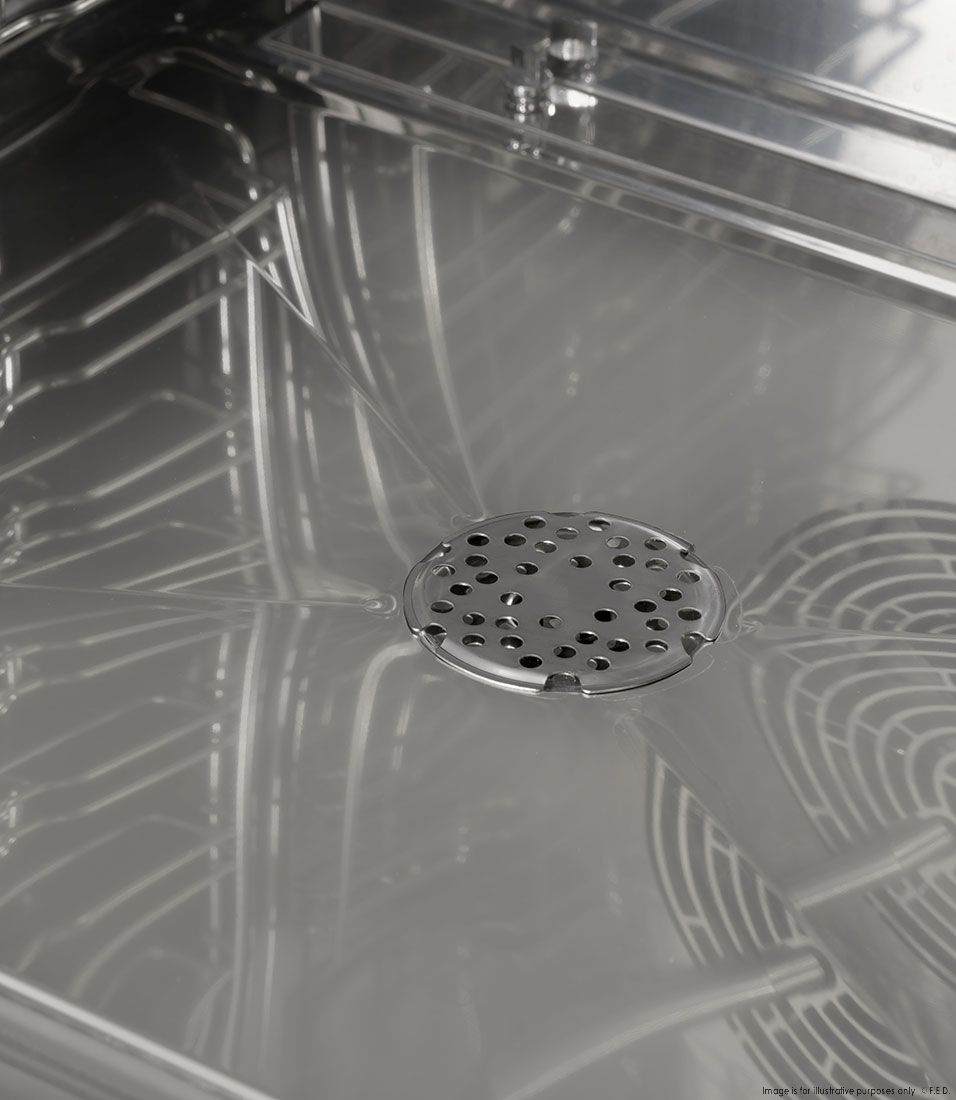

• Full stainless steel cooking chamber for durability and ease of cleaning

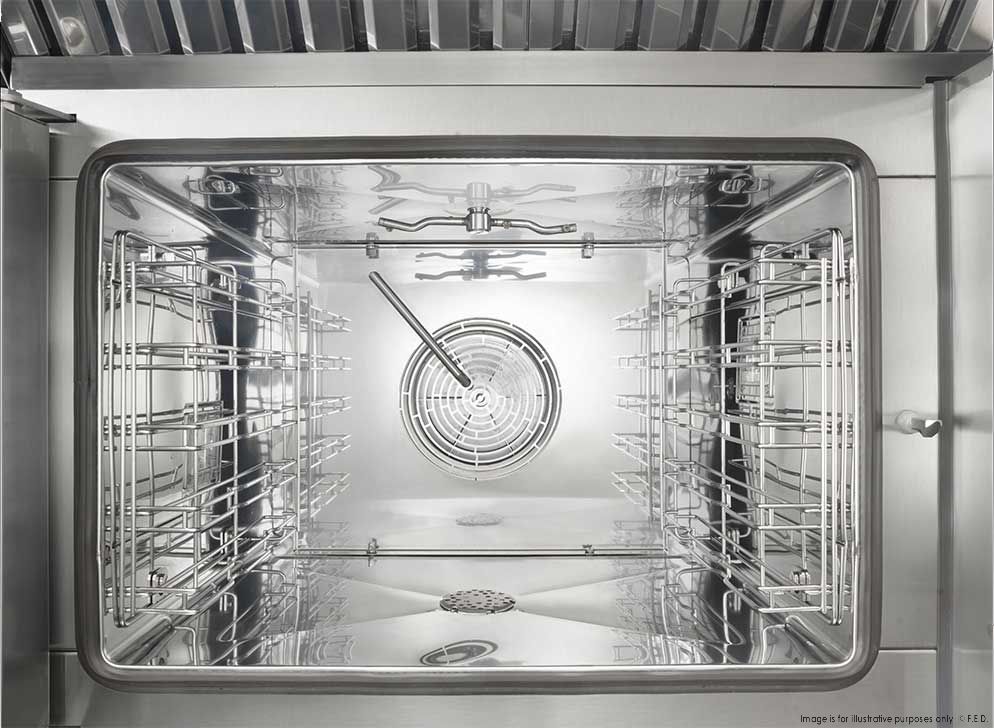

• Removable tray supports in chromed steel for straightforward cleaning and maintenance
• Chamber accommodates both 600 x 400 mm trays and GN trays for greater menu flexibility

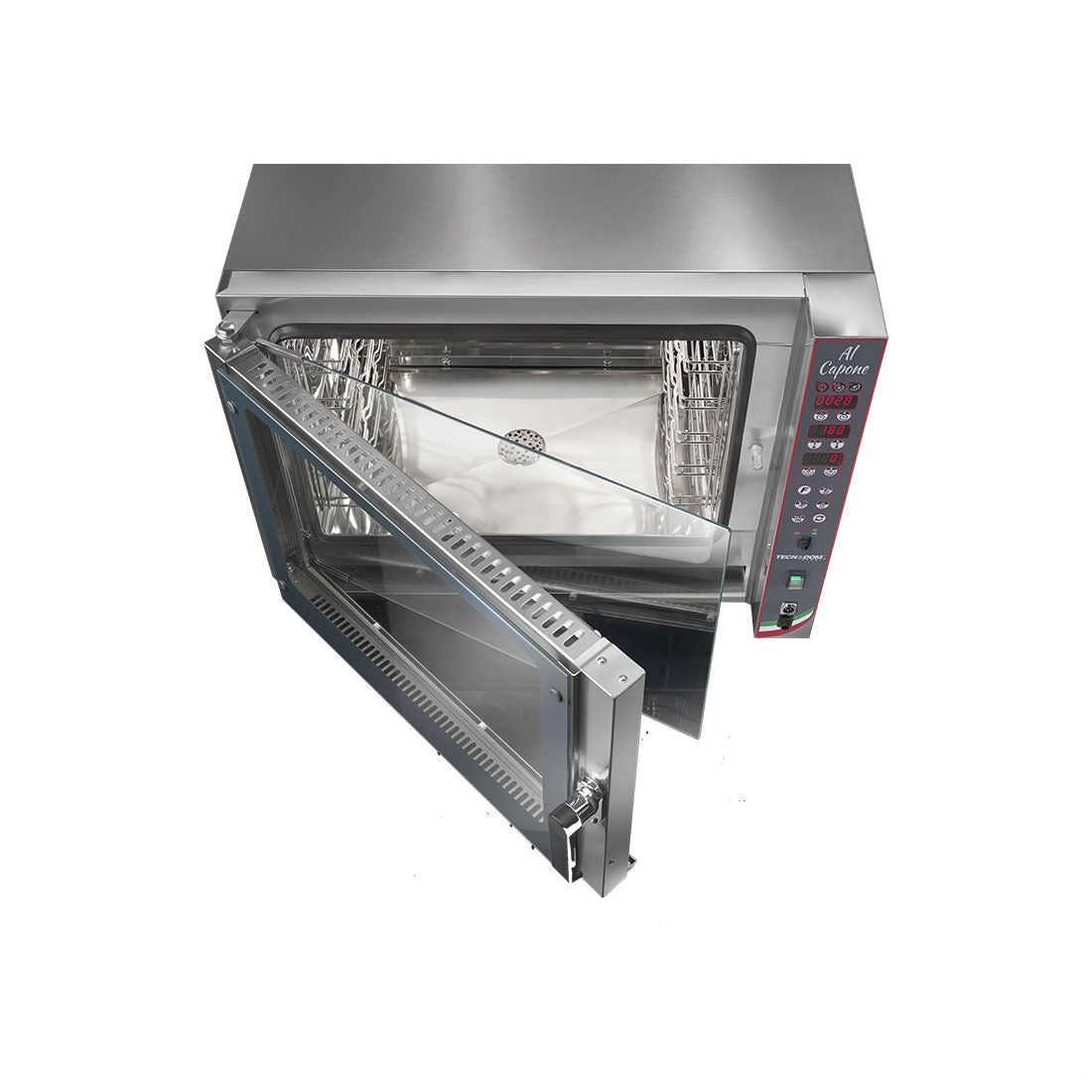

• Two-stage door opening mechanism to safely vent steam and hot air before full opening, protecting operators

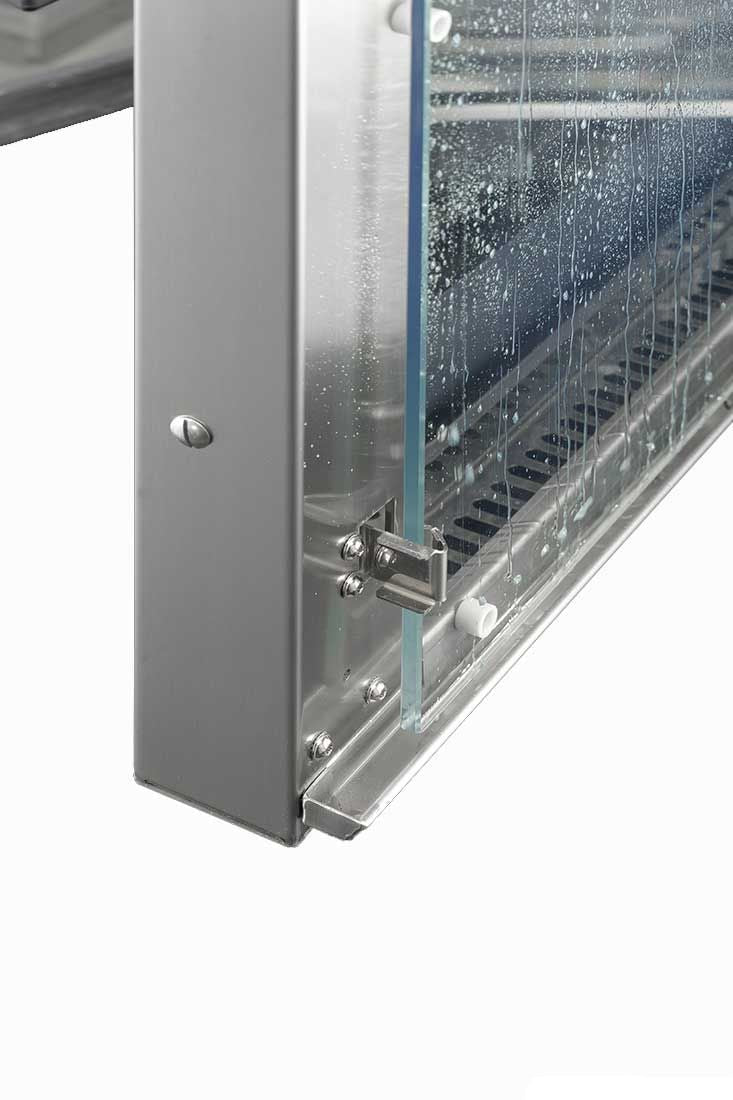

• Twin front glass door construction to reduce external surface heat on the viewing window

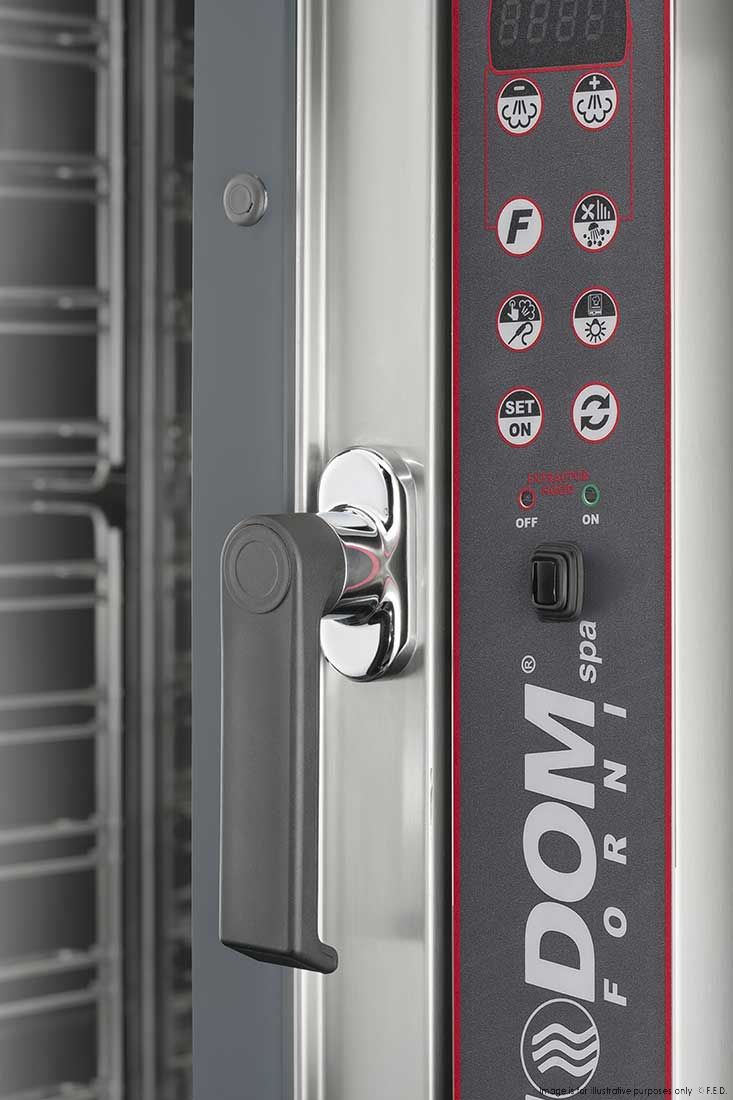

• User-friendly digital display with intuitive controls
• Optional integrated condenser hood available
• Optional electric hood available
• Pans and trays not included
• 415V, 6.45 kW, 3N power supply
• 1 year parts and labour warranty

Specifications

• Width (mm): 920
• Depth (mm): 840
• Height (mm): 770
• Weight (kg): 112
• Packed Width (mm): 880
• Packed Depth (mm): 955
• Packed Height (mm): 900
• Shipping Weight: 89
• Shipping Cubic: 0.768000000m3
• Power Delivery: 415V ; 6.45kW / 3N
• Power (kW): 415
• Warranty (months): 1 Year Parts and Labour
