Tecnodom TDVB80-CA-187 Vulcano Supermarket 3 Door Open Display

The Tecnodom Vulcano TDVB80-CA-187 is a three-door open-front supermarket display cabinet built for high-traffic retail and hospitality environments, including supermarkets, convenience stores, and grocery outlets. Finished in Colorbond with a Colorbond body, it operates within a temperature range of 0°C to +4°C and carries a Climate Class 4 rating, making it suitable for ambient conditions up to 30°C at 55% relative humidity.

Designed for straightforward installation and reduced ongoing maintenance, the Vulcano features a built-in condensing unit with an automatic water evaporation system using a stainless steel serpentine, eliminating the need for manual defrost drainage in standard operation. A dedicated tropical tundish circuit runs on a separate 1000W element (requiring its own 10A outlet), while the main unit draws 3100W via a 15A connection, giving operators flexibility and reliability across demanding service periods.

Key Benefits

• Open-front three-door configuration allows easy self-service product access and maximises customer throughput in busy retail settings.
• Ventilated cooling system distributes temperature evenly across all shelf levels, keeping chilled products consistently within the safe 0°C to +4°C range.
• Built-in condensing unit simplifies installation by removing the need for remote refrigeration infrastructure, reducing setup time and cost.
• Automatic water evaporation system with stainless steel serpentine minimises manual maintenance and keeps the unit hygienic without operator intervention.
• Top ceiling LED lighting illuminates displayed products attractively, improving visibility and encouraging purchase without generating excess heat.
• Castors provide easy repositioning for cleaning, floor maintenance, or store layout changes.
• Separate tropical tundish circuit on its own electrical supply protects the main refrigeration system and allows independent management of condensate in high-humidity conditions.
• Large 3.79 m² display surface with 380 mm deep shelves accommodates a wide variety of packaged dairy, beverages, and chilled goods.
• Two-year parts and labour warranty delivers confidence and lower total cost of ownership over the unit's working life.

Key Features

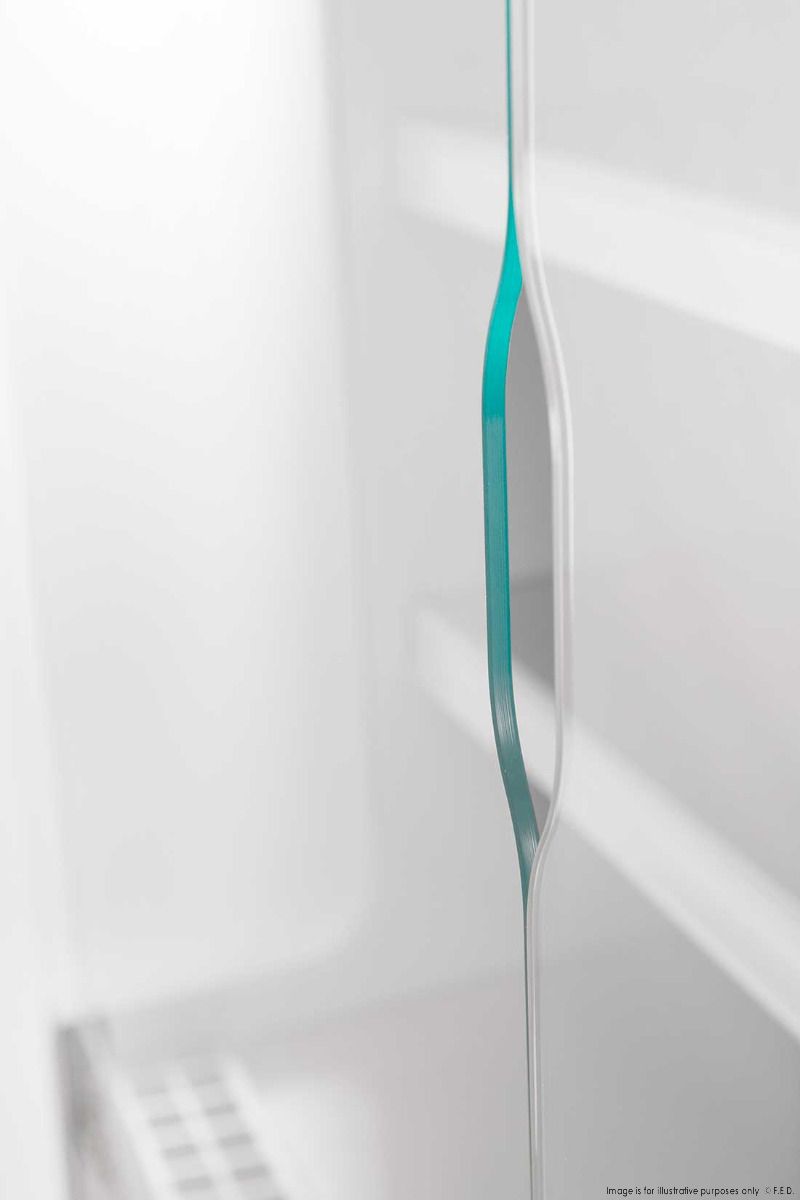

• Three hinged glass doors, each 620 mm wide, for clear product visibility and easy customer access.
• Total display surface area of 3.79 m².
• Shelf depth of 380 mm to accommodate a range of retail product formats.
• Ventilated cooling system for uniform temperature distribution across all shelves.
• Operating temperature range: 0°C to +4°C.
• Climate Class 4 rated: designed for ambient environments up to 30°C at 55% relative humidity.
• Built-in condensing unit for self-contained, easy-install operation.
• Automatic water evaporation system fitted with stainless steel serpentine (CG) to handle condensate without manual removal.
• Separate tropical tundish circuit powered by a dedicated 1000W element on its own 10A circuit.
• Main power draw of 3100W requiring a 15A connection; secondary tundish circuit requires a 10A connection.

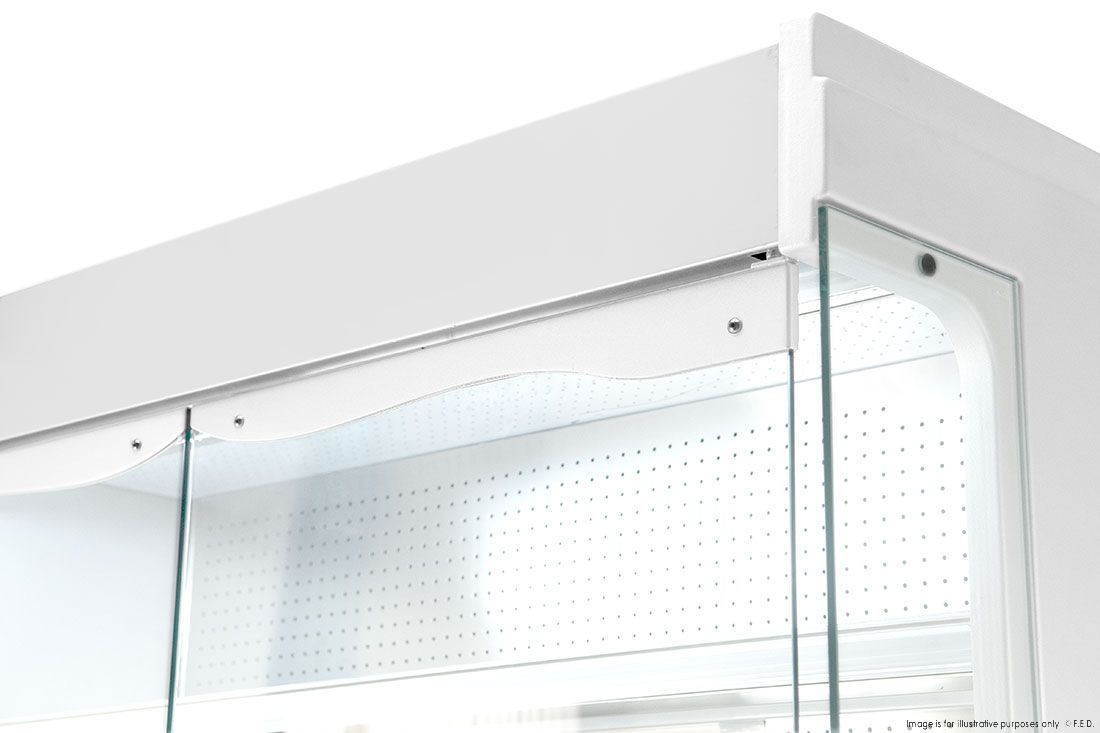

• Top ceiling LED lighting for product illumination.
• Colorbond body construction.
• Castors/wheels for mobility and ease of repositioning.
• Tundish drain connection required during installation.
• Dimensions: 1955 mm wide x 765 mm deep x 2130 mm high.
• Unit weight: 1006.5 kg.
• Packed dimensions: 880 mm wide x 2070 mm deep x 2210 mm high.
• 2-year parts and labour warranty.

Specifications

• Width (mm): 1955
• Depth (mm): 765
• Height (mm): 2130
• Weight (kg): 1006.5
• Packed Width (mm): 880
• Packed Depth (mm): 2070
• Packed Height (mm): 2210
• No. of Doors: 3
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Castors/Wheels
• Power Delivery: 3100W + 1000W (1 x 15Amp + 1 x 10Amp)
• Power (kW): 3100
• Warranty (months): 2 Years Parts and Labour
• Temperature Range: +2°C to +8°C (approx.)
