Overview

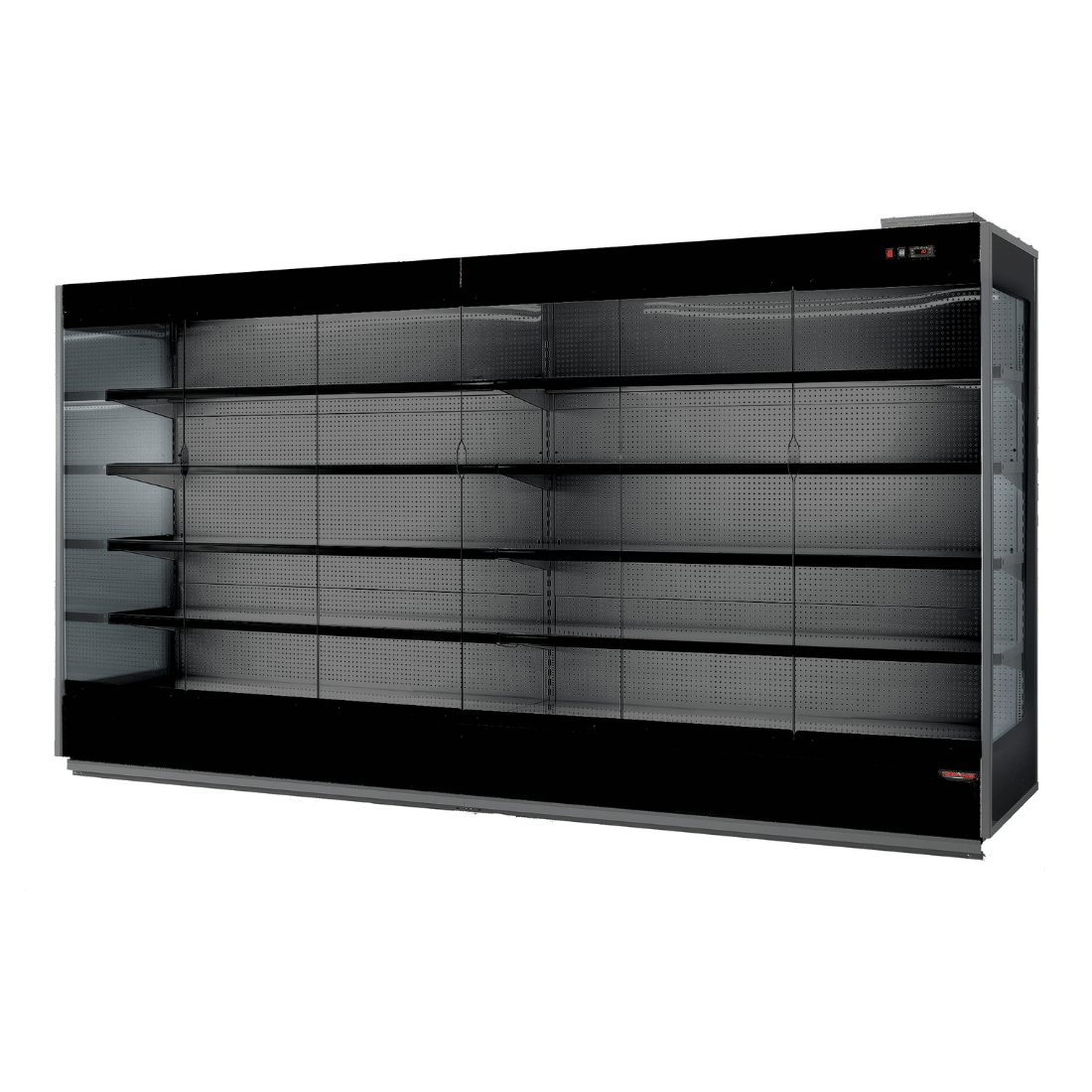

Tecnodom TDST90-CA-375BD Stromboli Supermarket Remote Display Fridge with Doors

The Tecnodom TDST90-CA-375BD Stromboli is a large-format remote refrigerated display unit purpose-built for supermarkets and high-volume retail environments. Designed and manufactured in Italy, this six-door cabinet delivers a generous 4.34 m² of display area and 3.58 m³ net volume within a relatively compact footprint, making it well suited to busy retail floors where maximising product visibility is essential. It operates on a remote refrigeration system, keeping compressor heat and noise out of the sales area.

Maintaining a precise temperature range of 0°C to +2°C, the unit uses fan-forced air circulation combined with electric defrost to ensure consistent, even cooling across all shelves. Tempered double-glazed glass doors, transparent glass side walls and LED lighting at both the ceiling top and each shelf level create an inviting, well-lit display that showcases chilled products to encourage sales. A night blind further supports energy savings during closed trading hours, while CFC-free construction and low overall energy consumption reflect a responsible environmental footprint.

Key Benefits

• Remote refrigeration system relocates the condensing unit away from the sales floor, reducing in-store heat load and ambient noise for a more comfortable shopping environment.
• Large 4.34 m² display area and six hinged doors give customers clear, accessible visibility of the full product range, supporting higher basket conversion.
• Tempered 30 mm double-glazed doors and transparent glass side walls maximise sightlines to merchandise from multiple angles, reducing the need for customers to open doors to browse.
• LED lighting at the ceiling top and along every shelf ensures bright, consistent illumination throughout the cabinet, keeping products looking fresh and appealing.
• Precisely controlled 0°C to +2°C temperature range maintains the cold chain for perishable goods such as dairy, deli items and chilled beverages.
• Night blind reduces energy consumption during non-trading hours, lowering running costs without compromising product safety.
• Optimised cleaning system and four-legged base simplify routine sanitation, helping staff maintain hygiene standards quickly and efficiently.
• CFC-free refrigerant and low energy consumption reduce the unit's environmental impact while aligning with increasingly stringent regulatory requirements.
• Italian-engineered design combines practical easy installation with a retail-ready aesthetic, minimising fit-out time and disruption for large store rollouts.

Key Features

• Remote refrigeration model — condensing unit installed separately from the display cabinet
• Six hinged doors providing full-length access to the cabinet interior
• Net internal volume of 3.58 m³ with a total display area of 4.34 m²
• Operating temperature range: 0°C to +2°C
• Rated for ambient conditions of 30°C / 55% relative humidity

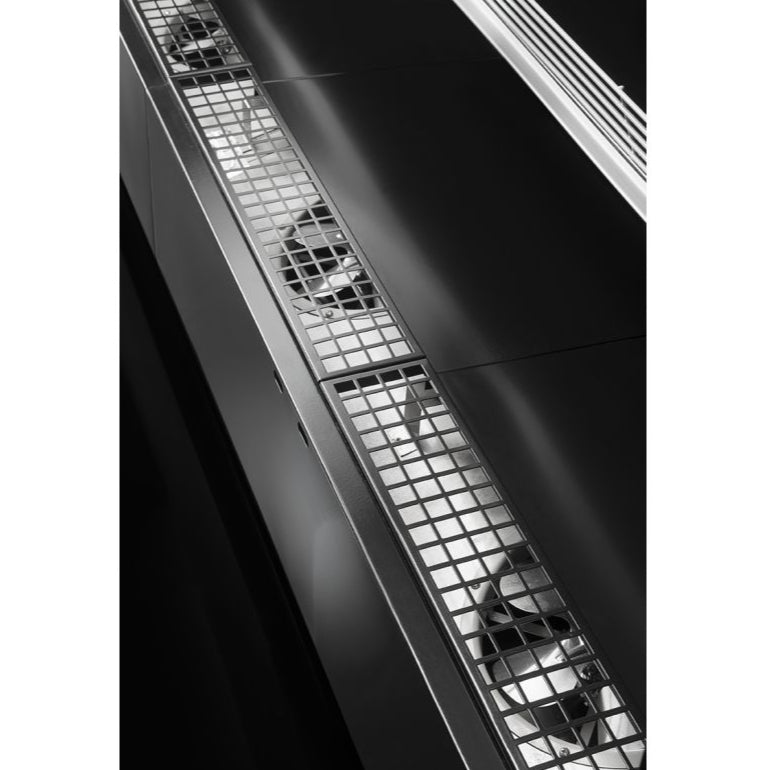

• Fan-forced air circulation for uniform temperature distribution across all shelves
• Electric defrost with heating element
• Tempered double-glazing glass doors with 30 mm thickness
• Transparent glass side walls to maximise lateral product visibility
• LED lighting at the ceiling top and at every shelf level
• 434 mm deep shelves with 279 mm gap between each shelf
• Electronic control panel for precise temperature and operational management
• Night blind included to reduce energy use during closed hours
• CFC-free belly (refrigerant circuit) construction
• Four adjustable legs for levelling on uneven retail floors
• Colorbond body construction
• Fixed installation on legs — not wheeled
• Dimensions: 3,850 mm wide x 900 mm deep x 2,115 mm high
• Weight: 630 kg
• Power supply: 240 V, 2.5 kW / 10 A
• Packed dimensions: 3,790 mm wide x 1,000 mm deep x 2,210 mm high
• Designed, engineered and manufactured in Italy
• Suitable for large supermarket and retail outlet installations
• 1-year parts and labour warranty plus 1-year parts-only warranty when registered within 14 days of invoice

Specifications

• Width (mm): 3850
• Depth (mm): 900
• Height (mm): 2115
• Weight (kg): 630
• Packed Width (mm): 1000
• Packed Depth (mm): 3790
• Packed Height (mm): 2210
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Fixed/Legs
• No. of Doors: 6
• Cooling Type: Fan Forced
• Power Delivery: 240V, 2.5kW/10A
• Power (kW): 240
• Warranty (months): 1 Year Parts & Labour Plus 1 Year Parts Only Warranty When Products Registered Within 14D Of Invoice
