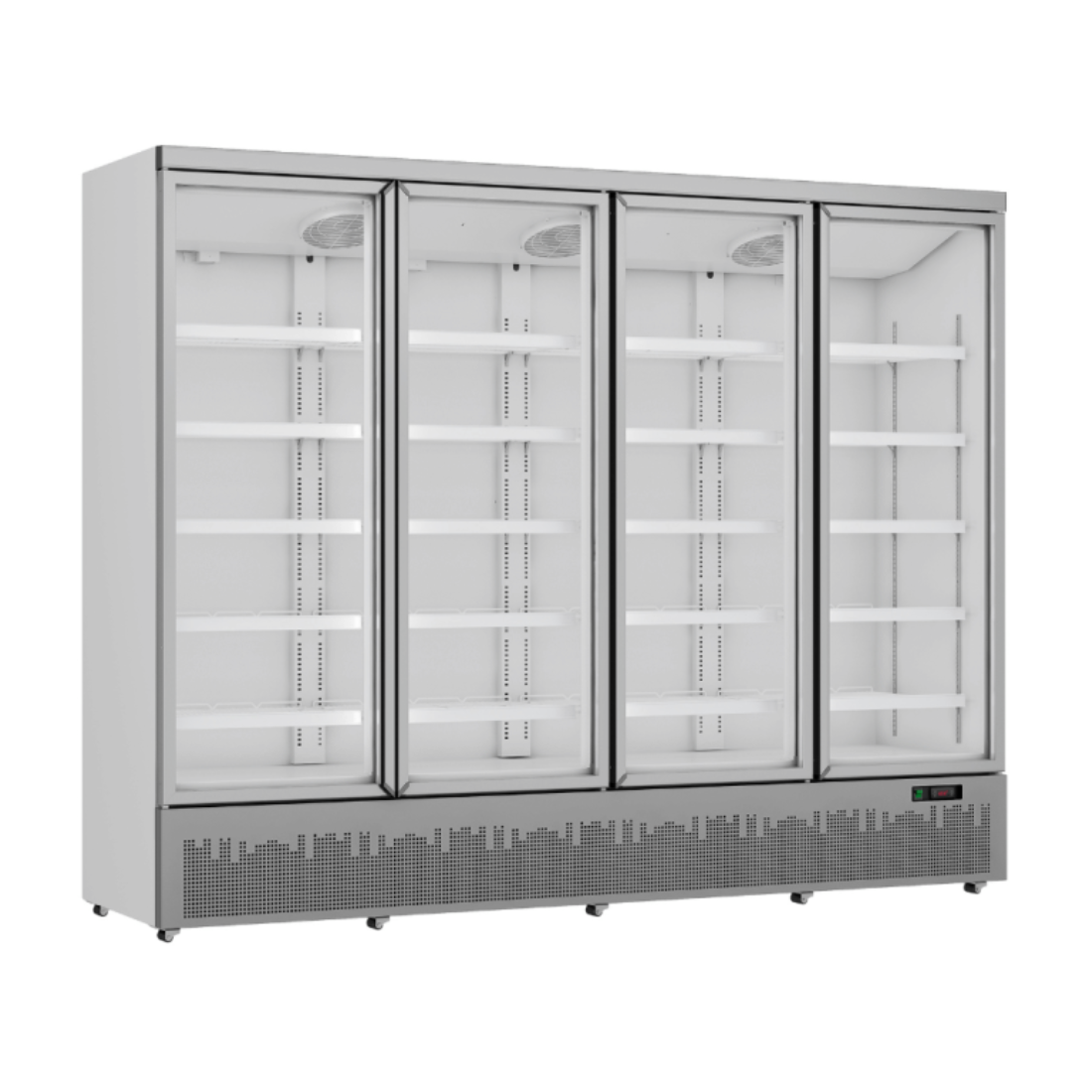

Thermaster 4 Door Glass Door Supermarket Freezer 1938L - LG-2500GBMF

Overview

Thermaster 4 Door Glass Door Supermarket Freezer 1938L - LG-2500GBMF

The Thermaster LG-2500 is a four-door glass door supermarket freezer built for supermarkets, convenience stores, bottle shops and food retailers across Australia that need large frozen display capacity in a single run of cabinets. At 2508 mm wide, it holds 1,938 litres of net product across 20 adjustable shelves, with 2.8 m² of display area behind heated triple-glazed doors.

Underneath sit three fully independent refrigeration circuits, each with its own compressor, evaporator, condenser and solenoid valve. If one circuit goes down, the other two keep running — on a single-circuit cabinet of this size, one compressor failure puts the entire 1,938 litres of stock at risk. This is the Colorbond finish, and it runs on a 240V 15 A supply.

Key Features

• Gross Volume - 2194L
• Net Volume - 1938L
• Forced air circulation – Fan-forced cooling with an air curtain holds an even temperature across all four doors, −22 to −18°C.
• Triple-glazed tempered glass – Heated triple glazing keeps the display face clear of condensation and fogging, with an aluminium door frame and handle.
• Three independent refrigeration circuits – Three hermetic compressors, one per circuit, each with its own evaporator, condenser and solenoid valve. A fault in one circuit does not take the whole cabinet down — critical redundancy at this capacity. Bottom-mounted condensing unit, serviced from the front through a removable grill.
• Adjustable shelves – 20 adjustable wire shelves, five per door, plus a stainless steel bottom plate. 2.8 m² of total display area.
• Interior LED lights – Four vertical LED light bars, 12 W each at 9000–10000 K — cold white light that suits frozen product.
• Self-closing doors – Doors close themselves behind a customer, so the cabinet is not left open during a busy trade period.
• Self evaporating drip tray – Condensate is handled on board — no plumbed floor waste required. The cabinet only needs a power outlet.
• Natural refrigerant – R290 hydrocarbon refrigerant, with cyclopentane insulation foam.
• Universal wheels – Ten heavy-duty nylon castors, five of them braked, so the cabinet can be rolled out for cleaning behind and repositioned without a pallet jack.
• Powder-coated interior – Powder-coated interior with a stainless steel bottom plate for hard daily retail use.
• Door Type - Hinged Glass Doors, Self-Closing
• Glass - Triple Glazed Tempered, Heated
• Body - Colorbond
• Door Lock - Door locks fitted

2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
