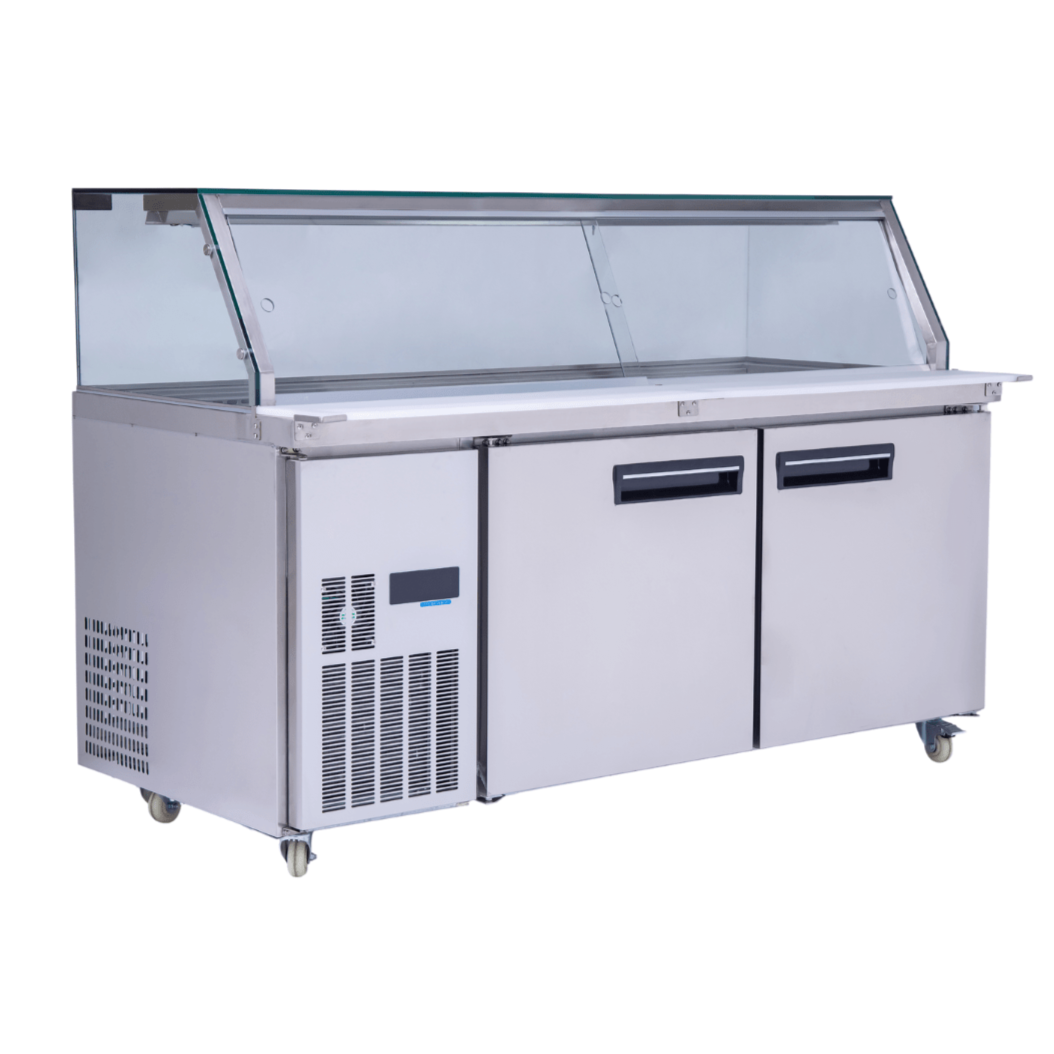

Thermaster PG180FA-XG Commercial Cold Salad and Noodle Bar – Five 1/1 GN Pan Configuration

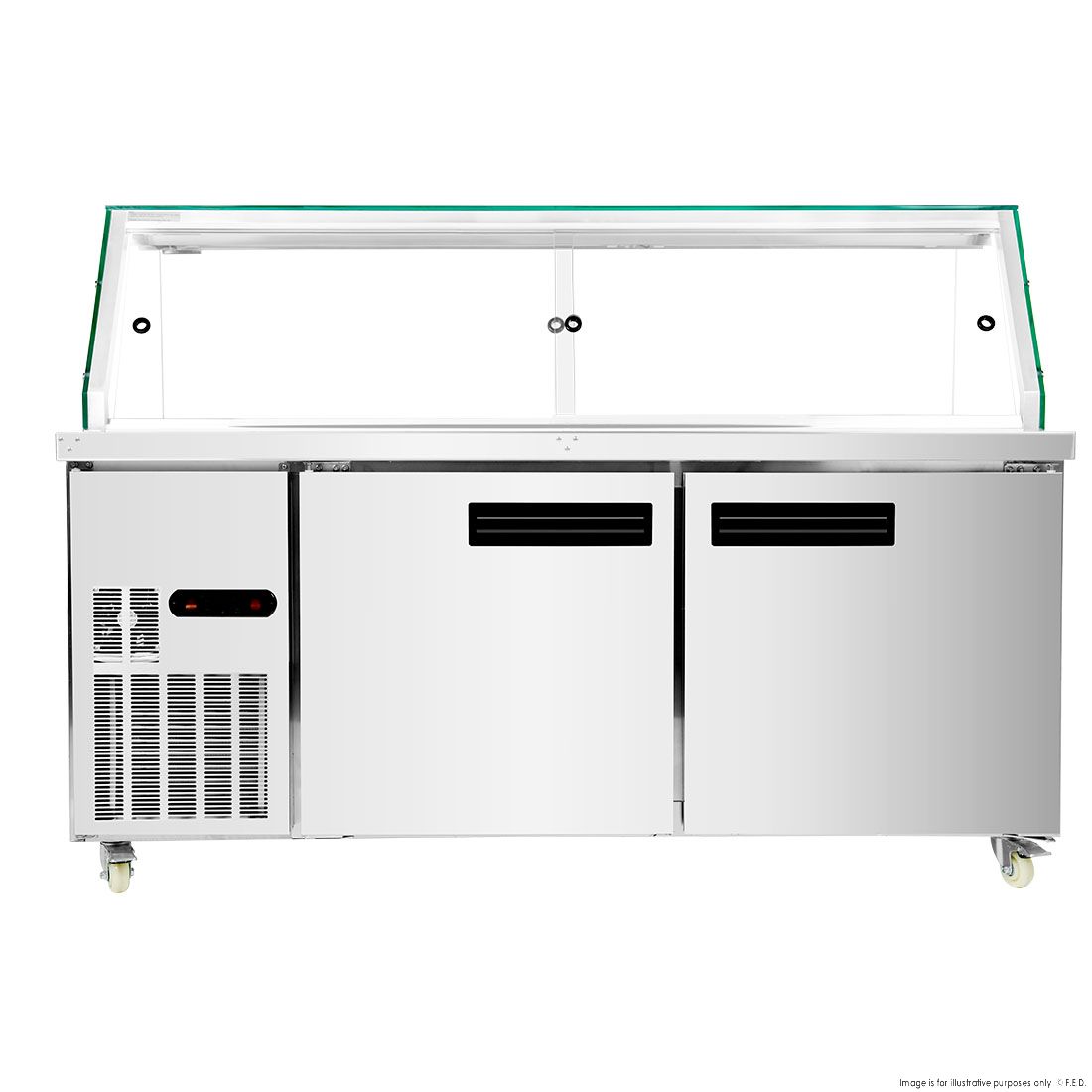

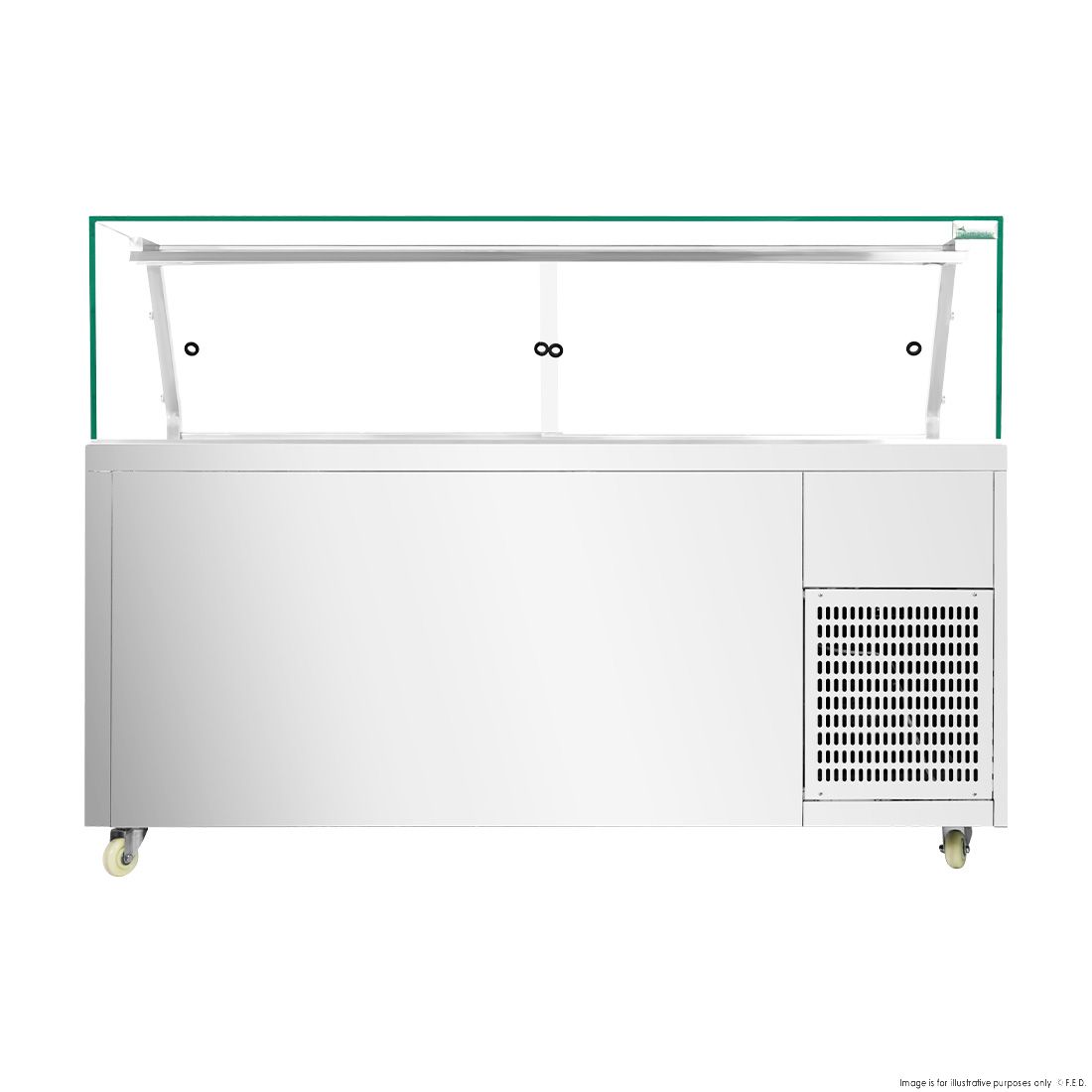

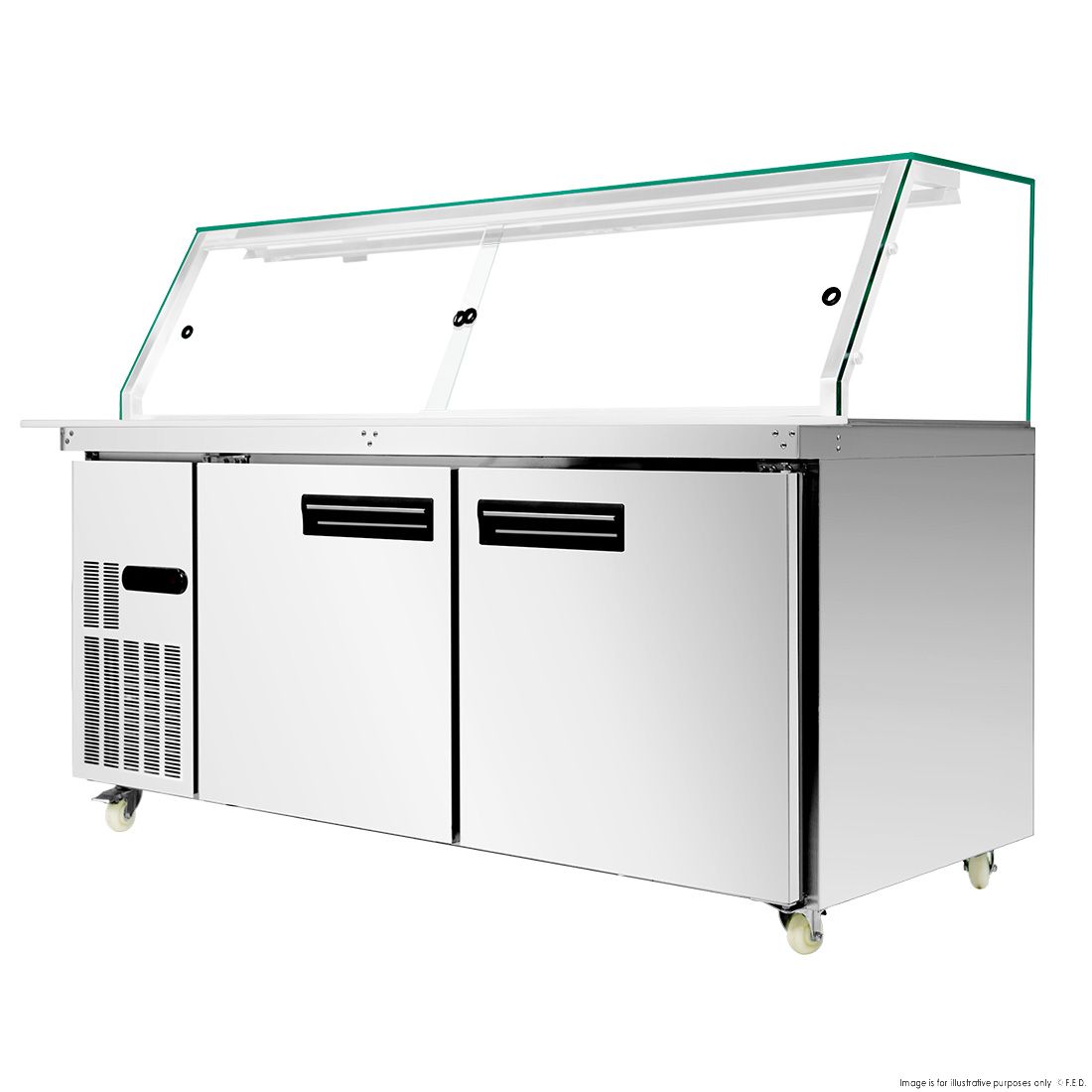

The Thermaster PG180FA-XG is a 1800mm wide commercial cold salad and noodle bar engineered for high-volume hospitality service. It holds five 1/1 GN pans with a maximum depth of 150mm, maintaining a temperature range of +1°C to +5°C in ambient conditions of up to 38°C and 50% relative humidity, making it well suited to busy restaurants, cafés, buffet counters, and catering venues. As a holding unit, all food must be pre-chilled to below 5°C before being placed in the top section. The unit is constructed entirely from stainless steel inside and out and features a tempered glass canopy with clear sliding doors on the serving side for hygienic, customer-facing food display.

A cassette-style cooling system with cross-flow fan circulation and a blown well delivers even, consistent refrigeration across all pan positions, while internal LED lighting enhances the visual appeal of displayed food. The 800L gross volume cabinet below provides shelved refrigerated storage, and the whole unit rolls on castors for straightforward repositioning on the floor. A 220mm deep rear working area with a polyethylene chopping board is included, and the completely removable refrigeration cassette simplifies servicing.

Key Benefits

• Consistent chilled holding at +1°C to +5°C protects food safety and quality throughout a full service period.
• Five 1/1 GN pan positions across a 1800mm width allow a diverse menu spread without occupying excessive counter space.
• Cross-flow fan cooling combined with a blown well distributes cold air evenly across all pan positions, preventing hot spots during peak service.
• Clear sliding serving doors and a tempered glass canopy keep food protected while allowing customers and staff to view and access items quickly.
• Internal LED lighting makes chilled dishes visually appealing, supporting impulse purchasing in buffet and display settings.
• The included 220mm deep polyethylene chopping board provides a dedicated rear prep area directly at the unit, streamlining service workflow.
• Auto defrost with a dedicated control button and automatic condensation evaporation reduce manual maintenance tasks and downtime.
• Rounded internal corners and an all-stainless interior simplify cleaning and support compliance with food hygiene requirements.
• Castors and a completely removable cassette refrigeration unit allow the bar to be relocated or serviced with minimal disruption.

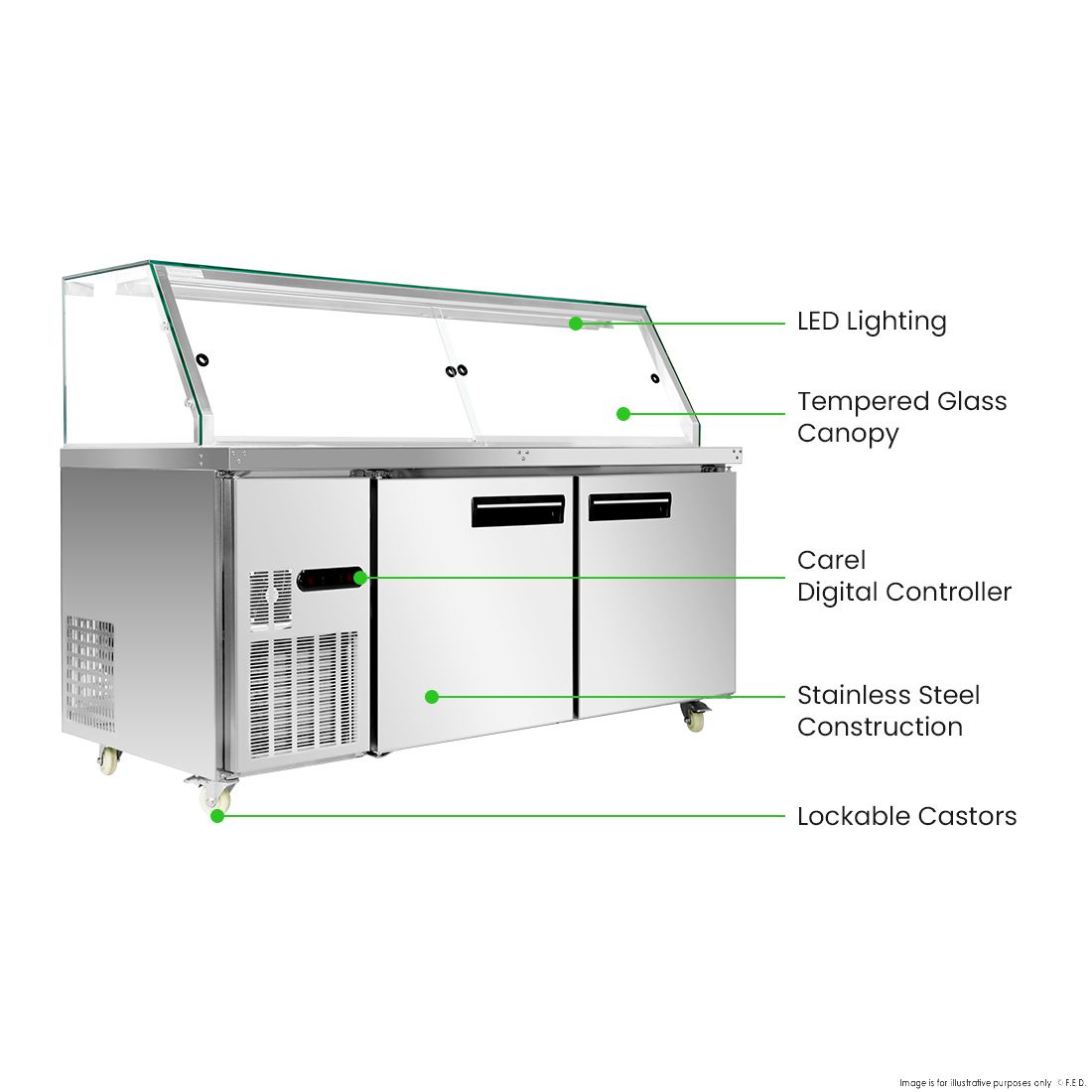

Key Features

• Accommodates five 1/1 GN pans each up to 150mm in depth (GN pans and dividers are not supplied; pan dividers must remain in place at all times during operation)
• Gross volume: 800L
• Temperature range: +1°C to +5°C
• Rated ambient: 38°C and 50% relative humidity
• All stainless steel construction, interior and exterior, with rounded internal corners for hygiene and easy cleaning
• Cassette cooling system with cross-flow fan-forced evaporator cooling
• Blown well beneath the pan area for consistent cold-air distribution

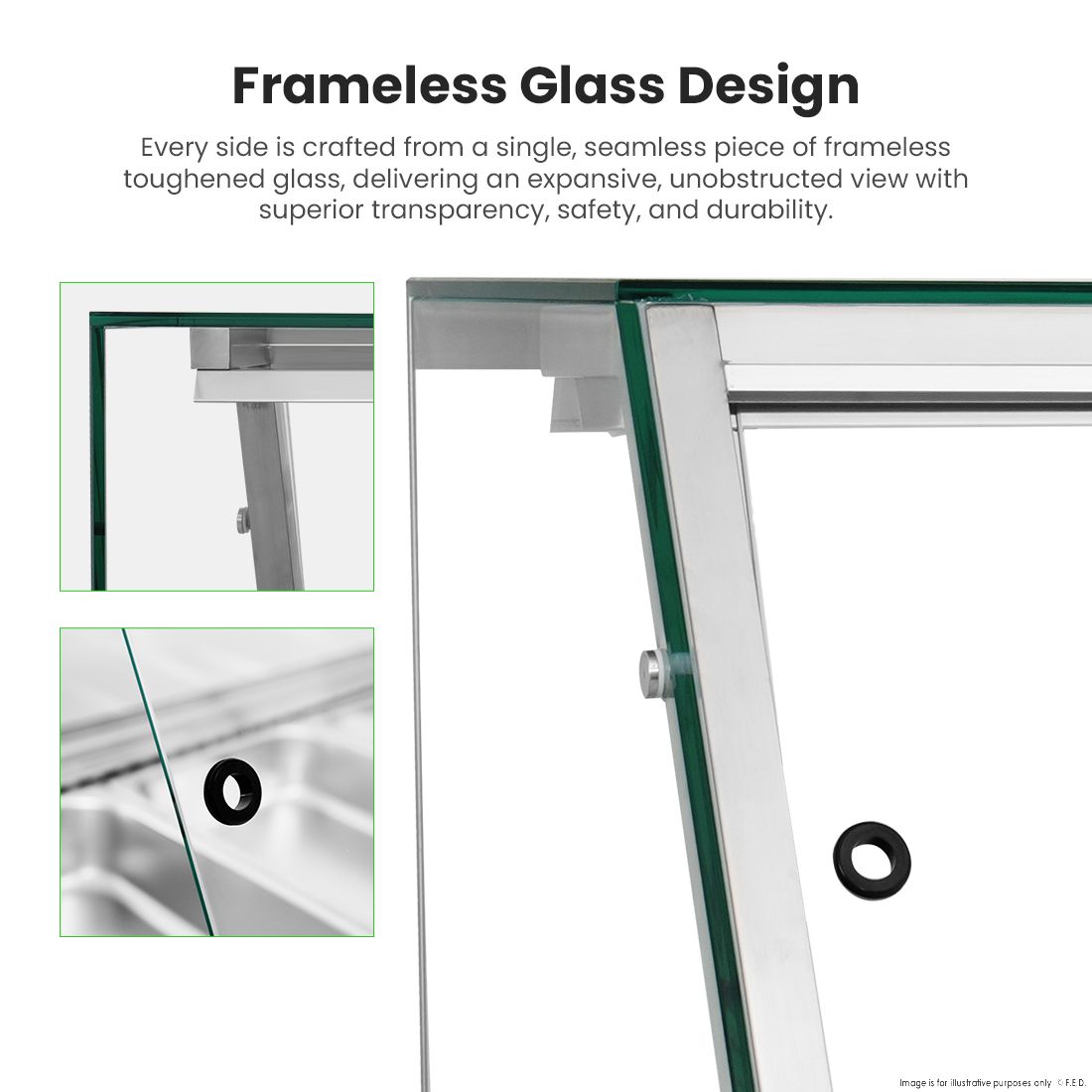

• Tempered glass canopy over the serving area
• Clear sliding doors on the serving side

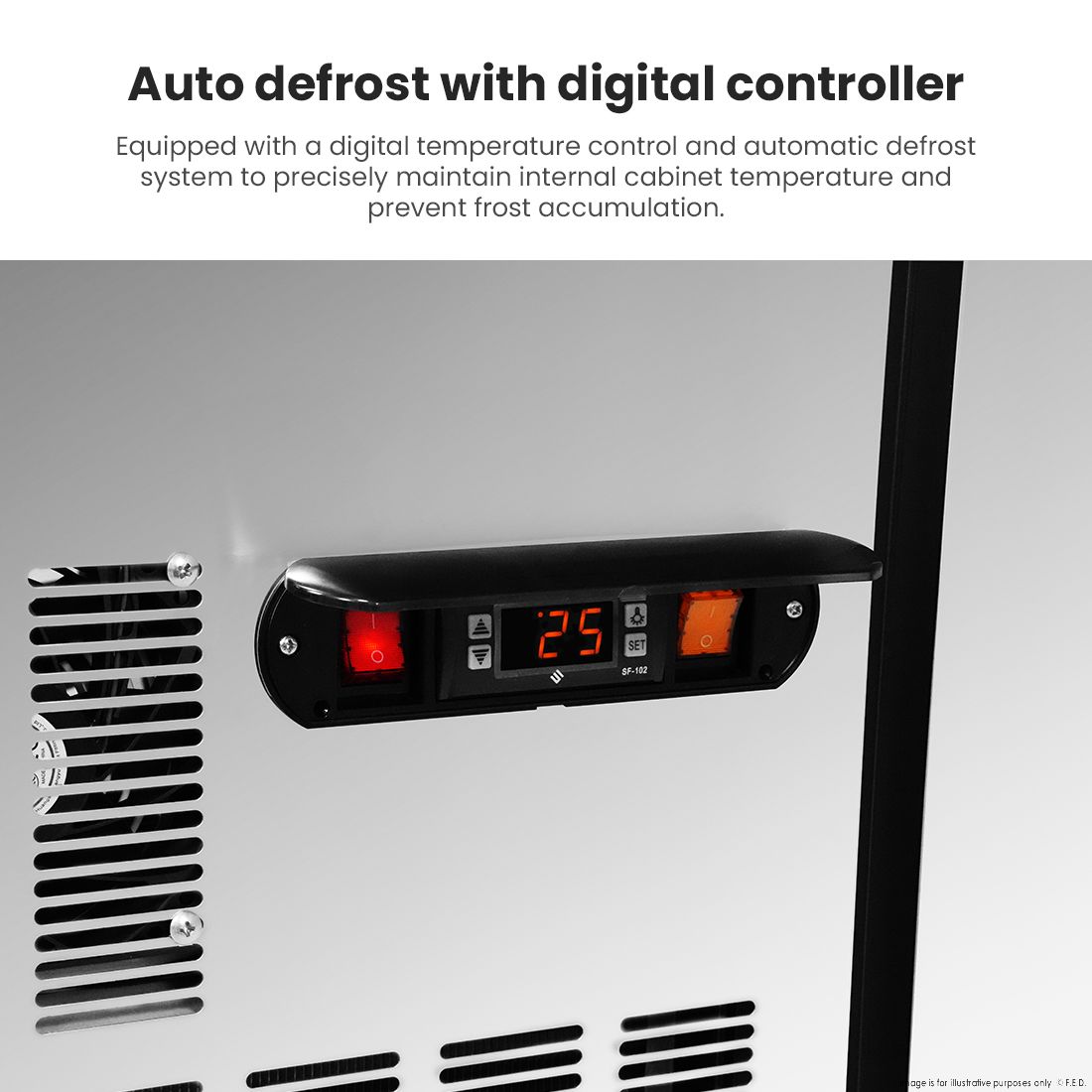

• Digital temperature control and digital temperature read-out
• Auto defrost with a separate dedicated control button
• Automatic condensation evaporation (self-evaporating drainage)

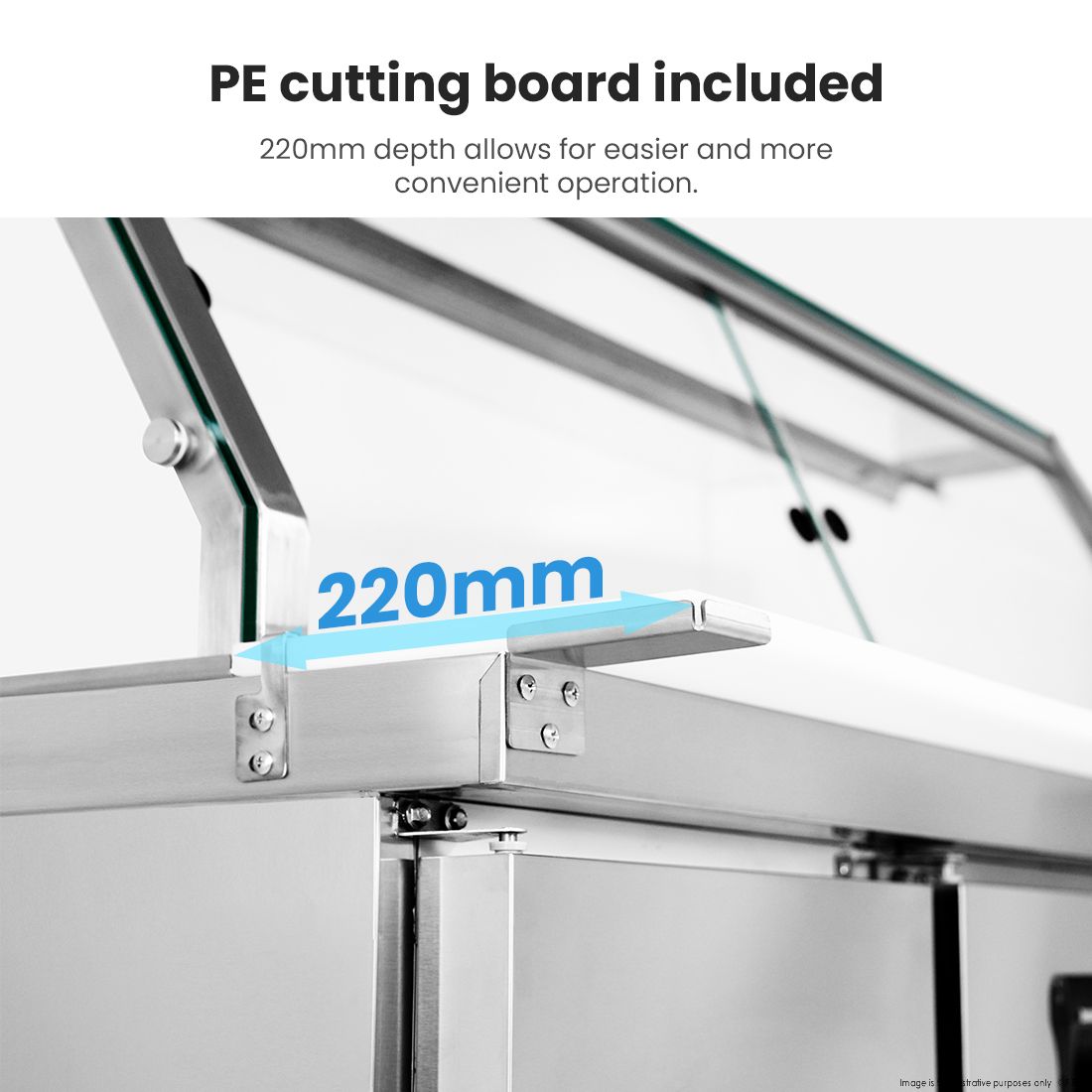

• 220mm deep rear working area with polyethylene (PE) chopping board included
• Hinged cabinet doors on the refrigerated storage section below
• One level of interior shelving plus floor storage inside the refrigerated cabinet

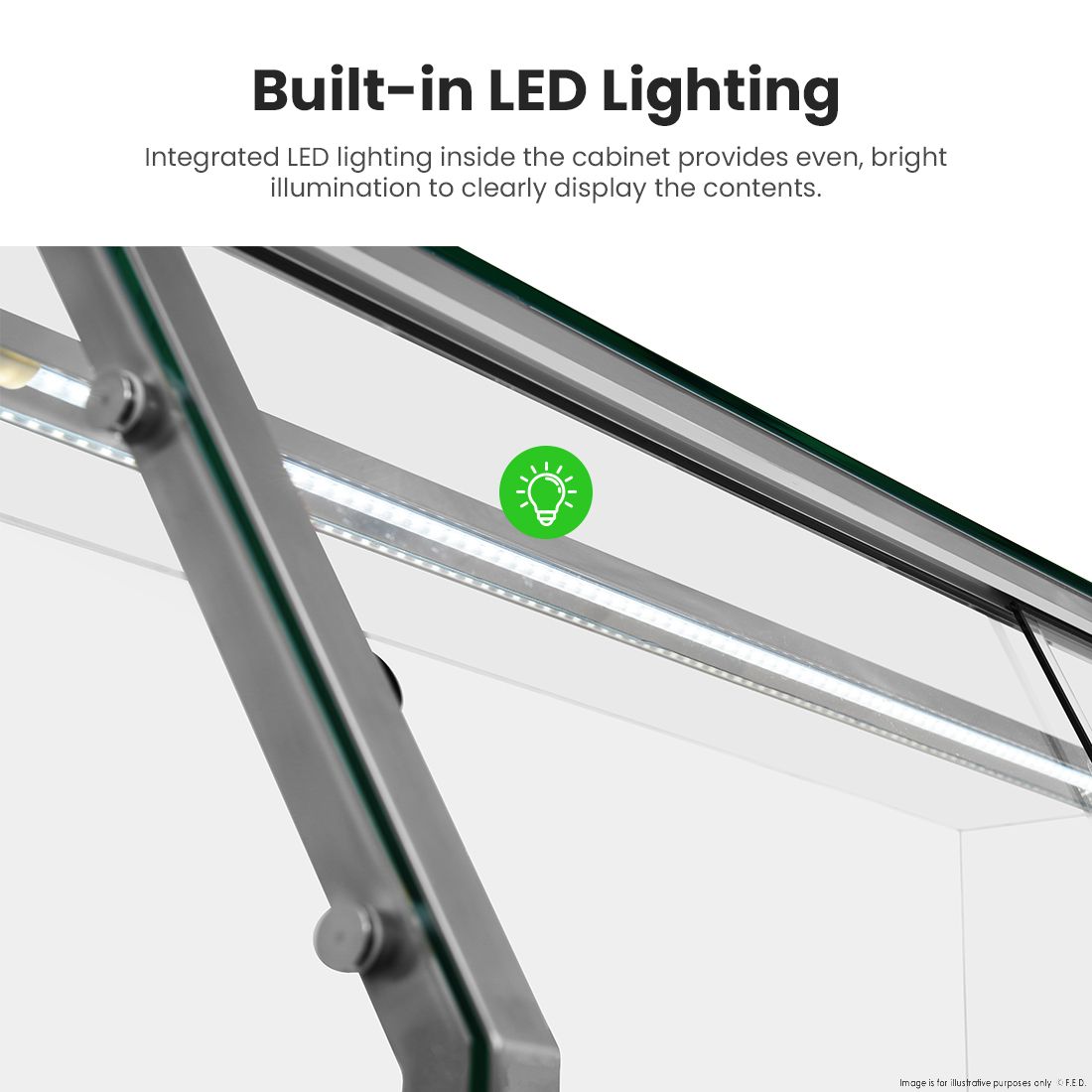

• Internal LED lighting to illuminate displayed food
• Castors for easy relocation
• Completely removable refrigeration unit for servicing
• Power: 240V, 662W / 10A

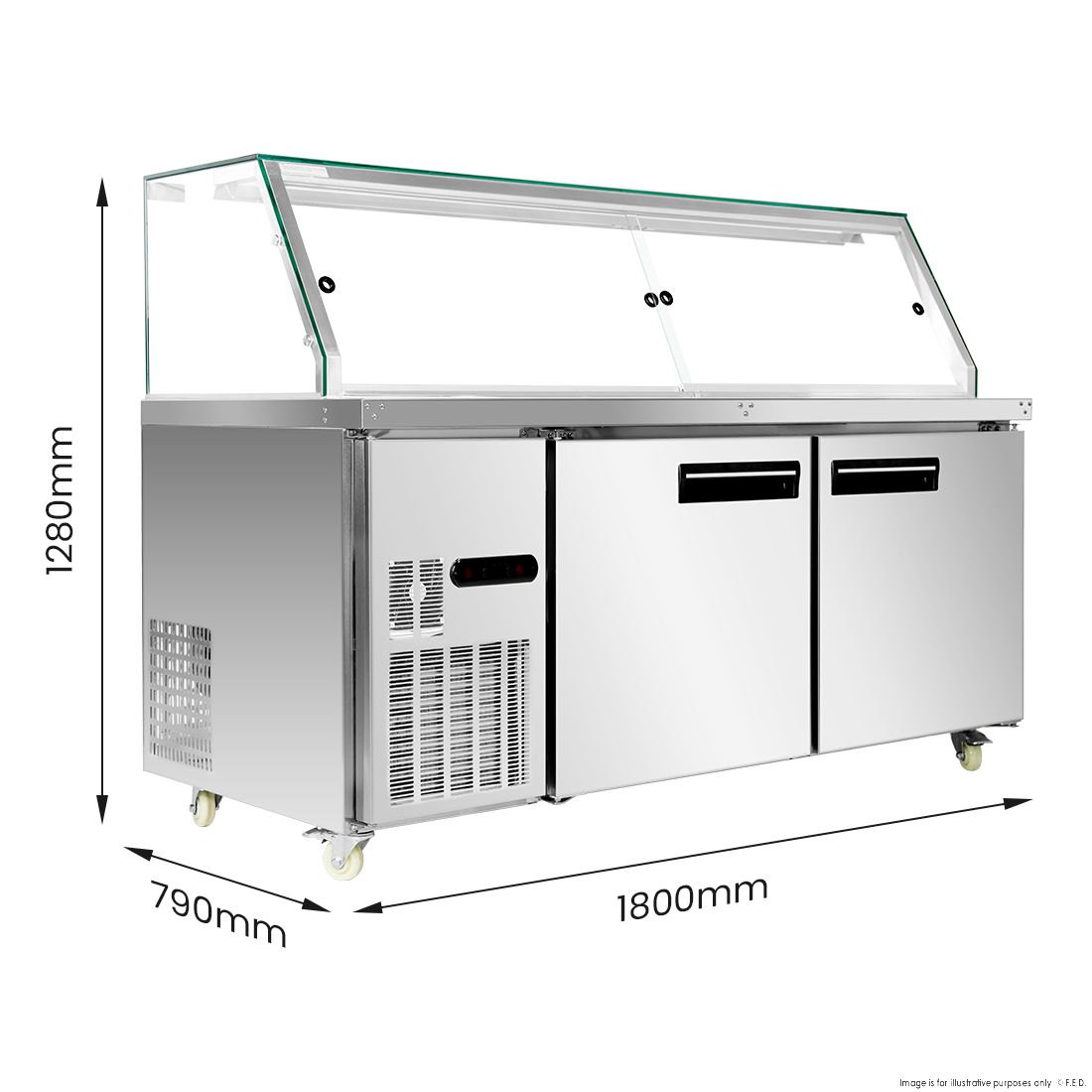

• Dimensions: 1800mm (W) x 790mm (D) x 1280mm (H)
• Weight: 220kg
• Bench height: 855mm
• Warranty: 2 years covering parts and labour, followed by a further 2 years covering parts only when the product is registered within 14 days of the invoice date
• Cold tops are holding units only; product must be pre-chilled to below 5°C before filling the top section

Specifications

• Width (mm): 1800
• Depth (mm): 790
• Height (mm): 1280
• Weight (kg): 220
• Packed Width (mm): 840
• Packed Depth (mm): 1850
• Packed Height (mm): 1370
• Shipping Weight: 179
• No. of Doors: 2
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Defrost Type: Auto
• Power Delivery: 240V; 662W/10A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration
