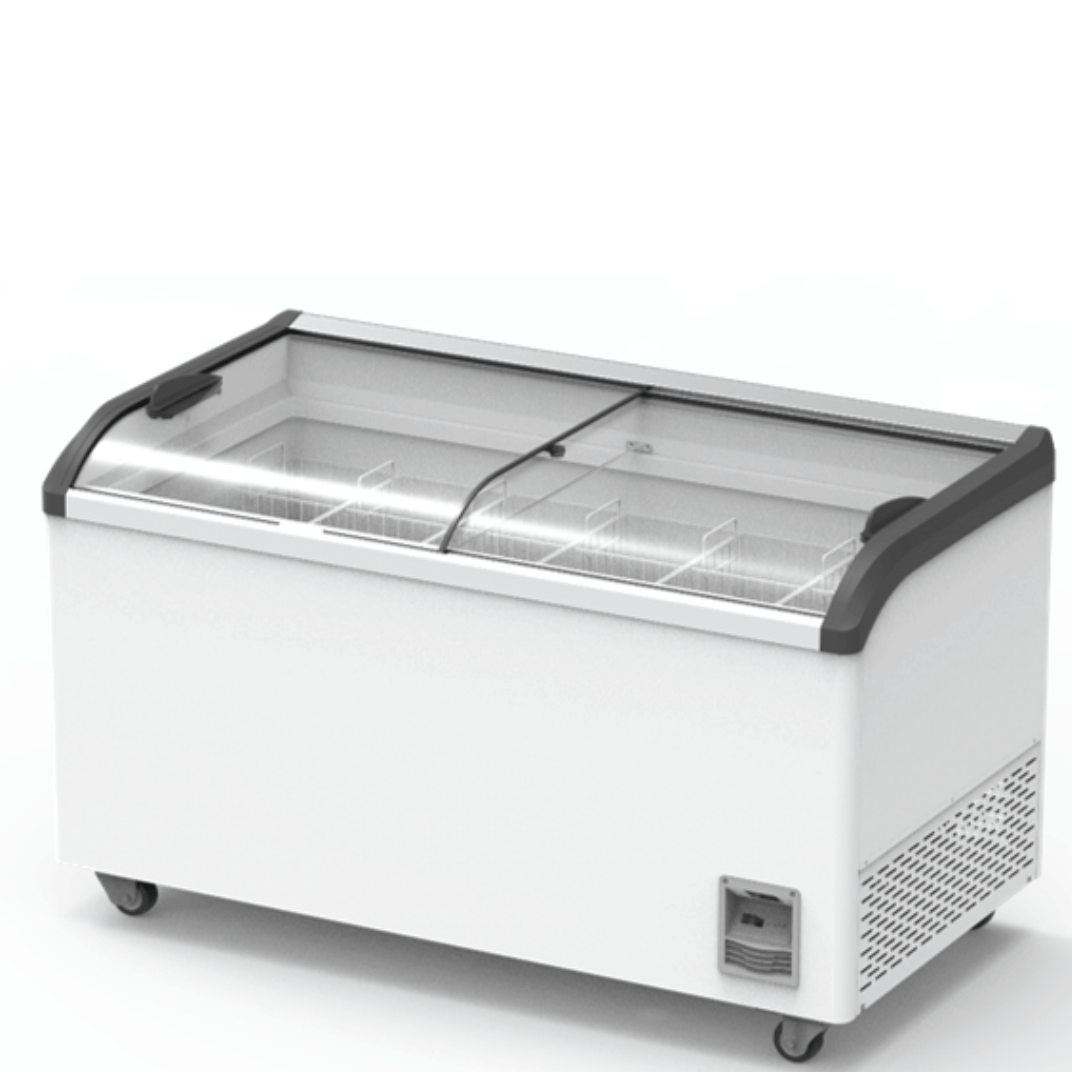

Thermaster SD-506K Heavy Duty Supermarket Glass Sliding Lid Freezer 506L

The Thermaster SD-506K is a 506-litre commercial chest freezer built for supermarkets, cafés, restaurants, and high-volume hospitality venues that need reliable frozen storage alongside attractive product display. Its curved sliding glass lids offer clear visibility of contents, making it equally suited to back-of-house bulk storage and front-of-house retail display of ice cream and packaged frozen goods.

Engineered for demanding environments, the SD-506K is rated for Climate Class 7 operation and uses eco-friendly R290 refrigerant. With 70mm insulation, a static cooling system, and a temperature range of -18°C to -22°C, it maintains consistent freezing performance through busy service periods. Heavy-duty castors, an integrated lock, and a comprehensive warranty round out a unit designed for long-term commercial use.

Key Benefits

• 506-litre capacity provides generous frozen storage for packaged foods, ice cream, meats, and bulk ingredients in a single unit.
• Curved sliding glass lids allow staff to view and access stock quickly without fully opening the freezer, reducing cold air loss.
• Dual-purpose design works as both a storage unit and a retail display, helping drive impulse purchases in supermarket or café settings.
• 70mm insulation retains temperature efficiently, reducing compressor run time and lowering energy costs over daily operation.
• Climate Class 7 rating ensures reliable performance even in warm or humid ambient conditions common in commercial kitchens and retail floors.
• Heavy-duty castors allow the unit to be repositioned easily for cleaning, floor reconfiguration, or delivery access.
• Integrated lock secures frozen stock against unauthorised access, an important feature in shared or high-traffic environments.
• R290 refrigerant delivers effective cooling while minimising environmental impact compared to older refrigerant types.
• A comprehensive warranty covering two years parts and labour plus two further years parts only (when registered within 14 days of invoice) protects the investment long term.

Key Features

• 506-litre net storage capacity.
• Curved sliding glass lid design for clear product visibility and easy access.
• 70mm insulation throughout for superior temperature retention and energy efficiency.
• Static cooling system maintains consistent, even temperatures throughout the cabinet.
• Temperature range: -18°C to -22°C.
• Operates in ambient conditions up to 35°C / 75% RH (Climate Class 7 rated).
• Eco-friendly R290 refrigerant.
• Analogue temperature controller for straightforward, precise monitoring.
• Manual defrost for controlled maintenance and cleaning.
• ABS frame construction for durability and long-term stability.
• Colorbond body material.
• Heavy-duty basket included for organised product storage and easy stock rotation.
• Integrated lock for product security.
• Heavy-duty castors for easy mobility and repositioning.
• Two sliding glass lid doors.
• Power supply: 240V / 230W / 10A.
• Dimensions: 1446mm (W) x 745mm (D) x 845mm (H).
• Net weight: 81kg.
• Packed dimensions: 1494mm (W) x 775mm (D) x 1040mm (H).
• Warranty: 2 years parts and labour plus 2 years parts only when the product is registered within 14 days of invoice.
• Suitable for supermarkets, cafés, restaurants, and high-volume hospitality and retail venues.
• Ideal for ice cream display and storage as well as packaged frozen goods.

Specifications

• Width (mm): 1446
• Depth (mm): 745
• Height (mm): 845
• Weight (kg): 90
• Packed Width (mm): 1494
• Packed Depth (mm): 775
• Packed Height (mm): 1040
• Shipping Weight: 81
• Capacity (Litres): 506
• No. of Doors: 2
• Door Type: Sliding Doors
• Body Material: Colorbond
• Mobility: Castors/Wheels
• Defrost Type: Manual
• Cooling Type: Static
• Temperature Range: -18 to -22
• Power Delivery: 240V, 230w/10A
• Power (kW): 240
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
