Overview

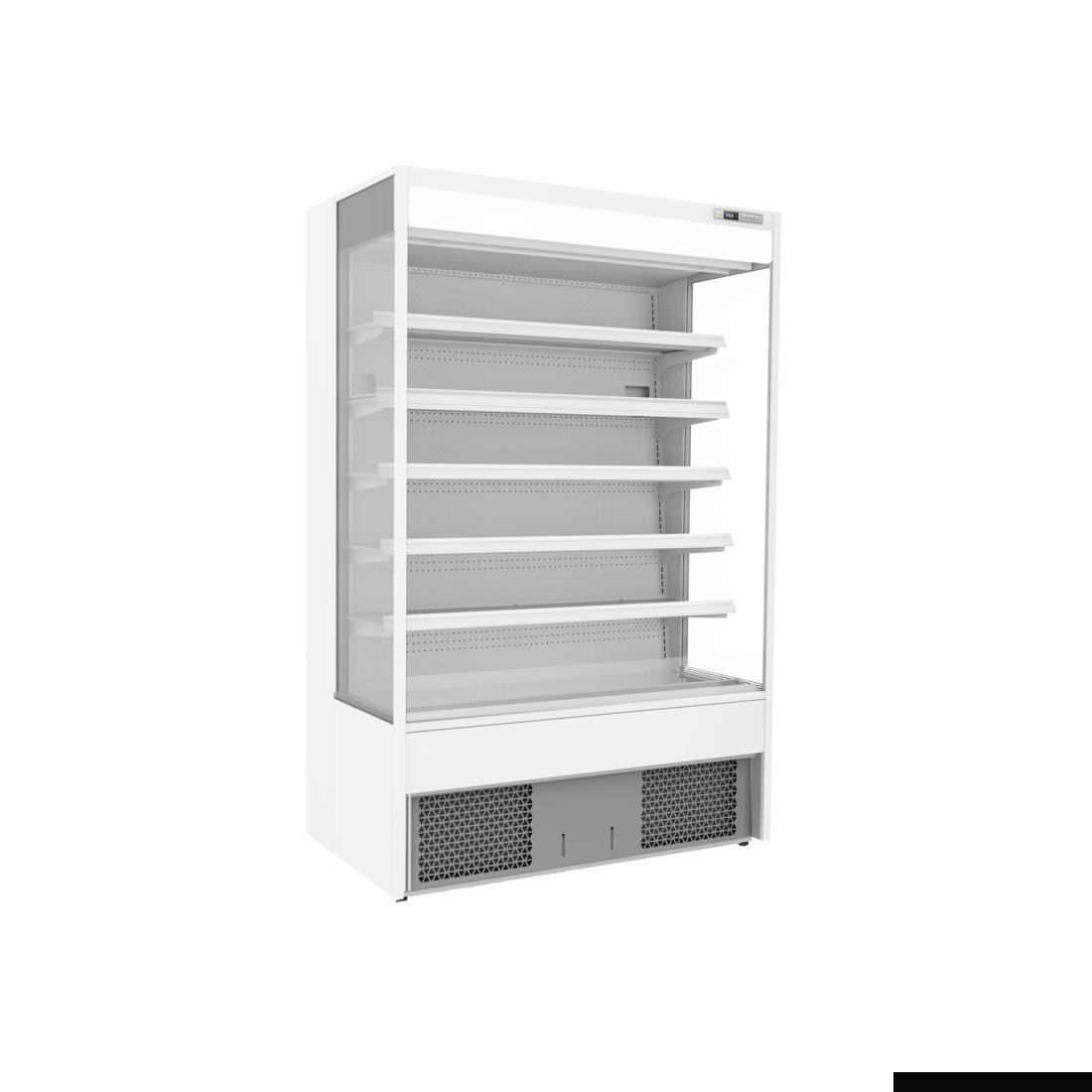

Thermaster OC-1220 Supermarket Open Beverage Display 1280mm Wide

The Thermaster OC-1220 Supermarket Open Beverage Display is a 1280mm wide, open-front refrigerated merchandiser purpose-built for medium to large supermarkets, restaurants, cafés and hospitality venues. With a 540-litre net capacity, a 2.32 m² display area and a temperature range of +1°C to +7°C, it keeps beverages consistently chilled and highly visible, making it an effective tool for driving impulse sales at the point of purchase.

Engineered for practical retail operation, the OC-1220 runs on an environmentally responsible R290 natural refrigerant and is fitted with a Skope compressor for dependable, efficient cooling. Its multiplexable design means multiple units can be assembled side by side without a mullion, allowing operators to build a seamless wall of chilled product while keeping the total floor footprint compact thanks to the unit's slimmer base profile.

Key Benefits

• Open-front design gives shoppers immediate, unobstructed access to chilled beverages, reducing barrier-to-purchase and boosting impulse sales.
• Illuminated top canopy provides a dedicated advertising space that draws customer attention and reinforces product visibility from across the aisle.
• Double-layer night blinds lower energy consumption during closed trading hours, reducing running costs without compromising product temperature.
• Multiplexable configuration lets you link several OC-1220 units together without a joining mullion, creating a continuous beverage wall suited to supermarket-scale layouts.
• Adjustable glass shelves with selectable angles (0°, 7° or 14°) allow merchandise to be presented at the ideal tilt for product type and shopper sightlines.
• R290 natural refrigerant and a Skope compressor combine proven reliability with a lower global warming potential, supporting responsible refrigeration practices.
• Smaller base footprint relative to overall capacity maximises usable retail floor space without sacrificing storage volume.
• Fan-forced cooling circulates cold air evenly across all shelf levels, maintaining a consistent +1°C to +7°C throughout the entire 540-litre cabinet.
• Colorbond steel body construction offers durability in high-traffic retail environments and maintains a clean, professional appearance over time.

Key Features

• Open-front supermarket beverage display configuration for unrestricted product access
• Net capacity: 540 litres
• Display area: 2.32 m²
• Temperature range: +1°C to +7°C
• Temperature class: M2
• Maximum ambient operating conditions: 25°C at 60% relative humidity
• Fan-forced cooling system for uniform cold-air distribution
• R290 natural refrigerant
• Skope compressor
• Illuminated top canopy with LED lighting for product advertising
• Two double-layer night blinds to reduce energy use when the store is closed
• Adjustable glass shelves with three angle settings: 0°, 7° and 14°
• Multiplexable design -- units connect side by side without a mullion for seamless line-up assembly
• Reduced-footprint base design to maximise retail floor space
• Body constructed from Colorbond steel
• Fixed installation on legs

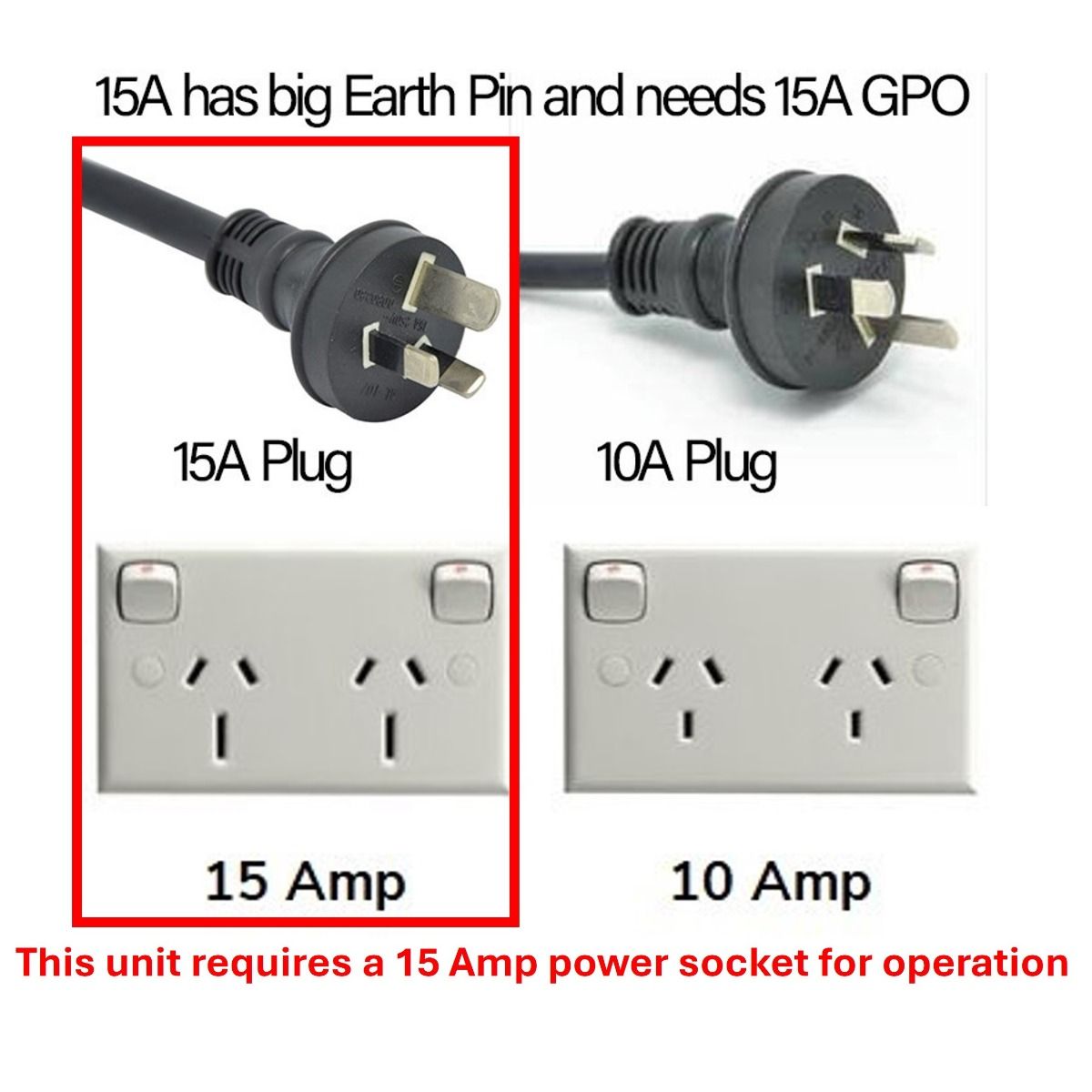

• Power supply: 240V, 1390W, 15A
• 2-year parts and labour warranty plus an additional 2-year parts-only warranty when the product is registered within 14 days of invoice

Specifications

• Width (mm): 1280
• Depth (mm): 770
• Height (mm): 2067
• Weight (kg): 556.75
• Packed Width (mm): 1353
• Packed Depth (mm): 770
• Packed Height (mm): 2110
• Body Material: Colorbond
• Mobility: Fixed/Legs
• Cooling Type: Fan Forced
• Power Delivery: 240V; 1390W; 15A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
