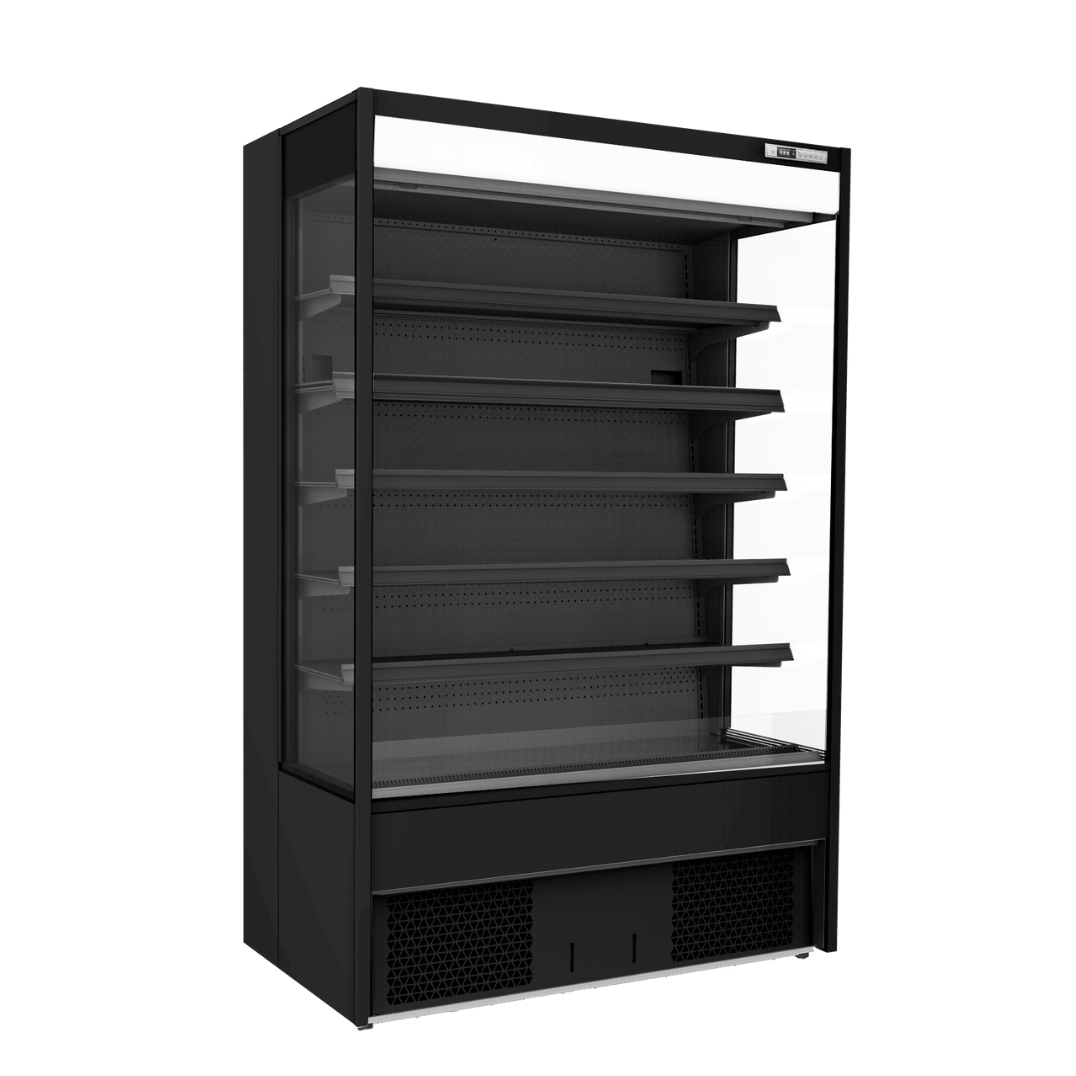

Thermaster OC-1220B Supermarket Open Beverage Display

The Thermaster OC-1220B is a 540-litre open-front beverage display designed for supermarkets, convenience stores, cafés and hospitality venues that need to merchandise chilled drinks and grab-and-go products at volume. Built on a compact base to minimise floor footprint, the unit features an illuminated top canopy for in-store advertising, double-layered pull-down night blinds to reduce overnight energy consumption, and a Secop compressor running eco-friendly R290 natural refrigerant for reliable, efficient cooling within a +1°C to +7°C temperature range.

Adjustable glass shelves can be set at 0°, 7° or 14° angles to suit different product presentations across 2.32 m² of display area, while fan-forced air circulation maintains even temperatures throughout the cabinet. The OC-1220B is multiplexable and can be assembled in a continuous line-up without a mullion, making it a highly flexible solution for larger retail fit-outs. A Colorbond body and LED lighting on the top canopy combine durability with strong visual appeal, and the unit is backed by a comprehensive 2-year parts and labour warranty plus a further 2-year parts-only warranty when registered within 14 days of invoice.

Key Benefits

• Open-front design gives customers instant, easy self-service access to chilled beverages, encouraging impulse purchases and faster throughput.
• Fan-forced cooling distributes cold air evenly across all shelves, keeping every product within the +1°C to +7°C range regardless of shelf position.
• Illuminated top canopy doubles as an advertising panel, turning the unit into a promotional asset on the shop floor.
• Double-layered night blinds reduce energy draw during off-hours, lowering running costs without compromising product temperature.
• R290 natural refrigerant and a high-efficiency Secop compressor deliver strong cooling performance with a reduced environmental impact.
• Multiplexable construction allows multiple units to be joined in a seamless line-up without a mullion, enabling scalable merchandising walls.
• Compact base design reduces the floor footprint relative to display capacity, freeing up valuable retail or venue floor space.
• Adjustable glass shelves with three tilt angles (0°, 7°, 14°) let operators customise product presentation for maximum visibility and accessibility.
• LED lighting on the canopy enhances product appeal and keeps shelves well-lit to attract customer attention throughout trading hours.

Key Features

• 540-litre net capacity across 2.32 m² of display area
• Open-front air curtain design for easy customer self-service
• Fan-forced cooling system for consistent, even temperature distribution
• Temperature range: +1°C to +7°C; temperature class M2
• Maximum ambient operating conditions: 25°C, 60% RH
• Secop compressor with R290 natural refrigerant
• Illuminated top canopy suitable for advertising signage
• LED lighting integrated into the top canopy for bright product presentation
• Two double-layered pull-down night blinds to reduce energy consumption after hours
• Adjustable glass shelves with selectable tilt angles: 0°, 7° and 14°
• Smaller base footprint to maximise usable floor space
• Multiplexable design: assembles in a continuous line-up without a mullion
• Colorbond body construction
• Fixed installation on legs
• 240V power supply, 1390W, 15A
• Dimensions: 1280 mm (W) x 770 mm (D) x 2067 mm (H)
• Weight: 290 kg
• Packed dimensions: 1353 mm (W) x 770 mm (D) x 2110 mm (H)
• Warranty: 2 years parts and labour plus 2 years parts only, upon product registration within 14 days of invoice

Specifications

• Width (mm): 1280
• Depth (mm): 770
• Height (mm): 2067
• Weight (kg): 290
• Packed Width (mm): 1353
• Packed Depth (mm): 770
• Packed Height (mm): 2110
• Shipping Weight: 275
• Body Material: Colorbond
• Mobility: Fixed/Legs
• Cooling Type: Fan Forced
• Power Delivery: 240V; 1390W; 15A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
