Overview

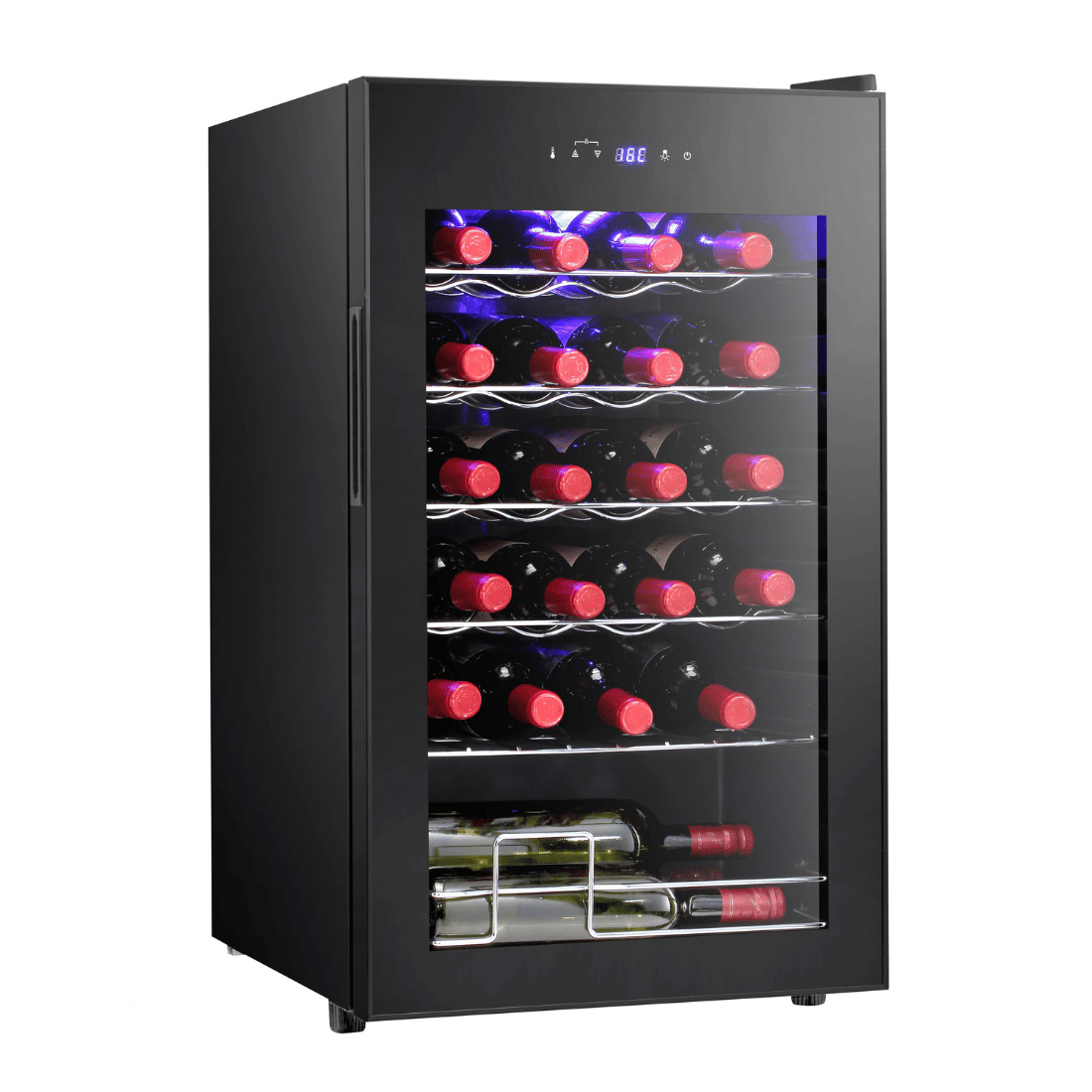

Thermaster WB-24H Underbench 65L Wine Cooler

The Thermaster WB-24H is a compact underbench wine cooler designed for commercial bars, restaurants and venues where reliable, space-efficient wine storage is essential. With a 65-litre gross capacity holding up to 24 bottles depending on size, it operates across a temperature range of 5–18°C, making it equally suitable for red and white wines within a single zone.

Built for low-maintenance service environments, the WB-24H features fan-forced evaporator cooling, auto defrost, and a low-vibration design that protects wine quality over time. The double-glazed, UV-protected tinted glass door with integrated lock, white LED interior lighting, and easy-to-read digital control panel mounted on the door make this unit as practical for front-of-house display as it is for behind-the-bar storage.

Key Benefits

• Holds up to 24 bottles at point of service, keeping wine ready to pour at the correct temperature throughout a busy shift.
• Single-zone temperature range of 5–18°C accommodates both red and white wines without needing a second unit.
• Low-vibration design minimises disturbance to wine sediment and preserves overall wine quality during storage.
• Fan-forced evaporator cooling delivers consistent temperatures throughout the cabinet and supports fast recovery after door openings.
• Double-glazed, UV-protected tinted glass door prevents light and temperature fluctuations from degrading wine, while also allowing stock visibility.
• Activated carbon odour filter maintains a clean internal environment, ensuring no unwanted aromas transfer to stored wine.
• Compact underbench footprint (430 mm wide) slots neatly beneath counters, making the most of limited bar or service space.
• Auto defrost and adjustable feet reduce day-to-day maintenance requirements and simplify installation on uneven surfaces.
• Digital control panel with LED display on the door provides straightforward temperature management without opening the cabinet.

Key Features

• Single-zone cooling suitable for both red and white wines
• 65-litre gross capacity with bottle capacity of up to 24 bottles, depending on bottle size
• Temperature range: 5–18°C; suitable ambient operating range: 10–38°C
• Fan-forced evaporator cooling system for even temperature distribution
• Auto defrost function
• 4+1 beech wood shelves plus 1 metal shelf for flexible bottle arrangement
• Double-glazed, UV-protected tinted glass door to shield wine from light and temperature variation
• Integrated door lock for security
• Multi-function digital control panel with LED display, mounted on the glass door
• White LED interior lighting for clear stock visibility
• Low-vibration design to protect wine quality during storage
• Internal moisture level maintained above 60% to preserve corks and wine condition
• Odour-free activated carbon filter for a clean internal environment
• Adjustable feet for levelling on uneven surfaces
• Refrigerant: R600a (low global warming potential)
• 240V / 60W / 10A power supply
• Colorbond body construction
• Fixed installation with legs; hinged single door
• Dimensions: 430 mm (W) x 480 mm (D) x 756 mm (H); weight: 29 kg
• Packed dimensions: 560 mm (W) x 510 mm (D) x 825 mm (H)
• Warranty: 2 years parts and labour plus 2 years parts only for products registered within 14 days of invoice

Specifications

• Width (mm): 430
• Depth (mm): 480
• Height (mm): 756
• Weight (kg): 29
• Packed Width (mm): 560
• Packed Depth (mm): 510
• Packed Height (mm): 825
• No. of Doors: 1
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Fixed/Legs
• Defrost Type: Auto
• Cooling Type: Fan Forced
• Power Delivery: 240V 60W/10A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
