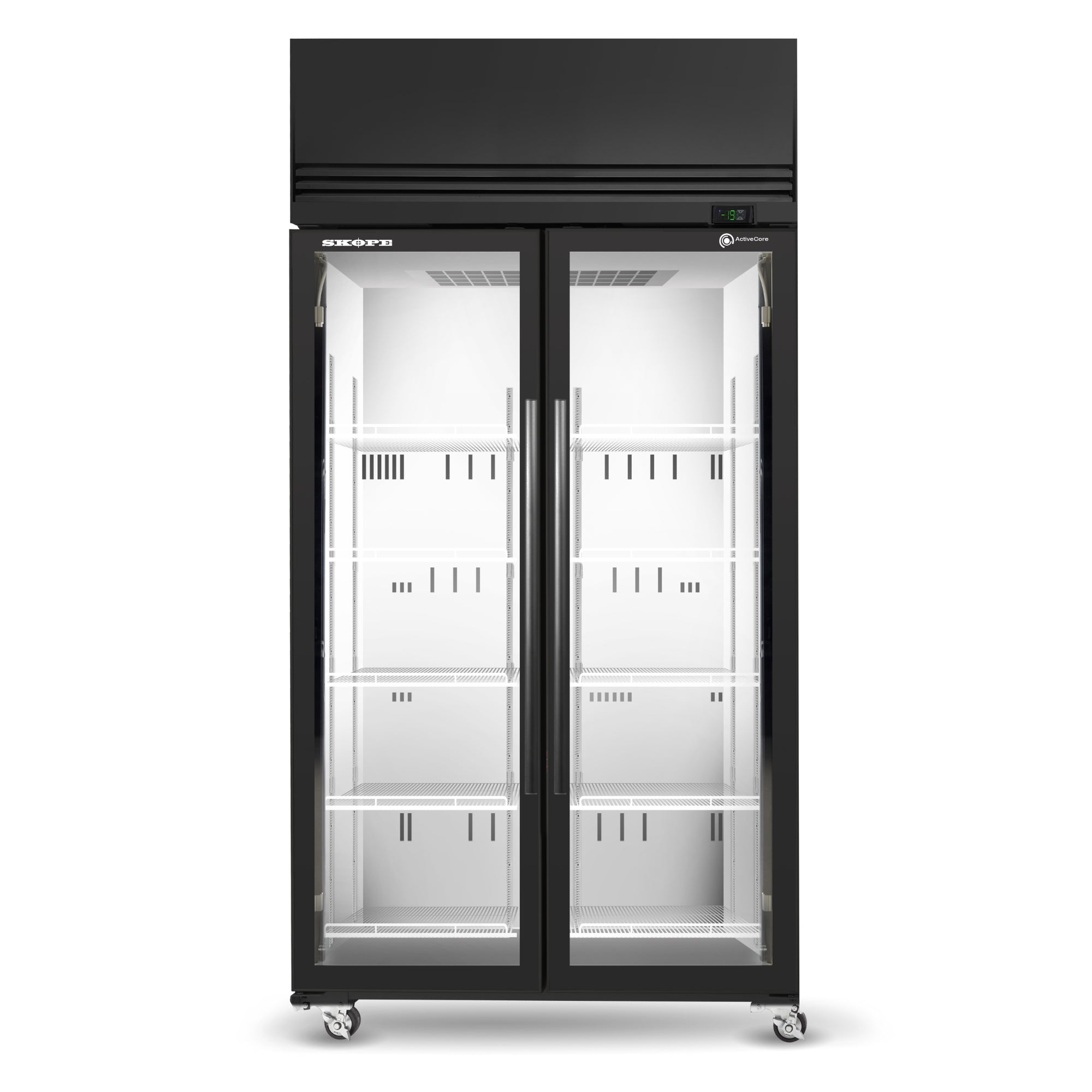

Skope TMF1000N-A ActiveCore 2 Glass Door Upright Display or Storage Freezer

The Skope TMF1000N-A is a heavy-duty two glass door upright display freezer built on Skope's ActiveCore platform, delivering new levels of quiet efficiency and temperature consistency for busy commercial environments. Powered by a digital inverter compressor and using eco-friendly R290 natural refrigerant, it is 25% more efficient than the VFX series and maintains a stable operating range of -21°C to -18°C, with the full -26°C to -12°C range unlocked via the SKOPE-connect app.

Designed for maximum product visibility and impulse sales, the TMF1000N-A features a frameless, self-closing triple-glazed lockable door design using argon-filled safety glass, with bright dual LED interior lighting illuminating five adjustable wire shelves across its 896-litre cabinet. The top-mounted, integral and removable ActiveCore freezer cartridge simplifies servicing, while Bluetooth wireless connectivity, active condensation control, and a Hush Mode make it an ideal choice for restaurants, cafes, bars, convenience stores, supermarkets, schools, accommodation venues, and medical or aged care facilities.

Key Benefits

• Frameless triple-glazed argon-filled glass doors maximise frozen product visibility, driving impulse purchases without compromising cold retention.
• Digital inverter compressor delivers precise temperature control and operates up to 25% more efficiently than previous VFX series models, reducing running costs.
• SKOPE-connect Bluetooth app enables remote temperature adjustment across the full -26°C to -12°C range, plus Hush Mode lowers noise output from 62.9 dB to 61.7 dB for quieter environments.
• R290 natural refrigerant (107g charge) carries a very low global warming potential, supporting sustainability targets and GEMS compliance.
• Top-mounted, integral and removable ActiveCore freezer cartridge simplifies routine maintenance and servicing with minimal disruption to operations.
• Active condensation control reduces moisture build-up on door glass, keeping product displays clear and presentable even in high-humidity conditions.
• Self-closing, lockable doors with four 100mm lockable front swivel castors enhance food safety compliance and allow easy repositioning on the floor.
• Supplied ready to plug in with a 2.3m 10-amp lead, enabling fast installation on a standard single-phase supply with no specialist electrical work required.
• Climate Class 4 (Tropical) rating and a 40°C maximum ambient temperature tolerance ensure reliable performance in demanding kitchen and retail environments.

Key Features

• ActiveCore technology platform with heavy-duty build quality and premium finish.
• Digital inverter compressor for precise, energy-efficient temperature management.
• Top-mounted, integral, removable ActiveCore freezer cartridge for easy servicing.
• Active condensation control keeps glass doors clear of moisture.
• 2 frameless, self-closing, triple-glazed lockable doors using argon-filled safety glass.
• Temperature range: -21°C to -18°C standard; adjustable -26°C to -12°C via SKOPE-connect.
• SKOPE-connect compatible SCS Connect controller with Bluetooth wireless technology.
• Hush Mode via SKOPE-connect app reduces operational noise from 62.9 dB to 61.7 dB.
• 5 adjustable wire shelves across the full cabinet interior.
• 2 x 1400mm, 15W LED interior lights for bright, even product illumination.
• 896-litre gross cabinet volume.
• Exterior body in powder-coated galvanised steel; interior and exterior accents in 304 stainless steel.
• R290 natural refrigerant, 107g charge.
• Self-contained, fan-assisted refrigeration system.
• Automatic defrost.
• Climate Class 4 (Tropical); maximum ambient temperature 40°C.
• GEMS compliant; GEMS energy consumption 16.17 kWh/24h.
• Power: 1.32 kW; current draw: 5.5 A (unit draw: 3.5 A).
• Power supply: 220-240 V AC, 50 Hz, single-phase.
• Supplied with 2.3m, 10-amp plug and lead.
• 4 x 100mm lockable front swivel castors for secure placement and easy repositioning.
• Dimensions: 1130mm W x 745mm D x 2210mm H.
• Suited to restaurants, cafes, clubs, bars, QSRs, convenience and petrol outlets, supermarkets, hospitality venues, accommodation, schools, and medical or aged care facilities.

Specifications

• Width (mm): 1130
• Depth (mm): 745
• Height (mm): 2210
• Weight (kg): 120
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 200
• Packed Width (mm): 1300.0
• Packed Height (mm): 2300.0
• Packed Depth (mm): 800.0
• Shipping Cubic: 2.392000000m3
• Capacity (Litres): 896
• No. of Doors: 2
• Door Type: Glass
• Shelf Configuration: 5
• Body Material: Powder coated galvanised steel
• Material: 304 Stainless Steel
• No. of Shelves: 4
• Power (kW): 1.32
• Amps (A): 5.5
• Power Cord: Supplied with 2.3m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: -21°C to -18°C (adjustable with SKOPE-connect -26°C to -12°C)
• Refrigerant: R290 / 107g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): 62.9​ (adjustable to 61.7 with SKOPE-connect Hush Mode)​
• Interior Lighting: 2 x 1400mm, 15W LED
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
• GEMS Class: 3L1
• GEMS Energy Consumption: 16.17
• GEMS Annual Running Cost: $1,771 (@ $0.30/kWh)
• Warranty (months): 5 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
