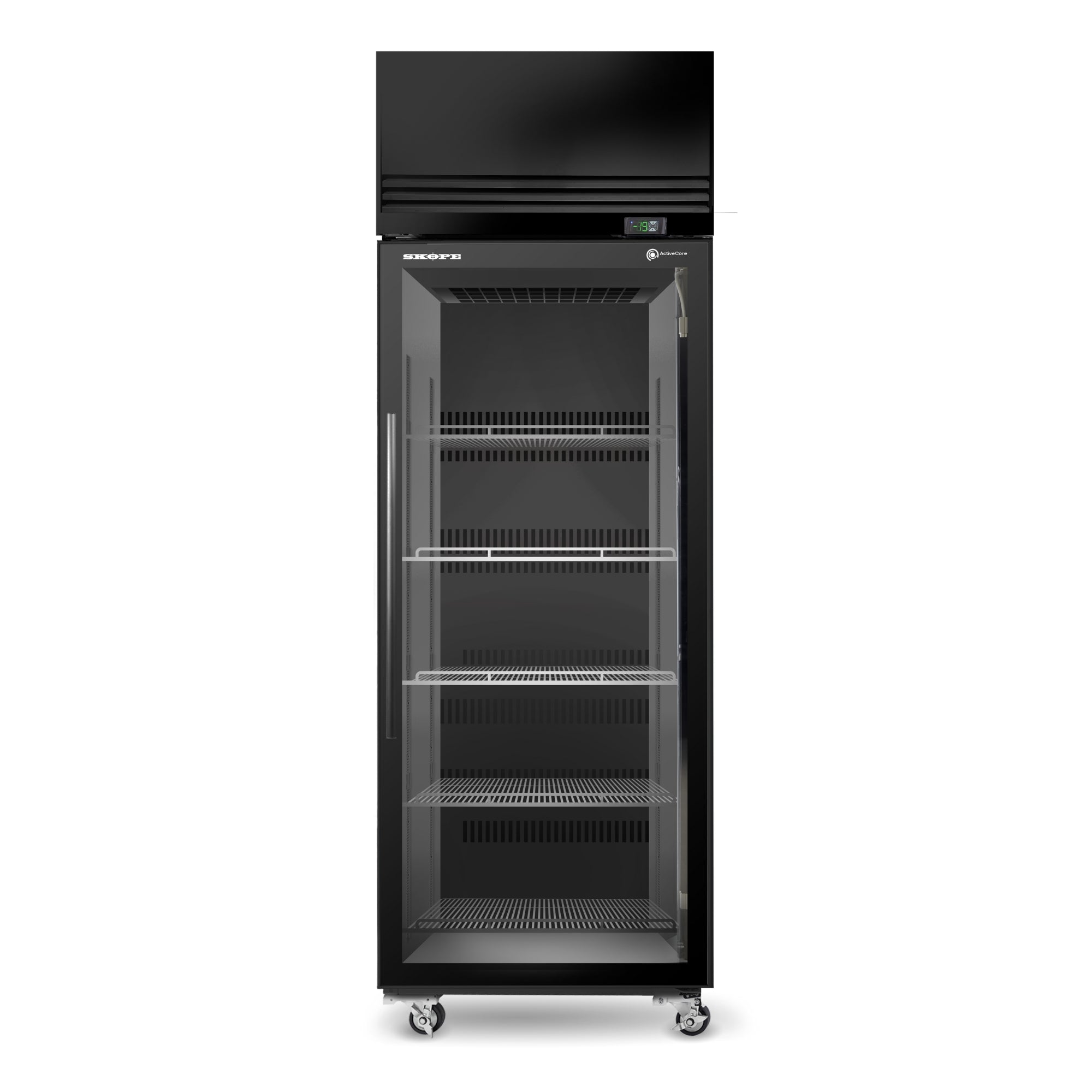

Skope TMF650N-AC 1 Glass Door Display or Storage Freezer, Lit Sign

The Skope TMF650N-AC is a heavy-duty upright single glass door display and storage freezer built around Skope's ActiveCore technology, delivering a new benchmark in quiet, energy-efficient frozen food merchandising. The top-mounted, integral and removable ActiveCore freezer cartridge houses a digital inverter compressor for precise temperature control, active condensation control, and the premium build quality that the ActiveCore platform is known for.

Suited to busy hospitality and retail environments with a maximum ambient rating of 40°C (Climate Class 4, tropical), the TMF650N-AC operates on the natural refrigerant R290 and connects via Bluetooth to the SKOPE-connect platform, giving operators remote temperature adjustment, energy monitoring, and access to Hush Mode for noise reduction. A lit external sign panel and bright interior LED strip lighting combine to maximise product visibility and drive impulse purchases around the clock.

Key Benefits

• Full-height glass door keeps frozen product visible at all times, encouraging impulse purchases without the need to open the cabinet.
• Digital inverter compressor maintains precise temperatures with fewer fluctuations, protecting product quality and reducing energy consumption.
• ActiveCore technology delivers a notably quiet operation at 63.5 dB, reducible to 61.7 dB via SKOPE-connect Hush Mode — ideal for noise-sensitive front-of-house settings.
• SKOPE-connect Bluetooth connectivity lets operators monitor and adjust temperature range (-26°C to -12°C), review energy data, and activate Hush Mode remotely without opening the cabinet.
• R290 natural refrigerant (107 g charge) offers a low global warming potential, supporting sustainability goals and compliance with evolving refrigerant regulations.
• Top-mounted, integral and removable refrigeration cartridge simplifies servicing and minimises cabinet downtime.
• Rated for operation up to 40°C ambient, making it dependable in hot commercial kitchens, bottle shops, and outdoor-adjacent retail spaces.
• Lit external sign panel combined with a 1400 mm interior LED strip ensures strong brand presence and clear product illumination day and night.
• Supplied ready to use with a 2.3 m, 10 A plug and lead on a standard single-phase supply, reducing installation complexity.

Key Features

• 1 full-height glass door for clear frozen product display or bulk storage
• ActiveCore technology platform with premium build quality and active condensation control
• Top-mounted, integral and removable ActiveCore freezer cartridge for straightforward servicing
• Digital inverter compressor for precise temperature regulation and improved energy efficiency
• Temperature range: -21°C to -18°C standard; adjustable -26°C to -12°C via SKOPE-connect
• 5 shelves across 557 L gross capacity
• Natural refrigerant R290, 107 g charge — low global warming potential
• Climate Class 4 (Tropical) rated to 40°C maximum ambient temperature
• Fan-assisted cooling for even temperature distribution throughout the cabinet
• Automatic defrost system
• Interior lighting: 1 x 1400 mm, 15 W LED strip
• Lit external sign panel: 1 x 670 mm, 7 W LED
• SCS Connect controller, SKOPE-connect compatible
• Bluetooth wireless connectivity for remote monitoring and control
• Hush Mode via SKOPE-connect reduces operating noise from 63.5 dB to 61.7 dB
• GEMS Class 3L1 energy rating; 10.58 kWh/24 h consumption; estimated annual running cost $1,159 (at $0.30/kWh)
• Power: 1.32 kW, 5.5 A draw
• Power supply: 220–240 V AC, 50 Hz, single phase
• Supplied with 2.3 m, 10 A plug and lead
• Exterior in 304 stainless steel; body in powder-coated galvanised steel
• Dimensions: 740 mm (W) x 745 mm (D) x 2210 mm (H); weight 120 kg; floor area 0.55 m²
• Self-contained refrigeration system

Specifications

• Width (mm): 740
• Depth (mm): 745
• Height (mm): 2210
• Weight (kg): 120
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 557
• No. of Doors: 1
• Door Type: Glass
• Shelf Configuration: 5
• Body Material: Powder coated galvanised steel
• Material: 304 Stainless Steel
• No. of Shelves: 5
• Power (kW): 1.32
• Amps (A): 5.5
• Power Cord: Supplied with 2.3m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: -21°C to -18°C (adjustable with SKOPE-connect -26°C to -12°C)
• Refrigerant: R290 / 107g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): 63.5​ (adjustable to 61.7 with SKOPE-connect Hush Mode)​​
• Interior Lighting: 1 x 1400mm, 15W LED
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
• GEMS Class: 3L1
• GEMS Energy Consumption: 10.58
• GEMS Annual Running Cost: $1,159 p.a.(@ $0.30/kWh)
• Warranty (months): 5 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
