Overview

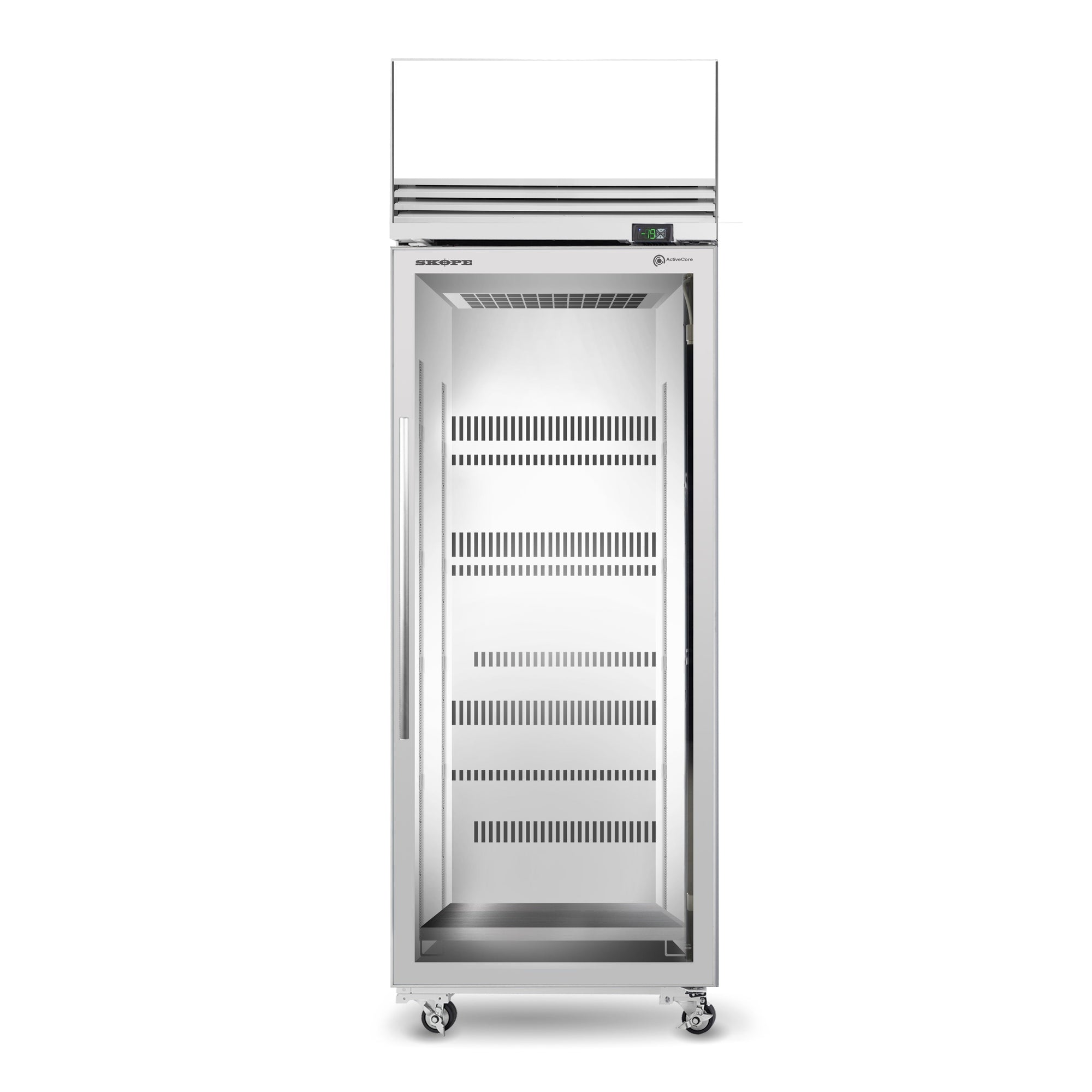

Skope TMF650N-Ice 1 Glass Door Upright Display or Storage Freezer

The Skope TMF650N-Ice is a heavy-duty single glass door upright freezer designed for both display and ice storage applications in commercial hospitality and retail environments. Powered by Skope's ActiveCore technology, it features a top-mounted, integral and removable ActiveCore freezer cartridge alongside a digital inverter compressor that delivers precise temperature control, active condensation management, and notably quiet operation. Built to handle tropical conditions with a Climate Class 4 rating and a maximum ambient temperature of 40°C, this unit is engineered to perform consistently in demanding commercial kitchens, bars, and convenience stores.

The TMF650N-Ice combines strong product visibility through its full glass door and 15W LED interior lighting with the energy efficiency of R290 natural refrigerant and a GEMS Class 3L1 rating. SKOPE-connect compatibility via Bluetooth wireless technology allows operators to monitor and adjust temperature settings remotely, expanding the standard -9°C to -12°C range down to -26°C for greater flexibility. With a stainless steel exterior, powder-coated galvanised steel body, five adjustable wire shelves rated for higher weight loads, and four lockable front swivel castors, this freezer balances premium build quality with practical day-to-day usability.

Key Benefits

• Full glass door and bright LED interior lighting maximise frozen product visibility, driving impulse purchases without requiring the door to be opened.
• Digital inverter compressor maintains precise temperatures and reduces energy consumption compared to fixed-speed alternatives, lowering ongoing running costs.
• SKOPE-connect Bluetooth compatibility lets operators remotely monitor and adjust temperature from -26°C to -12°C, offering flexible frozen storage configurations from a single unit.
• ActiveCore top-mounted, integral and removable refrigeration cartridge simplifies servicing and reduces downtime in busy commercial settings.
• R290 natural refrigerant with a low charge of just 107g delivers an environmentally responsible refrigeration solution with a low global warming potential.
• Climate Class 4 (Tropical) certification and a 40°C maximum ambient temperature rating ensure reliable performance in hot and humid commercial kitchens.
• Four 100mm lockable front swivel castors allow easy repositioning and secure placement, while the self-contained refrigeration system simplifies installation with no external plant room required.
• Supplied with a 2.3m, 10A plug and lead for straightforward plug-in commissioning with a standard single-phase power supply.
• Active condensation control prevents moisture build-up on the cabinet exterior, maintaining a clean presentation and reducing maintenance requirements.

Key Features

• Single full-height glass door for clear frozen product display and easy customer access.
• ActiveCore technology platform with top-mounted, integral and removable freezer cartridge for simplified maintenance.
• Digital inverter compressor for precise temperature control and energy-efficient operation.
• Active condensation control to minimise exterior moisture build-up.
• Temperature range of -9°C to -12°C standard; adjustable to -26°C to -12°C via SKOPE-connect.
• SKOPE-connect compatible SCS Connect controller with Bluetooth wireless technology for remote monitoring and adjustment.
• R290 natural refrigerant, 107g charge, with low global warming potential.
• Automatic defrost system for low-maintenance continuous operation.
• Fan-assisted cooling for even temperature distribution throughout the cabinet.
• 1 x 1400mm, 15W LED interior lighting strip for bright, energy-efficient product illumination.
• Five adjustable wire shelves with higher weight load rating, suitable for heavy ice and frozen product storage.
• Exterior finished in 304 stainless steel; body constructed from powder-coated galvanised steel.
• 610-litre gross capacity with a total floor area of 0.55 m².
• Four 100mm lockable front swivel castors for mobility and secure positioning.
• Self-contained refrigeration unit requiring no external refrigeration plant.
• GEMS Class 3L1 rating with an energy consumption of 10.47 kWh/24h and an estimated annual running cost of $1,146 (at $0.30/kWh).
• Climate Class 4 (Tropical) certified, rated to a maximum ambient temperature of 40°C.
• Noise output of ≤68 dB(A) for quieter operation in customer-facing environments.
• Power draw of 1.2 kW at 5.0 amps (unit draw 3.5 amps) on a 220-240V a.c., 50Hz single-phase supply.
• Supplied with a 2.3m, 10A plug and lead for straightforward installation.

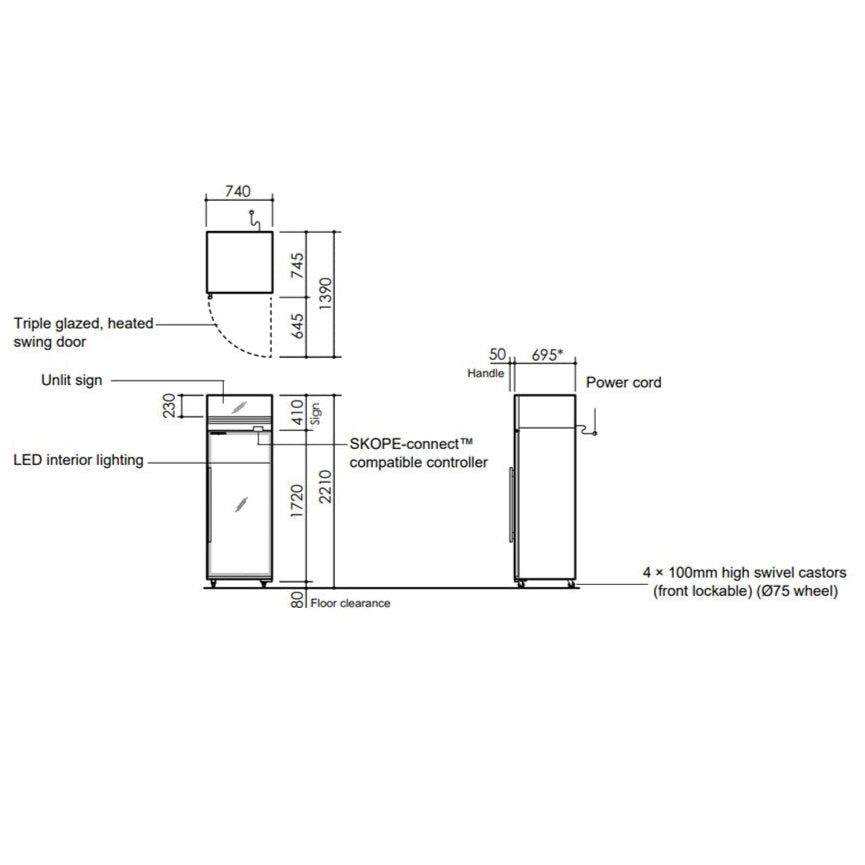

Specifications

• Width (mm): 740
• Depth (mm): 745
• Height (mm): 2210
• Weight (kg): 170
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 610
• No. of Doors: 1
• Door Type: Glass
• Shelf Configuration: 1
• Body Material: Powder coated galvanised steel
• Material: 304 Stainless Steel
• No. of Shelves: 5
• Power (kW): 1.2
• Amps (A): 5
• Power Cord: Supplied with 2.3m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: -9°C to -12°C (adjustable with SKOPE-connect -26°C to -12°C)
• Refrigerant: R290 / 107g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): ≤ 68dB(A)
• Interior Lighting: 1 x 1400mm, 15W LED
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
• GEMS Class: 3L1
• GEMS Energy Consumption: 10.47 kWh/24h
• GEMS Annual Running Cost: $1,146 p.a.(@ $0.30/kWh)
• Warranty (months): 5 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
