Overview

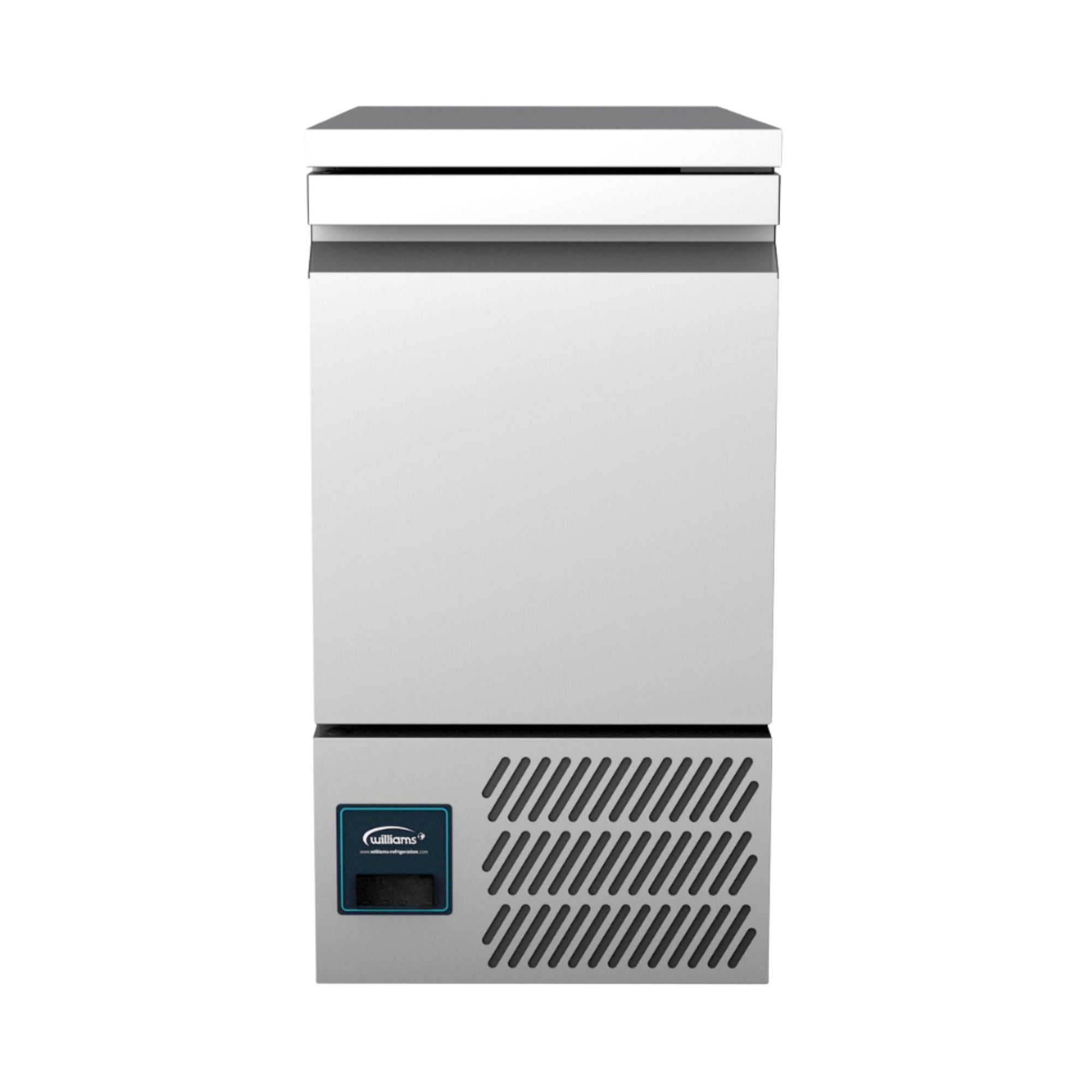

Williams VAZ5CTDR1-HC Vari Temp Compact 1-Drawer Underbench Fridge/Freezer

The Williams VAZ5CTDR1-HC Vari Temp Compact is a single-drawer underbench refrigeration unit that offers genuine flexibility for commercial kitchens, allowing operators to switch between refrigerator and freezer modes at the touch of a button. At just 455 mm wide, it fits neatly under a bench or beside a fryer, making it an ideal solution for tight spaces where every centimetre counts.

Engineered and manufactured in Australia to handle ambient temperatures up to 43°C, this unit is purpose-built for the demands of busy commercial kitchens and tropical climates. The CoolSmart electronic controller, fan-assisted cooling, and automatic defrost work together to maintain consistent temperatures across the full variable range of +1°C down to -22°C, making it equally suited to chilled garnishes or frozen snack foods such as chips, wedges, chicken nuggets, and similar high-turnover items.

Key Benefits

• Variable temperature range from +1°C to -22°C lets one unit serve as either a fridge or freezer, reducing the need for multiple appliances.
• Compact 455 mm footprint slots under the bench or directly beside a fryer, freeing up valuable floor space on the line.
• Contents can be scooped straight from the drawer into the fryer, speeding up service and reducing handling time during busy periods.
• Fan-assisted cooling with automatic defrost maintains even temperatures throughout the drawer, protecting food quality and safety.
• Climate Class 4 rating means the unit continues to perform reliably in ambient temperatures up to 43°C, suited to Australian commercial environments.
• Natural hydrocarbon R290 refrigerant delivers energy-efficient operation at just 1.47 kWh per 24 hours while minimising environmental impact.
• CoolSmart electronic thermostat with digital LED display gives operators precise, at-a-glance temperature control.
• Castors at the rear and adjustable levelling feet at the front make repositioning straightforward while keeping the cabinet stable during service.

Key Features

• Single-drawer configuration with integral easy-grab handle for fast, one-handed access.
• Magnetic balloon drawer gasket provides a 100% tight seal to maintain consistent internal temperatures.
• 304 stainless steel exterior for durability and ease of cleaning in demanding kitchen environments.
• Aluminium interior walls for lightweight construction and efficient heat transfer.
• CoolSmart electronic thermostat with digital LED display for precise temperature monitoring and adjustment.
• Variable temperature operation across +1°C to -22°C, switching between refrigerator and freezer modes as required.
• Fan-assisted cooling ensures even temperature distribution throughout the drawer cavity.
• Automatic defrost cycle eliminates the need for manual intervention.
• R290 natural hydrocarbon refrigerant with a low global warming potential for environmentally responsible operation.
• Self-contained refrigeration system with the compressor integrated into the unit.
• Climate Class 4 (Tropical) rated to operate efficiently in ambient temperatures up to 43°C.
• LED interior lighting for clear visibility of contents.
• Castors fitted to the rear and adjustable levelling feet at the front for stability and manoeuvrability.
• 109-litre capacity within a 455 mm wide x 734 mm deep x 870 mm high footprint.
• Designed and manufactured in Australia.
• 10-amp, 240 V single-phase power supply for standard commercial electrical connections.
• 24-month warranty on the self-contained refrigeration system.

Specifications

• Width (mm): 455
• Depth (mm): 734
• Height (mm): 870
• Weight (kg): 85
• Colour: Stainless Steel
• Gas Type: R290
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 10 amp
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 1.47
• Temperature Range: +1/-22°C
• Refrigerant: R290
• Compressor Location: Self-contained
• Refrigeration Type: Drawer Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Doors: 1
• Capacity (Litres): 109
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
