Overview

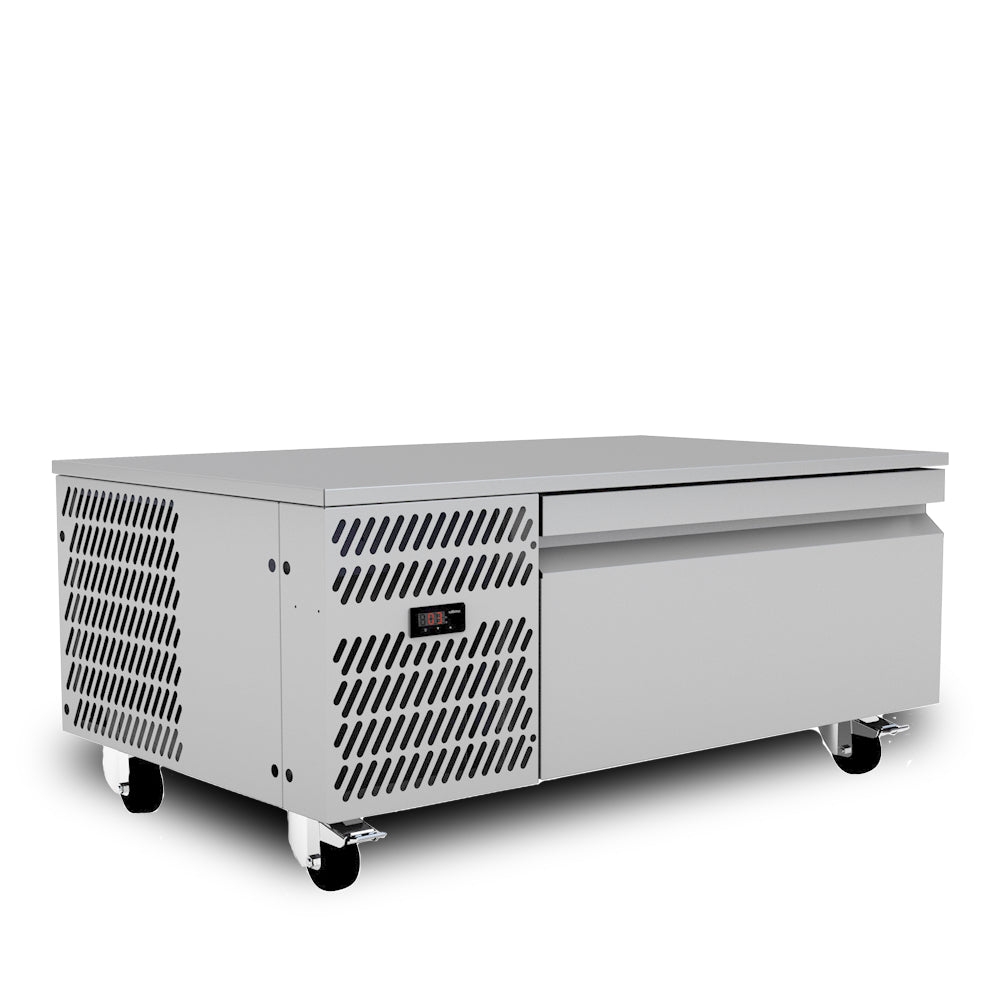

Williams VSWCD1-HC Vari Temp Single Drawer Variable Temperature Unit

The Williams VSWCD1-HC is the latest addition to the Williams Chef's Drawer range, offering a variable temperature design that can be switched between refrigerator and freezer operation to suit changing kitchen demands. Built and engineered in the UK, it runs on environmentally friendly R290 refrigerant and is housed in a fully stainless steel body that ventilates through the front, allowing installation in the tightest of spaces including under counters and in pass-through sections.

Designed for high-volume commercial kitchens operating in demanding environments, the VSWCD1-HC is rated for ambient temperatures up to 43°C (Climate Class 4 Tropical) and features Williams' CoolSmart electronic thermostat for precise temperature management. Its stackable design enables convenient refrigerator and freezer combinations within the same footprint, while the large GN-compatible drawer, automatic defrost, LED interior lighting, and fan-assisted cooling all contribute to efficient, reliable day-to-day service.

Key Benefits

• Switchable between refrigerator and freezer modes, giving kitchen teams flexibility to adapt the unit to changing storage needs without additional equipment.
• Front-ventilated design allows installation in confined spaces where traditional rear or side ventilation would be impractical.
• Stackable units allow a refrigerator and freezer combination to be built up in a compact footprint, maximising cold storage in limited floor space.
• Fan-assisted cooling delivers even temperature distribution throughout the drawer, protecting food safety and quality during busy service periods.
• CoolSmart electronic thermostat with digital LED display provides precise, easy-to-read temperature control at a glance.
• Automatic defrost reduces manual maintenance demands and helps maintain consistent performance without staff intervention.
• R290 refrigerant and precision-injected high-density polyurethane insulation with low GWP support more environmentally responsible kitchen operations.
• Climate Class 4 (Tropical) rating ensures reliable operation in hot, high-humidity kitchen environments up to 43°C ambient.
• Low energy consumption of 1.47 kWh per 24 hours helps reduce ongoing operating costs across continuous commercial use.

Key Features

• Variable temperature operation switchable between refrigerator and freezer modes.
• Temperature range: +1°C to +4°C (refrigerator mode).
• Front-ventilating body design for installation in confined or tight spaces.
• Stackable configuration supports combined refrigerator and freezer setups.
• Large capacity drawer accommodates 2 x 1/1 GN containers (150mm maximum depth).
• Built-in refrigeration system with easy access for servicing and maintenance.
• Food-safe 304 stainless steel exterior and interior construction.
• Precision-injected, high-density polyurethane insulation with low global warming potential (GWP).
• Fan-assisted cooling for consistent temperature throughout the drawer cavity.
• CoolSmart electronic thermostat with digital LED display.
• Automatic defrost system.
• LED interior lighting.
• R290 environmentally friendly refrigerant.
• Climate Class 4 (Tropical) rated for ambient temperatures up to 43°C.
• 10 amp power connection.
• Energy consumption: 1.47 kWh/24h.
• Designed and engineered in the UK.
• 24-month warranty.

Specifications

• Width (mm): 1100
• Depth (mm): 670
• Height (mm): 486
• Weight (kg): 85
• Colour: Stainless Steel
• Gas Type: R290
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Doors: 1
• Country of Origin: UK
• Warranty (months): 24
• Energy Consumption (kWh/24h): 1.47
• Capacity (Litres): 2
• Temperature Range: +1°C to +4°C
• Refrigeration Type: Drawer Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Power Rating: 10 amp
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
