Overview

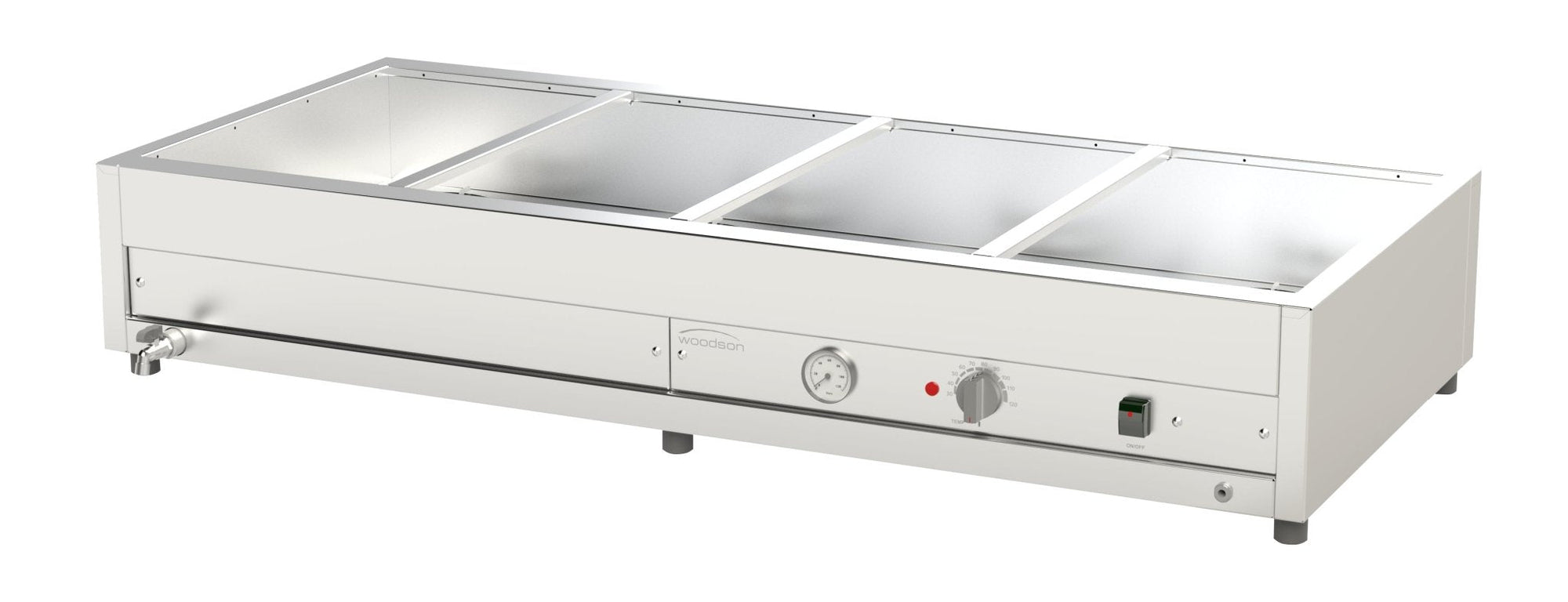

Woodson W.BMA24 2 Row 4 Bay Bain Marie

The Woodson W.BMA24 is a countertop wet-heat bain marie designed for continuous hot food holding in busy commercial kitchens, cafes, restaurants, hotels, buffets and catering operations. Arranged in a 2-row, 4-bay layout, it accommodates four 1/2 GN pans up to 100mm deep, giving service staff the flexibility to offer multiple menu items simultaneously from a single compact unit.

Built from double-skinned stainless steel with an air-insulated tank, the W.BMA24 delivers energy-efficient, even heat across all bays via multiple heating elements. Thermostatic temperature regulation and in-tank temperature probes keep food consistently within safe serving temperatures, while a manual water fill and ball-valve-operated sloped drain make daily operation and cleaning straightforward.

Key Benefits

• Holds four 1/2 GN pans simultaneously, supporting varied menu offerings across a single unit during service
• Wet-heat design circulates gentle, moist heat that preserves food texture and quality over extended holding periods
• Multiple heating elements distribute heat evenly across all bays, reducing hot spots and maintaining consistent food temperatures
• Thermostatic control with temperature gauge allows quick, reliable adjustment to optimal serving temperatures between 70°C and 80°C
• In-tank temperature probes provide accurate monitoring so staff can respond promptly to any temperature variation
• Air-insulated, double-skinned tank construction minimises heat loss and reduces running costs during long service periods
• Compact footprint relative to its four-bay capacity makes efficient use of limited counter space in front-of-house and cafeteria environments
• Sloped tank with ball-valve drain simplifies end-of-service water removal and cleaning, reducing downtime between shifts
• Plug-and-lead connection on a standard 10A, 240V outlet means no hardwiring is required and the unit can be repositioned as service needs change

Key Features

• 2-row, 4-bay configuration accommodating four 1/2 GN pans
• Accepts gastronorm pans up to 100mm deep (pans not included)
• Designed and recommended for wet-heat operation
• Air-insulated, double-skinned stainless steel tank for energy-efficient heating
• Multiple heating elements for even heat distribution and continued operation if one element requires attention
• Thermostatic temperature control with operating range of 70°C to 80°C
• In-tank temperature probes for accurate, real-time measurement
• Temperature gauge for at-a-glance monitoring during service
• Manual water fill system
• Tank sloped to a ball-valve-operated drain for easy water removal and cleaning
• Robust stainless steel construction throughout for durability and hygiene
• 10A, 240V plug-and-lead electrical connection for straightforward installation
• 2.4 kW power draw
• Compatible glass canopy accessory available for front-of-house presentation (sold separately)
• Woodson GN pans recommended; other GN pans may fit but compatibility is not guaranteed

Specifications

• Width (mm): 1355
• Depth (mm): 600
• Height (mm): 245
• Weight (kg): 40
• Power (kW): 2.4
• Power Type: Electric
• Amps (A): 10
• Voltage (V): 240
• Plug Type: Plug & Lead
• Voltage/Phase: 10A, 240V plug & lead
• Pan Depth (mm): 100
