Overview

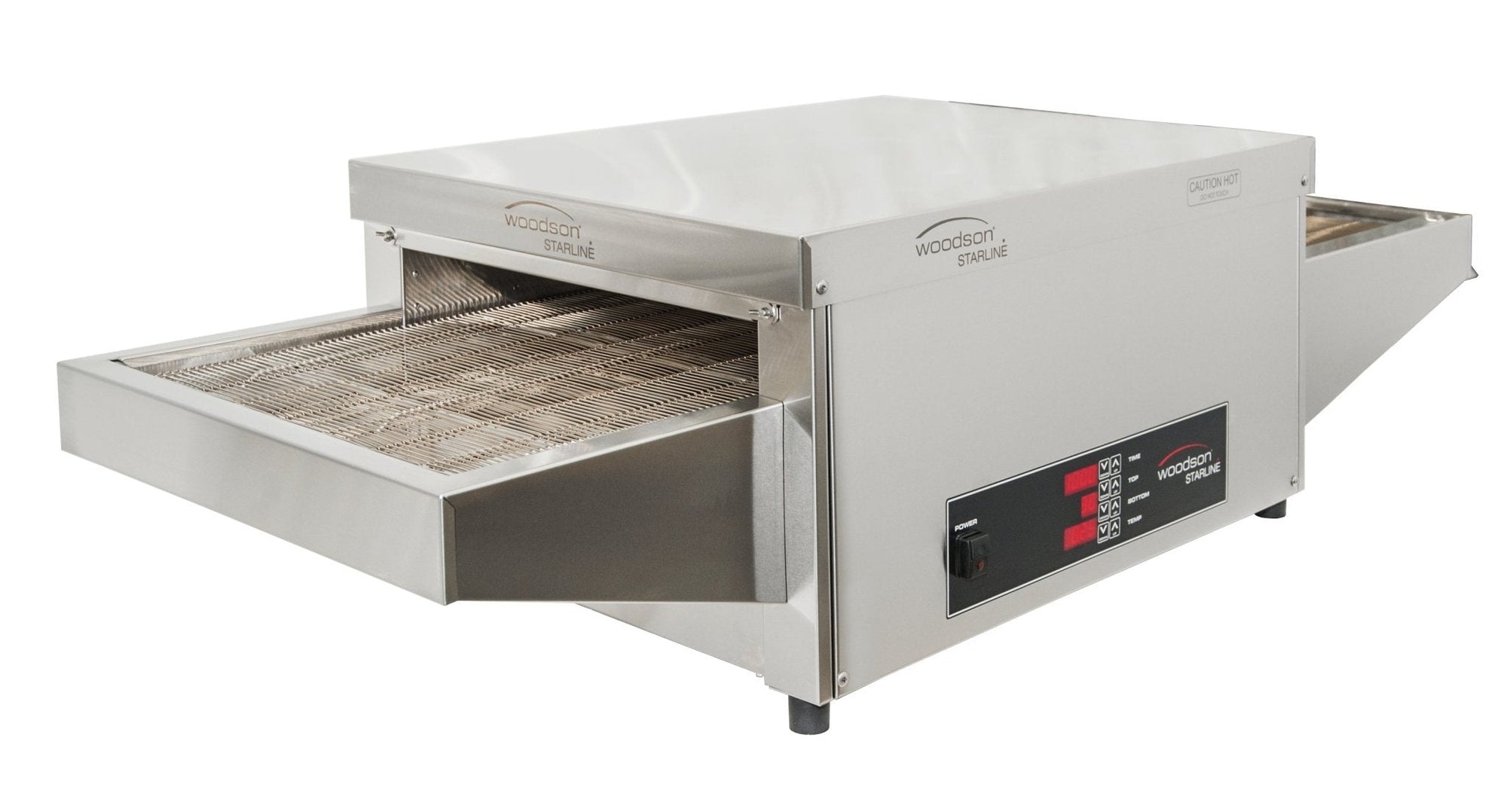

Woodson Starline W.CVP.C.24 Conveyor Pizza Oven – Countertop, 14.4kW Three Phase

The Woodson Starline W.CVP.C.24 is a robust countertop pizza conveyor oven designed for high-volume, fast-paced commercial kitchens. With a 610mm wide conveyor belt and a cooking chamber measuring 635mm wide by 750mm long with 55mm clearance, it delivers a throughput of up to 25 x 12" pizzas per hour, making it an ideal workhorse for pizzerias, cafés, restaurants, and catering operations where consistent results and efficiency are critical.

Powered by electric forced convection with quartz infrared elements and energy-efficient pulse power, the W.CVP.C.24 provides even, reliable heat distribution throughout the cooking chamber. Its touchpad 'set and forget' control system allows operators to independently adjust top and bottom element temperatures, conveyor speed, and belt direction, minimising training time and ensuring repeatable cooking outcomes across every shift.

Key Benefits

• High throughput of up to 25 x 12" pizzas per hour supports busy service periods without sacrificing consistency
• Independent top and bottom temperature controls allow fine-tuned cooking for a wide range of menu items including pizzas, toasted sandwiches, focaccia, and pastries
• Pulse power technology improves electrical efficiency, helping to reduce ongoing energy costs
• Fan forced heat distribution ensures even cooking across the full belt width, eliminating hot spots
• 'Set and forget' touchpad operation reduces the skill required from kitchen staff and speeds up service
• Variable speed belt control with automatic tensioning gives operators flexibility to match cook times to different products
• Fully insulated chamber and body retain heat effectively, improving energy efficiency and enhancing user safety
• Compact benchtop footprint makes the most of limited kitchen bench space without compromising production capacity
• Supplied with three 12" aluminised steel pans, so the oven is ready to put to work from day one

Key Features

• 610mm wide conveyor belt for easy loading and strong production capacity
• Cooking chamber dimensions of 635mm (W) x 750mm (L) with 55mm clearance height
• Capacity of up to 25 x 12" pizzas per hour (indicative; varies with base type, toppings, and continuous feed)
• Electric forced convection with quartz infrared heating elements for fast, even heat
• Pulse power system for improved electrical efficiency
• Independent top and bottom element control with separate temperature adjustment for each
• Temperature range of 50°C to 350°C via electronic thermostat
• Touchpad 'set and forget' control panel with conveyor speed, belt direction, and temperature settings
• Variable speed belt control with automatic tensioning
• Integrated fan forced technology for uniform heat distribution and cooling of electrical components
• Fully insulated top and body for superior chamber heat retention and increased user safety
• Long-life metal heating elements suited to continuous commercial use
• Robust stainless steel construction throughout for hygiene and durability
• Standard configuration is right-to-left conveyor operation; left-to-right operation available on request by adding 'L' to the model number
• 14.4kW electrical rating at 24A, three-phase power supply (3Ø + N + E)
• Supplied without plug or lead; requires hard-wired three-phase connection by a qualified electrician on site
• Optional factory-fitted plug available
• Supplied with 3 x 12" aluminised steel pans; additional accessories sold separately
• Countertop/benchtop installation type
• Overall dimensions: 1500mm (W) x 765mm (D) x 440mm (H)
• Weight: 128kg
• Stainless steel exterior finish
• Australian-made product
• 12-month on-site manufacturer's warranty

Specifications

• Width (mm): 1500
• Depth (mm): 765
• Height (mm): 440
• Weight (kg): 128
• Colour: Stainless Steel
• Shipping Weight: 128
• Packed Width (mm): 1500.0
• Packed Height (mm): 434.0
• Packed Depth (mm): 765.0
• Shipping Cubic: 0.498015000m3
• Power (kW): 14.4
• Power Type: Electric
• Phase: Three Phase
• Plug Type: Hardwired
• Voltage/Phase: 3Ø + N + E
• Power Supply: Three Phase
• Material: Stainless Steel
• Door Type: Open Conveyor
• Country of Origin: Australia
• Warranty (months): 12
• Temperature Range: 50-350°C
• Installation Type: Countertop
• Temperature Control: Digital Control Panel
• Mounting Type: Benchtop
• Display Type: Parts and Labour
• Fuel Type: Electric
