Overview

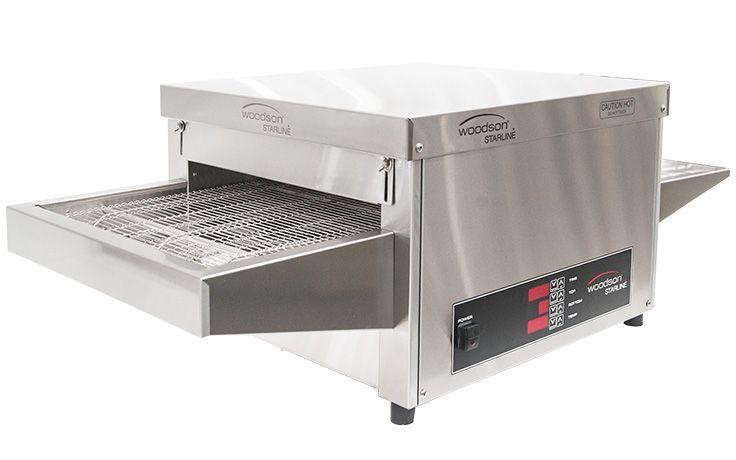

Woodson W.CVS.L.30 Starline Snackmaster Large Conveyor Oven – 30 Amp

The Woodson W.CVS.L.30 Starline Snackmaster is the largest compact conveyor oven in the Woodson Starline range, engineered for high-volume commercial foodservice environments. Its 450mm (18") wide belt and a generous cooking chamber measuring 480mm deep by 600mm wide by 85mm high provide ample throughput capacity, producing up to 15 x 12" pizzas per hour, making it equally well-suited to cafés, restaurants, hotels, pizzerias, and catering operations.

Quartz infrared and metal incaloy heating elements work alongside built-in fan-forced technology to achieve rapid, even heat across the full cooking chamber. Independent top and bottom element controls, a variable speed conveyor with automatic tensioning, and a touchpad set-and-forget control system give operators precise, repeatable results across a wide menu range including pizzas, focaccias, toasted sandwiches, melts, and pastries.

Key Benefits

• High throughput capacity of up to 15 x 12" pizzas per hour keeps pace with peak service demand without bottlenecks.
• Hands-free conveyor operation frees staff to focus on other tasks while ensuring consistent, repeatable cooking results every pass.
• Independent top and bottom element temperature controls allow fine-tuned heat profiles to suit different menu items on the same unit.
• Variable speed belt control lets operators dial in precise cooking times for a wide variety of foods without guesswork.
• Fan-forced circulation spreads heat evenly across the full belt width, eliminating hot spots and reducing the risk of unevenly cooked product, while also keeping electrical components at a safe operating temperature.
• Fully insulated top and body retain chamber heat efficiently, lowering energy consumption and keeping the exterior cool to the touch for user safety.
• Robust stainless steel construction throughout supports a hygienic, easy-to-clean surface that withstands the rigours of busy commercial kitchens.
• Configurable conveyor direction — right-to-left as the default setting, with left-to-right available on request — allows flexible integration into any kitchen layout.
• Compact benchtop footprint delivers heavy-duty output without monopolising valuable bench space.

Key Features

• 450mm (18") wide conveyor belt provides a large cooking surface for high-volume output.
• Cooking chamber with internal dimensions of 480mm (depth) x 600mm (width) x 85mm (height) accommodates a wide range of product sizes.
• Rated capacity of up to 15 x 12" pizzas per hour.
• Quartz infrared heating elements for rapid, even heat distribution across the belt.
• Metal incaloy heating technology for durable, efficient heat generation.
• Independent top and bottom element controls for customised heat profiles.
• Variable speed conveyor belt with automatic tensioning for consistent product handling.
• Touchpad set-and-forget digital control system for straightforward, repeatable operation.
• Thermostat temperature regulation across a range of 50°C to 350°C.
• Built-in fan-forced system that promotes uniform heat distribution throughout the chamber and maintains safe temperatures for electrical components.
• Top and body fully insulated to maximise chamber heat retention and enhance operator safety.
• Cool-to-touch exterior for operator safety during service.
• Stainless steel construction throughout for durability and hygiene.
• Standard belt travel runs right to left; left-to-right configuration is available as a factory option upon request.
• 7.2 kW, single-phase electric, hardwired 30A connection (lead supplied); optional factory-fitted plug available.
• Countertop/benchtop mounting for flexible installation.
• Australian-made product backed by a 12-month warranty.
• Additional accessories sold separately.

Specifications

• Width (mm): 1200
• Depth (mm): 610
• Height (mm): 465
• Weight (kg): 76
• Colour: Stainless Steel
• Power (kW): 7.2
• Power Type: Electric
• Amps (A): 30
• Plug Type: Hardwired
• Voltage/Phase: 30A
• Power Rating: 7.2 kW, 30A and on-site hardwiring (lead supplied)
• Power Supply: Single Phase
• Material: Stainless Steel
• Door Type: Open Conveyor
• Country of Origin: Australia
• Warranty (months): 12
• Temperature Range: 50-350°C
• Installation Type: Countertop
• Temperature Control: Digital Control Panel
• Mounting Type: Benchtop
• Display Type: Parts and Labour
• Fuel Type: Electric
