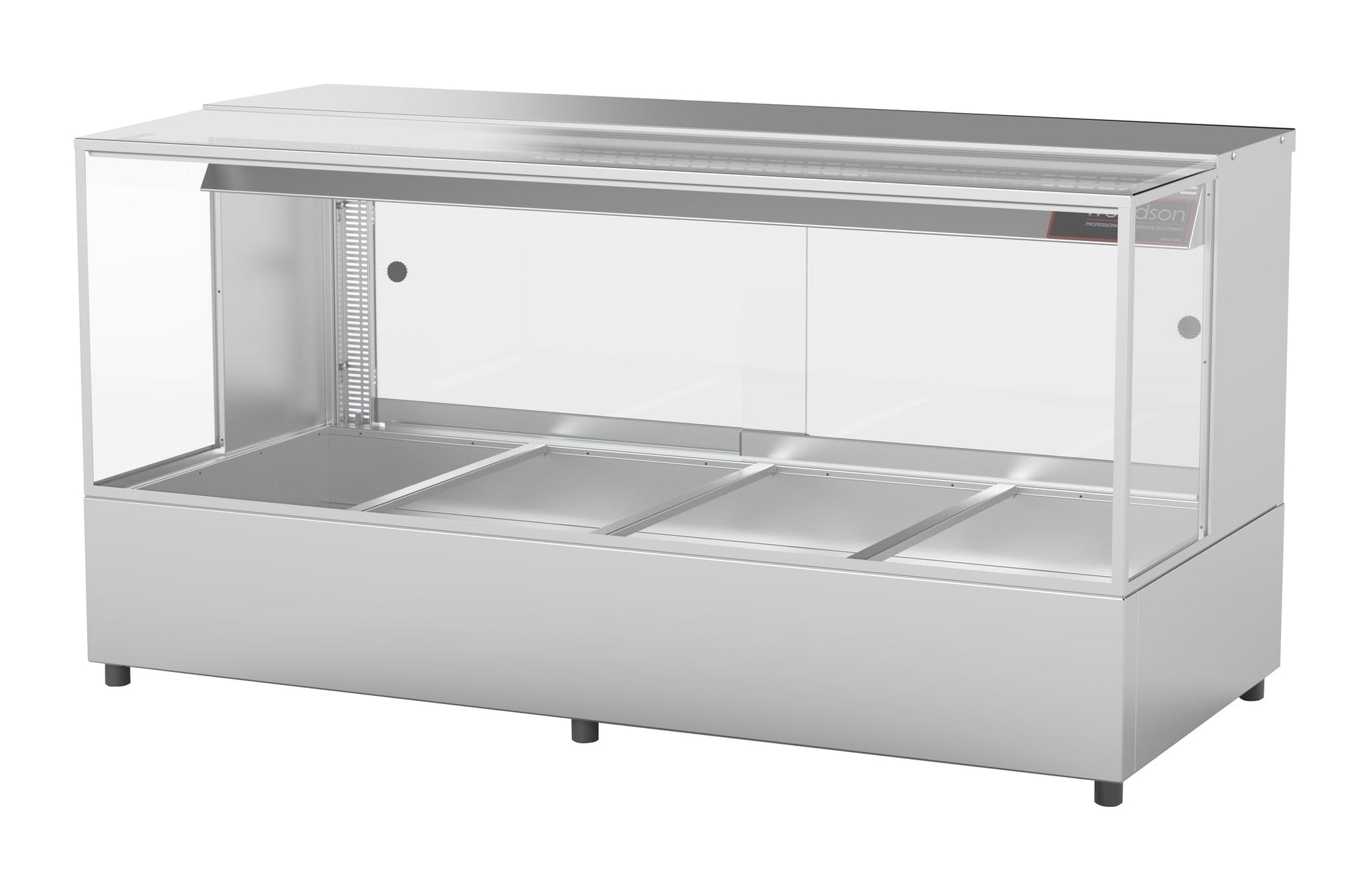

Woodson W.HFSQ24 4 Bay Square Glass Hot Food Display

The Woodson W.HFSQ24 is a 4-bay, 2-row countertop hot food display built for front-of-house service in cafes, bakeries, restaurants, hotels, buffets and catering kitchens. Constructed from satin-finished, double-skin stainless steel with fully sealed toughened straight glass panels, it combines durability, hygiene and excellent product visibility in a compact 1355mm-wide footprint.

Designed for wet operation, the W.HFSQ24 uses an air-insulated tank with multiple heating elements for even heat distribution, infrared heat lamps overhead, and in-tank thermostat and temperature probe controls to hold food consistently between 70 and 80 degrees Celsius. The result is a reliable, energy-efficient unit that keeps pies, pastries, hot meals and bain marie foods at safe serving temperatures without drying out, use after use.

Key Benefits

• Holds food safely between 70 and 80°C, reducing the risk of temperature abuse and supporting food safety compliance during service periods
• Wet-heat bain marie operation with in-tank temperature probe ensures even, consistent heat that keeps food moist and fresh rather than dried out
• Four 1/1 GN bays across 2 rows provide generous menu flexibility, allowing multiple dishes to be displayed and served simultaneously
• Air-insulated, double-skin tank construction minimises heat loss and lowers running costs, making the unit more energy efficient than single-skin alternatives
• Infrared overhead heat lamps combined with multiple tank elements maintain product temperature from above and below for thorough, even heating
• Square glass canopy and clear panels maximise product visibility, enhancing front-of-house presentation and encouraging impulse purchases
• Toughened glass and rear sliding doors allow safe, easy access for staff during service without disrupting the display
• Satin-finished stainless steel body is durable, hygienic and straightforward to clean, supporting busy commercial kitchen routines
• Plug-and-lead connection (15A, 240V) allows straightforward installation without hard-wiring, getting the unit into service quickly

Key Features

• 4-bay, 2-row configuration accommodating four 1/1 GN pans (pans sold separately)
• 1/1 GN-sized wells accept pans up to 100mm deep; Woodson GN pans recommended for guaranteed fit
• Square glass canopy profile with fully sealed toughened straight glass panels
• Rear sliding doors for convenient staff access during service
• Wet-heat bain marie system; designed and recommended for wet operation
• Thermostat and in-tank temperature probe regulate holding temperature between 70 and 80°C
• Air-insulated, double-skin stainless steel tank for energy-efficient, low-heat-loss operation
• Multiple heating elements provide even heat distribution across all bays
• Infrared overhead heat lamps supplement tank heating to maintain product temperature and presentation
• Satin-finished double-skin stainless steel construction throughout
• Countertop footprint; width 1355mm, depth 600mm, height 686mm
• Electrical: 3kW, 240V, 15A; supplied with plug and lead for direct connection
• Unit weight: 80kg
• Available in a range of sizes from 2 to 6 bays within the same square-glass series
• Not recommended for displaying chickens; refer to the Woodson W.HFH series for that application
• Additional accessories available separately

Specifications

• Width (mm): 1355
• Depth (mm): 600
• Height (mm): 686
• Weight (kg): 80
• Power (kW): 3
• Power Type: Electric
• Amps (A): 15
• Voltage (V): 240
• Plug Type: Plug & Lead
• Voltage/Phase: 15A, 240V plug & lead
• Glass Type: Square Glass
