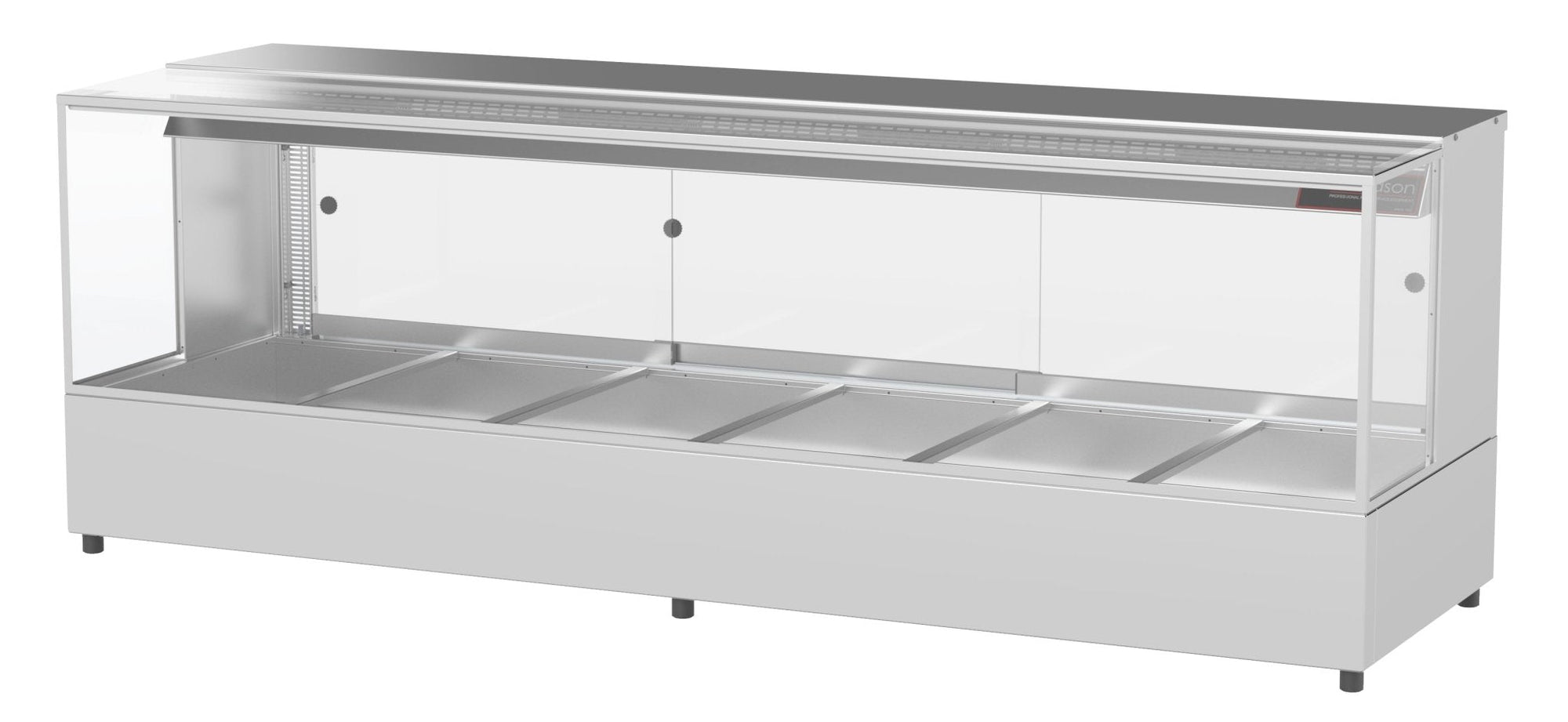

Woodson W.HFSQ26 Square Glass Hot Food Display – 6 Bay, 2005mm

The Woodson W.HFSQ26 is a six-bay square glass hot food display spanning 2005mm in width, purpose-built for high-volume service environments including cafes, bakeries, buffets, restaurants, hotels and takeaway operations. The unit is arranged in two rows of six bays, accommodating 1/1 GN pans up to 100mm deep, and is engineered for wet operation using an air-insulated double-skin stainless steel tank fitted with multiple heating elements that deliver even heat distribution and keep food safely within the 70 to 80 degree Celsius range throughout service.

The W.HFSQ26 features a satin-finished double-skin stainless steel body with a fully sealed toughened straight glass profile, pairing long-term durability with outstanding product visibility from every angle. Infra-red overhead heat lamps, rear sliding doors for convenient staff access, and a thermostat paired with an in-tank temperature probe that actively monitors and maintains food within the safe holding range of 70 to 80 degrees Celsius all contribute to consistent performance, lower running costs and easy cleaning. The unit connects via a standard 15A, 240V plug-and-lead at 3.6kW, making installation straightforward in most commercial settings. Pans are sold separately.

Key Benefits

• Keeps food safely within 70 to 80 degrees Celsius throughout service, protecting food quality and meeting safe temperature requirements
• Wet operation design retains moisture in dishes, preventing food from drying out during extended display periods
• Six-bay GN capacity across two rows handles high-volume buffet and cafeteria service without compromising presentation
• Air-insulated double-skin tank paired with a dedicated in-tank probe reduces energy consumption while sustaining accurate, consistent heat
• Multiple heating elements ensure even heat distribution across all bays, eliminating hot and cold spots
• Toughened square glass profile maximises product visibility from all angles, encouraging customer purchases
• Infra-red overhead heat lamps enhance food presentation and supplement tank heating for superior holding performance
• Rear sliding doors allow staff to replenish or serve quickly without disrupting the display or losing heat
• Standard 15A plug-and-lead connection means no dedicated electrical work is required for installation

Key Features

• Six-bay (6 module) configuration arranged in 2 rows across a 2005mm width
• Square glass profile with fully sealed toughened straight glass for maximum product visibility
• Designed and recommended for wet operation
• Air-insulated, double-skin satin-finished stainless steel tank construction
• A thermostat working in conjunction with an in-tank temperature probe continuously monitors conditions and maintains product within the 70 to 80 degree Celsius safe holding range
• Multiple heating elements for even heat distribution and continued operation if one element is affected
• Infra-red overhead heat lamps for supplementary heating and enhanced food presentation
• Rear sliding doors for easy staff access during service
• 1/1 GN sized well, accommodates pans up to 100mm deep (pans sold separately)
• Designed for use with Woodson GN pans; compatibility with other brands' GN pans is not guaranteed
• Not recommended for the display of whole chickens – refer to the Woodson W.HFH range for that application
• Electric operation at 3.6kW, 240V, 15A
• Plug-and-lead connection (15A, 240V) for straightforward installation
• Overall dimensions: 2005mm (W) x 600mm (D) x 686mm (H), weighing 110kg

Specifications

• Width (mm): 2005
• Depth (mm): 600
• Height (mm): 686
• Weight (kg): 110
• Power (kW): 3.6
• Power Type: Electric
• Amps (A): 15
• Voltage (V): 240
• Plug Type: Plug & Lead
• Voltage/Phase: 15A, 240V plug & lead
• Glass Type: Square Glass
