Overview

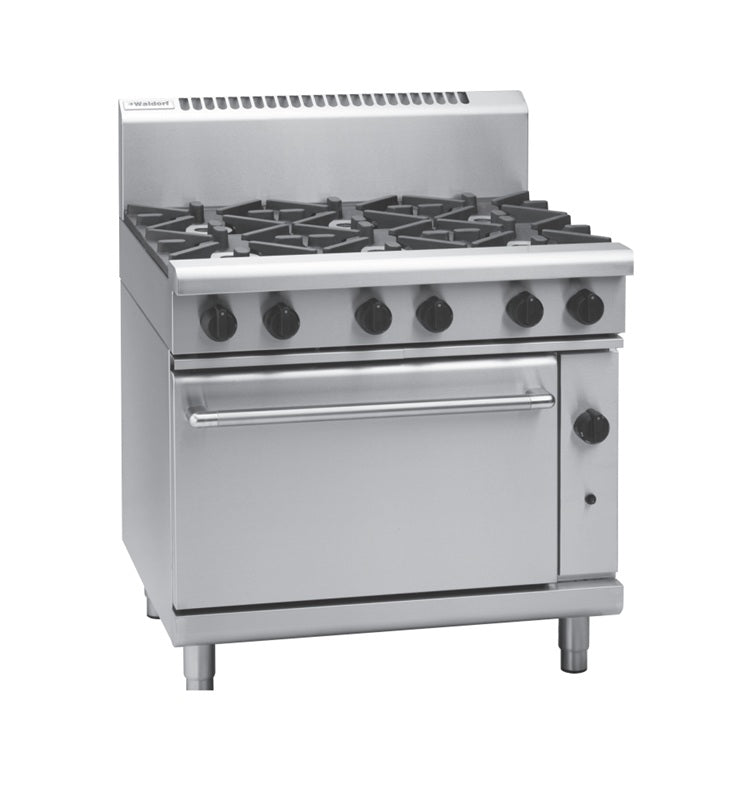

Waldorf RN8610G 800 Series 900mm Six Burner Gas Range with Gas Static Oven

The Waldorf RN8610G is a 900mm wide commercial gas range from the acclaimed 800 Series, pairing a six-burner open cooktop with a 2/1 GN capacity gas static oven. Built in New Zealand from 304 stainless steel, the unit delivers a total gas input of 198 MJ/hr (55 kW) across the cooktop and oven, making it a high-output choice for professional kitchens with demanding service schedules.

The cooktop carries six patented 28 MJ/hr dual flame ring burners, each offering simmer capability and fitted with flame failure protection for safe operation. Beneath the cooktop, the gas static oven is lined with welded vitreous enamel for even heat retention and straightforward cleaning, with thermostatic temperature control spanning 150°C to 300°C and four rack positions to support a variety of cooking tasks at once.

Key Benefits

• Six high-output 28 MJ/hr dual flame ring burners with simmer rate give chefs precise control from rapid boiling through to gentle simmering within a single cooking zone.
• Flame failure protection on every burner automatically cuts the gas supply if a flame is extinguished, supporting a safer working environment during busy service.
• The 2/1 GN gas static oven with a welded vitreous enamel interior lining provides consistent, even heat across a 665 x 590 x 385mm cavity, supporting reliable baking and roasting results.
• Four rack positions inside the oven allow flexible arrangement of multiple trays, maximising output during high-volume service periods.
• The cast iron burners are fully removable and the pot stands feature a vitreous enamel finish; both components can be taken out independently for routine cleaning and replaced individually to reduce maintenance downtime. The control knobs are reinforced for heavy-duty commercial use.
• Adjustable feet and two additional rollers make levelling on uneven floors straightforward and allow the unit to be repositioned for cleaning or servicing without difficulty.
• A cool-touch stainless steel door handle and reinforced control knobs are designed to withstand the rigours of continuous commercial use.
• Available in both natural gas and LPG configurations, giving operators flexibility when specifying for different site gas supplies.
• A welded drop-down oven door with welded frame construction adds structural rigidity and provides an accessible landing surface when loading and unloading the oven.

Key Features

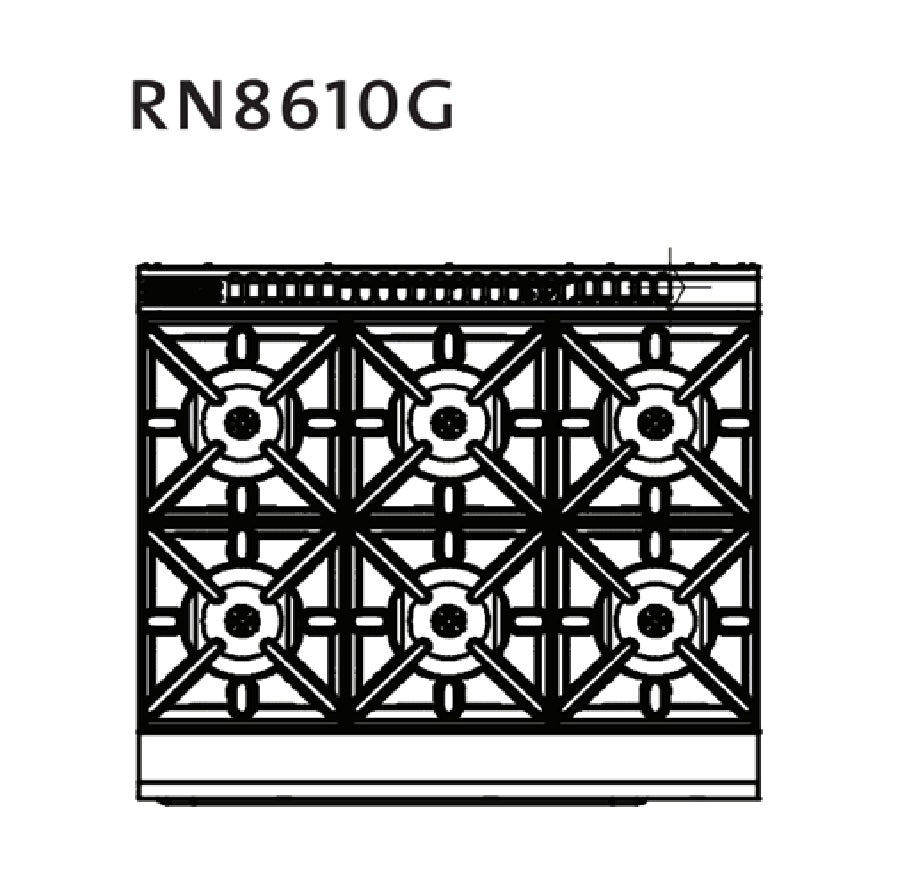

• Six-burner cooktop with patented 28 MJ/hr dual flame ring open burners, each with simmer rate capability
• Flame failure protection fitted to all six cooktop burners
• Total gas input: 198 MJ/hr (55 kW) across the full unit
• 2/1 GN capacity gas static oven with thermostatic temperature control ranging from 150°C to 300°C
• Oven interior dimensions: 665mm wide x 590mm deep x 385mm high
• Rack size 660mm x 540mm; four rack positions provided; two shelves included
• Welded vitreous enamel oven lining for even heat distribution and easy cleaning
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• Cast iron burners are fully removable; pot stands carry a vitreous enamel finish and are individually removable for cleaning or replacement
• Heavy-duty reinforced control knobs
• Adjustable feet plus two additional rollers for repositioning
• Constructed from 304 stainless steel with heavy-duty stainless steel finish throughout
• Integrated splashback included; height with splashback 1130mm

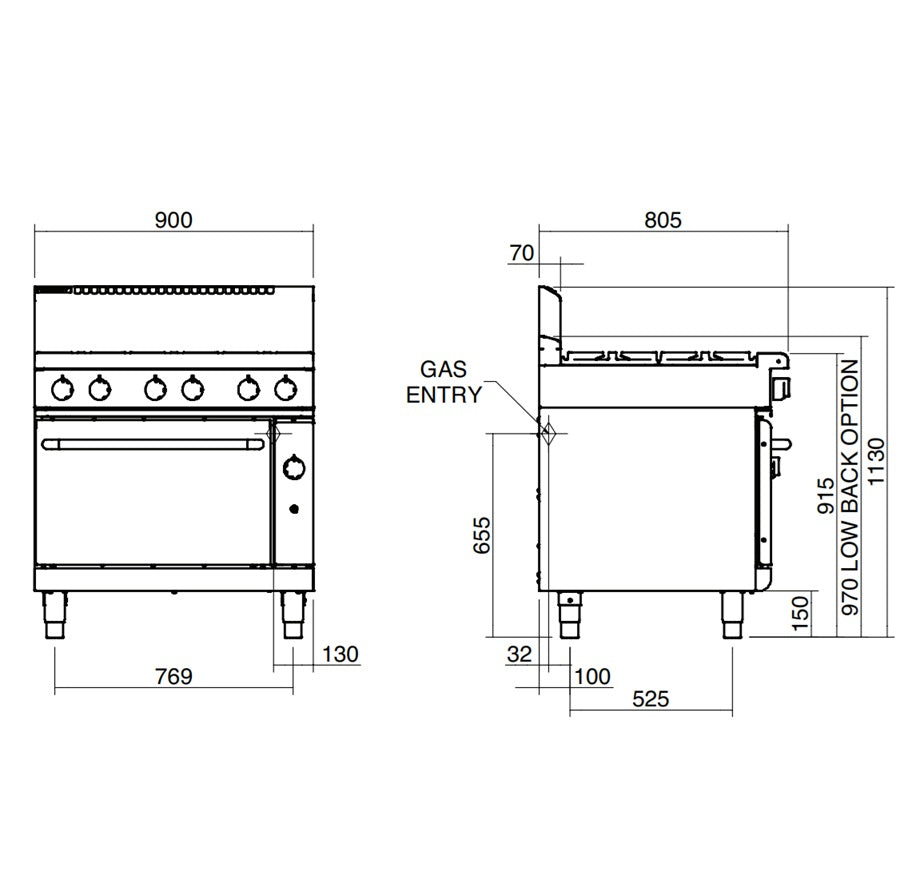

• Gas connection: R 3/4 (BSP) male, located 130mm from right-hand side, 32mm from rear, 655mm from floor
• Compatible with natural gas and LPG; fuel type must be specified at time of order
• Analog display with thermostatic temperature control
• Nett weight: 209 kg
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 6
• Power Rating: 46.7 kW
• Temperature Control: Thermostatic
• Display Type: Analog
