Overview

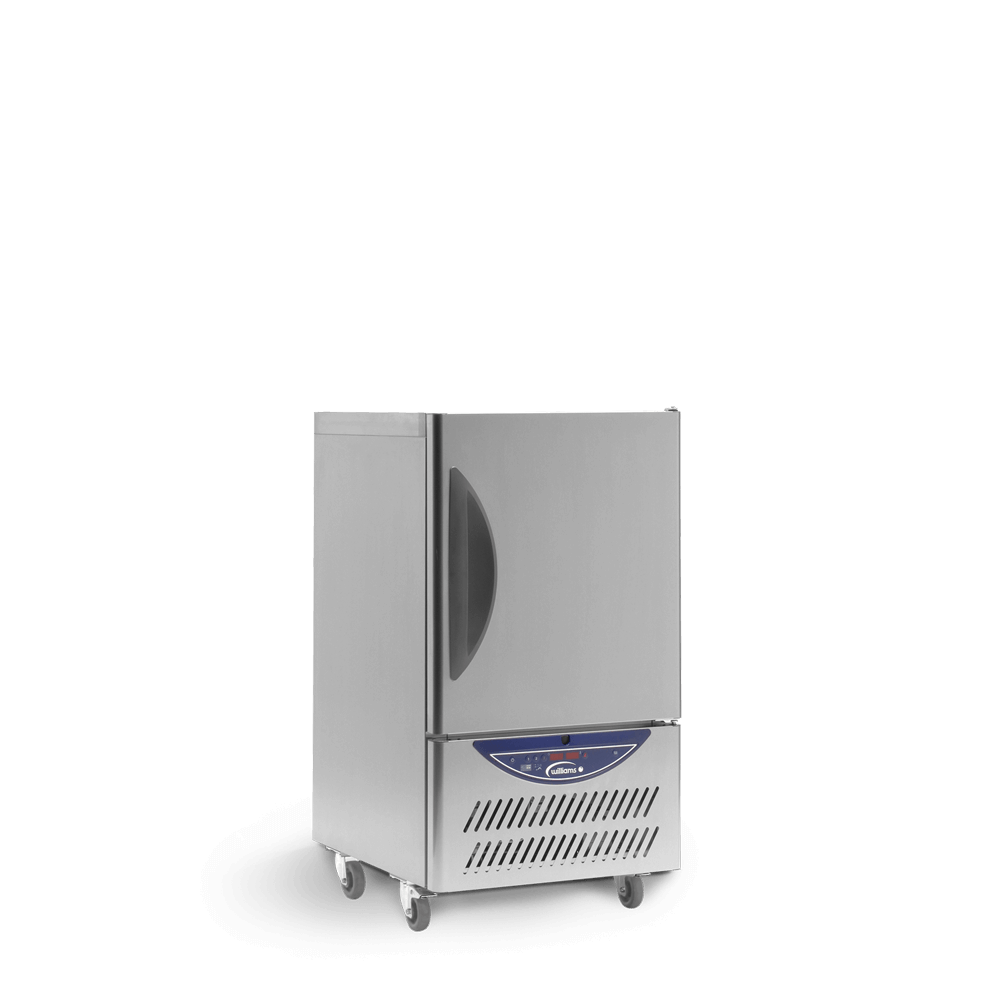

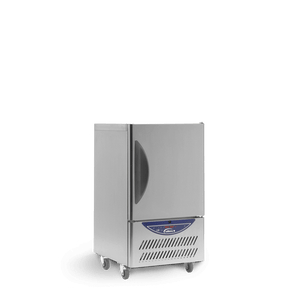

Williams WBCF20 Reach-In Blast Chiller Freezer 20 kg

The Williams WBCF20 is a self-contained reach-in blast chiller freezer designed for busy commercial kitchens requiring precise, rapid temperature reduction that meets and exceeds food safety legislation. With a 20 kg capacity, it brings food from +90°C down to +3°C in just 90 minutes, or to -18°C within 240 minutes, making it equally effective for blast chilling and blast freezing applications.

Manufactured in Australia from 304 stainless steel and rated for tropical climates up to 43°C ambient, the WBCF20 is built to perform reliably in the most demanding kitchen environments. Its CoolSmart digital controller, LED display and simple three-step cycle initiation make operation straightforward for all kitchen staff, while automatic evaporator defrost and a store mode activate after each cycle to maintain food quality and unit efficiency.

Key Benefits

• Rapidly reduces food temperature from +90°C to +3°C in 90 minutes, keeping hot food out of the bacterial danger zone and satisfying food safety requirements.
• Blast freezes 20 kg of product to -18°C within 240 minutes, extending shelf life without compromising quality.
• Fast chilling minimises ice crystal formation, preserving the cell structure, texture, moisture and taste of food.
• Supports HACCP compliance and batch cooking workflows, allowing large quantities to be prepared ahead of service safely.
• Rated for operation in tropical ambient conditions up to 43°C, making it suitable for hot commercial kitchen environments across Australia.
• Automatic evaporator defrost and a post-cycle store mode reduce staff workload and help maintain consistent cabinet performance.
• Simple three-step cycle initiation means minimal training is required and staff can start blast cycles quickly during busy service periods.
• Self-contained refrigeration system with R404a refrigerant simplifies installation, requiring no remote condenser or external plant room.

Key Features

• 20 kg blast chilling capacity per 90-minute cycle and 20 kg blast freezing capacity per 240-minute cycle.
• Chills food from +90°C to +3°C in 90 minutes; freezes to -18°C in 240 minutes.
• Holds up to 6 x 1/1 GN pans at 50 mm depth.
• Six shelf positions to accommodate a full load of GN pans.
• CoolSmart digital controller with digital LED display for precise cycle management.
• Three-step cycle initiation for fast and simple operation.
• Automatic evaporator defrost and store mode activate after each blast cycle.
• Single solid door with one-door configuration for a compact footprint.
• 304 stainless steel construction throughout for durability and hygiene.
• 75 mm insulation panels for superior thermal efficiency.
• Fan-assisted cooling for even and rapid temperature distribution.
• Self-contained refrigeration unit with R404a refrigerant.
• Climate Class 4 (Tropical) rated for ambient operating temperatures up to 43°C.
• LED interior lighting for clear visibility of cabinet contents.
• Operating temperature range of -18°C to -22°C.
• 1.44 kW output; 240 V single-phase power supply drawing 6.0 A.
• Cycle-based energy consumption (not continuous draw), optimising running costs.
• Manufactured in Australia.
• 2-year warranty (self-contained unit).

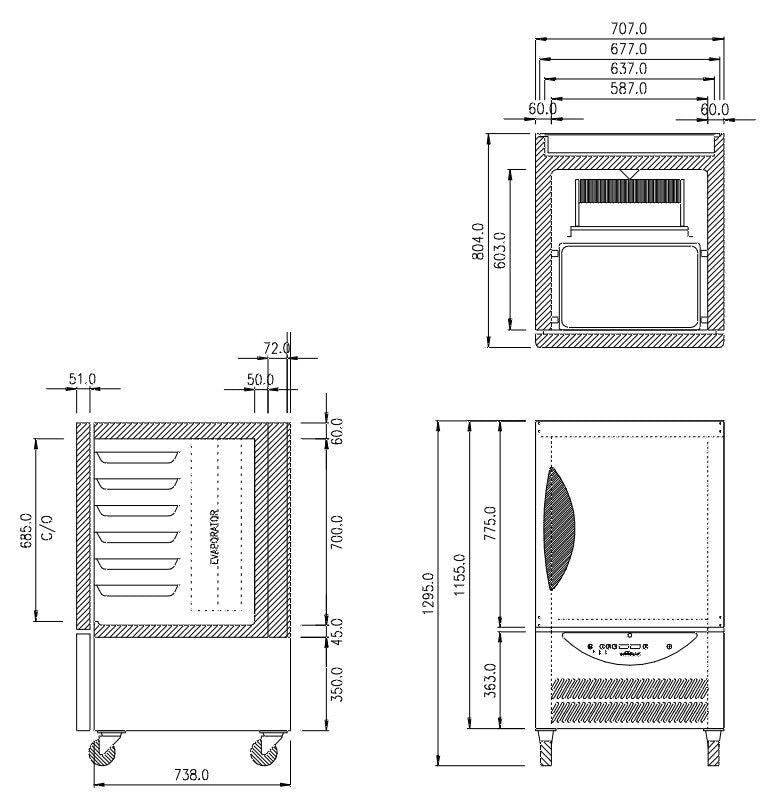

• Dimensions: 1295 mm (H) x 707 mm (W) x 804 mm (D).

Specifications

• Width (mm): 707
• Depth (mm): 804
• Height (mm): 1295
• Weight (kg): 150
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 20
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 6.0amps
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): N/A - Cycle Based
• Refrigerant: R404a
• Compressor Location: Self-contained
• Temperature Range: -18°C to -22°C
• Refrigeration Type: Blast Chiller
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 6
• No. of Doors: 1
• Temperature Control: CoolSmart Digital Controller
• Interior Lighting: LED
• Display Type: Digital LED
