Overview

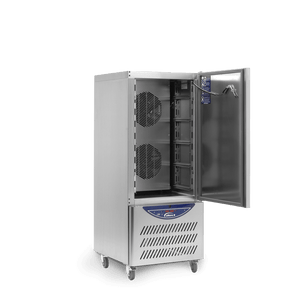

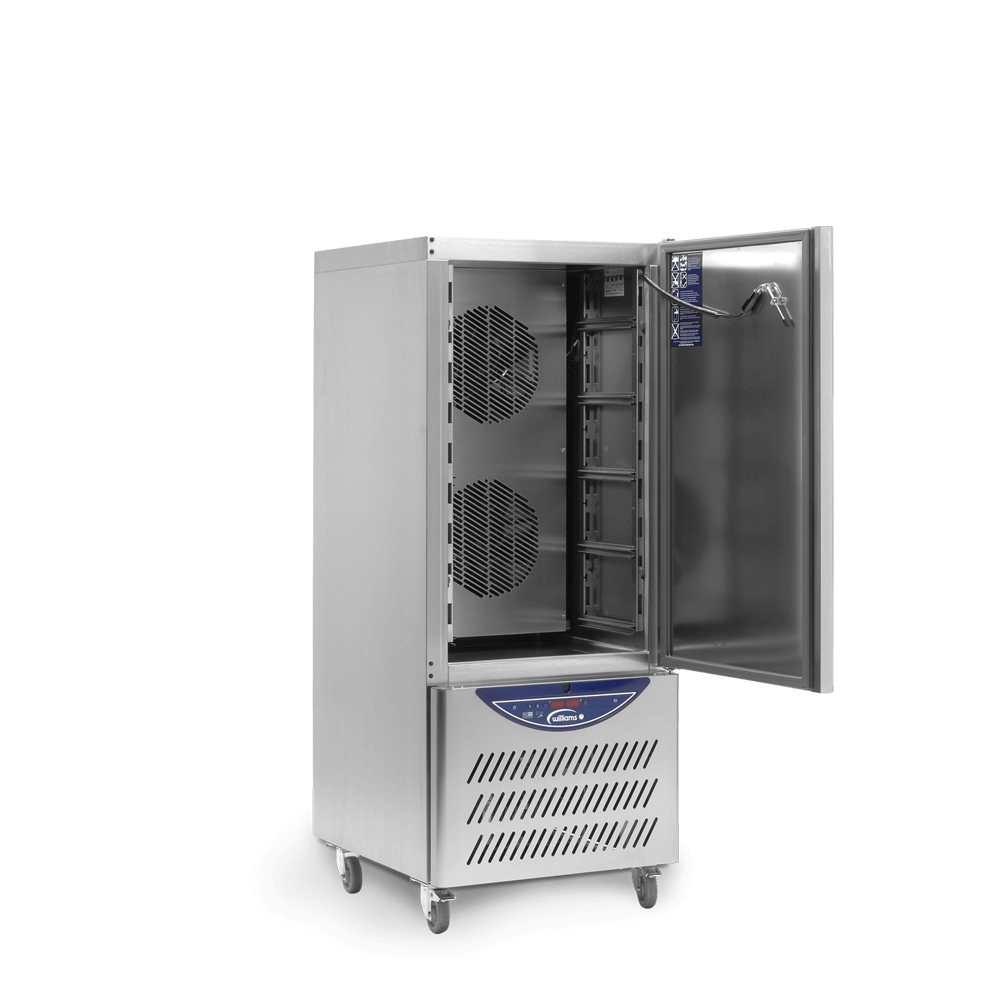

Williams WBCF30 Reach-In Blast Chiller Freezer 30 kg

The Williams WBCF30 is a reach-in blast chiller freezer engineered for busy commercial kitchens that demand rapid, precise temperature reduction to meet and exceed food safety legislation. Manufactured in Australia from 304 stainless steel and rated for tropical climates up to 43°C ambient, it soft chills or hard freezes up to 30 kg of hot food per cycle, protecting texture, moisture and shelf life through fast heat extraction.

Controlled by the Williams CoolSmart digital controller with a straightforward 1-2-3 panel interface, the WBCF30 makes initiating and managing blast cycles simple for any operator. It accommodates up to 10 x 1/1 GN pans (50 mm deep), features automatic evaporator defrost and a store mode after each cycle, and runs on standard 240 V single-phase power, making it a practical, self-contained solution for high-volume batch cooking operations.

Key Benefits

• Rapidly reduces food temperatures to comply with and exceed food safety and HACCP requirements, minimising bacterial growth risk.
• Preserves the texture, moisture and nutritional quality of food by pulling heat out quickly rather than allowing slow, damaging cooling.
• Supports efficient batch cooking workflows, allowing large volumes of food to be safely chilled and stored ready for service.
• Simple 1-2-3 control panel means any kitchen team member can initiate a blast cycle with minimal training.
• Soft chill or hard freeze modes give operators complete flexibility over the end temperature required for different food types.
• Automatic evaporator defrost and automatic store mode after every cycle reduce manual intervention and keep the unit ready for the next batch.
• Self-contained refrigeration system with R404a refrigerant simplifies installation, requiring no remote plant room or additional infrastructure.
• Tropical climate class 4 rating ensures reliable performance in hot, humid commercial kitchen environments up to 43°C ambient.
• LED interior lighting and digital LED display make it easy to monitor contents and cycle status at a glance.

Key Features

• Blast chill and blast freeze capability with selectable soft chill or hard freeze cycles for up to 30 kg per chilling cycle or 30 kg per 240-minute freezing cycle.
• 90-minute blast chill cycle duration.
• Holds up to 10 x 1/1 GN pans at 50 mm deep.
• 75 mm insulation panels for enhanced thermal efficiency.
• CoolSmart digital controller with simple 1-2-3 cycle initiation interface.
• Digital LED display for clear, real-time cycle and temperature monitoring.
• Automatic evaporator defrost and automatic store mode activated after each cycle.
• Temperature range: -18°C to -22°C (blast freeze).
• Self-contained refrigeration system using R404a refrigerant.
• R290 gas type noted in product specifications.
• 2.37 kW output capacity.
• Rated for 43°C working ambient; Climate Class 4 (Tropical).
• Exterior and interior constructed from 304 stainless steel.
• Single solid door with 10 shelves.
• Fan-assisted cooling for even, rapid heat extraction.
• LED interior lighting.
• Cycle-based energy consumption (not continuous draw).
• 240 V single-phase power supply; 9.9 A running current (15 A circuit recommended).

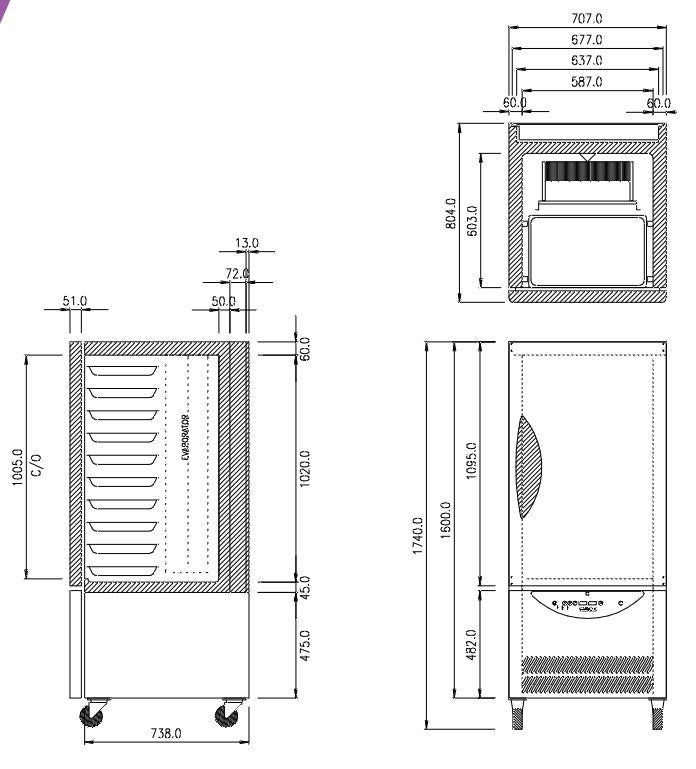

• Dimensions: 1740 mm (H) x 707 mm (W) x 804 mm (D).
• Manufactured in Australia.
• 2-year warranty (self-contained unit).

Specifications

• Width (mm): 707
• Depth (mm): 804
• Height (mm): 1740
• Weight (kg): 150
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 30
• Amps (A): 15
• Voltage (V): 240V single phase
• Power Rating: 9.9amps
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): N/A - Cycle Based
• Refrigerant: R404a
• Compressor Location: Self-contained
• Temperature Range: -18°C to -22°C
• Refrigeration Type: Blast Chiller
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 10
• No. of Doors: 1
• Temperature Control: CoolSmart Digital Controller
• Interior Lighting: LED
• Display Type: Digital LED
