Overview

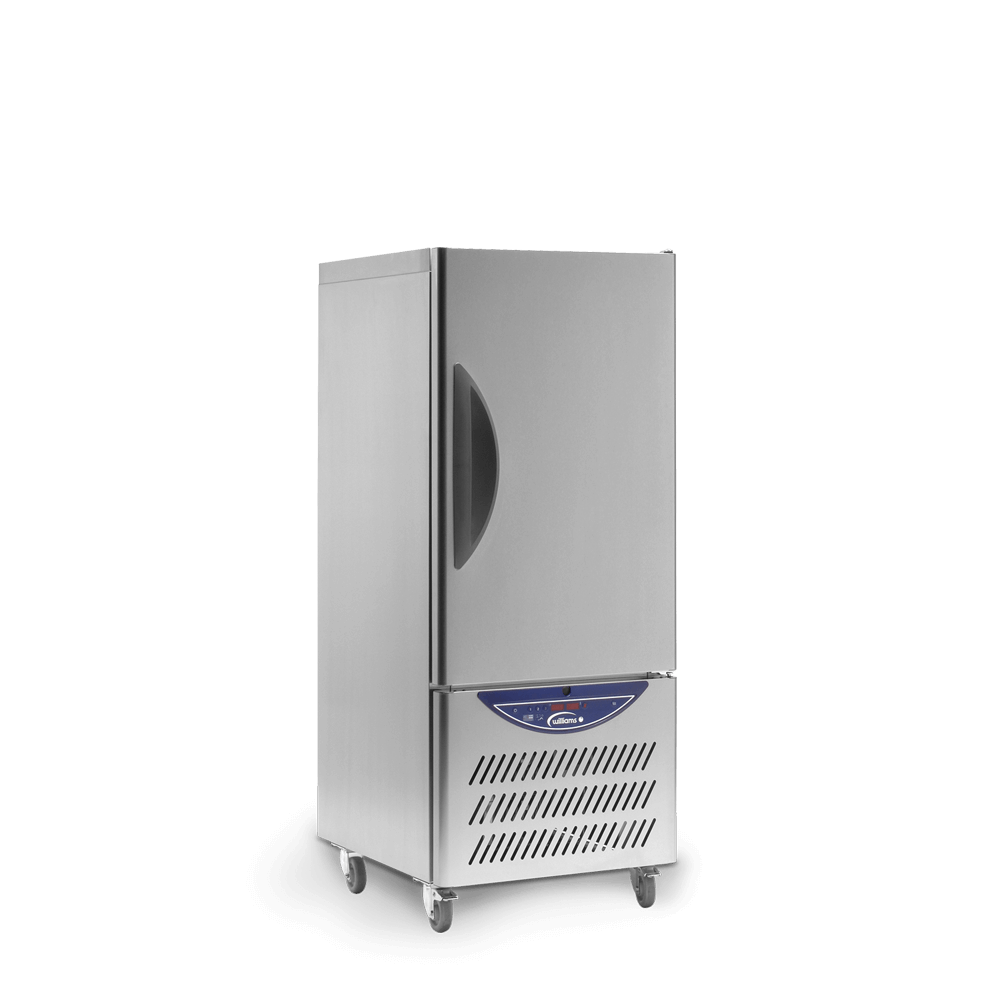

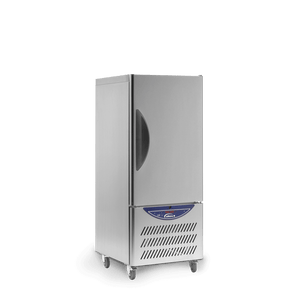

Williams WBCF40 Reach-In Blast Chiller Freezer 40 kg

The Williams WBCF40 is a professional reach-in blast chiller and freezer designed to rapidly reduce the temperature of hot cooked food, protecting food safety and preserving quality. Built in Australia from 304 stainless steel, it operates on a self-contained R404a refrigeration system and is rated for tropical ambient conditions up to 43°C, making it well suited to demanding commercial kitchen environments.

Controlled by the Williams CoolSmart digital controller with intuitive 1-2-3 cycle initiation and AirSmart fan-assisted airflow technology, the WBCF40 simplifies blast chilling and freezing across a 10-tray capacity. It supports HACCP compliance and batch cooking workflows, helping kitchens meet food safety regulations while extending the shelf life and eating quality of prepared food.

Key Benefits

• Rapidly chills or freezes large batches of hot food to safe temperatures, reducing the risk of bacterial growth and supporting HACCP compliance.
• Preserves moisture, texture and flavour by minimising ice crystal formation during the rapid cooling process.
• AirSmart fan-assisted airflow technology ensures consistent temperature distribution across all 10 trays for uniform results.
• Simple 1-2-3 cycle initiation reduces operator training requirements and minimises the chance of user error during busy service periods.
• Automatic evaporator defrost and a store mode activate after each cycle, reducing manual maintenance and keeping the unit ready for the next batch.
• Rated for operation in tropical ambient conditions up to 43°C, delivering reliable performance in hot kitchen environments.
• Supports batch cooking and cook-chill workflows, allowing kitchens to prepare food in advance and manage labour more efficiently.
• LED interior lighting and a digital LED display make monitoring and managing cycles straightforward during operation.

Key Features

• Blast chills 40 kg per 90-minute cycle; blast freezes 40 kg per 240-minute cycle.
• Holds up to 10 x 1/1 GN pans at 50 mm deep.
• CoolSmart digital controller with 1-2-3 step cycle initiation for simplified operation.
• AirSmart fan-assisted cooling for even airflow and consistent chilling across all tray positions.
• Automatic evaporator defrost and automatic store mode engage after each completed cycle.
• Self-contained R404a refrigeration system with compressor integrated into the unit.
• Operates in ambient temperatures up to 43°C (Climate Class 4 Tropical).
• Constructed from 304 stainless steel interior and exterior.
• 75 mm insulation panels for efficient thermal performance.
• Single solid door with 10 shelves providing a 40-litre capacity.
• Digital LED display for clear cycle and temperature monitoring.
• LED interior lighting.
• Temperature range: -18°C to -22°C (blast freeze).
• 240 V single phase electrical supply; 9.9 A running current, 15 A circuit requirement.
• Output: 2.37 kW.
• Energy consumption is cycle-based rather than measured per 24 hours.
• Manufactured in Australia.
• 24-month warranty (self-contained unit).

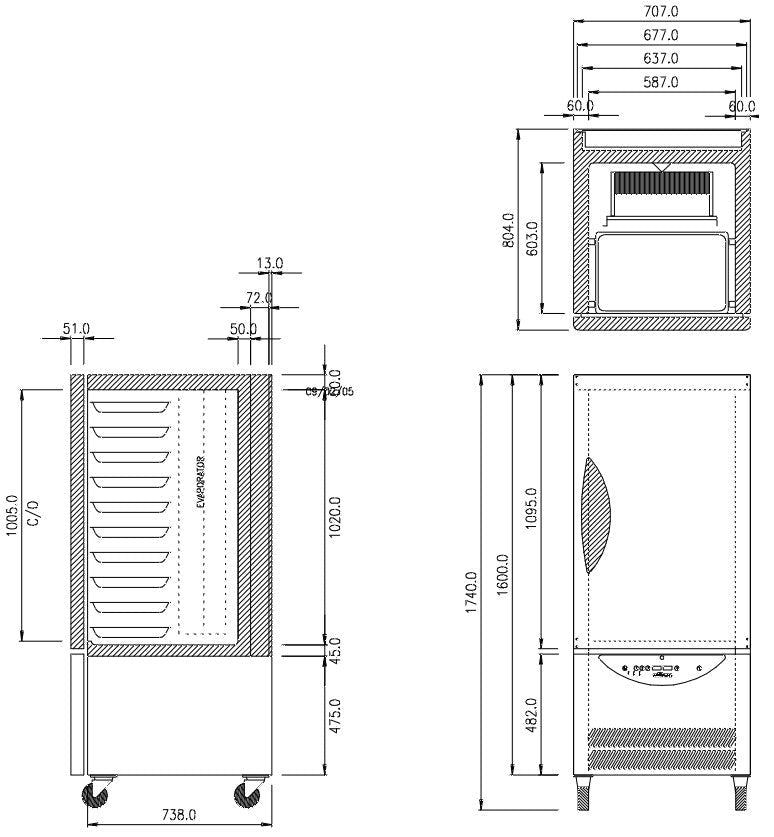

• Dimensions: 1740 mm (H) x 707 mm (W) x 804 mm (D).
• Unit weight: 150 kg (shipping weight approximately 190 kg).

Specifications

• Width (mm): 707
• Depth (mm): 804
• Height (mm): 1740
• Weight (kg): 150
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 40
• Amps (A): 15
• Voltage (V): 240V single phase
• Power Rating: 9.9amps
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): N/A - Cycle Based
• Refrigerant: R404a
• Compressor Location: Self-contained
• Temperature Range: -18°C to -22°C
• Refrigeration Type: Blast Chiller
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 10
• No. of Doors: 1
• Temperature Control: CoolSmart Digital Controller
• Interior Lighting: LED
• Display Type: Digital LED
