Overview

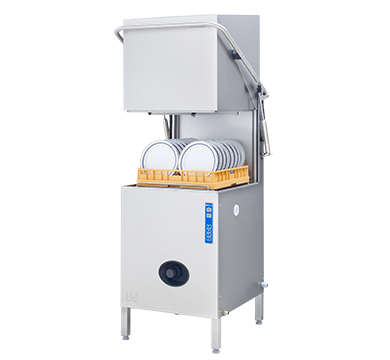

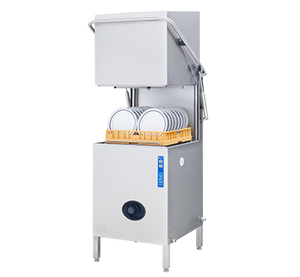

Wexiodisk WD-6 DUPLUS Passthrough Dishwasher

The Wexiodisk WD-6 DUPLUS is a passthrough dishwasher built around Wexiodisk's proprietary DUPLUS technology, which performs a double final rinse using just one litre of fresh water per cycle to deliver outstanding hygiene results. Capable of processing up to 50 baskets per hour across three selectable cycle times, it is well suited to high-volume commercial kitchens where consistent output and low operating costs are both priorities.

Constructed entirely in stainless steel with smooth internal surfaces, the machine is straightforward to clean and built for long service life. Its uniquely engineered hood channels steam out through the rear of the unit rather than into the workspace, while a compact footprint and the choice of corner or in-line placement allow it to integrate comfortably into a wide variety of kitchen layouts. The unit arrives ready for immediate use, supplied with three dish racks for cups and plates and all standard pumps fitted as part of the package.

Key Benefits

• DUPLUS double final rinse technology achieves excellent wash hygiene while consuming only one litre of fresh water per cycle, substantially cutting water and energy expenditure over time.
• Three adjustable cycle times of 72, 108 and 196 seconds let staff tailor wash intensity to the degree of soiling, preventing unnecessary resource use on lighter loads.
• A throughput of up to 50 baskets per hour keeps pace with demanding service periods without creating a backlog at the dish return point.
• The motorised hood lift paired with the Auto Start function reduces manual handling steps, allowing staff to load and unload racks more quickly and efficiently.
• Steam is directed out through the back of the hood rather than into the surrounding work area, improving comfort and air quality for kitchen staff throughout service.
• An electronic control panel equipped with an event log provides a clear diagnostic record, enabling technicians to pinpoint and address faults rapidly and minimise downtime.
• The front-accessible anti-clogging filter can be removed and cleaned during service with minimal disruption, supporting continuous, reliable operation.
• Corner or in-line installation flexibility, combined with three included dish racks and all standard pumps supplied as standard, means the machine is operational with minimal setup time straight from delivery.

Key Features

• DUPLUS double final rinse technology consuming only 1 litre of fresh water per cycle
• Capacity of up to 50 baskets per hour
• 45-litre wash tank volume
• Three wash cycle levels with selectable cycle durations of 72, 108 and 196 seconds
• Uniquely engineered hood designed to channel steam out through the rear of the machine
• Motorised hood lift with Auto Start function
• Electronic control panel featuring an event log for diagnostics and rapid fault resolution
• Automatic cleaning program
• Self-draining wash arms for consistent wash coverage and straightforward maintenance
• 0.9 kW wash pump paired with a 9 kW booster heater
• Break tank with booster pump included as standard
• Anti-clogging filter mounted at the front of the machine for convenient access
• Fixed basket conveyor engineered to optimise washing results and simplify cleaning
• Smooth internal surfaces throughout for fast and thorough cleaning
• Full stainless steel construction for durability and hygiene
• Drain pump, liquid detergent pumps, and drying agent/rinse aid injector all included as standard
• Supplied with three dish racks suitable for cups and plates
• Corner or in-line installation to suit different kitchen configurations
• Upgrades and options available through Moffat

Specifications

• Weight (kg): 340.0
