Overview

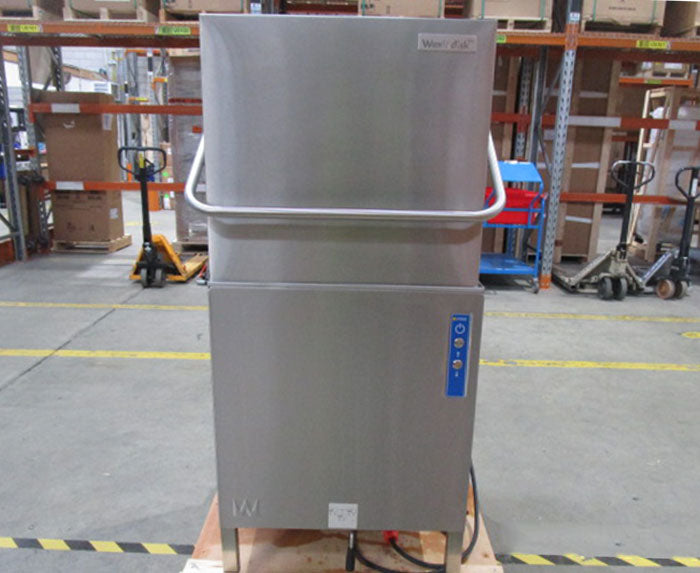

Wexiodisk WD-PRM7 Passthrough Pre-Rinse Washer

The Wexiodisk WD-PRM7 is a passthrough pre-rinse washer designed as the first stage in a high-volume commercial dishwashing line. It rinses baskets from both above and below with a powerful flow of water, removing food residue far more thoroughly than manual pre-rinsing can achieve. The unit accommodates 600mm x 500mm baskets and processes up to 120 baskets per hour on a 30-second cycle, keeping the wash line moving smoothly during peak service periods.

The WD-PRM7 reuses overflow water from the connected rack conveyor machine and introduces a small amount of detergent to deliver efficient, consistent rinsing while minimising total water consumption across the dishroom. Working in conjunction with ICS+, this system helps keep washing water clean throughout long wash cycles and allows the main dishwasher to run shorter programs, reducing energy and chemical use over time. The unit must be used with a compatible Wexiodisk rack conveyor machine, and upgrades and options are available.

Key Benefits

• Eliminates manual pre-rinsing, reducing labour demands at the wash line during busy service periods
• Rinses from both above and below the basket simultaneously, achieving more thorough soil removal than hand-rinsing
• Processes up to 120 baskets per hour to sustain throughput on high-volume dishwashing lines
• Reuses overflow water from the main conveyor dishwasher, lowering overall water consumption and running costs
• Allows the main dishwasher to run shorter wash programs, saving energy and chemicals across each service
• Works with ICS+ to keep washing water cleaner during extended wash cycles
• Insulated construction supports consistent operating temperatures and helps contain heat within the unit
• Passthrough configuration integrates neatly into existing linear dishroom layouts

Key Features

• Throughput of up to 120 baskets per hour on a 30-second cycle
• Rinses items from both above and below the basket with a powerful water flow
• Reuses overflow water from the connected rack conveyor machine
• Injects a small amount of detergent into the rinsing system for effective food residue removal
• Compatible with ICS+ system to minimise total water use across the dishroom
• Fits 600mm x 500mm baskets
• 45-litre wash tank
• 0.9kW wash pump
• Fully insulated construction
• Manual hood lifting
• Passthrough configuration for integration into linear wash lines
• Must be used with a Wexiodisk WD-7, WD-7CH, WD-7 Duplus or WD-12S rack conveyor machine
• External dimensions: 660mm W x 713mm D x 2084mm H
• Power supply: 3P+N+E 400-415V 50/60Hz 0.9kW 10A
• Cordset supplied
• Packed weight: 100kg
• Upgrades and options available
