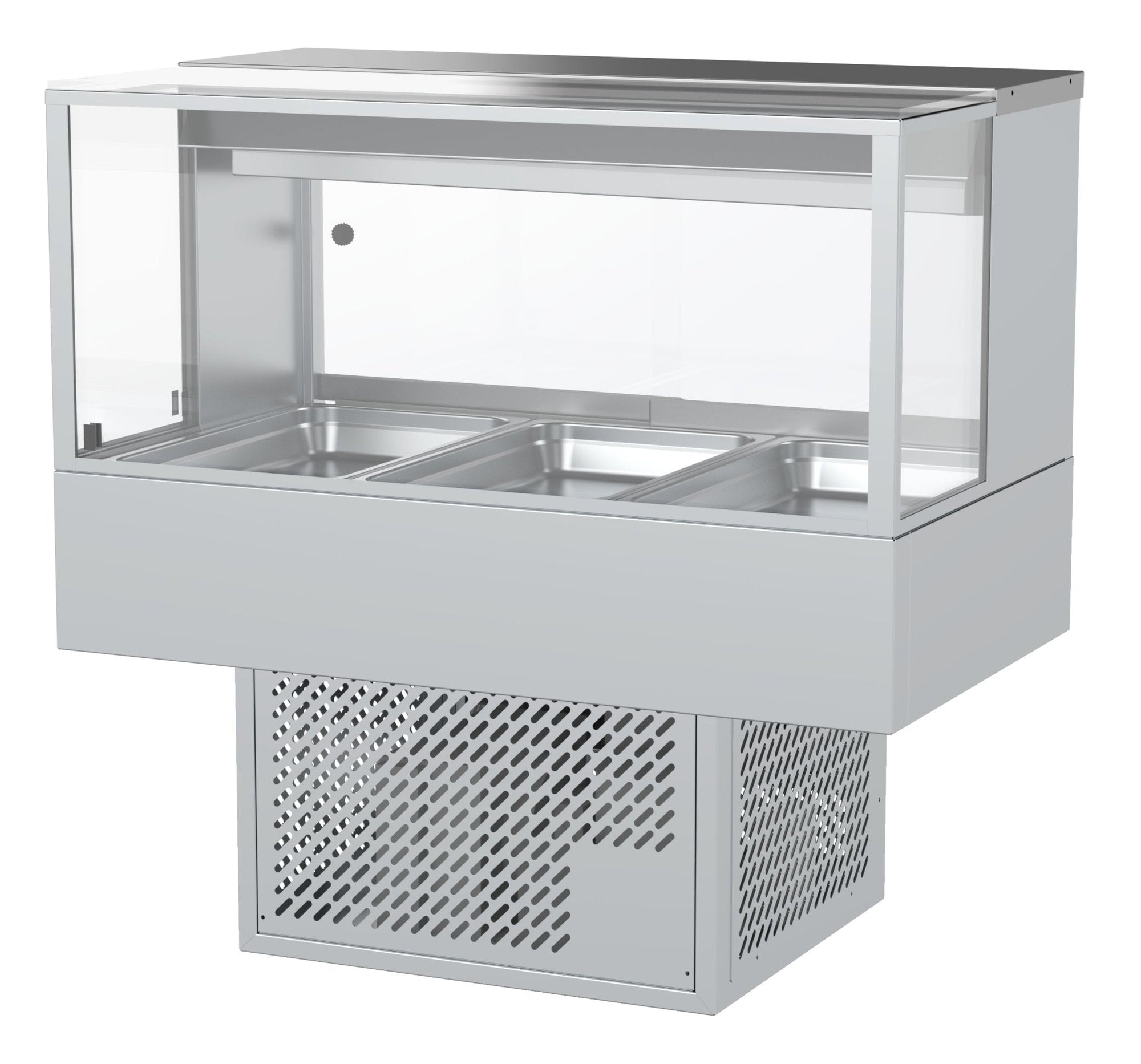

Woodson WR.CFSQ23 3 Bay Square Glass Cold Food Well

The Woodson WR.CFSQ23 is a 3-bay refrigerated cold food well designed for front-of-house display and food service in cafés, restaurants, buffets, and catering outlets. Configured with 2 rows and 3 bays, it accommodates three 1/1 GN pans (sold separately) up to 65mm deep, offering generous capacity within a compact countertop footprint.

Constructed from stainless steel with double-glazed, toughened square-profile glass on the front and sides, this unit combines durability and hygiene with outstanding product visibility. Toughened glass roller doors to the rear allow easy access for staff, while top-mounted LED lighting ensures food is attractively illuminated at all times to encourage impulse purchases.

Key Benefits

• Three-bay layout with 2 rows accommodates three 1/1 GN pans, supporting varied menu displays in a single unit.
• Fan-forced refrigeration combined with a cold plate and cross-fin coil keeps cold air circulating around products continuously for consistent food-safe temperatures.
• Digital thermostat allows precise, easy monitoring and adjustment of cabinet temperature to maintain safe cold holding.
• Double-glazed toughened glass maximises product visibility and presentation, helping to drive impulse sales from passing customers.
• Top-mounted LED lights illuminate the interior evenly for an eye-catching display throughout service.
• Air-insulated, double-skinned tank construction improves energy efficiency during continuous operation.
• Stainless steel body is hard-wearing, hygienic, and straightforward to clean down after service.
• Standard 10A, 240V plug-and-lead connection means no specialist electrical installation is required.
• Designed to operate in ambient temperatures up to 32°C, making it suitable for busy, warm commercial kitchen environments.

Key Features

• 3-bay, 2-row configuration with 1/1 GN-sized well accepting pans up to 65mm deep (pans sold separately).
• Fan-forced refrigeration system using a 90mm deep cold plate well with cross-fin coil over for even cold air distribution.
• Adjustable digital temperature control with an operating range of 2°C to 5°C (food-safe cold holding up to 8°C).
• Double-glazed, toughened square-profile glass front and sides for superior display clarity and insulation.
• Toughened glass roller doors to the rear for convenient staff access.
• Top-mounted LED lighting for consistent, attractive interior illumination.
• Air-insulated, double-skinned tank for energy-efficient cooling performance.
• Stainless steel construction throughout for durability and ease of cleaning.
• Square glass profile design, available across a range of sizes from 3 to 6 bays within the Woodson range.
• Rated for operation in ambient temperatures up to 32°C.
• Electric powered at 0.75 kW, 240V, 10A via a standard plug-and-lead connection.
• Note: adequate ventilation is required for built-in cold display installations.
• Note: designed for use with Woodson GN pans; compatibility with other brands' GN pans is not guaranteed.
• Dimensions: 1030mm wide x 608mm deep x 660mm high; weight 190kg.

Specifications

• Width (mm): 1030
• Depth (mm): 608
• Height (mm): 660
• Weight (kg): 190
• Power (kW): 0.75
• Power Type: Electric
• Amps (A): 10
• Voltage (V): 240
• Plug Type: Plug & Lead
• Voltage/Phase: 10A, 240V plug & lead
• Glass Type: Square Glass
