Overview

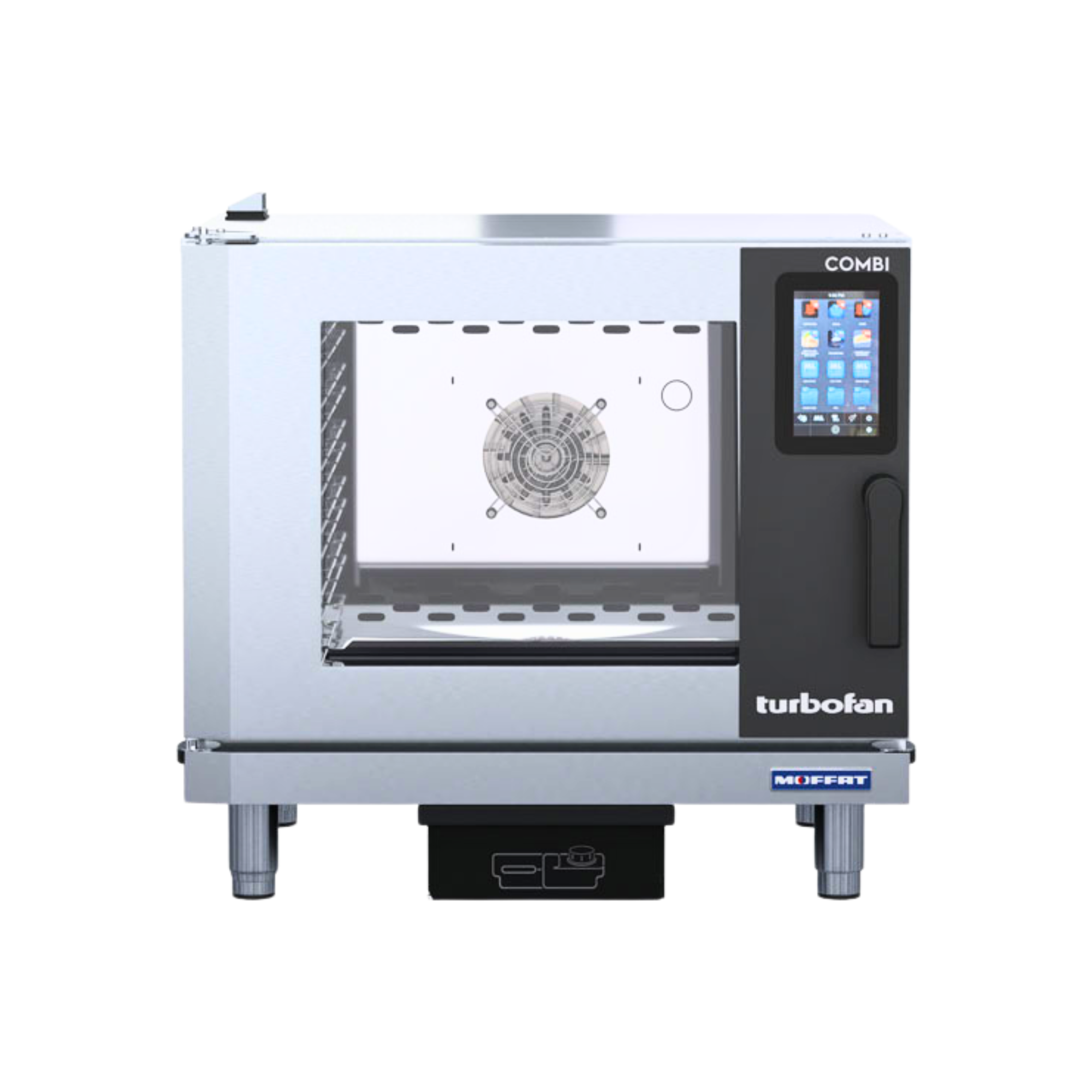

Turbofan EC40T5 Electric Direct Steam Combi Oven – 5 Tray Full Size

The Turbofan EC40T5 is a full-size electric direct steam combi oven offering five 1/1 GN or 600 mm x 400 mm tray positions at 70 mm spacing within a footprint just 777 mm wide. Delivering 7.25 kW of heating power, it is engineered for cafés, bistros, small restaurants, and catering operations that need professional capacity without consuming excessive bench or floor space.

Operators work through a 7-inch capacitive LCD colour touch screen with high-definition resolution, gaining access to the ICS Interactive Cooking System for one-touch automatic cooking, programmable and storable preset recipes, and a collection of intelligent climate and energy management technologies. Three manual modes – convection (30°C–260°C), steam (30°C–130°C), and combi (30°C–260°C) – plus regeneration capability give the oven a wide and versatile cooking repertoire in a single unit.

Key Benefits

• Three cooking modes combined with regeneration in one appliance allow operators to bake, roast, steam, and reheat plated meals without the need to switch between pieces of equipment.
• The patented MULTILEVEL PLUS function enables multi-level cooking on every individual shelf position, effectively doubling production capacity during busy service periods.
• Automatic fan direction inversion working alongside the Autoclima climate management system distributes heat and humidity evenly throughout the cavity, eliminating the need to manually rotate trays.
• The ECOVAPOR and ECOSPEED systems continuously monitor and regulate steam saturation and energy delivery respectively, improving operational efficiency and lowering running costs.
• With ICS Interactive Cooking System storing and recalling preset recipes at the touch of a button, less experienced kitchen staff can reliably reproduce consistent results across every service.
• The automatic LCS Liquid Clean System reduces cleaning labour and downtime, keeping the oven hygienic and ready for subsequent service sessions with minimal hands-on effort.
• A 777 mm wide cabinet makes the EC40T5 a practical choice for kitchens with limited space while retaining full compatibility with GN 1/1 trays.
• The outer door assembly incorporates rear ventilation, a two-pane toughened glass front separated by an insulating air chamber, and interior heat-reflecting glass, working together to keep the external door surface cool and reduce burn risk for kitchen staff.
• The bundled water filtration assembly – comprising a triple-action filter cartridge and dedicated filter head – guards internal components against scale build-up from the first day of use, extending service life and reducing maintenance expenditure.

Key Features

• Electric direct steam combi oven
• 5 x 1/1 GN tray capacity; also accepts 5 x 600 mm x 400 mm trays
• 70 mm tray spacing with east-west tray loading configuration
• 7.25 kW heating power
• 2-speed fan motor
• Auto-reversing fan for uniform cooking results throughout the chamber
• 7-inch capacitive LCD colour touch screen with high-definition resolution
• ICS (Interactive Cooking System): one-touch automatic cooking with programmable and storable preset recipes
• Three manual cooking modes: Convection 30°C–260°C, Steam 30°C–130°C, Combi 30°C–260°C
• Regeneration cooking capability
• Autoclima system: automatic management of climate conditions inside the cooking chamber
• ECOVAPOR: automatic regulation of steam saturation levels within the cooking chamber
• ECOSPEED: optimises and controls energy delivery to maintain accurate cooking temperature
• MULTILEVEL PLUS (patented): per-shelf multi-level cooking function that doubles production output
• Automatic LCS (Liquid Clean System) for hands-free cavity cleaning
• Manual chamber venting
• Door-open rapid cool-down function
• Outer door constructed with a rear-ventilated frame, dual-pane toughened glass separated by an insulating air gap, and interior heat-reflecting glass to keep the external surface cool
• Cooking chamber walls are entirely smooth with rounded edges for straightforward cleaning
• LED interior chamber lighting
• Triple-action water filter cartridge and compatible filter head supplied as standard
• 6-position tray runners
• 4 height-adjustable feet

Specifications

• Width (mm): 777
• Depth (mm): 744
• Height (mm): 723
• Weight (kg): 340.0
• Shipping Weight: 54.6
• Packed Width (mm): 910.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 865.0
• Shipping Cubic: 0.708435000m3
• Fuel Type: Electric
• Pan Count: 5
• Pan Size: Full Size GN 1/1
• Voltage/Phase: 400-415V, 50Hz, 3P+N+E, 7.25kW, 11A/ph
