Overview

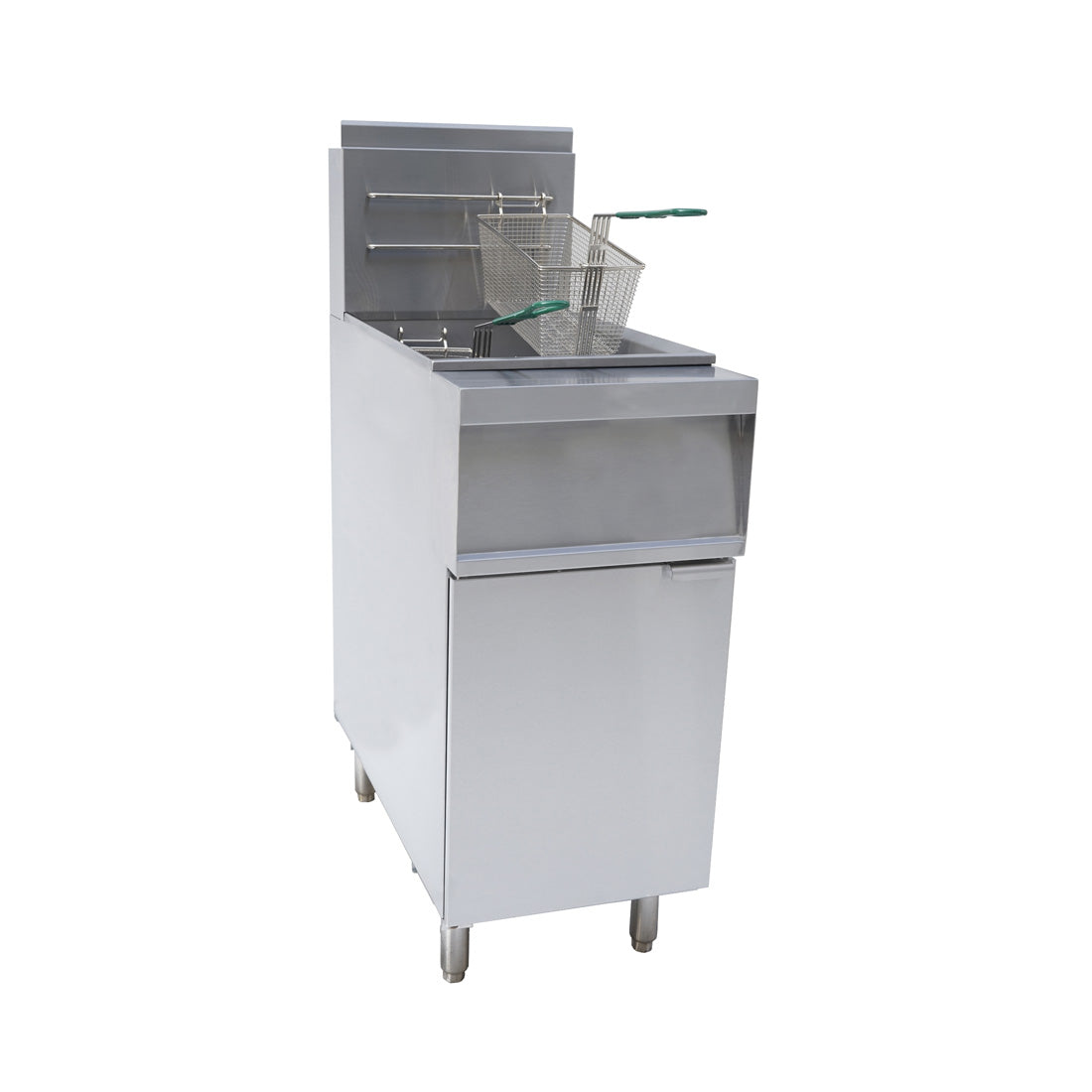

Frymax VP122LPG V Pan LPG Deep Fryer

The Frymax VP122LPG is a high-output LPG deep fryer built around an open stainless steel V-pan design with a 22-litre oil capacity, making it well suited to busy commercial kitchens that demand consistent frying of fish, chips and other high-volume menu items. The V-pan configuration incorporates a cold zone beneath the active frying area, which captures food particles and sediment away from the heat source to extend oil life and reduce the frequency of oil changes.

Precision temperature management is delivered through a prompt-response thermostat with a control range of 93°C to 204°C, supported by a millivolt control valve for reliable, accurate heat regulation throughout service. A 232°C high-limit safety cut-out, 20mm insulation, a standby stainless steel pilot for straightforward ignition, and a full-port drain valve for quick oil changes combine to make this fryer a practical and safe workhorse for professional kitchen environments.

Key Benefits

• A 22-litre oil capacity paired with two included baskets supports continuous, high-volume frying output during peak service periods.
• The V-pan cold zone traps food debris below the frying zone, slowing oil degradation and reducing operating costs over time.
• The prompt-response thermostat delivers fast temperature recovery after each basket load, maintaining consistent frying results across an entire service.
• A 232°C high-limit safety cut-out provides automatic overheat protection, reducing the risk of oil fires and equipment damage.
• The open pot design and 1/4-inch full-port drain valve make routine cleaning and oil changes quick and straightforward, minimising kitchen downtime.
• Stainless steel front, sides and fryer pot offer excellent corrosion resistance and are easy to wipe down, supporting high hygiene standards.
• The standby stainless steel pilot allows quick, reliable ignition at the start of each shift without the need for a separate igniter.
• A rear 1/2-inch NPT gas connection and stainless steel hanger plate simplify installation and keep the unit neatly positioned against a wall.
• An optional lid is available, providing added flexibility for covering the oil pan during non-service periods.

Key Features

• LPG gas type with a rated output of 104 MJ/h
• 22-litre oil tank capacity

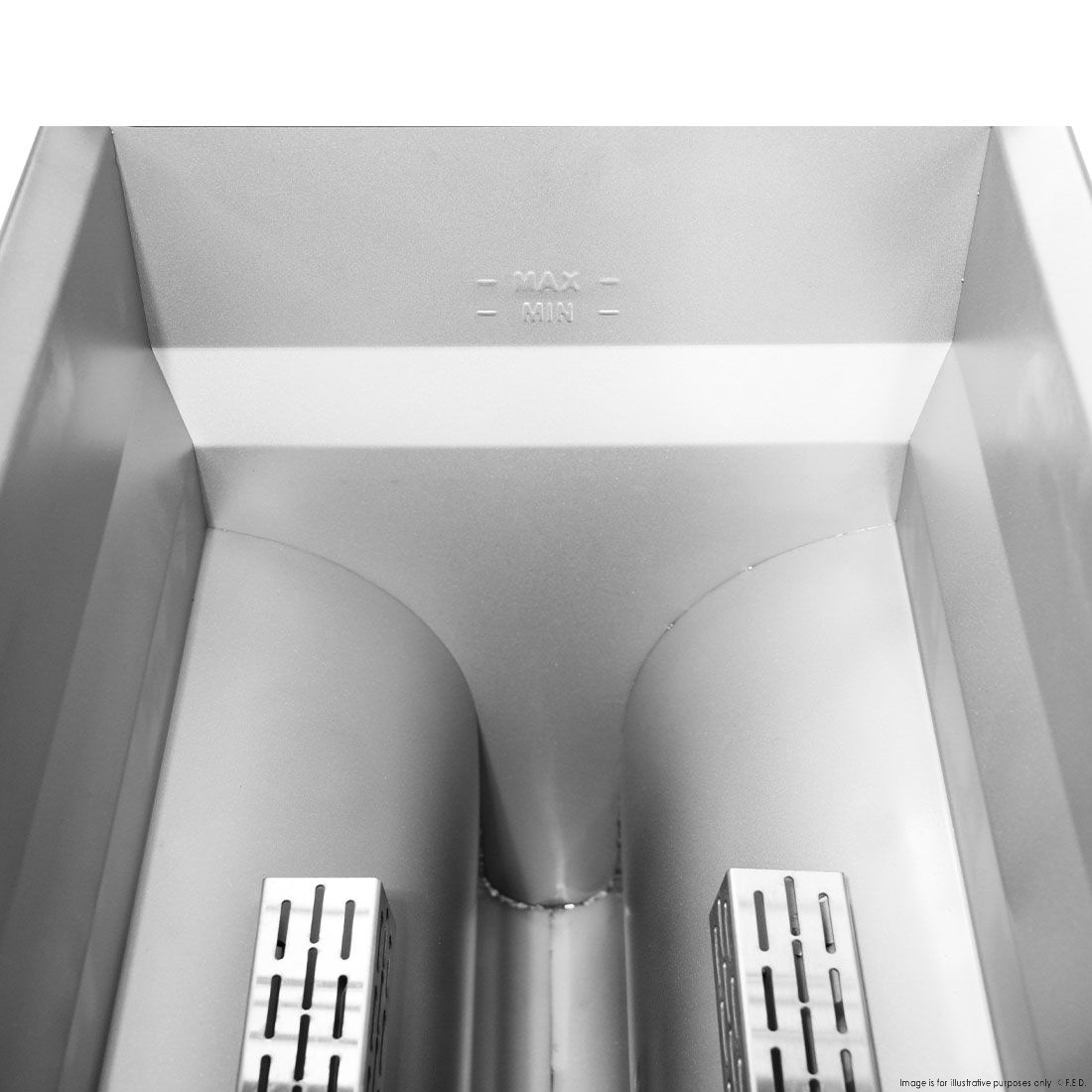

• Open stainless steel V-pan fryer pot with cold zone
• Thermostat control range from 93°C to 204°C

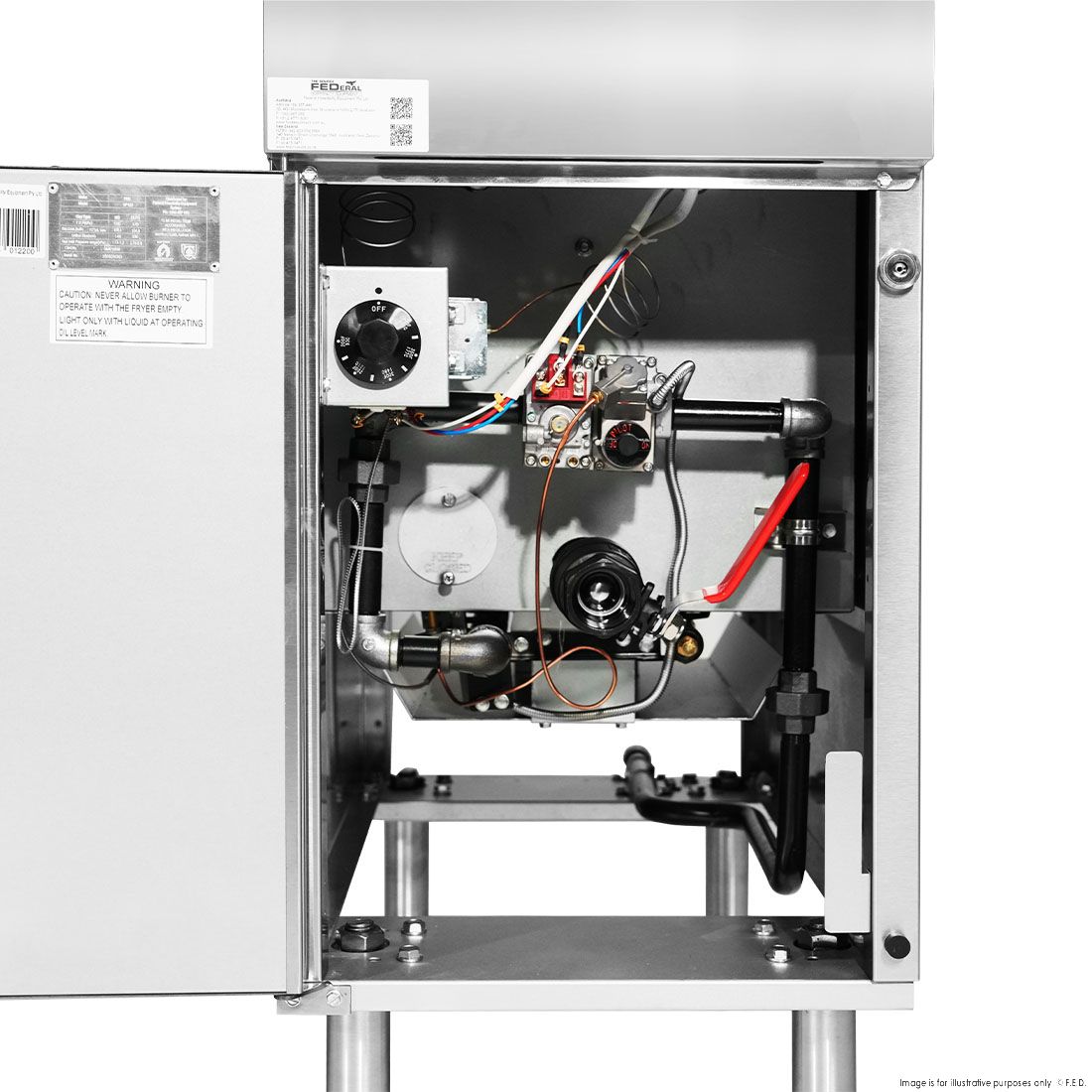

• Millivolt control valve for precise, reliable temperature management
• Prompt-response thermostat for fast temperature recovery
• 232°C high-limit safety cut-out
• Standby stainless steel pilot for easy ignition
• One 1/4-inch full-port drain valve for oil changes and cleaning

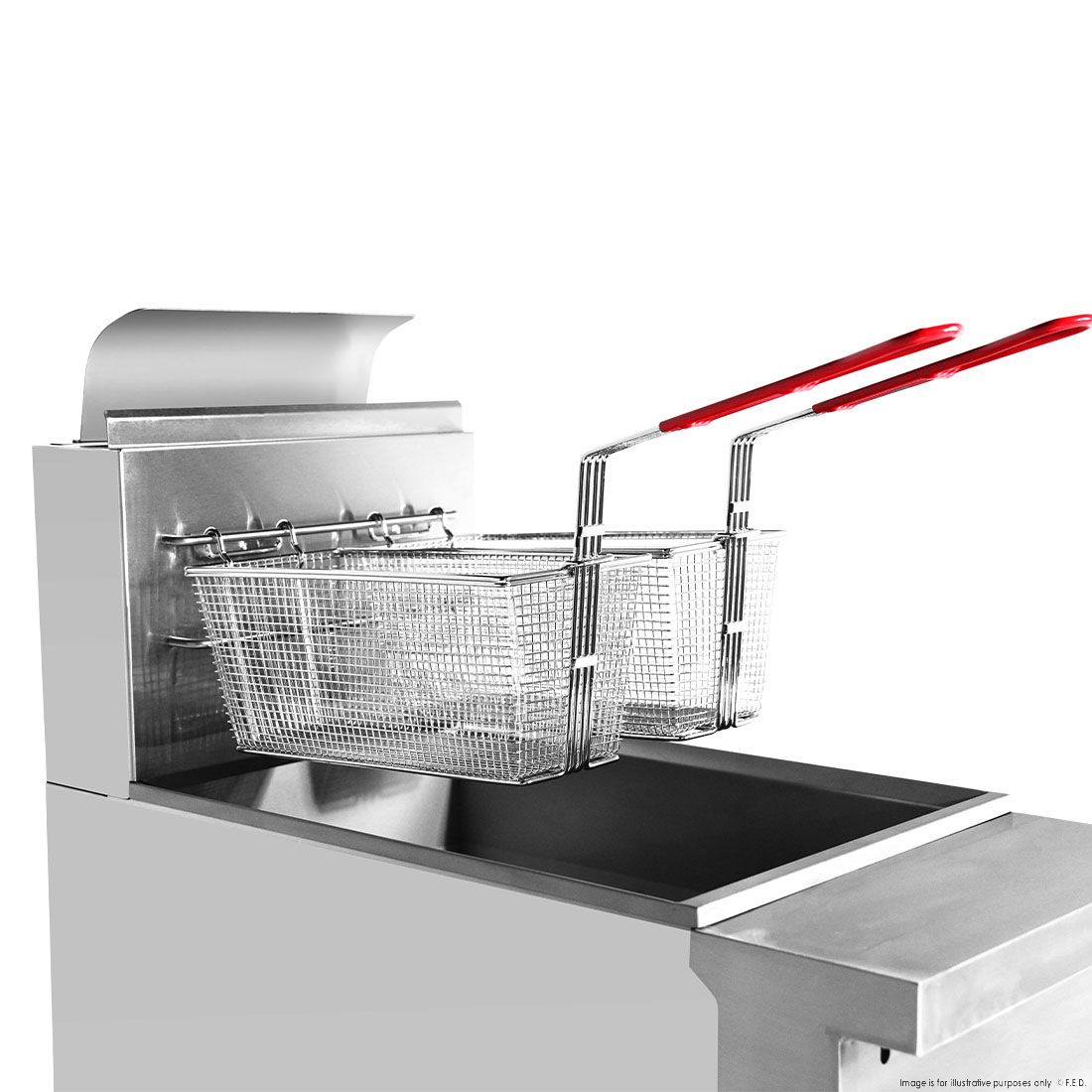

• Two frying baskets included
• Stainless steel front and sides construction
• Stainless steel hanger plate at the rear
• 1/2-inch NPT rear gas connection
• 20mm insulation
• 6-inch stainless steel legs
• Optional lid available as an accessory

Specifications

• Width (mm): 400
• Depth (mm): 784
• Height (mm): 1178
• Weight (kg): 80
• Packed Width (mm): 470
• Packed Depth (mm): 880
• Packed Height (mm): 1170
• Shipping Weight: 65
• Shipping Cubic: 0.336000000m3
• Power Delivery: 104 MJ/h
• Power (kW): 104
