Overview

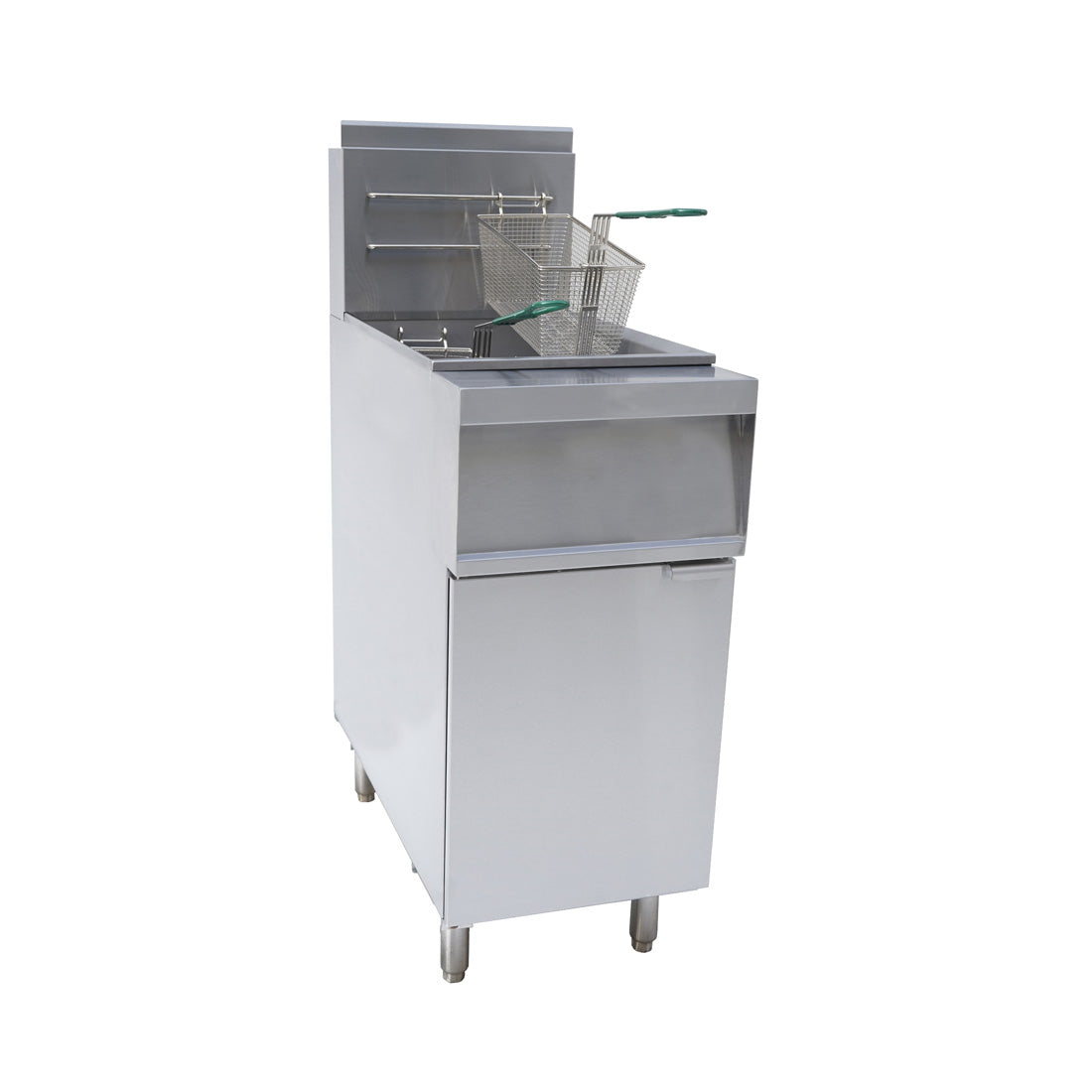

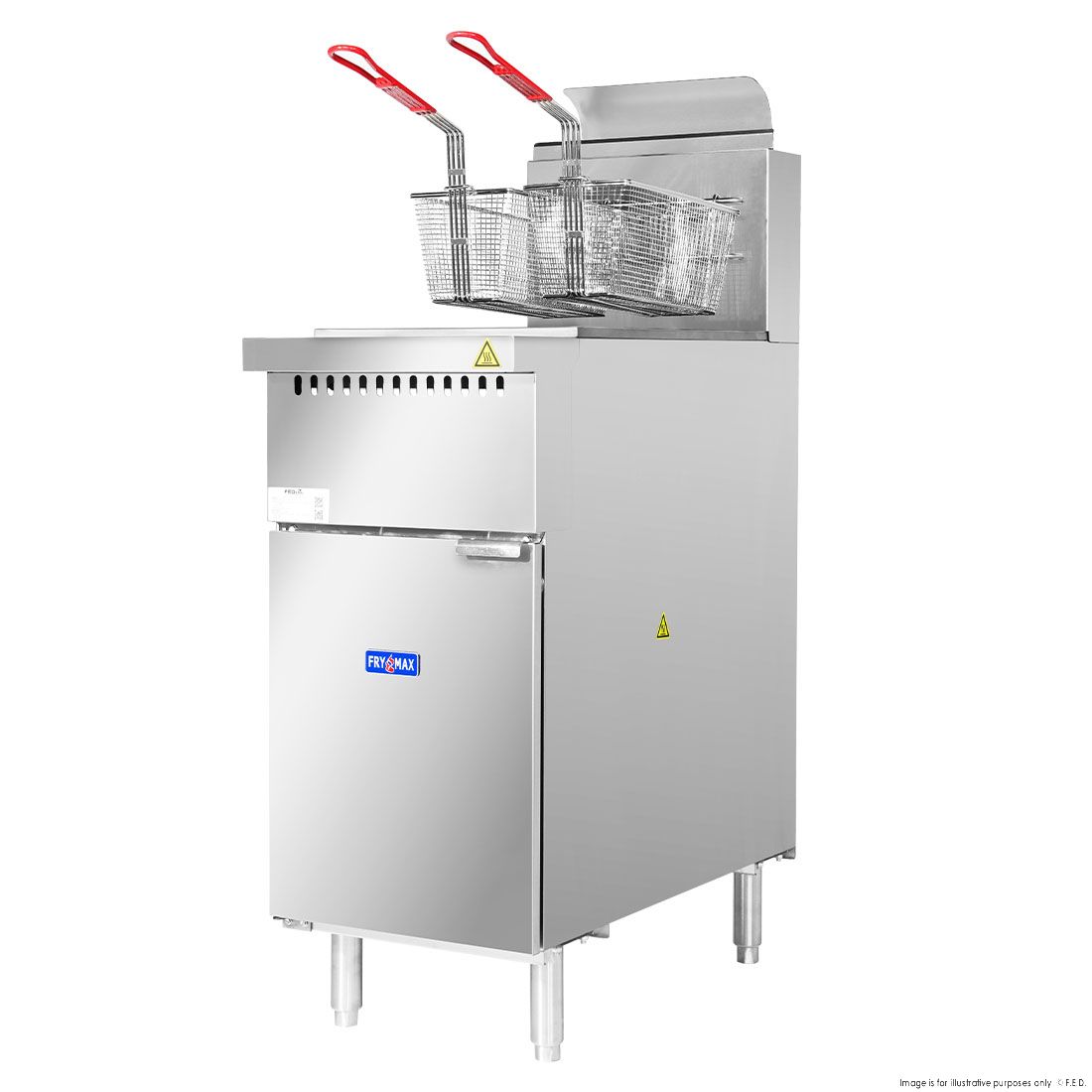

Frymax VP122 V Pan Natural Gas Deep Fryer

The Frymax VP122 is a commercial natural gas deep fryer built around an open stainless steel V-pan design with a 22-litre oil capacity, delivering the high-volume output demanded by restaurants, fish and chip shops, takeaways and similar venues. Running at 104 MJ/h, it handles continuous frying of fish, chips and other menu staples with consistent results across every service.

A prompt-response thermostat with a control range of 93°C to 204°C ensures rapid temperature recovery after each load is dropped, while the V-pan cold zone keeps sediment away from the burners to extend oil life and protect food quality. Every element of the fryer, from the millivolt control valve to the full-port drain valve and 20 mm body insulation, is chosen for reliability, safety and straightforward day-to-day maintenance.

Key Benefits

• High output at 104 MJ/h sustains fast frying throughput during busy service periods without significant temperature drop between batches.
• The V-pan cold zone draws food particles away from the active heat zone, slowing oil degradation and reducing how frequently oil needs to be changed.
• Prompt-response thermostat recovers set temperature quickly after each load, keeping cook times consistent and product quality uniform.
• The 232°C high-limit cut-out provides an automatic safety backstop, shutting down the burner before unsafe overheating can occur.
• A 1/4-inch full-port drain valve allows fast, complete oil evacuation, making oil changes and end-of-day cleaning considerably quicker.
• The open V-pan pot design gives easy access to the entire frying vessel for thorough cleaning between services.
• Stainless steel front, sides and pot construction resists corrosion and wipes down quickly, supporting food-safe hygiene standards.
• Millivolt control valve operates independently of mains electricity, so the fryer continues functioning during a power interruption.
• A standby stainless steel pilot light means the fryer lights reliably and quickly at the start of every shift without electronic ignition dependencies.

Key Features

• Natural gas fuel type with a 1/2-inch NPT rear gas connection
• 104 MJ/h heat output

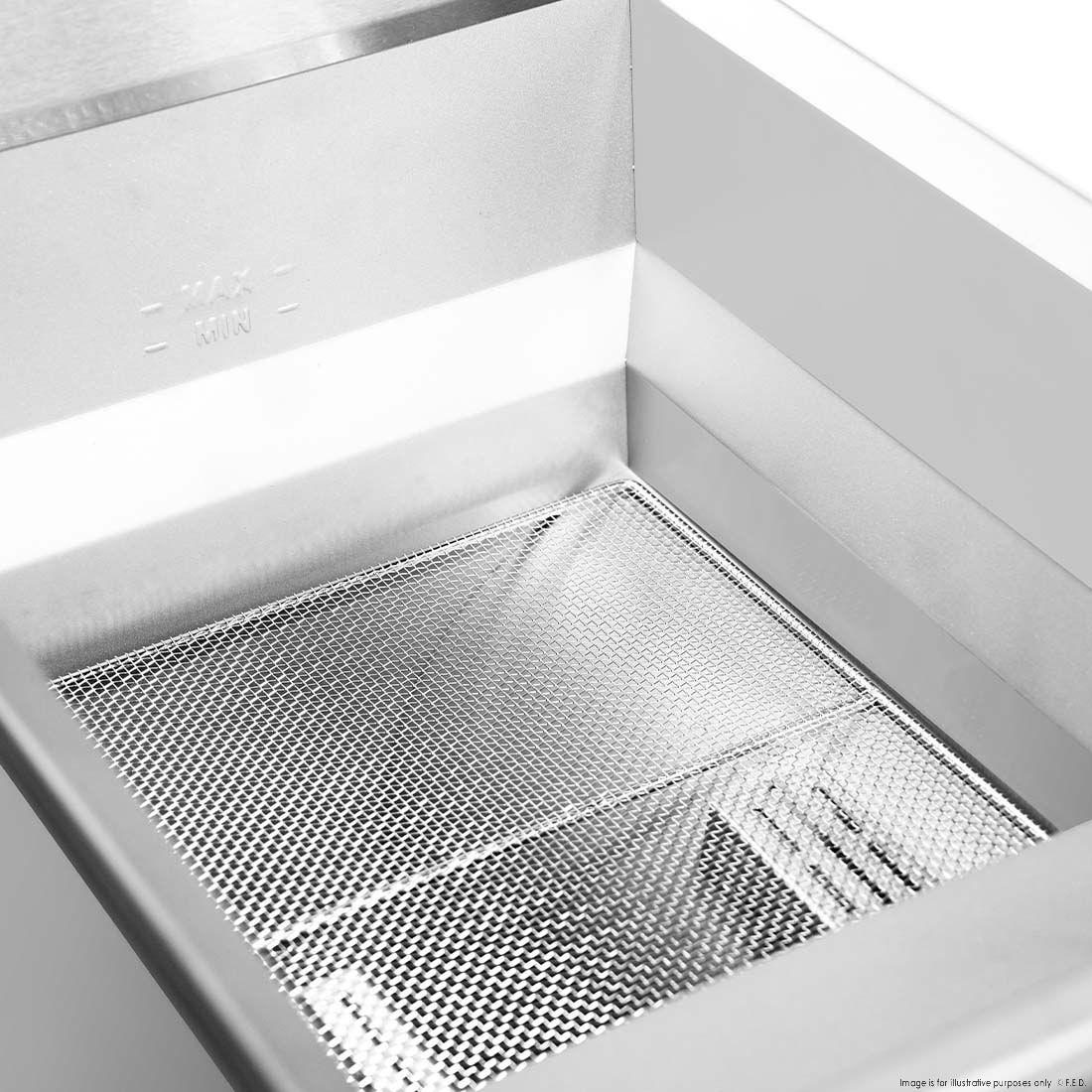

• 22-litre open stainless steel V-pan oil tank

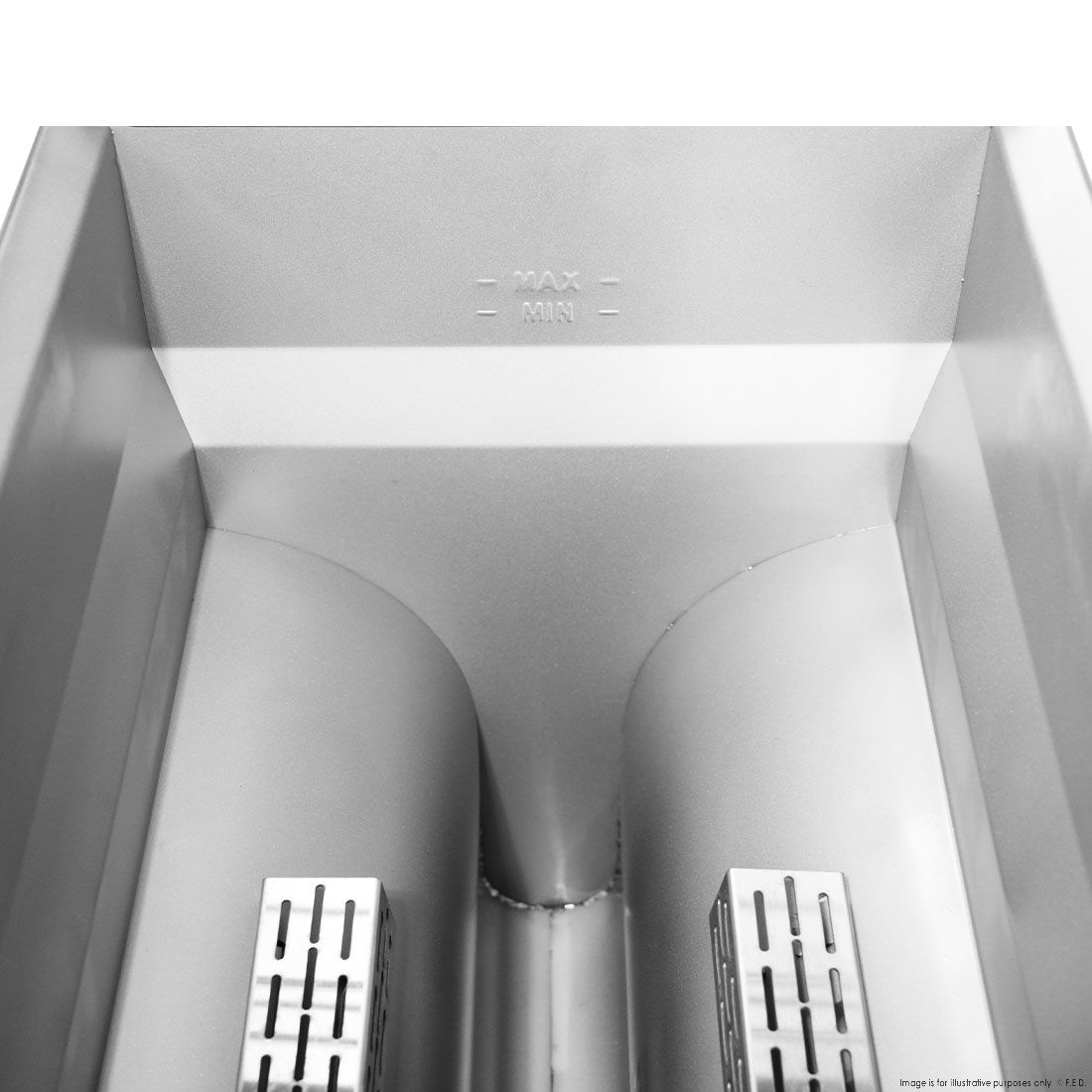

• Cold zone in the V-pan to collect sediment away from the burner area
• Prompt-response thermostat with a control range of 93°C to 204°C
• 232°C high-limit safety cut-out

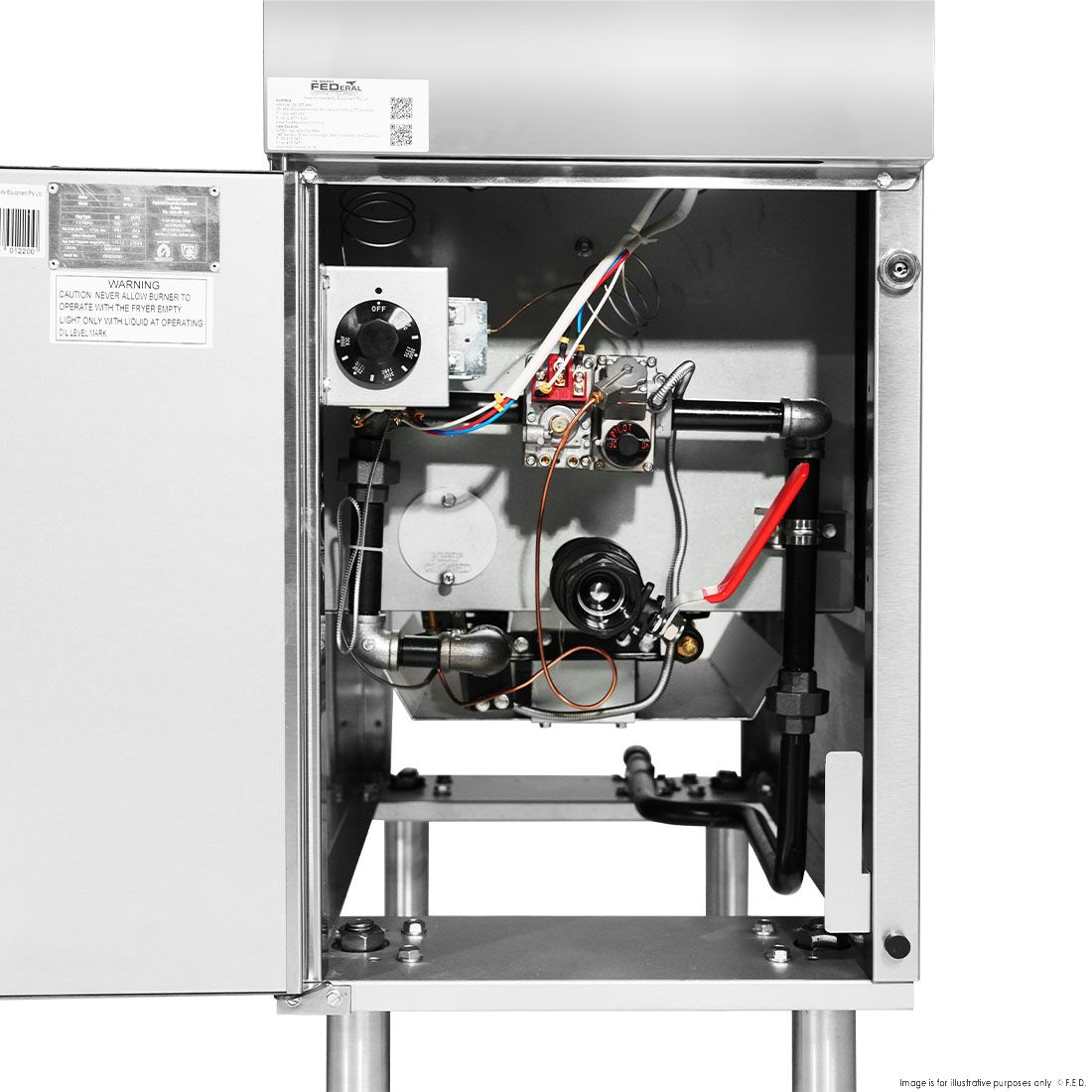

• Millivolt control valve for temperature regulation independent of mains power
• Standby stainless steel pilot for reliable, easy ignition
• One 1/4-inch full-port drain valve for fast, thorough oil drainage

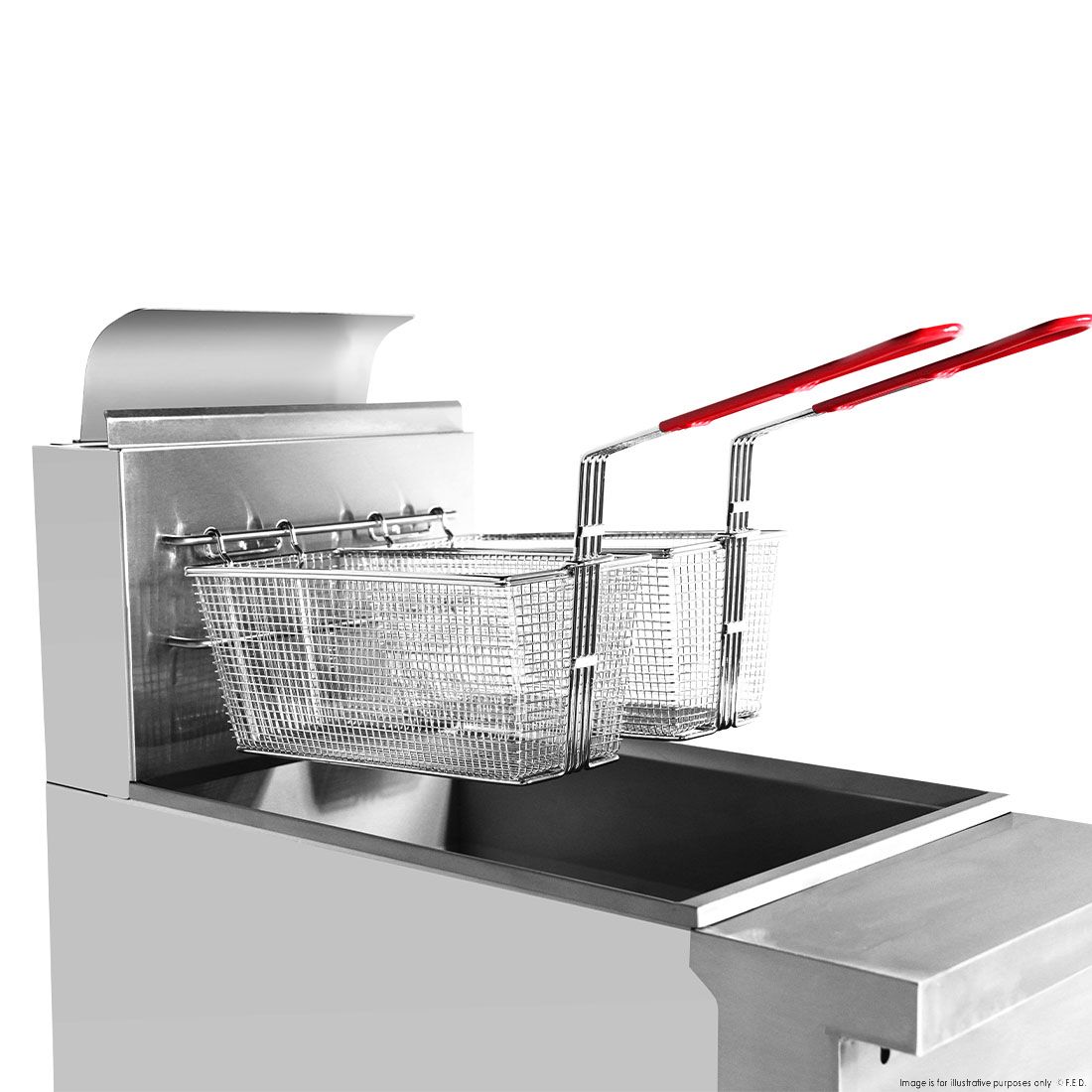

• Two fry baskets included
• Stainless steel front and sides construction

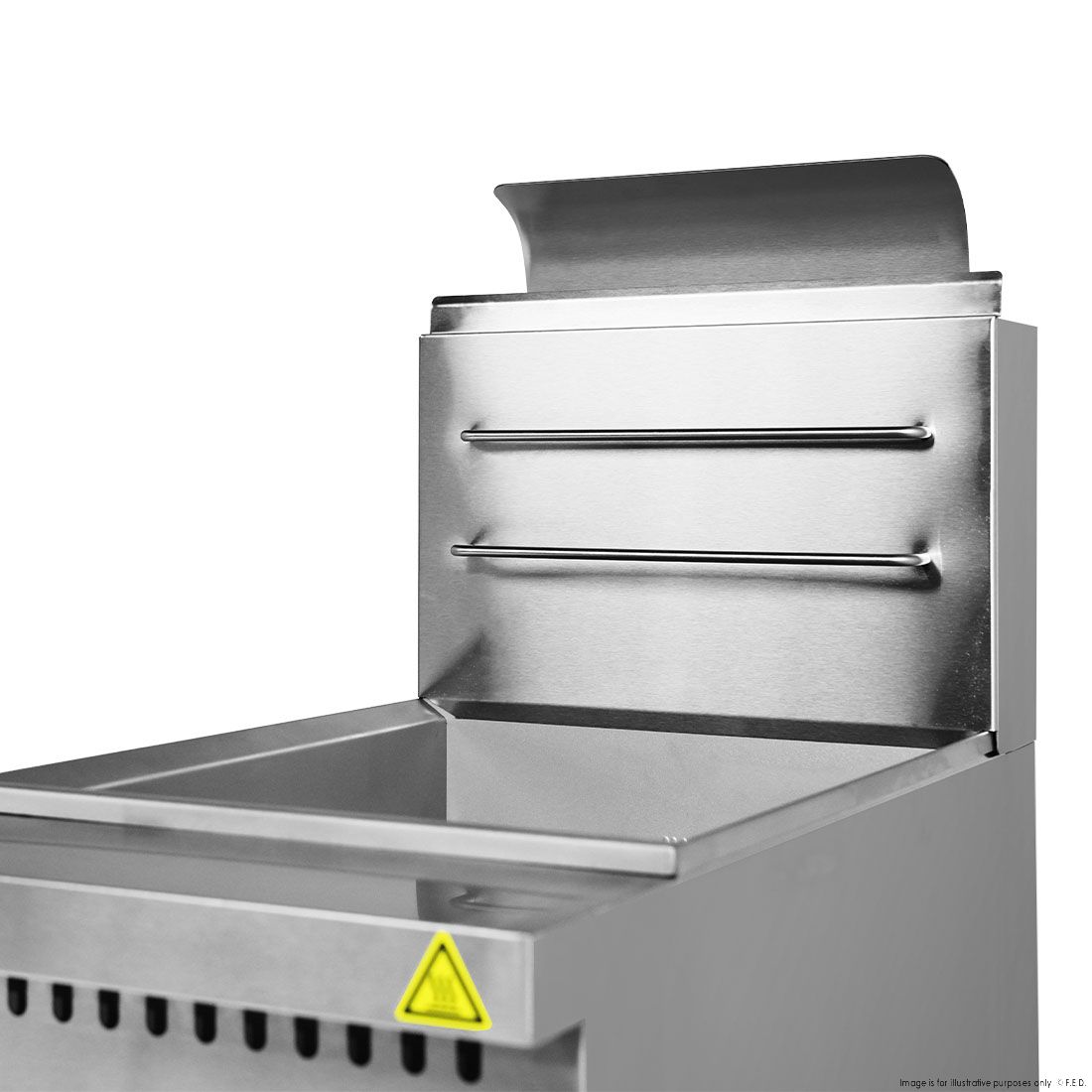

• Stainless steel hanger plate at the rear
• 20 mm body insulation
• Six-inch stainless steel legs
• Optional lid available as an accessory

Specifications

• Width (mm): 400
• Depth (mm): 784
• Height (mm): 1178
• Weight (kg): 121
• Packed Width (mm): 470
• Packed Depth (mm): 880
• Packed Height (mm): 1170
• Shipping Weight: 65
• Shipping Cubic: 0.336000000m3
• Power Delivery: 104 MJ/h
• Power (kW): 104
• Fuel Type: Gas
