Overview

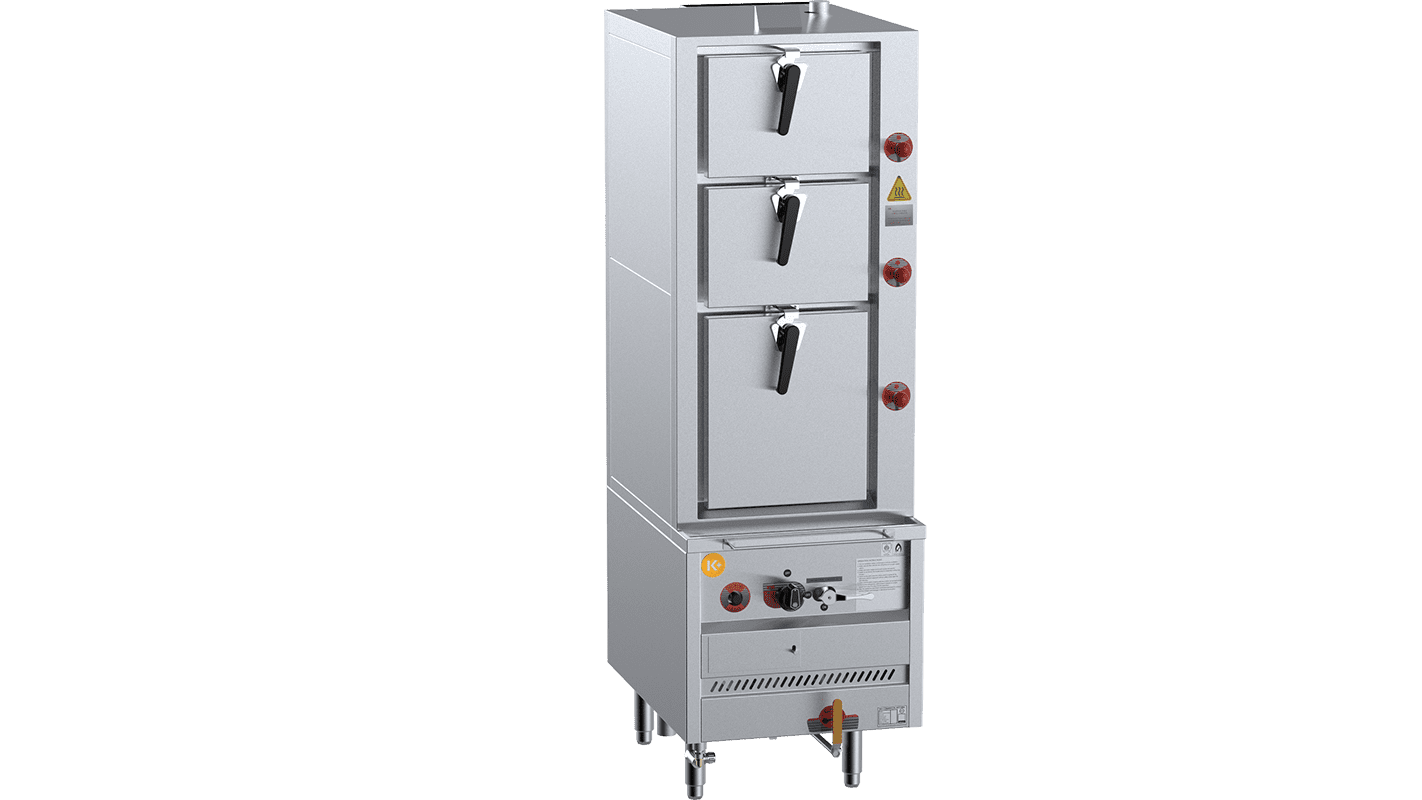

B&S K+ Triple Deck Gas Steamer with Filter – DSK-3S

The B&S K+ DSK-3S is a professional-grade commercial gas steamer designed for high-volume food production in restaurants, cafes, hotels and catering operations. Manufactured in Italy from AISI 304 stainless steel with vitreous enamel components, this three-deck unit is built to withstand continuous peak-service use while delivering consistent, even steaming results across all decks simultaneously.

Powered by a waterless heat exchange system with an insulated chamber at its core, the DSK-3S keeps energy consumption low while maximising cooking throughput. The freestanding unit sits on an integrated stand with a 600mm wide footprint and ships complete with an XSENTIAL water filtration kit. Safety provisions include overheat protection, automatic tank refilling, a pressure release valve, flame failure devices and a three-stop rotary door lock on each deck.

Key Benefits

• Waterless heat-exchange steaming delivers fast, efficient and consistent results across all three decks simultaneously, maximising throughput during busy service periods.
• The insulated heat exchange chamber retains heat effectively, reducing gas consumption and lowering energy costs over time.
• An overheat tank protector, automatic refill system and dedicated pressure release valve combine to protect both the unit and kitchen staff during unattended operation.
• Jet burners equipped with flame failure devices cut the gas supply automatically if a flame goes out, providing a critical layer of safety compliance.
• The three-stop rotary door lock on each deck gives operators secure, controlled access without compromising steam retention.
• Front access to all internal components simplifies routine servicing and reduces technician time and maintenance costs.
• The included XSENTIAL water filtration kit (QF-9 for QLD, NSW, ACT, VIC and TAS; XP-195 for NT, SA and WA) guards internal components against scale build-up and extends service life.
• Compatible with both natural gas and LPG, allowing flexible installation across different sites and utility connections.
• Backed by an 18-month parts and labour warranty for peace of mind in a demanding commercial environment.

Key Features

• AISI 304 grade stainless steel and vitreous enamel construction for durability, hygiene and ease of cleaning
• Three-deck steamer configuration for large-volume simultaneous cooking
• Energy-efficient waterless heat exchange system with insulated heat exchange chamber
• Three jet burners, each equipped with a flame failure device, plus auto ignition
• Piezo ignition for quick, reliable start-up
• Multi-setting gas valve for precise temperature control
• Overheat tank protector device fitted as standard
• Automatic tank refill system installed as standard
• Dedicated pressure release valve installed as standard
• Three-stop rotary door lock system on each deck
• Drain tank valve for straightforward water management
• Front access to all internal components for ease of servicing
• XSENTIAL water filtration kit included (QF-9 for QLD/NSW/ACT/VIC/TAS; XP-195 for NT/SA/WA)
• Freestanding unit supplied on integrated stand
• 600mm wide footprint suitable for standard commercial kitchen configurations
• Depth 940mm with front rail, 885mm without front rail
• 3/4" BSP gas connection
• Runs on natural gas or LPG
• Must be installed by an authorised installer
• Made in Italy
• 18-month parts and labour warranty

Specifications

• Width (mm): 600
• Depth (mm): 940*
• Height (mm): 1950
• Weight (kg): 100
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 90
• Gas Input - LPG (MJ/h): 90
• Burner Output (MJ/h): 88
• Shipping Weight: 160
• Packed Width (mm): 885.0
• Packed Height (mm): 1950.0
• Packed Depth (mm): 600.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 18 months (Parts and Labour)
• Number of Burners: 1
• Fuel Type: Gas
• Temperature Control: Multi-setting Gas Valve
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Power Rating: 105 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Steam)
