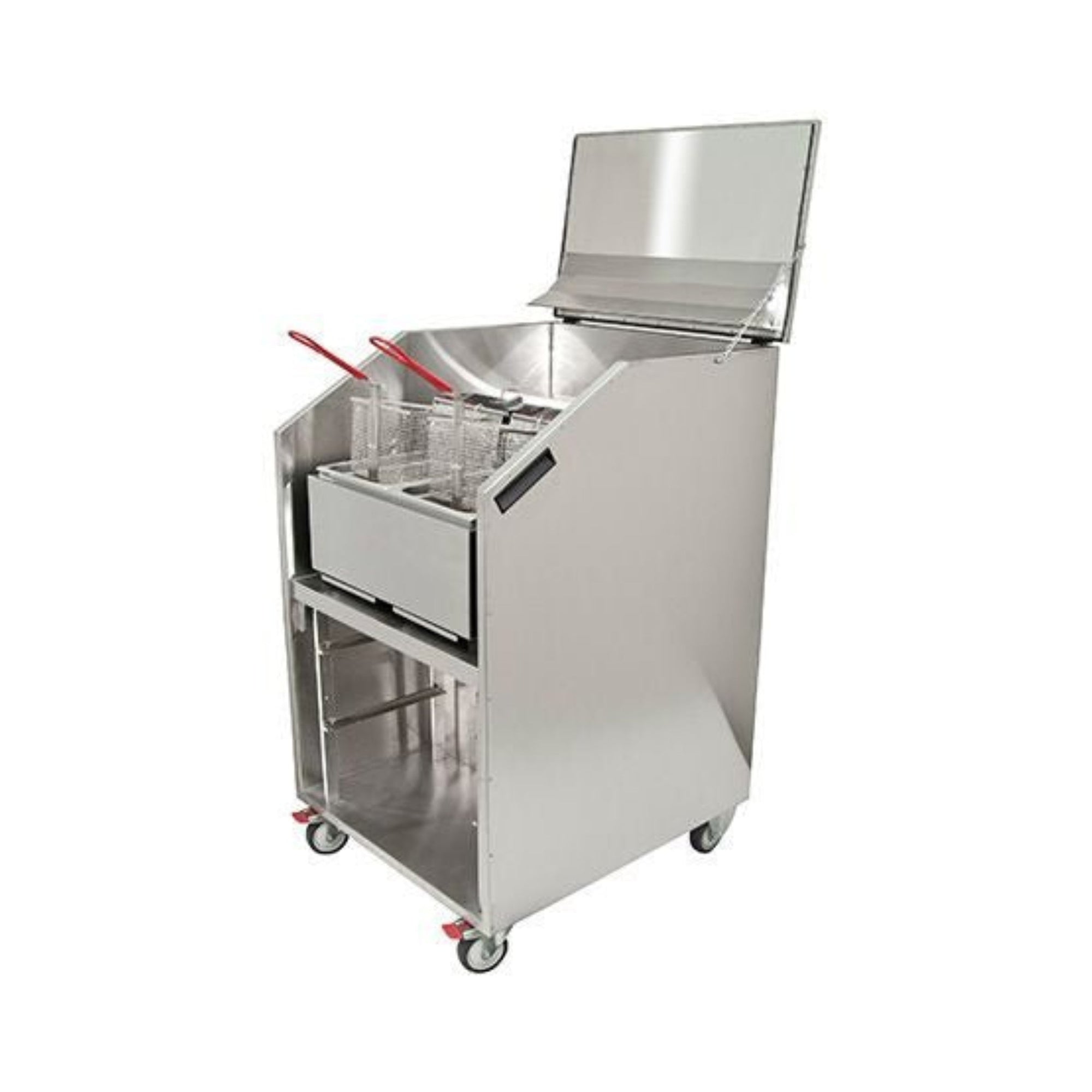

Woodson W.MVS Mobile Ventilated Station 700mm

The Woodson W.MVS is a 700mm wide mobile ventilated station designed to provide ductless extraction for countertop electric cooking appliances in cafés, quick service restaurants, catering kitchens, and any venue where a permanent ducted exhaust system is not practical or required under the National Construction Code (NCC). Constructed from 304 grade stainless steel, the unit draws air down through the rear of the cabinet, passes it through a multi-stage filtration system, and returns the cleaned air to the kitchen through the base, reducing greasy deposits on surrounding surfaces and improving the working environment for kitchen staff.

Mounted on lockable swivel castors at the front and fixed castors at the rear, the W.MVS can be repositioned freely around the kitchen to suit changing operational needs. The plug-and-play electrical connection means setup is straightforward, and removable filter panels simplify ongoing cleaning and maintenance. The unit includes a storage area beneath the cooking zone, making efficient use of the mobile cabinet footprint. It is suitable for use with countertop electric cooking appliances only and must be operated in accordance with NCC 2022 Part F6D12 power limits and any additional local authority requirements.

Key Benefits

• Eliminates the need for fixed ducting, making it a cost-effective extraction solution for kitchens where permanent infrastructure is not feasible
• Mobile on castors for flexible placement, allowing the unit to be moved and positioned wherever extraction support is needed most
• Multi-stage filtration captures grease and cooking odours, reducing greasy build-up on benches, floors, walls, and ceilings
• Improves air quality for kitchen staff by filtering cooking emissions and recirculating cleaner air within the workspace
• Plug-and-play 240V connection enables quick, straightforward installation with no specialist trade work required
• Stainless steel construction is durable, hygienic, and easy to wipe down in a busy commercial environment
• Integrated storage area below the cooking zone makes practical use of the cabinet space
• Removable filter panels allow for easy access during routine cleaning and filter replacement to maintain extraction performance

Key Features

• 700mm wide mobile ventilated station built from 304 grade stainless steel
• Ductless extraction design: air is drawn down the rear of the unit through multi-stage filters and returned to the kitchen through the base

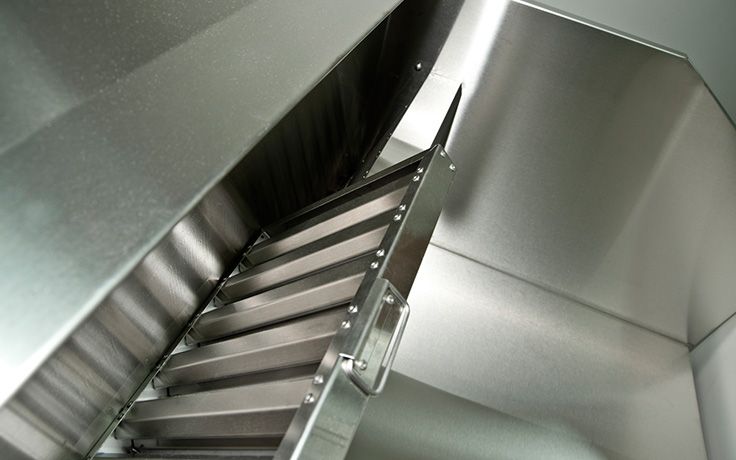

• Multi-stage filtration system includes stainless steel baffle, grease filter, and activated carbon filter

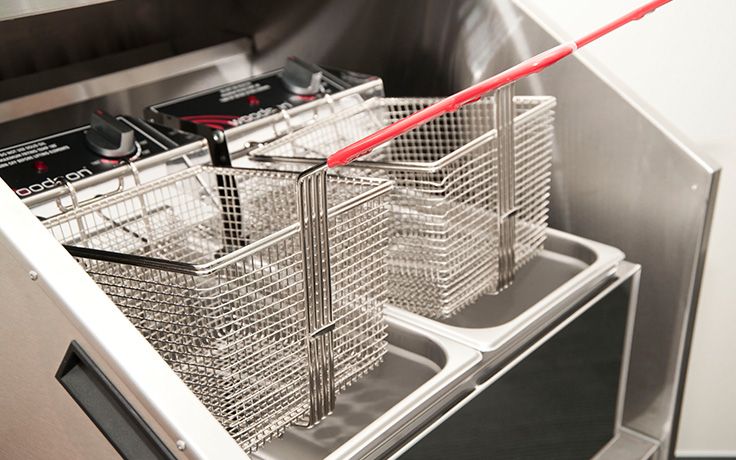

• Equipment cavity measuring 650mm wide x 600mm deep x 522mm high to accommodate countertop cooking appliances
• Lockable swivel castors on the front and fixed castors on the rear for stable, controlled mobility
• Storage area located below the cooking zone within the mobile cabinet
• Plug-and-play 10A, 240V electrical connection for simple setup
• Designed to slip over existing countertop equipment without modification
• For use with electric cooking appliances only; not suitable for gas equipment
• Does not remove heat or humidity from the room
• Suitable for use where NCC 2022 Part F6D12 does not require a compliant ducted exhaust hood (appliances not exceeding 8 kW total input, and total power not exceeding 0.5 kW per m² of floor area)
• Filters must be inspected and replaced or maintained regularly to ensure continued performance
• Cooking equipment must be correctly positioned under the hood as per installation instructions
• Filtration system will not capture very fine particulates such as smoke

Specifications

• Width (mm): 700
• Depth (mm): 775
• Height (mm): 1200
• Weight (kg): 110
• Shipping Weight: 110
• Packed Width (mm): 900.0
• Packed Height (mm): 1350.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.093500000m3
• Power (kW): 0.48
• Power Type: Electric
• Amps (A): 10
• Voltage (V): 240
• Plug Type: Plug & Lead
• Voltage/Phase: 10A, 240V plug & lead
• Plate Width (mm): 700
