Overview

Woodson W.MVS850 Mobile Ventilated Station 850mm Filter Hood

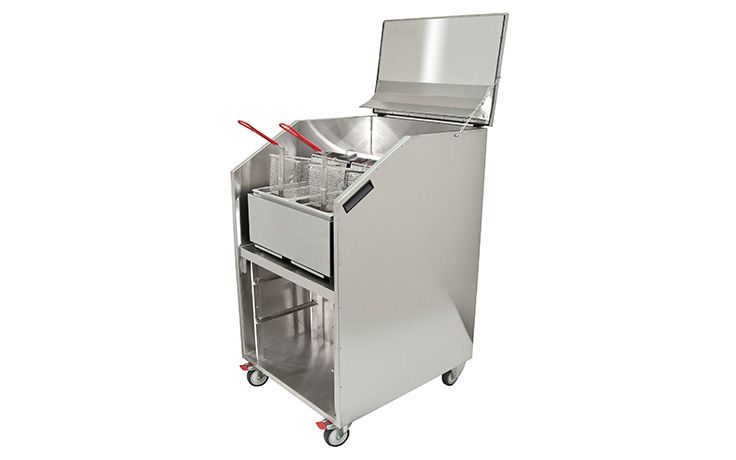

The Woodson W.MVS850 is an 850mm wide mobile ventilated station designed to slip over existing countertop cooking appliances, providing effective ductless ventilation where a fixed exhaust system is not required under the National Construction Code (NCC). Constructed from 304 grade stainless steel, it suits cafes, restaurants, hotels, catering events, and temporary cooking setups where ducted hoods are impractical or unnecessary.

Air is drawn down the rear of the unit through a multistage filtration system and returned to the kitchen through the base, capturing cooking emissions including grease and odours to improve air quality for kitchen staff. The unit runs on a standard 240V plug-and-lead connection and rides on lockable swivel castors at the front and fixed castors at the rear, making it straightforward to reposition as operational needs change.

Key Benefits

• Ductless design allows installation in venues where fixed exhaust hoods are not required under NCC 2022 Part F6D12, avoiding costly building modifications
• Multistage filtration captures grease and cooking odours, reducing greasy deposits on benches, floors, walls and ceilings and keeping the kitchen environment cleaner
• Improves air quality for kitchen staff by filtering and recirculating air within the workspace rather than exhausting it externally
• Lockable swivel castors at the front and fixed castors at the rear make the unit easy to move between positions or relocate between venues and events

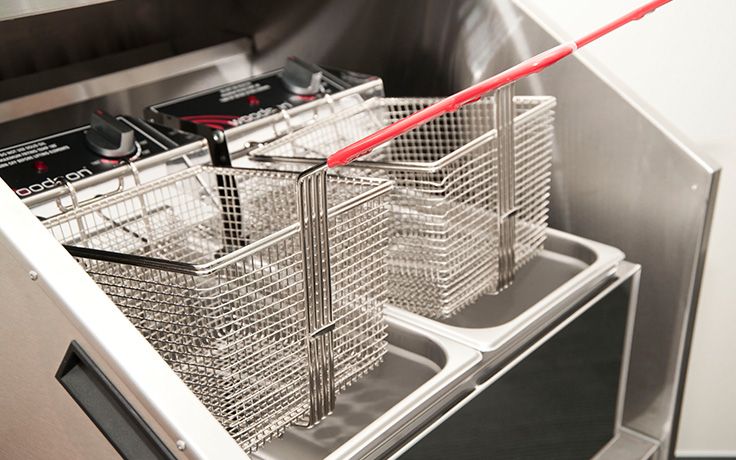

• 850mm wide equipment cavity accommodates a range of countertop electric appliances including griddles, contact grills, fryers and toasters
• Storage area below the cooking zone provides convenient space for utensils or supplies within arm's reach
• Standard 10A, 240V plug-and-lead connection means no specialist electrical installation is required

Key Features

• 304 grade stainless steel construction throughout for durability, hygiene and ease of cleaning
• 850mm wide unit designed to fit over existing countertop cooking equipment
• Equipment cavity dimensions: 800mm wide x 625mm deep x 522mm high

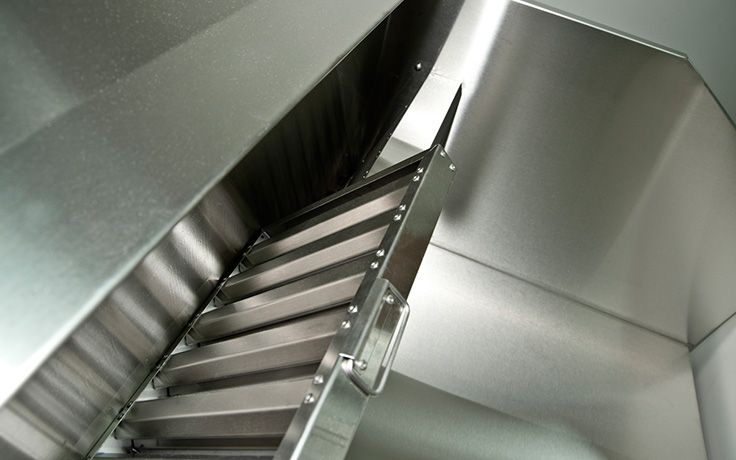

• Ductless air circulation: air drawn down the rear of the unit through multistage filters and returned to the kitchen through the base
• Multistage filtration system captures grease and cooking odours from recirculated air
• Lockable swivel castors to the front and fixed castors at the rear for controlled, easy mobility
• Storage area located below the cooking zone
• For use with electric cooking appliances only; not suitable for gas equipment
• Suitable for use with countertop electric appliances within NCC 2022 Part F6D12 power limits (individual appliances not exceeding 8 kW total electrical input)
• Does not remove heat or humidity from the room
• Filters do not capture very fine particulates such as smoke
• Filters require regular inspection, cleaning or replacement to maintain performance
• Cooking equipment must be correctly positioned under the hood as per installation instructions
• 10A, 240V plug-and-lead power connection
• 0.48 kW power draw

Specifications

• Width (mm): 850
• Depth (mm): 800
• Height (mm): 1200
• Weight (kg): 130
• Shipping Weight: 130
• Packed Width (mm): 1000
• Packed Height (mm): 1350.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.215000000m3
• Power (kW): 0.48
• Power Type: Electric
• Amps (A): 10
• Voltage (V): 240
• Plug Type: Plug & Lead
• Voltage/Phase: 10A, 240V plug & lead
• Plate Width (mm): 850
