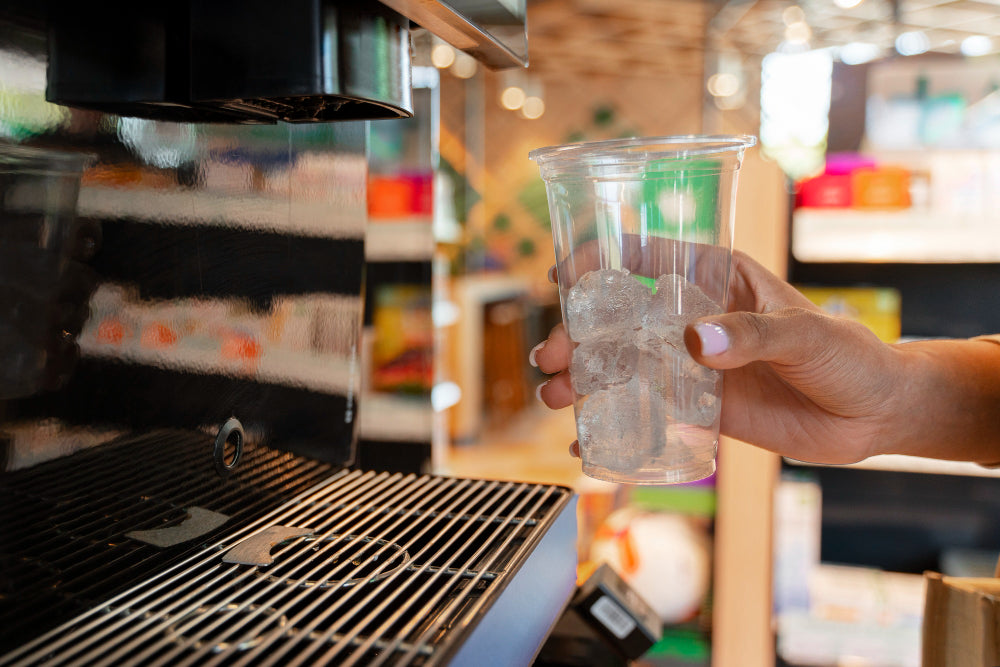

Existing Atlantic photograph of ice collection at a dispenser. It does not identify the Hoshizaki reference, fictional C1/C2 unit, J1 jug or C3 installation, and establishes no opening dimension, handling method or production result.
The machine fits on the bench. The collection jug does not fit under its dispensing outlet. Changing to the taller version fixes the jug problem, but now the overhead shelf occupies the space needed to open the top for service.
Choose a countertop ice unit against the actual collection vessel and its complete installed access envelope. A width-and-depth check cannot answer either problem. The worked comparison below changes the unit version and the shelf arrangement while keeping the same jug, rather than treating a larger daily ice figure as the solution.
Define how ice reaches the drink station
A dispenser delivering into a vessel and a machine with a manually accessed storage bin are different collection tasks. Identify the proposed format first. For a dispenser, include the actual cup or jug, its overall height, width and handle, the supported resting position and access to the controls. For a bin, include the opening movement and the intended collection arrangement with the supplier.
Show the vessel in the position required for the complete task. A nominal jug volume does not identify its outside dimensions. Include any lid, handle or attachment used in that task, and have the responsible people assess reach and placement rather than assuming “countertop” means convenient for every member of staff.
Ice form, production and usable stock still matter. This guide starts after the buyer has a defined collection task and owns the physical access question. Use the commercial ice-machine guide for the wider application and peak-stock comparison.
Keep cabinet size and installation documents separate
Hoshizaki Australia's DCM-60KE-P product page describes an ice/water dispenser and lists cabinet dimensions. Those fields help identify an offered appliance. They are not the full space needed for collection, ventilation, connections or service.
There is also a documentation detail worth resolving before ordering: the page names DCM-60KE-P, while the cover of its linked instruction manual lists HC-suffixed versions. The manual's location section addresses foundation, ventilation and service access. Ask the supplier to confirm the exact Australian version and applicable documents; this guide adopts none of that manual's numerical clearances or connection instructions.
Have the supplier overlay the selected unit's complete requirements on the actual counter drawing. Include the support arrangement, protrusions, connections, air paths and any opening or removable-panel access. Counter dimensions do not establish support capacity. Obtain the equipment's required support information and have the appropriate provider assess the counter and installed load.
Catch the jug mismatch before comparing output
All dimensions, unit versions, drawings and provider findings below are fictional. They are not specifications for the Hoshizaki example or the pictured machine. The venue has chosen jug J1 for its collection task and keeps that requirement unchanged through the comparison.
J1's specified overall height is 280 mm in its intended upright collection arrangement. The provider's drawing for proposed unit C1 shows 240 mm of clear vertical dispensing space above the supported vessel position. That makes J1 40 mm taller than the space shown.
| Comparison item | C1 standard dispensing bay | C2 tall-bay version | Buying consequence |
|---|---|---|---|
| J1 overall height | 280 mm | 280 mm, unchanged | Keep the real vessel requirement visible |
| Clear vertical bay dimension on the provider's drawing | 240 mm | 330 mm | Compare the exact offered version |
| Bay dimension minus jug height | 240 − 280 = −40 mm | 330 − 280 = 50 mm | C1 has a vertical clash; C2 has no clash in this single dimension |
Scroll the table sideways to see every column.
Reject C1 for the unchanged upright J1 task; request C2's complete installed drawing. A higher ice-output claim does not change C1's dispensing opening. Nor does a photograph of a smaller cup answer the J1 request.
The 50 mm difference for C2 is geometry, not a safe operating allowance or proof that collection works. The actual width, handle, outlet position, supported vessel arrangement, controls and staff task still need assessment. Keep the supplied tray and accessories in the proposal the supplier evaluates.
Do not let the taller version inherit the old shelf plan
The fictional counter is 900 mm above the floor. The underside of the fixed shelf is at 1,700 mm. C1's complete height is 650 mm; the taller C2 package is 760 mm high. These heights include the support components in each provider drawing.
C2's drawing additionally identifies 120 mm above the unit for its specified top-service opening movement. This is an invented requirement for this example, not an ice-machine clearance rule. It is kept separate from any other operating or maintenance requirements.
| Vertical drawing check | C1 package | C2 package at the same counter |
|---|---|---|
| Counter plus complete unit height | 900 + 650 = 1,550 mm | 900 + 760 = 1,660 mm |
| Physical space to the shelf underside | 1,700 − 1,550 = 150 mm | 1,700 − 1,660 = 40 mm |
| C2 top-service opening requirement shown | Not assessed for C1 | 120 mm |
| C2 opening at this position | C1 remains rejected for J1 | 120 − 40 = 80 mm clash with the shelf |
Scroll the table sideways to see every column.
C2's cabinet fits below the shelf, but its specified service opening does not. The buyer therefore returns the unchanged alcove drawing as well as replacing the C1 offer. Comparing only the closed height would miss the second failure.
The revised drawing C3 keeps C2 and J1, but removes the overhead shelf from that unit's service envelope and assigns its stored items a different, provider-assessed location. The fitout provider supplies that change in the project scope. Moving the shelf into the collection path would merely exchange one obstruction for another.
Progress the complete C2-at-C3 proposal for assessment. Its two specific changes address two different conflicts: the tall dispensing bay addresses J1, and the revised overhead layout addresses the service opening. This does not approve the installation. The supplier and relevant providers still need to establish all remaining space, support and site requirements.
Assess collection reach and support with the real arrangement
Take the actual vessel and complete configuration into the supplier's assessment. Have the intended staff task reviewed at the proposed counter height, with neighbouring equipment and normal work shown. This article supplies no universal reach distance, lifting method or counter load rating.
| Question | Specific evidence required | Who must respond |
|---|---|---|
| Can J1 be used in the intended collection task? | Actual jug/handle/outlet arrangement and intended staff task, not just the 50 mm vertical difference | Supplier and the venue's responsible personnel |
| Does the counter support the complete installed package? | Required support/load information including supplied components and the actual counter construction | Relevant support/fitout provider with supplier information |
| Are air, connection and service spaces available? | Applicable model documents overlaid on C3, including revised shelf/storage position | Supplier and relevant qualified site providers |
| Is C2 really the package being quoted? | Exact version, tray, supports, accessories and drawing references | Equipment supplier |
Scroll the table sideways to see every column.
Keep power, water, drainage, treatment, commissioning and care access in the actual site proposal. The ice-machine site survey helps assign those questions. Do not infer suitable connections from a nearby tap or outlet, or treat a pump as a general solution to drainage.
An alternative location, supported collection format or agreed different vessel could change the decision. In this example J1 remains fixed, so the buyer progresses the revised unit-and-counter proposal. No comparison of production rates or usable storage has been established here.
Send the jug and the complete drawing with the enquiry
Our illustrative J1 vessel is 280 mm high in its specified upright collection arrangement. C1's 240 mm bay conflicts with it. We are considering C2's 330 mm bay, subject to assessment of the complete vessel, controls and staff task.
C2 also changes the installed height and top-service envelope. The original shelf leaves 40 mm where the fictional drawing requires 120 mm for opening, so C3 relocates that shelf and its storage outside the required envelope. For our real proposal, confirm the exact unit version, supplied supports/tray, counter support, collection task and all operating/service/connection requirements against the applicable Australian documents.
Replace the fictional measurements with the actual unit documents, vessel and site observations, then discuss the complete countertop ice arrangement with Atlantic Equipment. The right purchase must fit the job people perform, not just the outline on the bench.
About this guide
Prepared by Atlantic Equipment to help buyers compare countertop ice collection and the complete installed access envelope. J1, C1/C2/C3, their dimensions and findings are fictional drawing checks. Hoshizaki Australia's product page and the linked manual cover/location sections were read on 18 October 2026; exact-version applicability remains a supplier question. No actual vessel trial, safe handling method, support capacity, production or installed approval is reported. The photograph is collection context, not the worked equipment.
