Overview

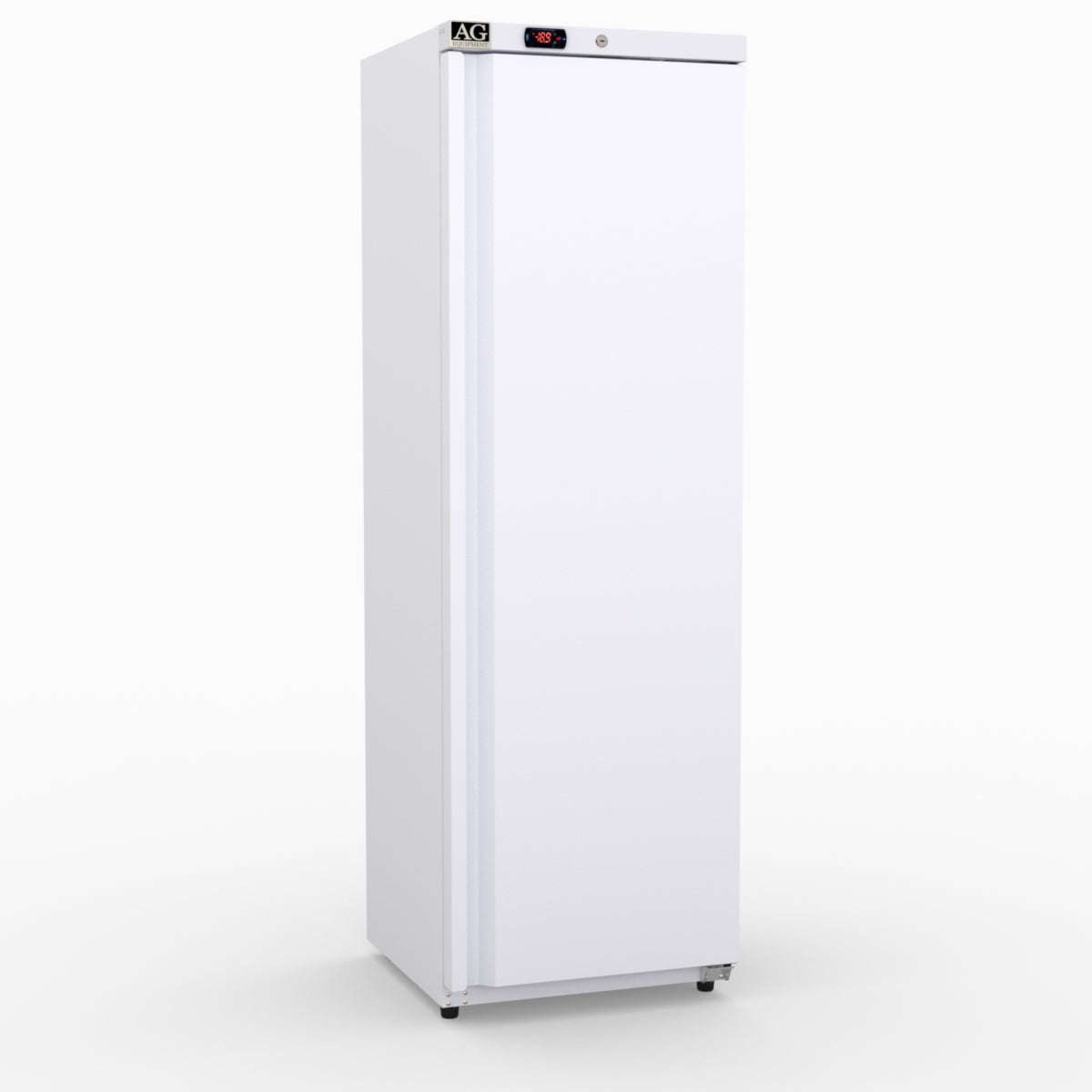

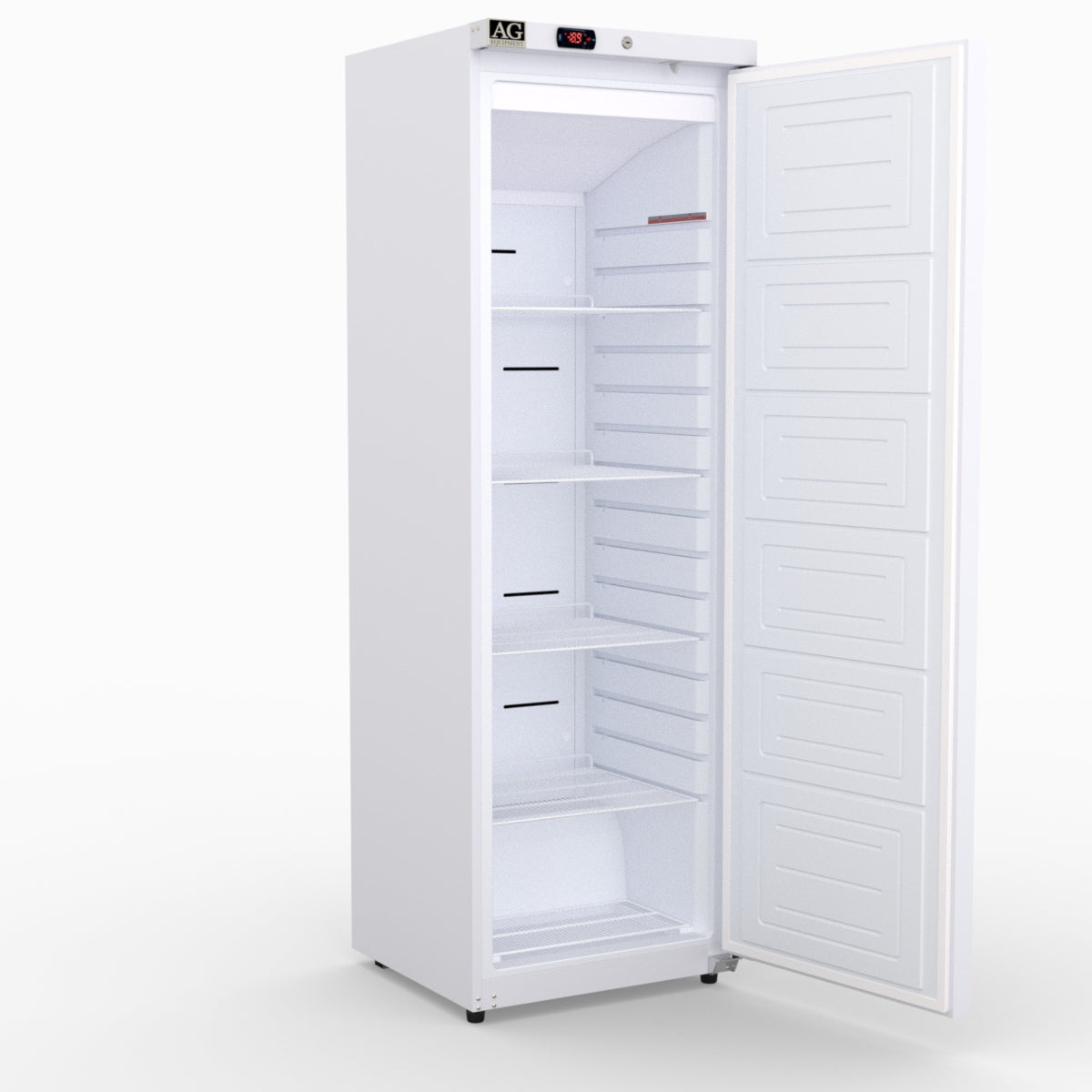

The upright freezer is specifically engineered for light-duty storage-centric solutions at bustling cafés, kiosks, food vans, and sandwich bars. Featuring a single door and a space-efficient design, it provides a storage capacity of 293 litres. Its durable construction ensures reliability and space-saving size. The freezer is equipped with fan-forced ventilated cooling and electronic temperature controls, ensuring optimal performance and consistent refrigeration.

R290 Refrigerant is non-toxic, natural and free of ozone-depleting properties. R290 is one of the most climate-friendly and cost-effective refrigerants available. Fridges and Freezers using this refrigerant are more efficient and can reduce your overall energy costs by up to 28%.

When you buy from AG Equipment, you know you’re getting a twenty-four-month parts and labour warranty from a trusted Australian supplier.

Appearance

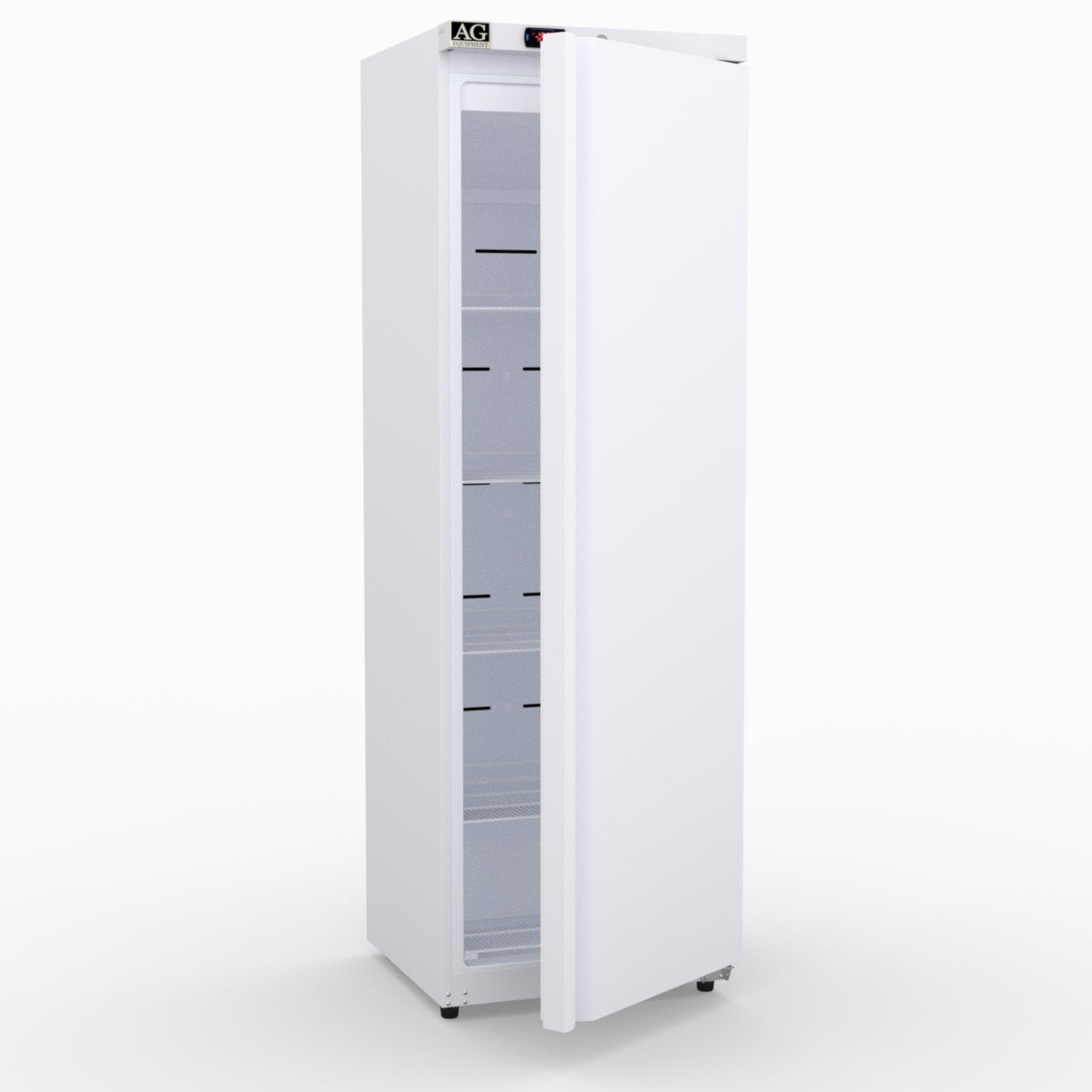

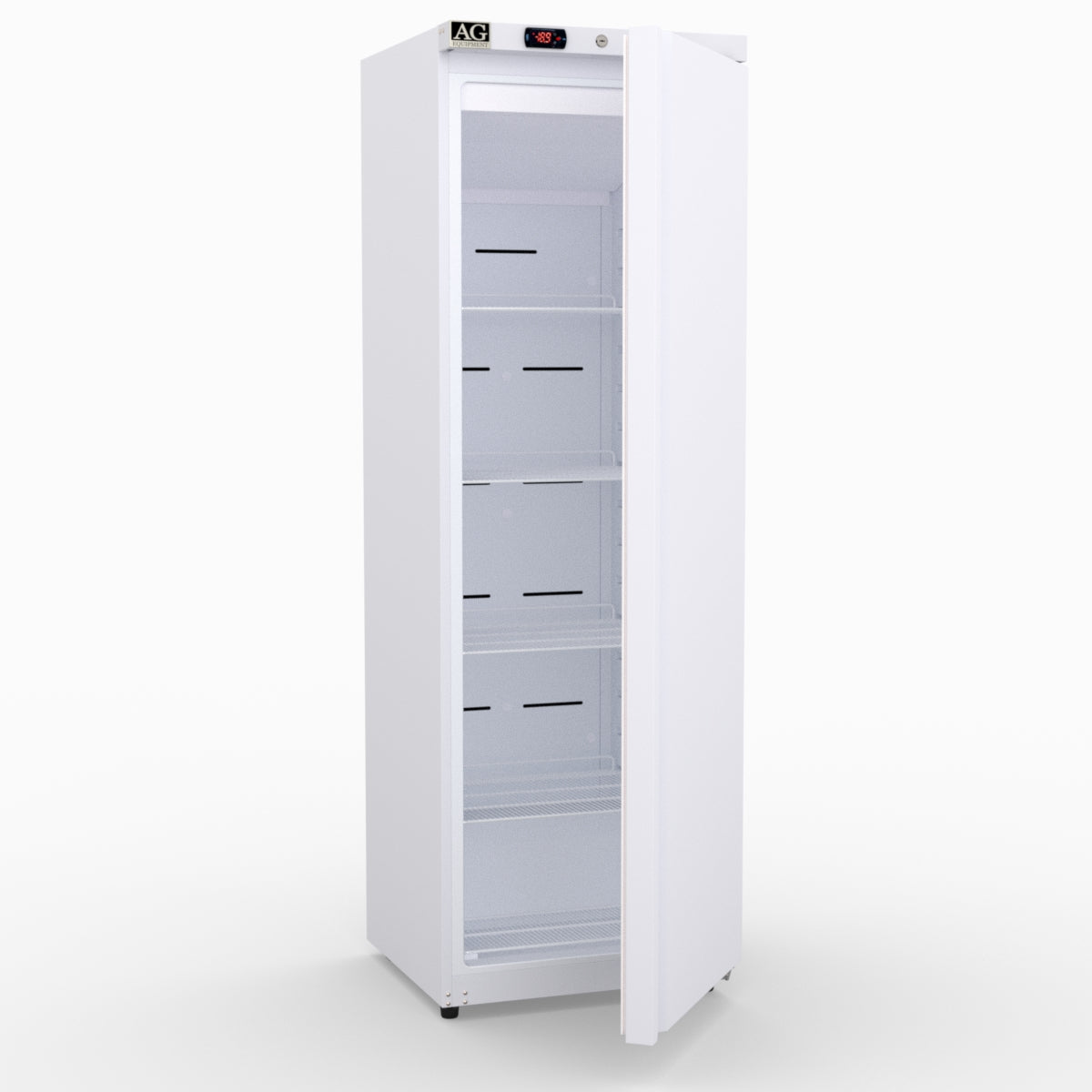

• Upright

• Single door
• White interior and exterior
• Carel Digital Controller

Construction

• 40mm insulation

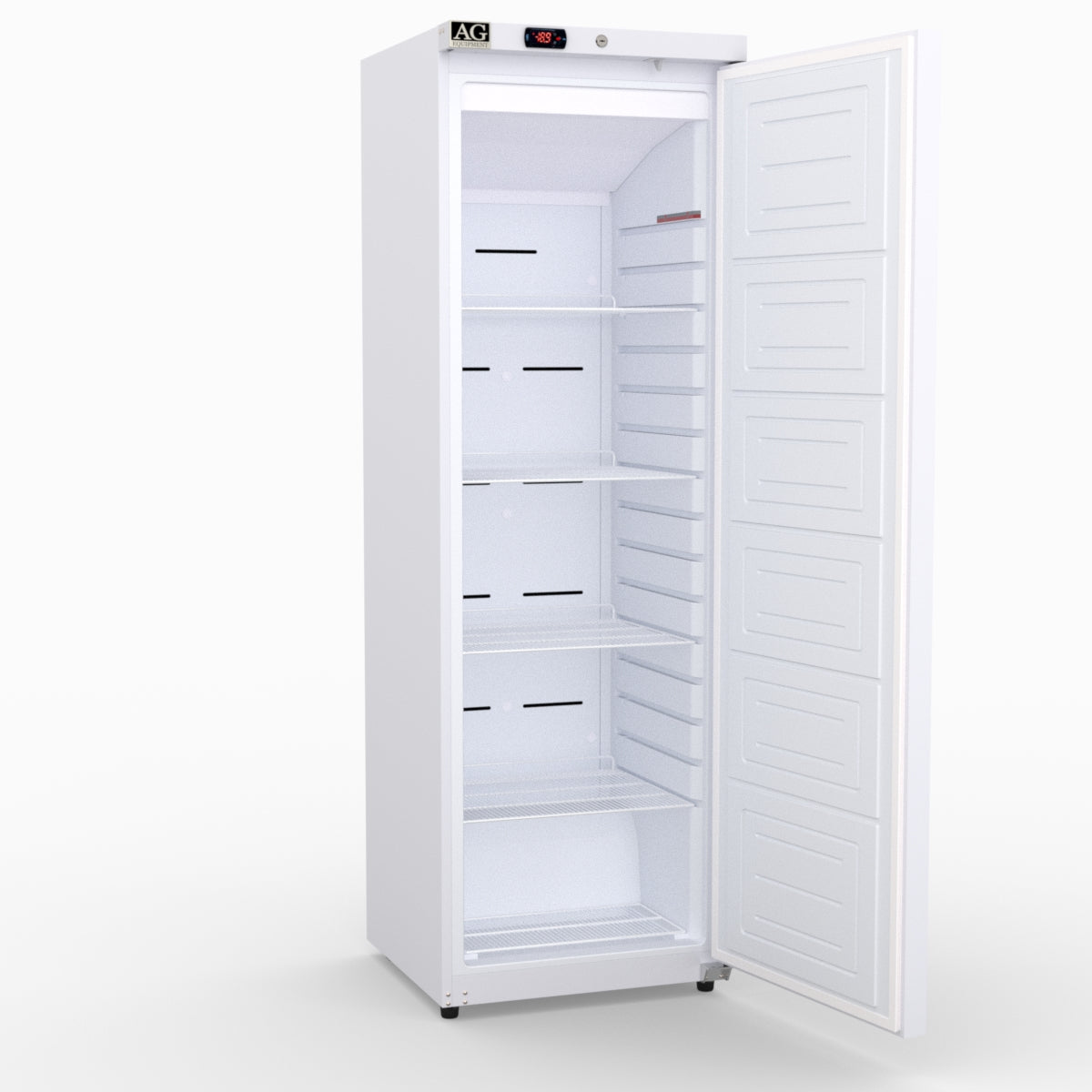

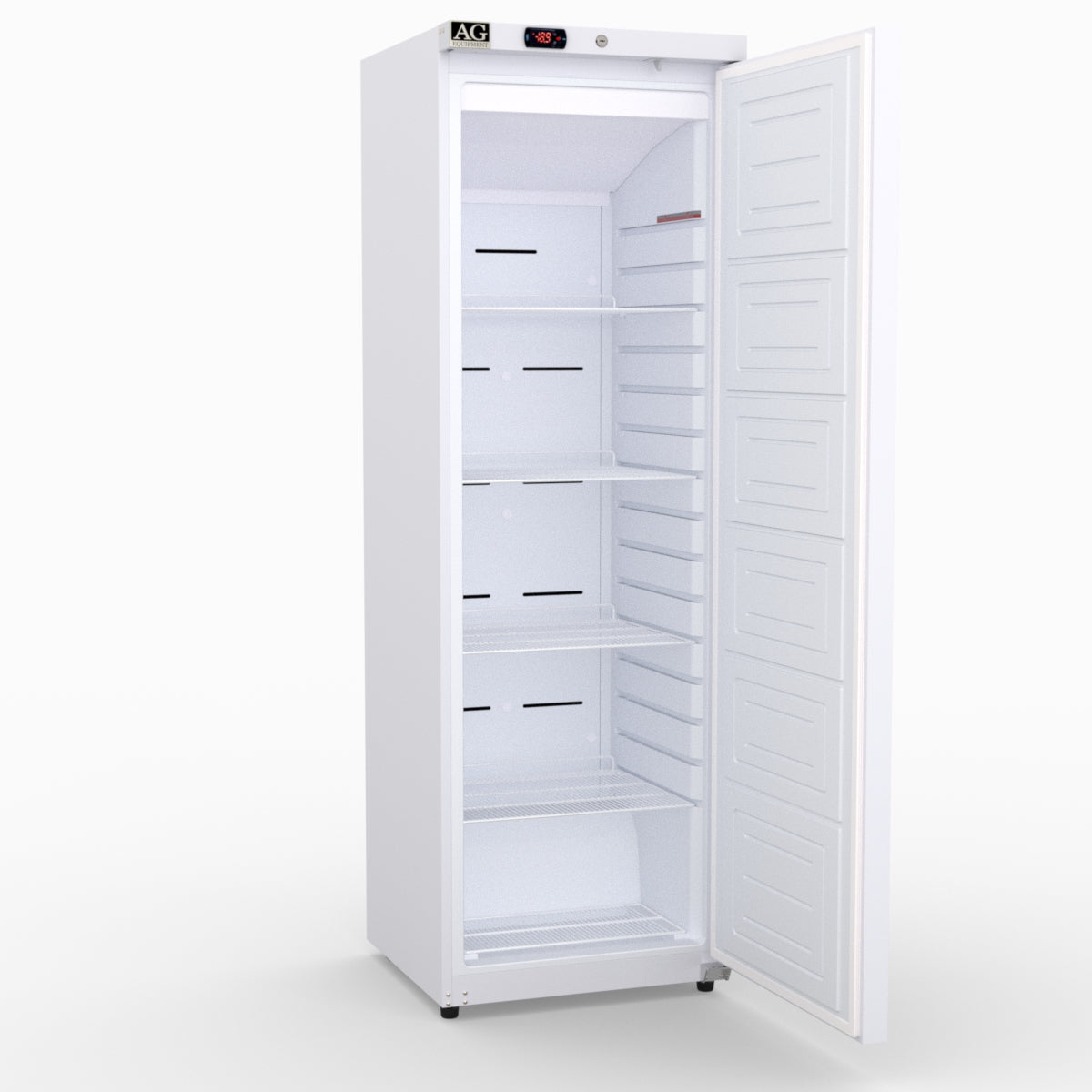

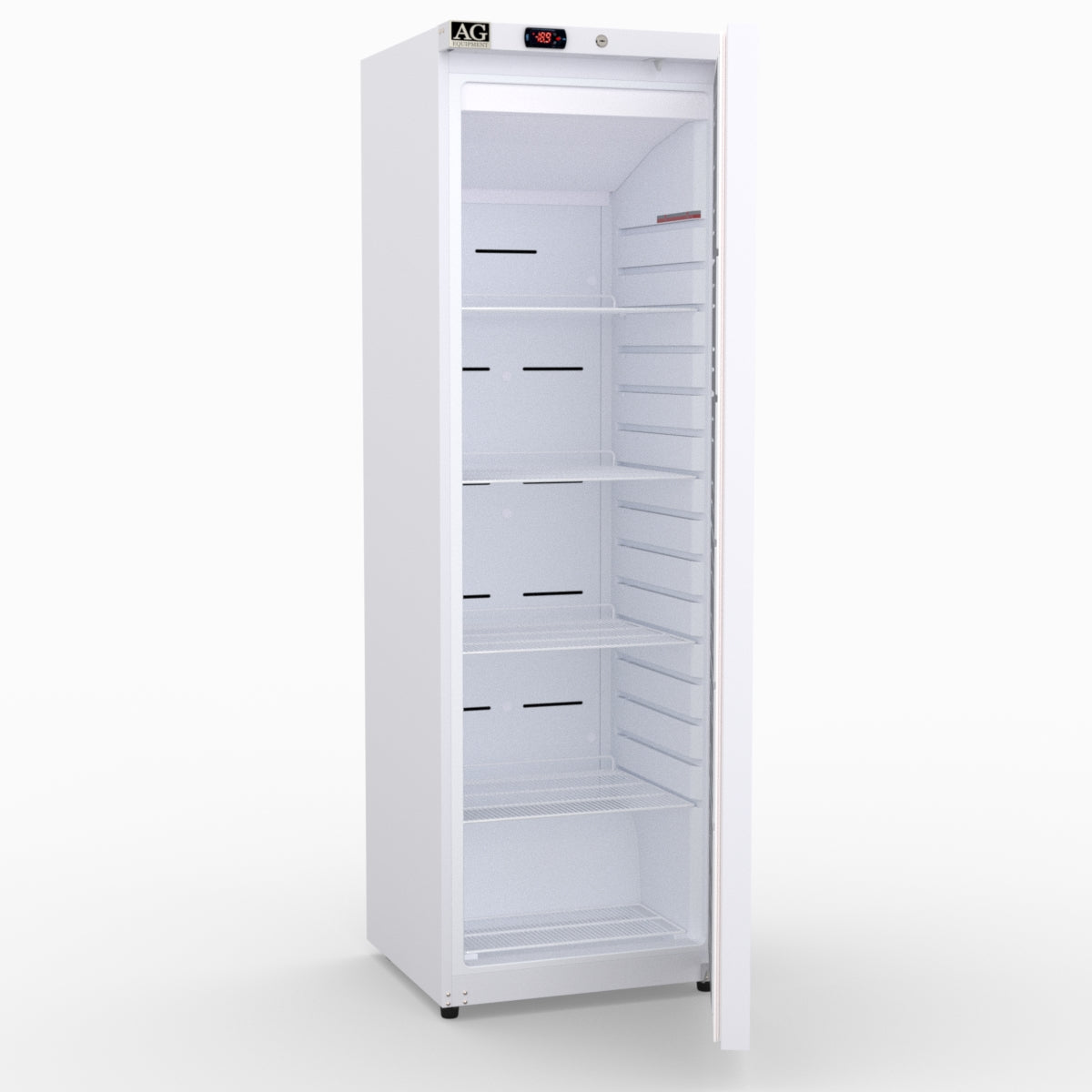

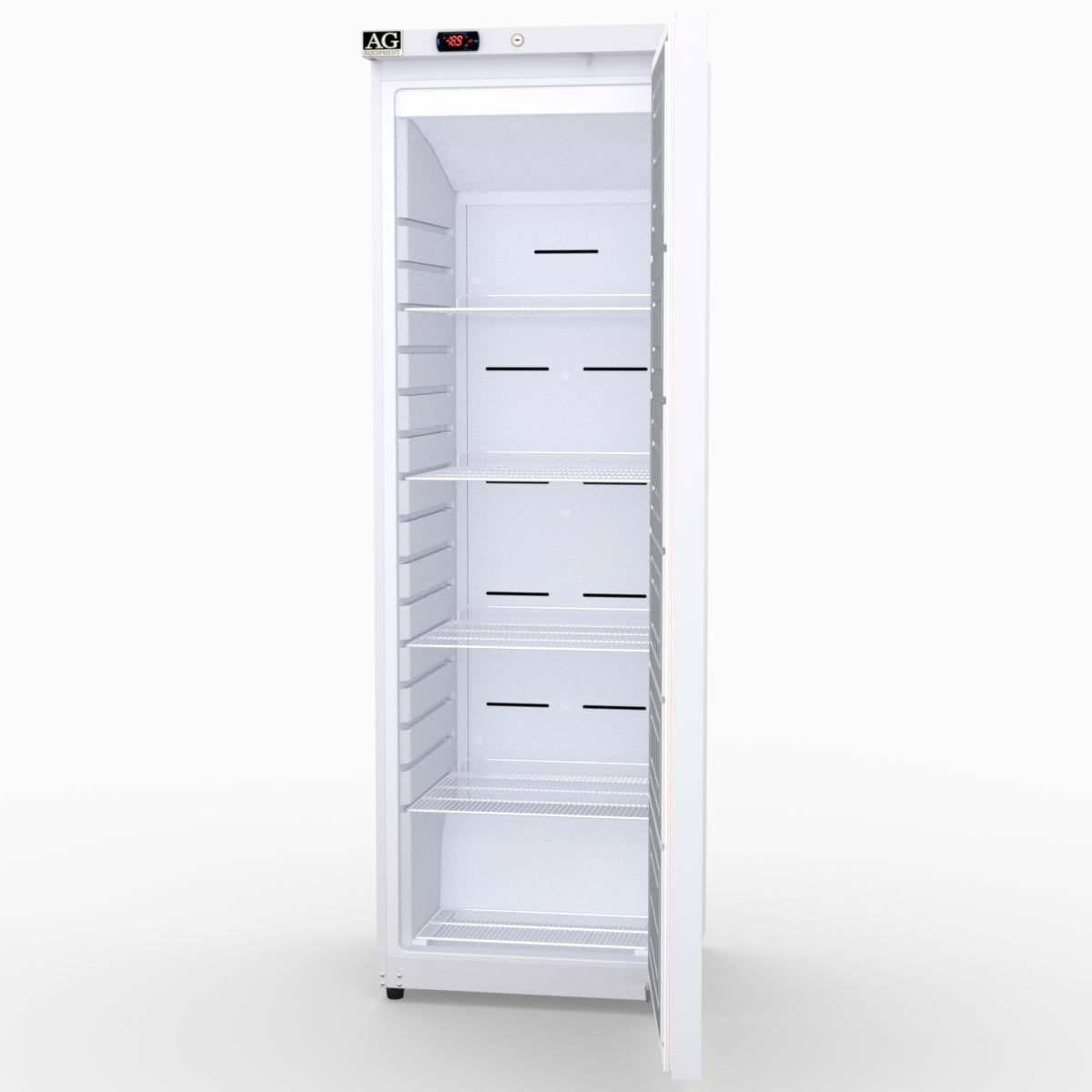

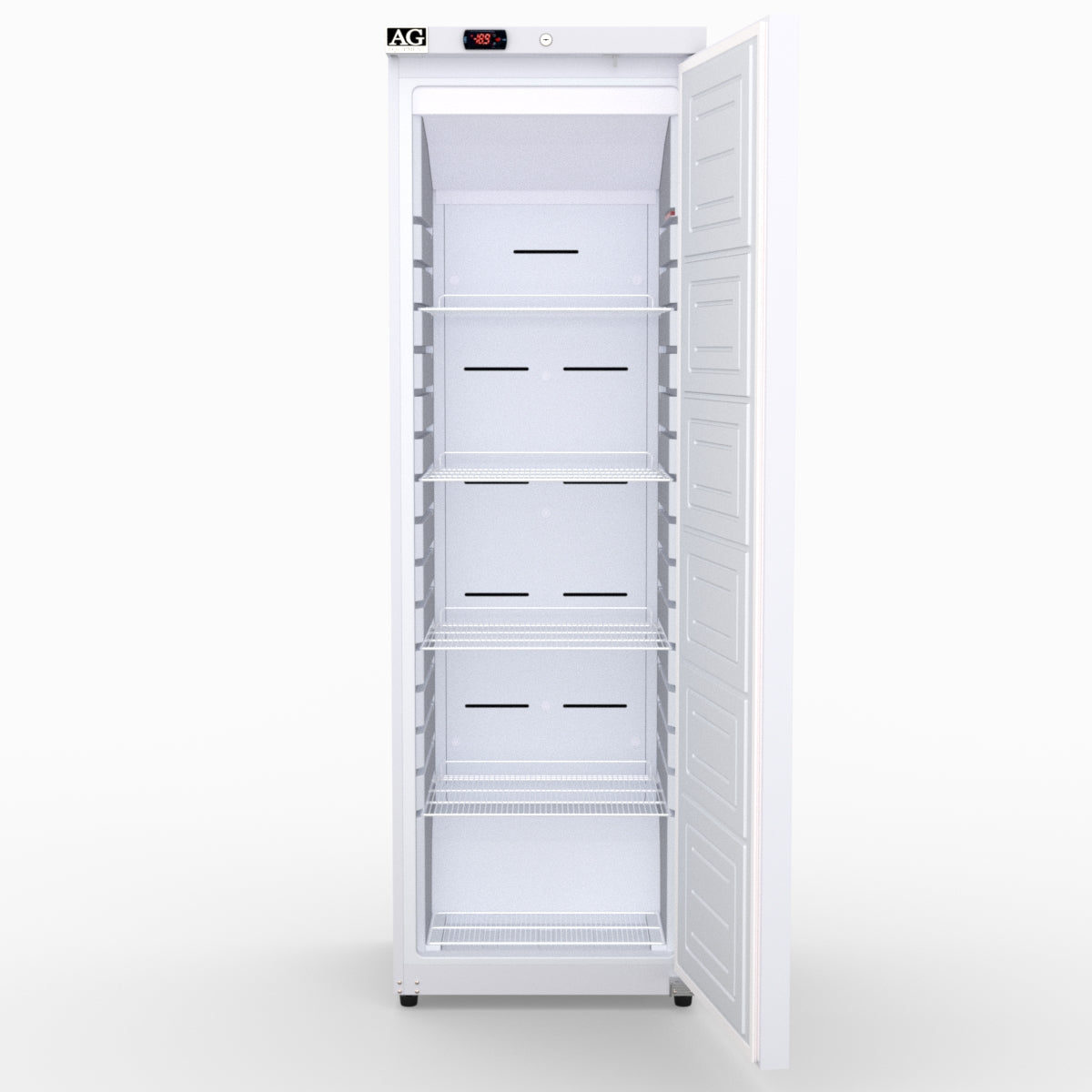

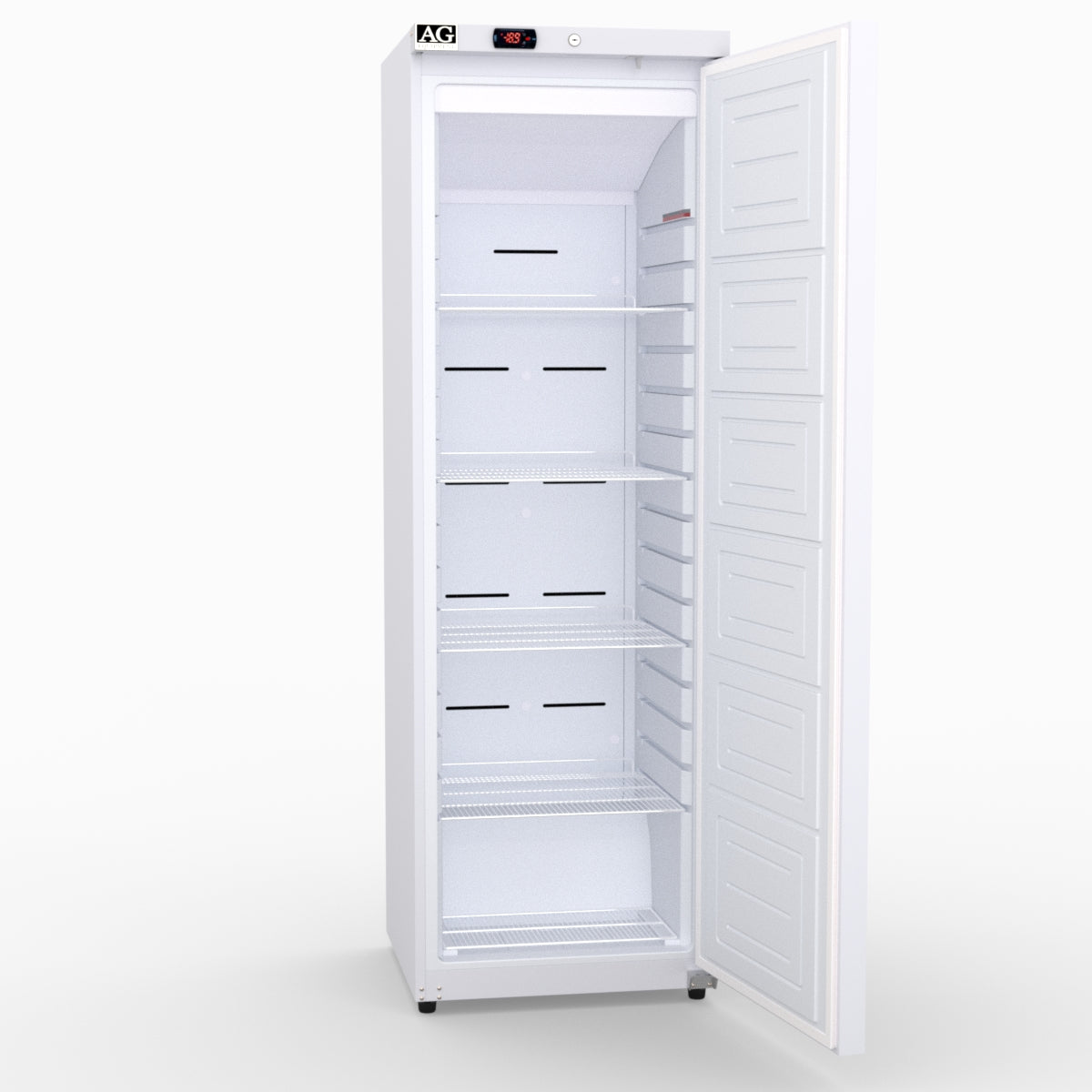

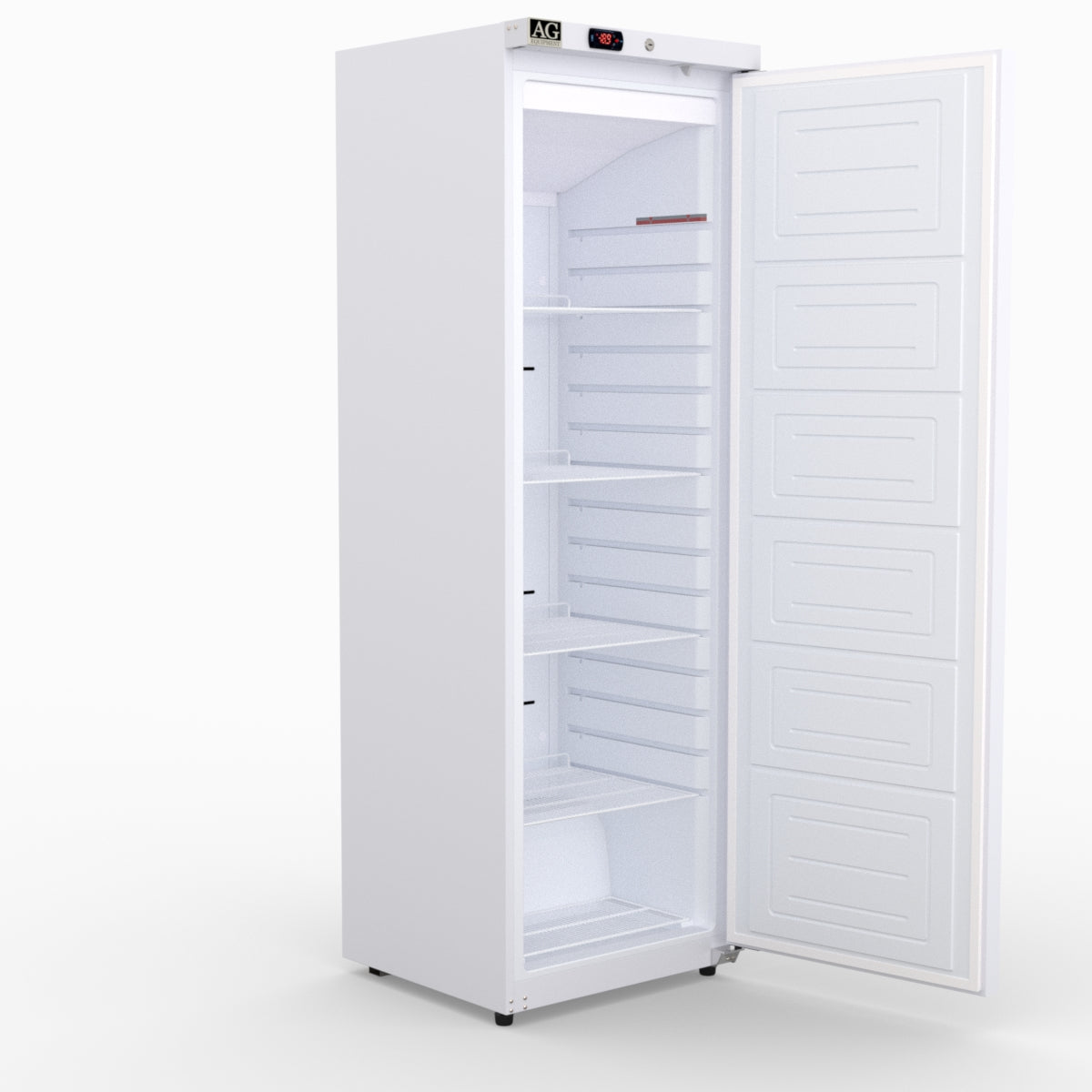

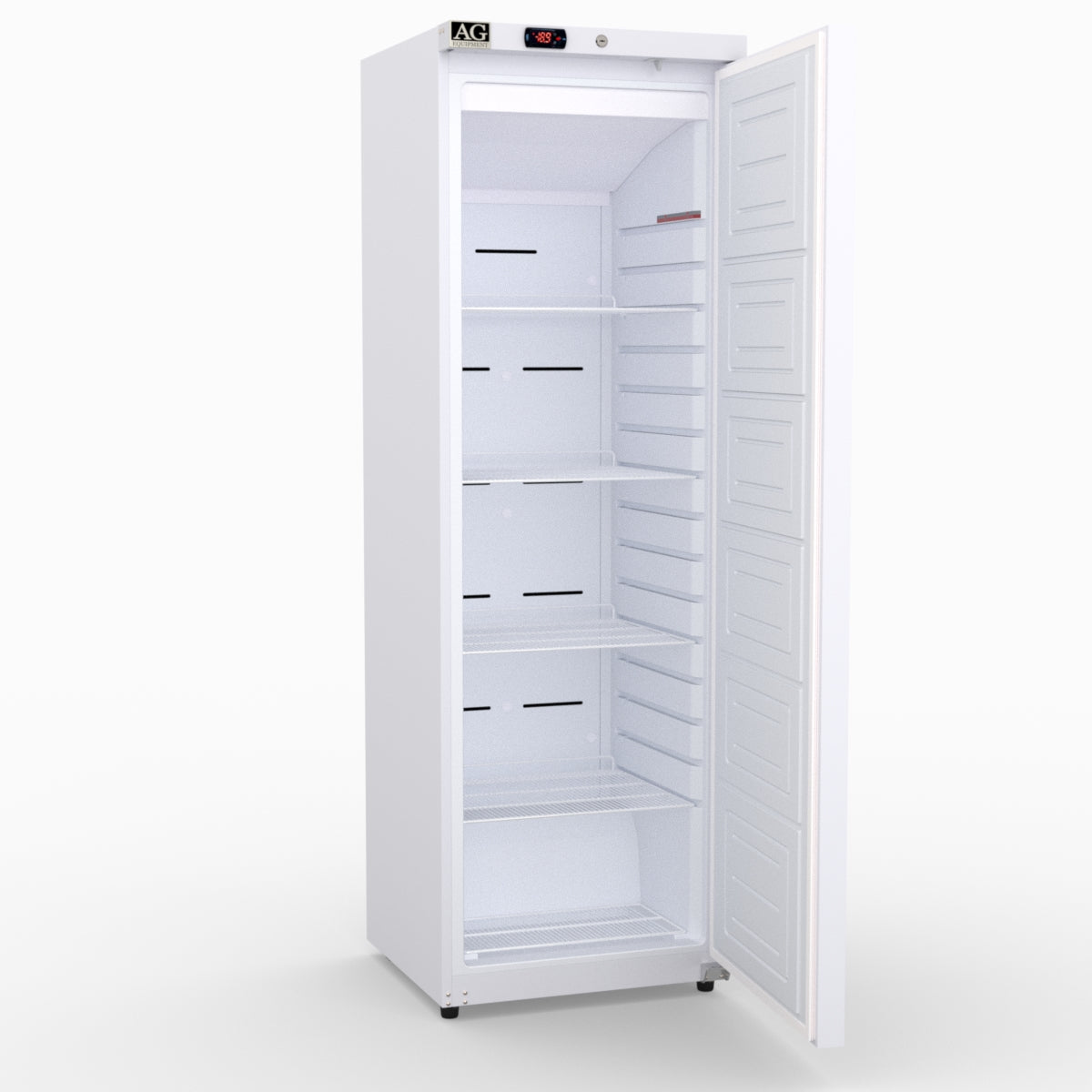

• 4 adjustable wire shelves, 80mm depth, 30 Kg capacity per shelf
• Self-Closing Door
• 2x Rear Wheels
• 38°C / 60% Humidity ambient temperature
• Huay compressor

Operation

• Electronic temperature control
• The temperature set range is between -16°C and -22°C
• Light Duty for storage purposes ONLY
• Fan-forced ventilated cooling

• 45dB Noise Level
• Lockable door

Installation and Maintenance

• This unit must be placed leaving clearance for ventilation.  Please refer to the user manual for details.
• A minimum of 20cm of ventilation must be provided from the back of the fridge to the wall.

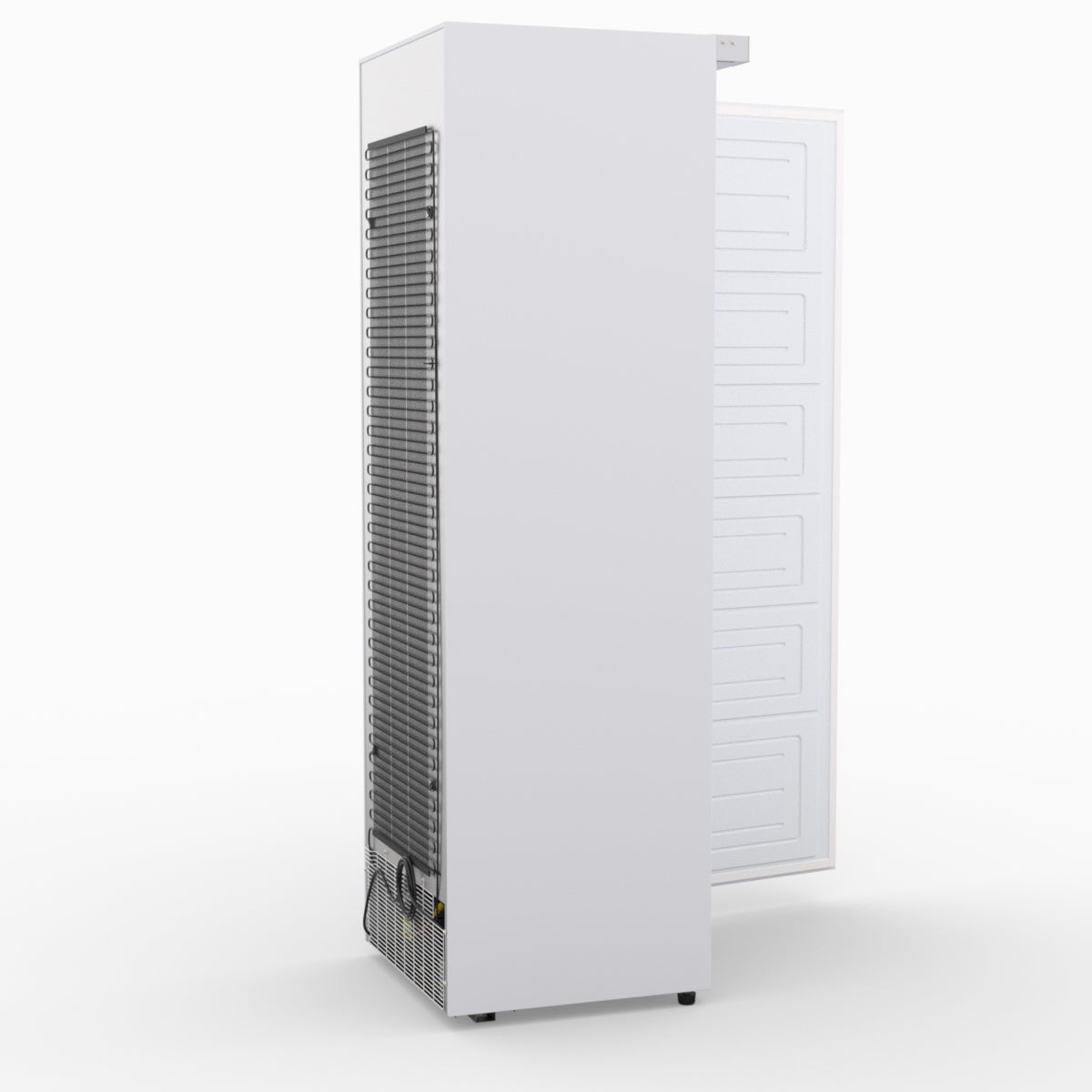

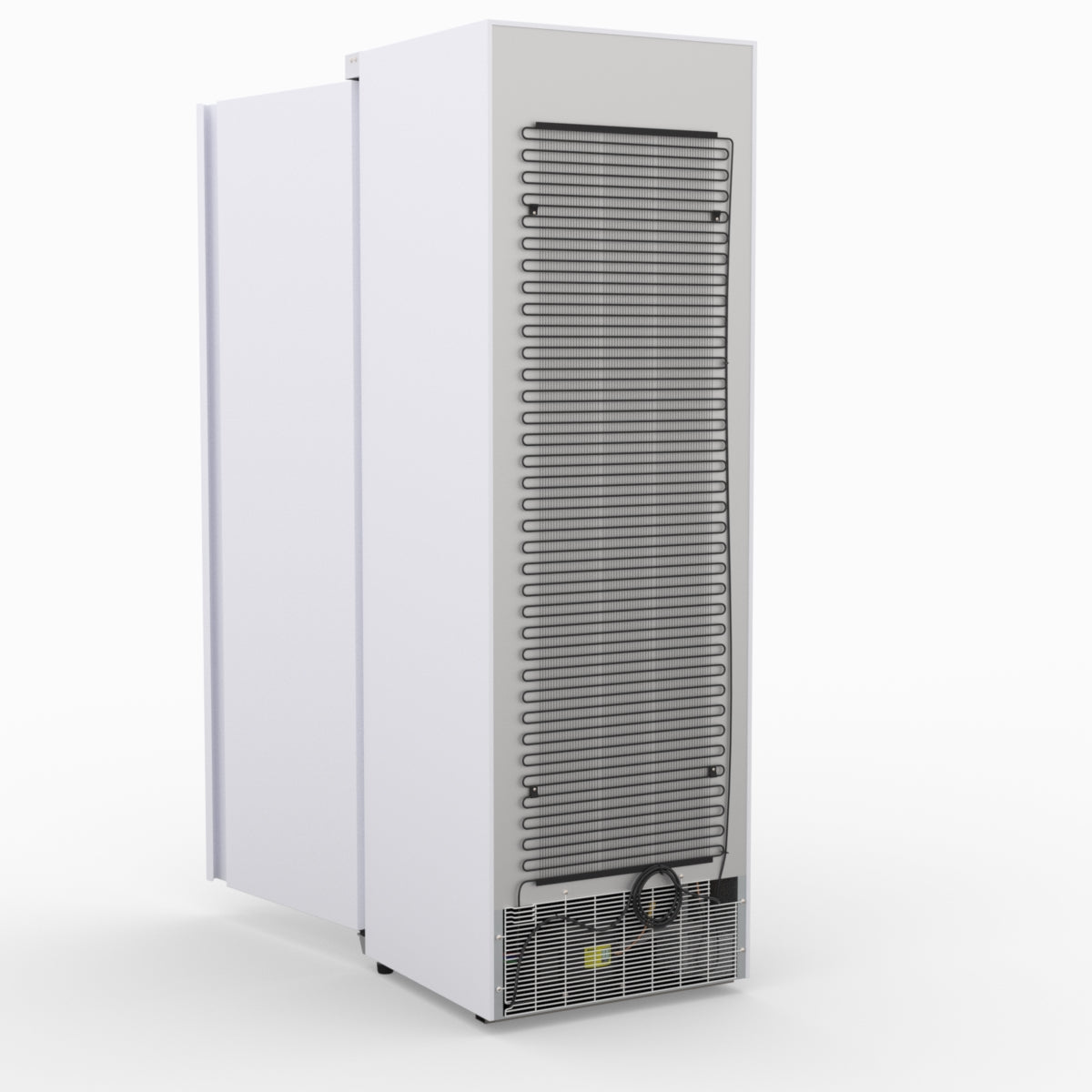

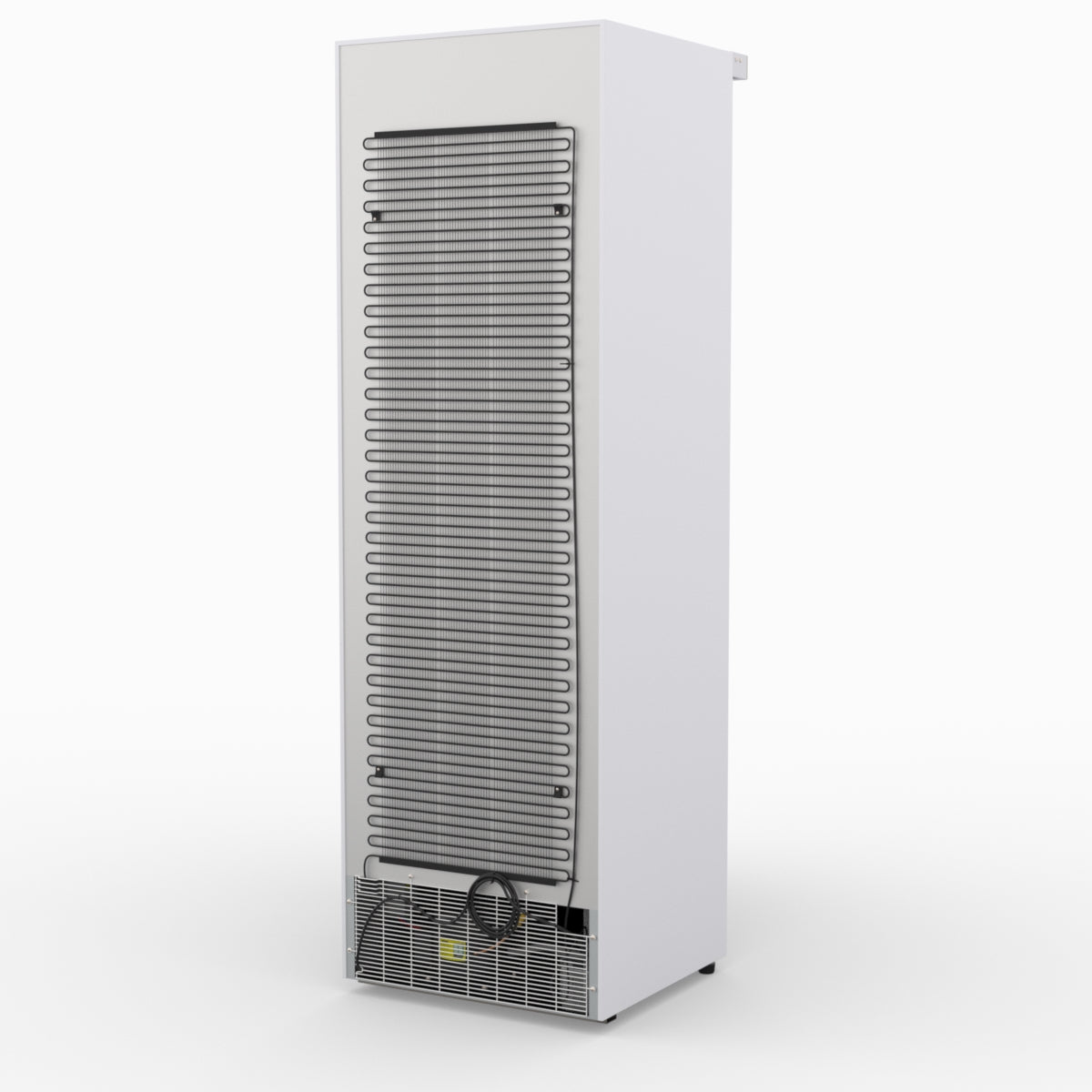

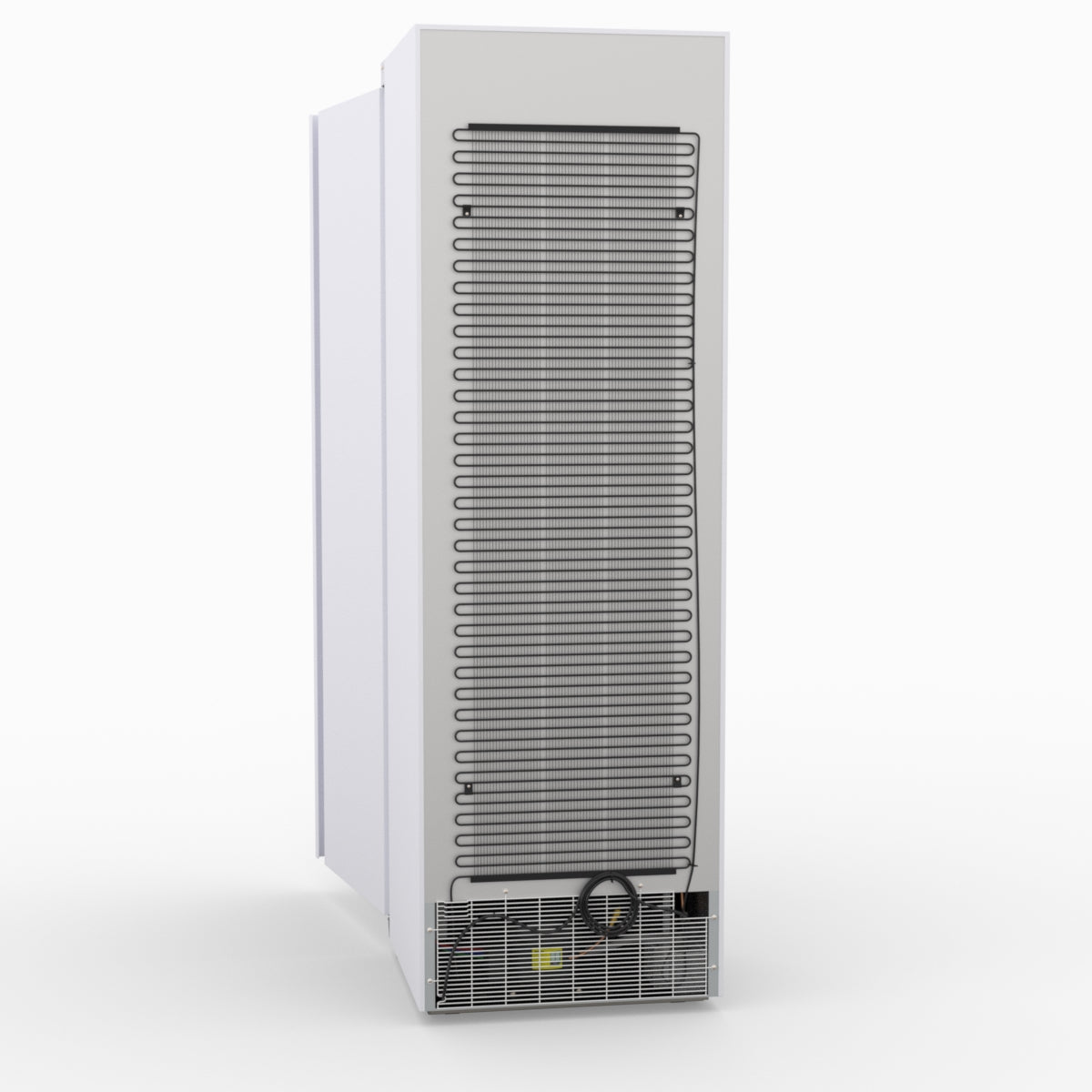

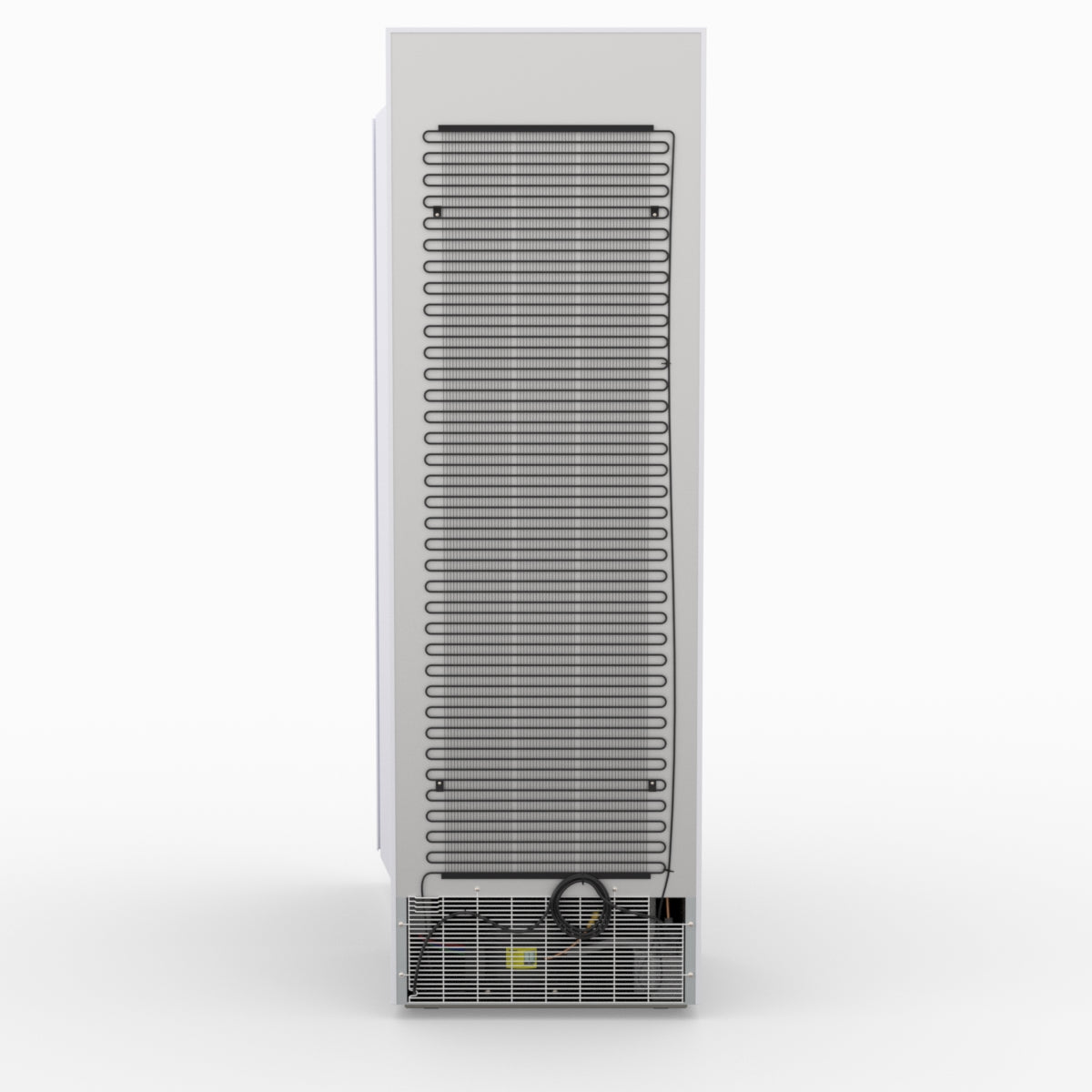

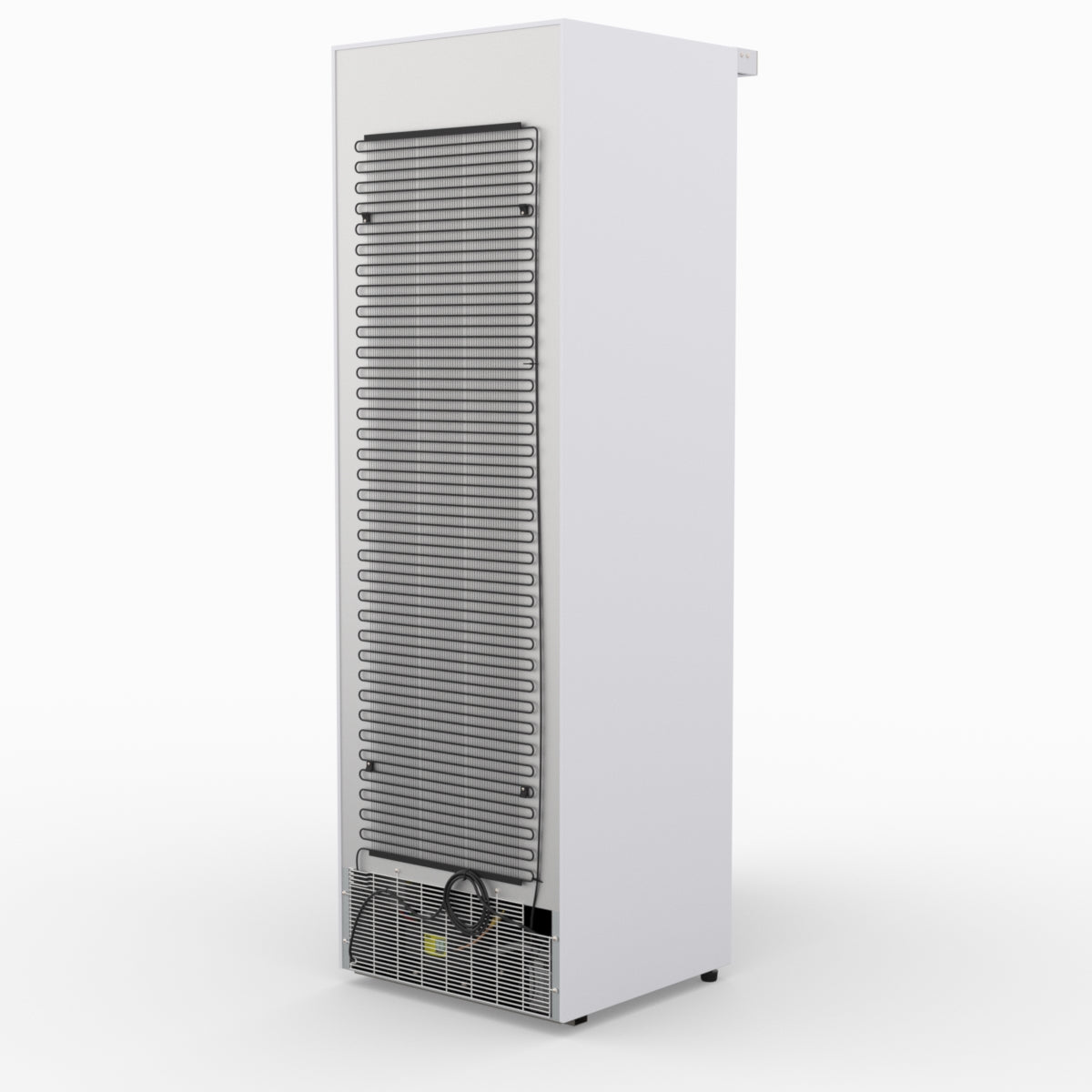

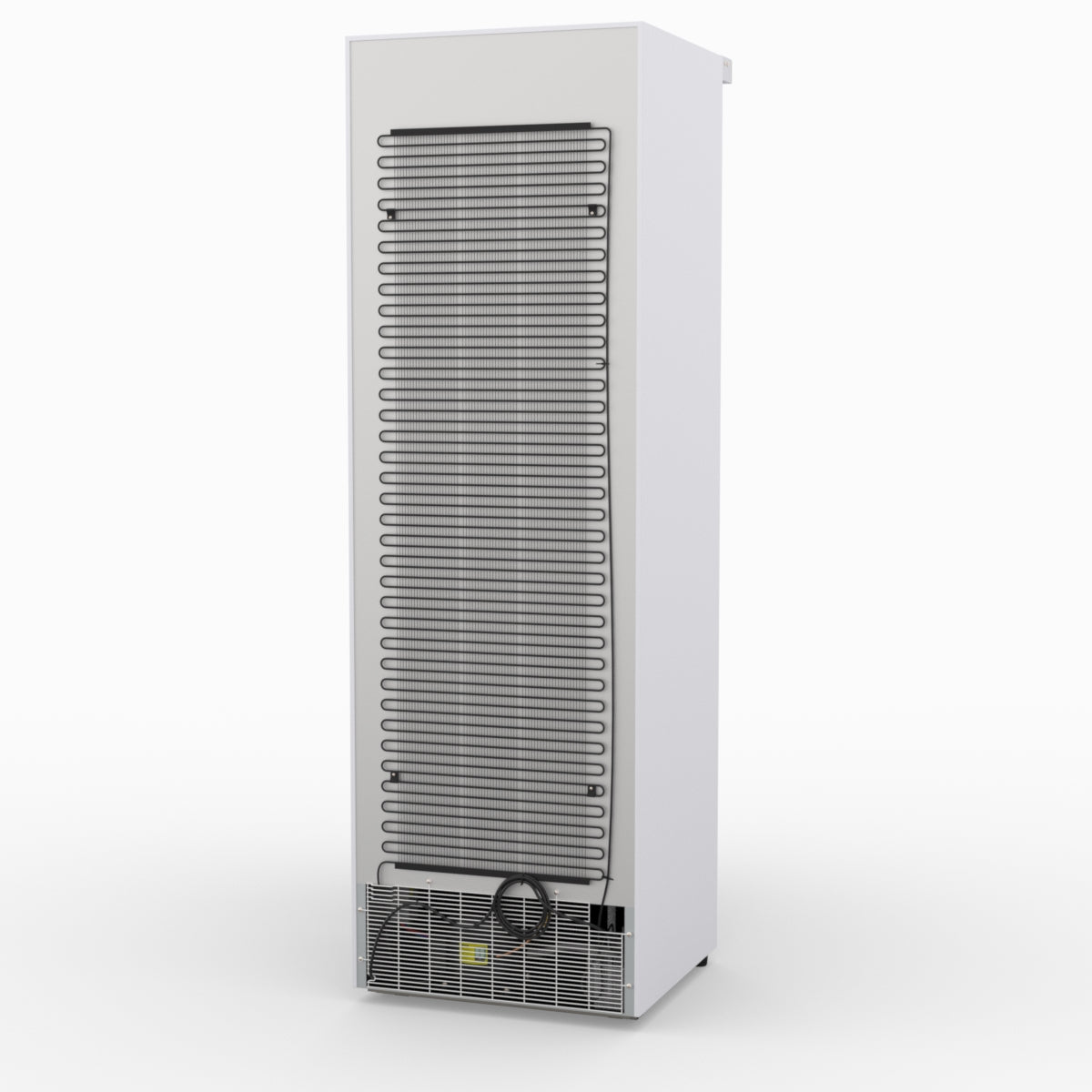

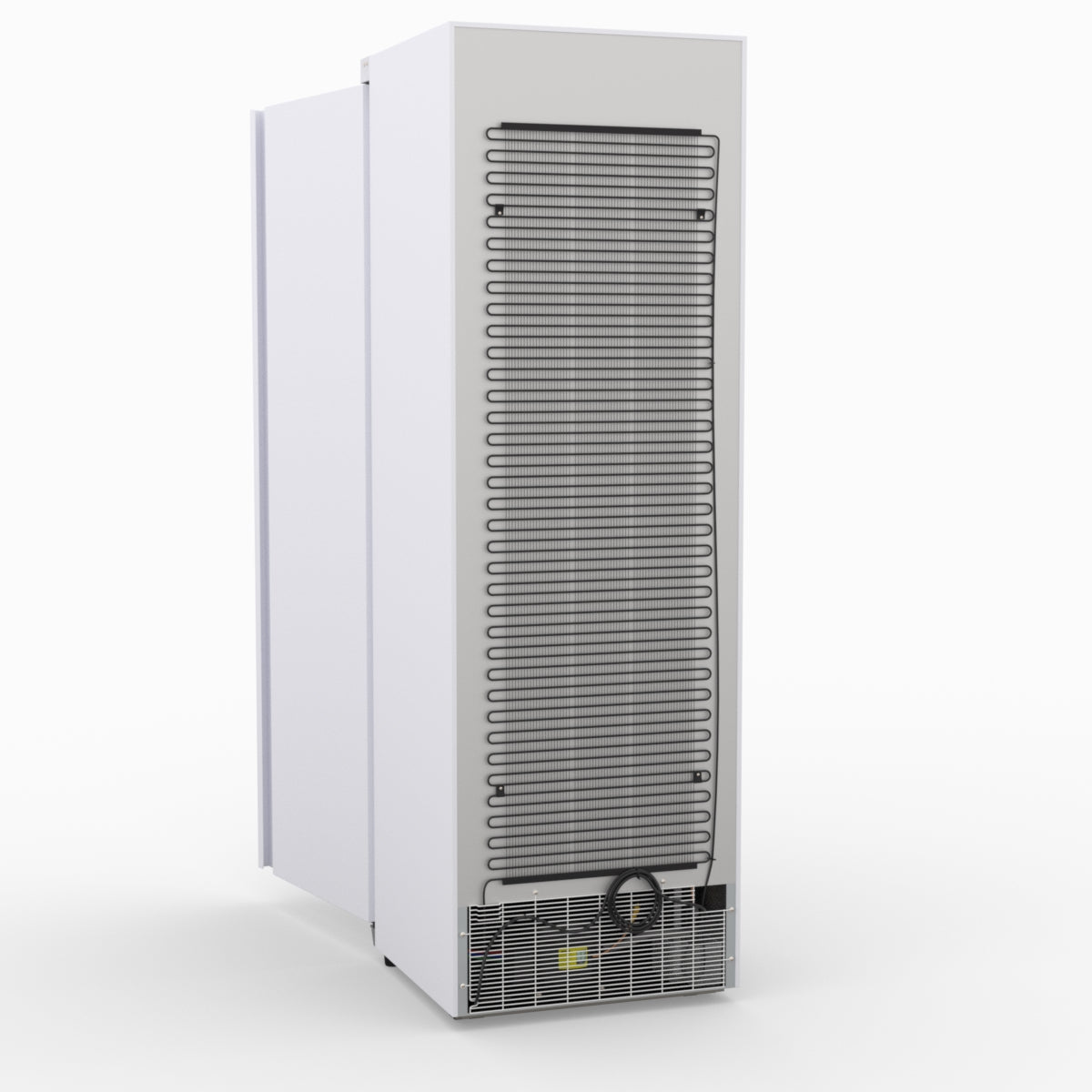

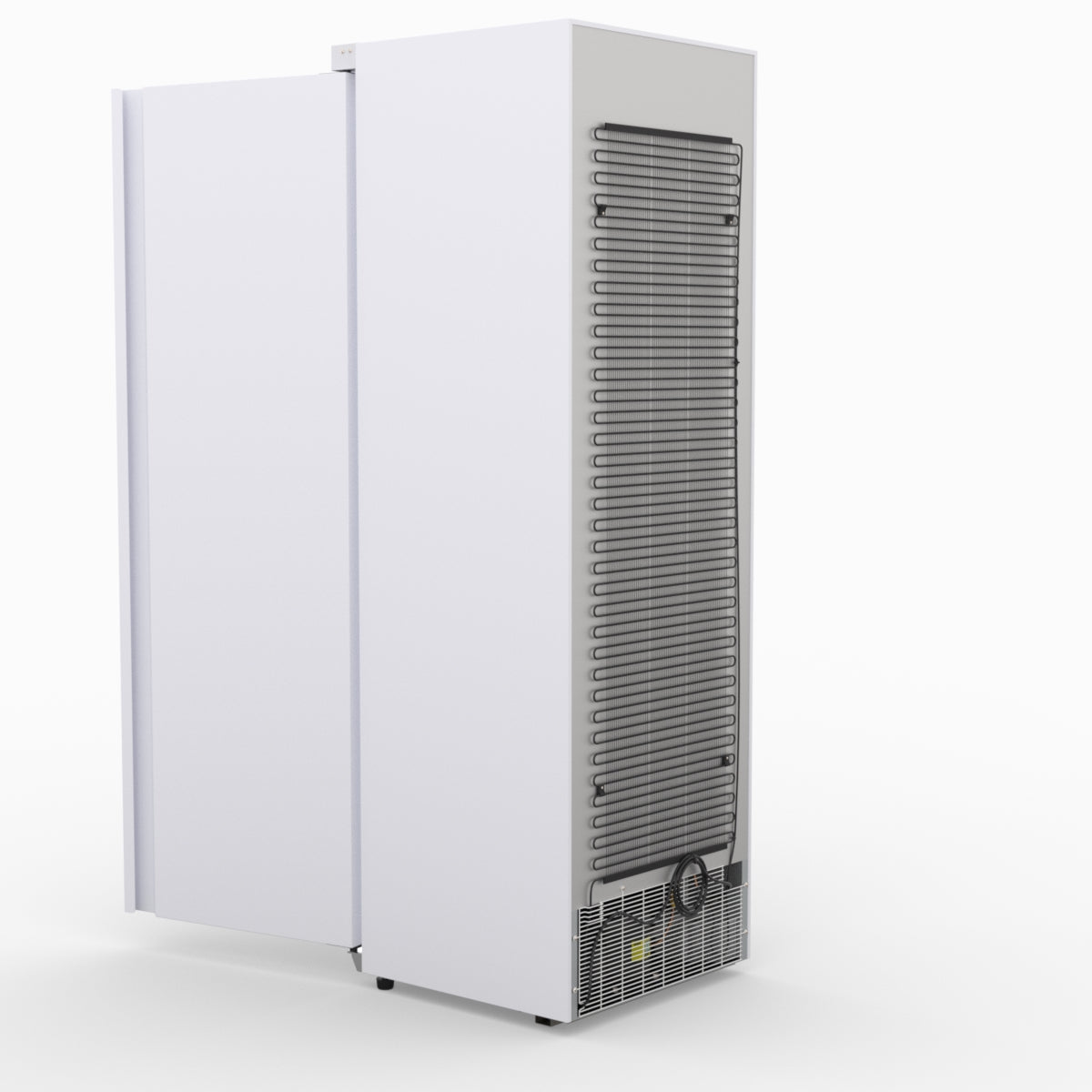

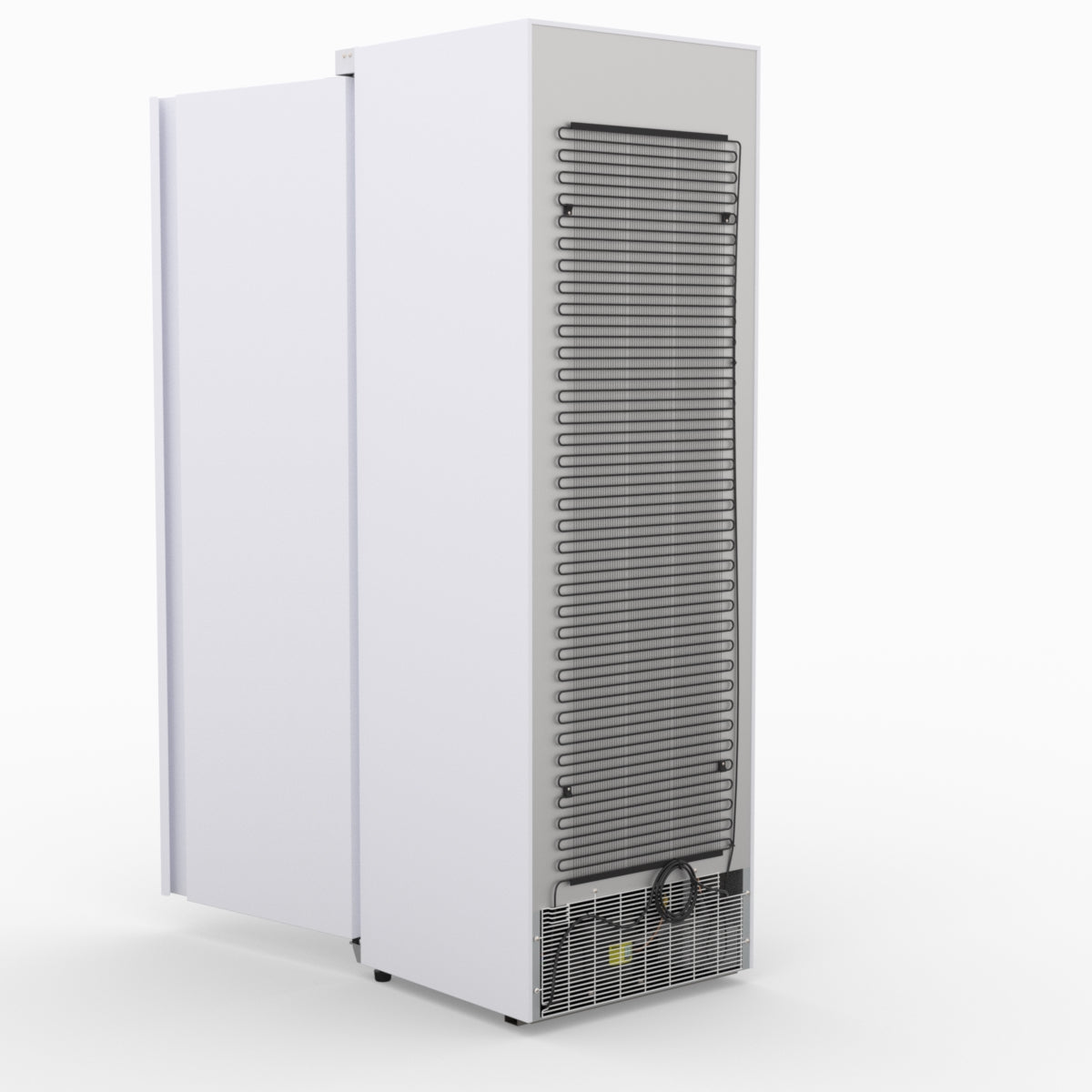

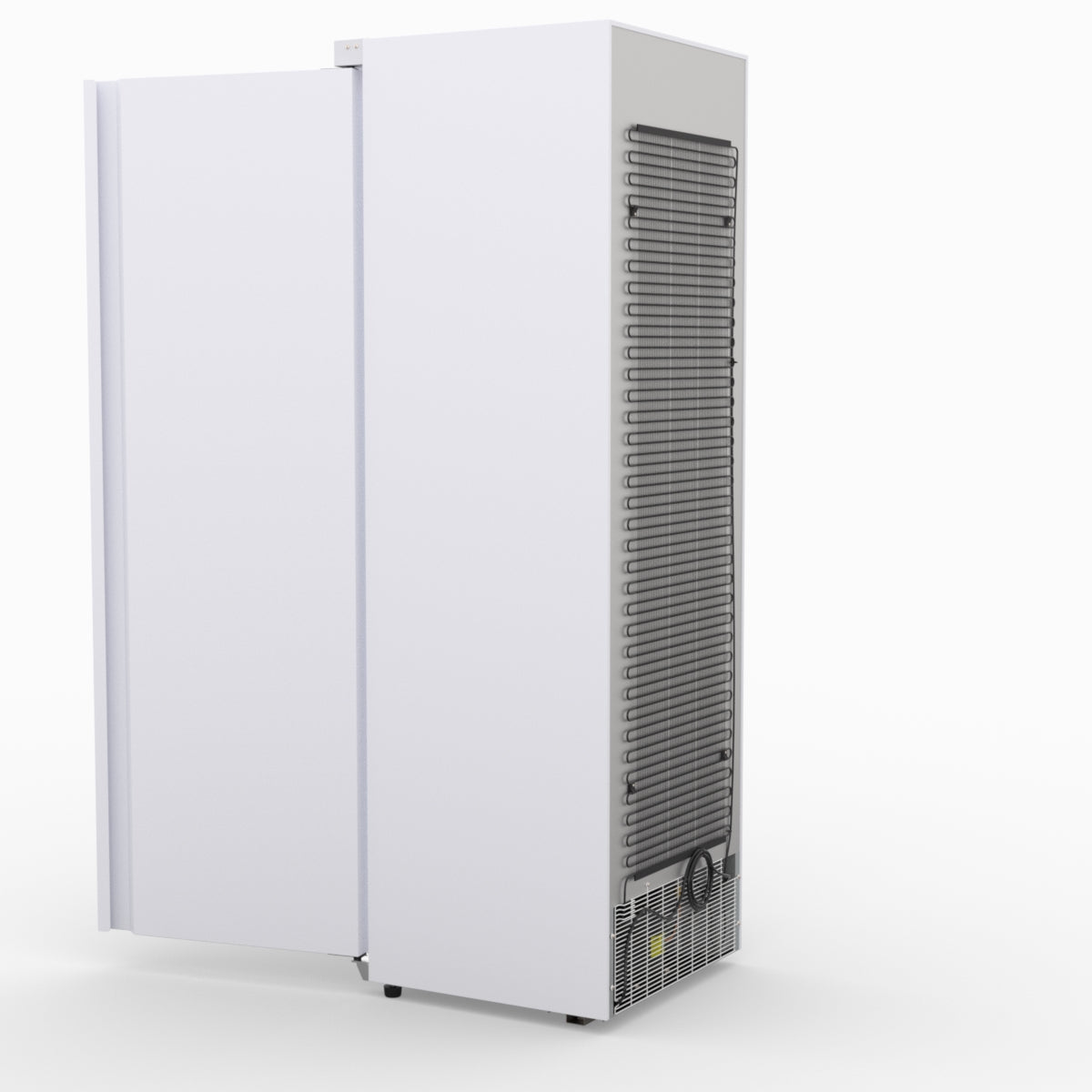

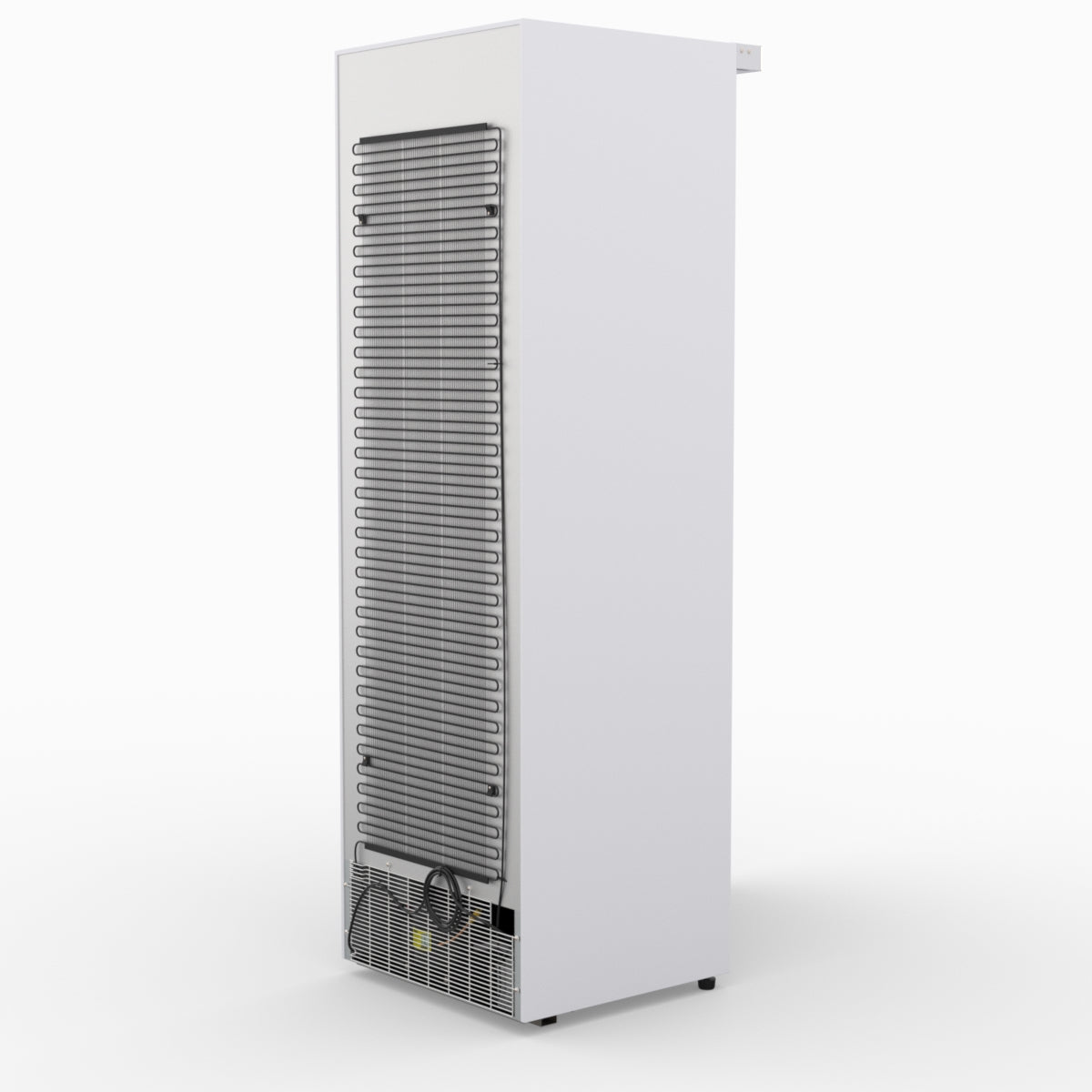

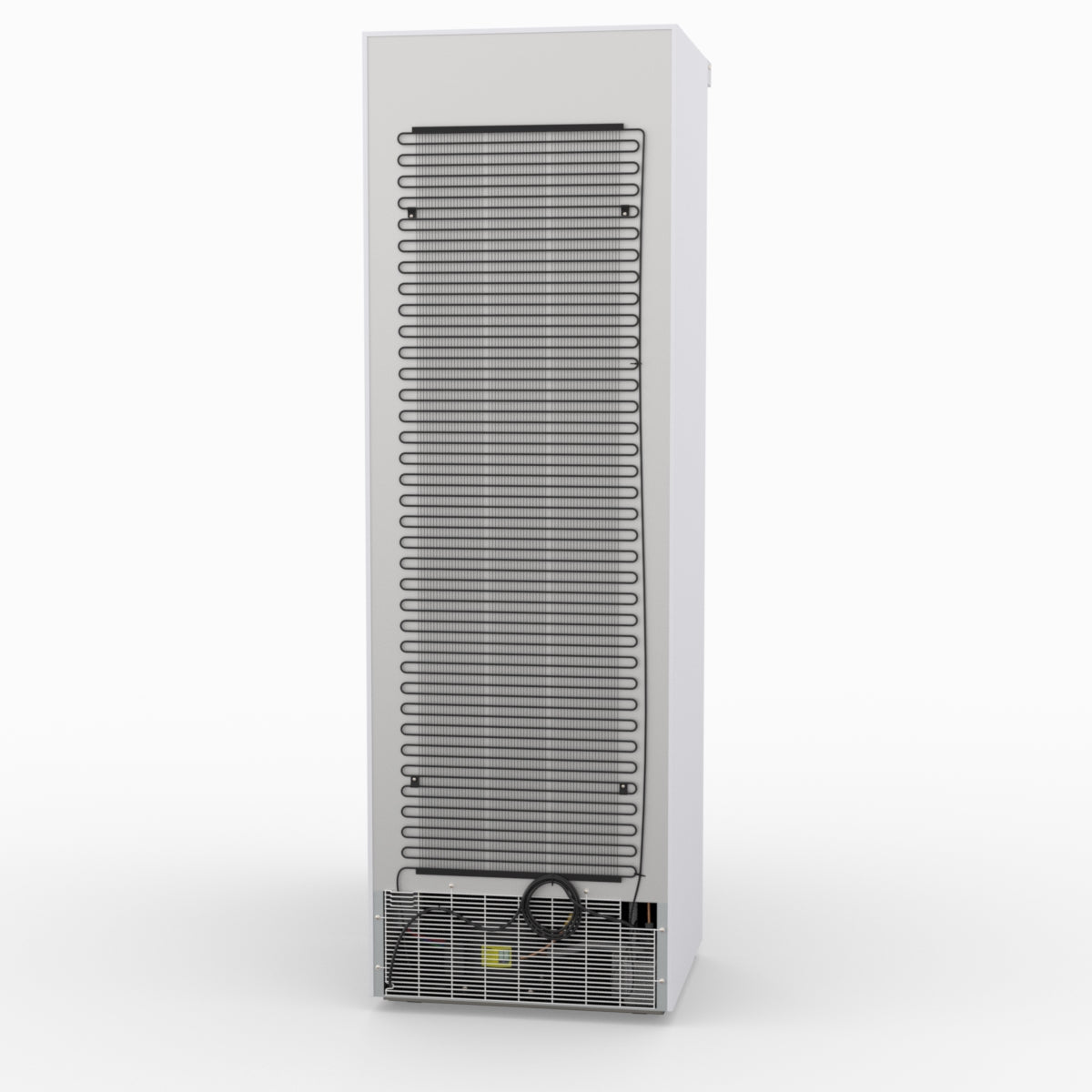

• The condenser and compressor grills at the back of the unit must be cleaned and maintained with a soft brush and blower monthly.

Click here to watch the installation video
Click here to watch the maintenance video

NOTE:- Product images are for illustration purposes only, actual products may differ in appearance.

Errors and omissions excepted (E&OE)

Critical Product Information
1) Light duty refers to light use, minimal openings and open duration, usually maximum of 3-5 opening times per day.
2) The fridge/freezer MUST have a minimum of 150mm-200mm from the back of the unit to the wall for ventilation.
3) Grill and condenser at the back MUST be brush cleaned and blown with an air blower once per month as scheduled maintenance.
4) Ambient temperature MUST NOT exceed and must be maintained a few degrees below for correct operation.
5) Keep the door closed as much as possible, since this is only a light-duty freezer; keep
openings to below 5 times per day. Otherwise, the compressor will over-stress, compromising its operations
6) The fridge MUST NOT be exposed to direct or indirect sunlight (such as through glass windows or skylights) or positioned near a heat source..
7) There MUST be good air flow in your area. The fridge/freezer MUST not be placed in an area with a low or stagnant airflow.
8) Fridge MUST be connected directly to the wall socket on its own electric circuit.

*** Before making a purchase, please ensure the product dimensions will fit in your designated space and throughout your doorways and passageways. Delivery that doesn't fit will be left at the curb and are not returnable due to size constraints. ***
*** The freight provided is for commercial address flat access inside delivery with packaging and skid removal. NOTE that they are not installers. We are not responsible for physical damages once the delivery is signed for and received. ***
*** Before installation and usage, read the product manual carefully and follow the instructions. The instructions are for safety, ventilation, maintenance, and care must be followed. Otherwise, it will void the warranty. ***
