AG Equipment Free standing Ice Machine cube ice - 95Kg/24Hr AG-ICE95
Couldn't load pickup availability
Overview

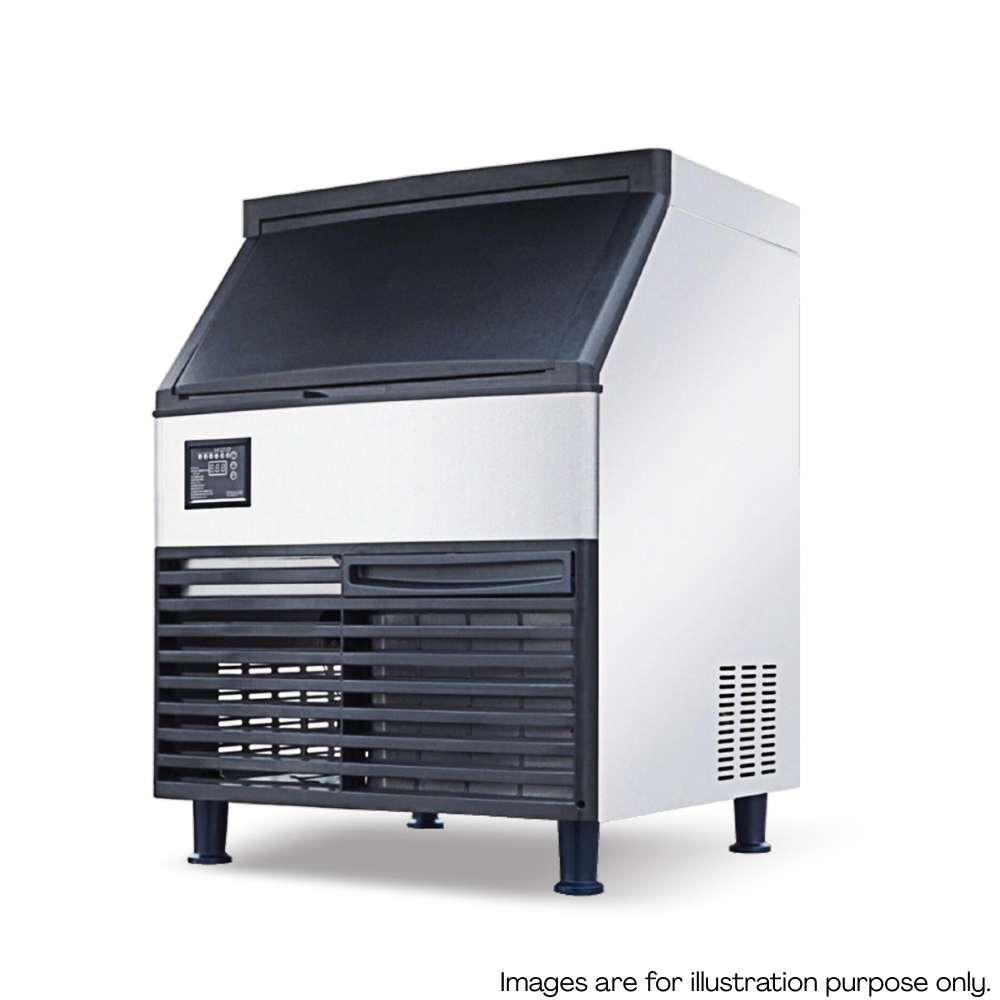

Free standing Ice Machine cube ice - 95Kg/24Hr
If you are looking for high-capacity ice production for demanding hospitality or healthcare environments, the ICE95 will be able to cater for you. It is a heavy-duty, free-standing ice machine, made for establishments requiring a large volume of clean ice. The ICE95 is designed with an impressive 95kg/24hr ice production and a 36kg insulated ice storage compartment.
Appearance
Cubigel NPY12RA compressor.
Stainless Steel body with plastic door construction
Ventilation grills are around the whole appliance.
Construction
36 kg insulated ice storage compartment.
User-friendly design with easy maintenance.
R290/120g Refrigerant
220V-240V/50Hz
Input power is 670W
Australian 10 Amp Plug
Adjustable feet
CE / ISO 9001 certifications
Operation
95 kg/24 hr ice production.
Energy Consumption 12.3kWh/24hr
Installation and Maintenance
1) It is critical to install a water filtration system, which is available locally at retailers like Reece.
2) When having a plumber install the ice maker, please adhere to the water pressure specification that is displayed on a sticker on the back of the unit.
3) This unit requires to be positioned with at least 15 cm of space around it for ventilation. For more information, please refer to the user manual.
4) The filter and ventilation grills on all sides must be cleaned once per month.
NOTE:- Product images are for illustration purposes only; actual products may differ in appearance.
Errors and omissions excepted (E&OE)
SPECIFICATION
AMBIENT TEMPERATURE 38°c
CAPACITY 36 kg
ENERGY CONSUMPTION 12.3 kWh/24h
FREQUENCY 50Hz
INPUT POWER 670w
PACKAGE DIMENSION MM 780(W) x 745(D) x 1000(H)
PRODUCT DIMENSION MM 660(w) x 707(d) x 919(h)
PRODUCT WEIGHT 58kg
REFRIGERANT R290/120g
SHIPPING WEIGHT 71kg
VOLTAGE 220V - 240V
WARRANTY 12 Month Parts & Labour
All Ice machines MUST be maintained to ensure high performance.
The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.
This maintains the quality of the ice shape and thickness.
This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
-
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. -
Sanitise water reservoir, distribution tubes, and bin interior. -
Clean and flush condenser coils (air-cooled units). -
Inspect condenser fan motor and blades. -
Check inlet water valve, float, and filters for correct operation. -
Verify ice thickness probe or sensor calibration.
-
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. -
Test compressor amperage and general performance. -
Inspect water pump operation and clean pump housing. -
Check harvest cycle operation (heater or hot gas valve). -
Inspect electrical connections, relays, and contactors. -
Replace inline water filter cartridge.
