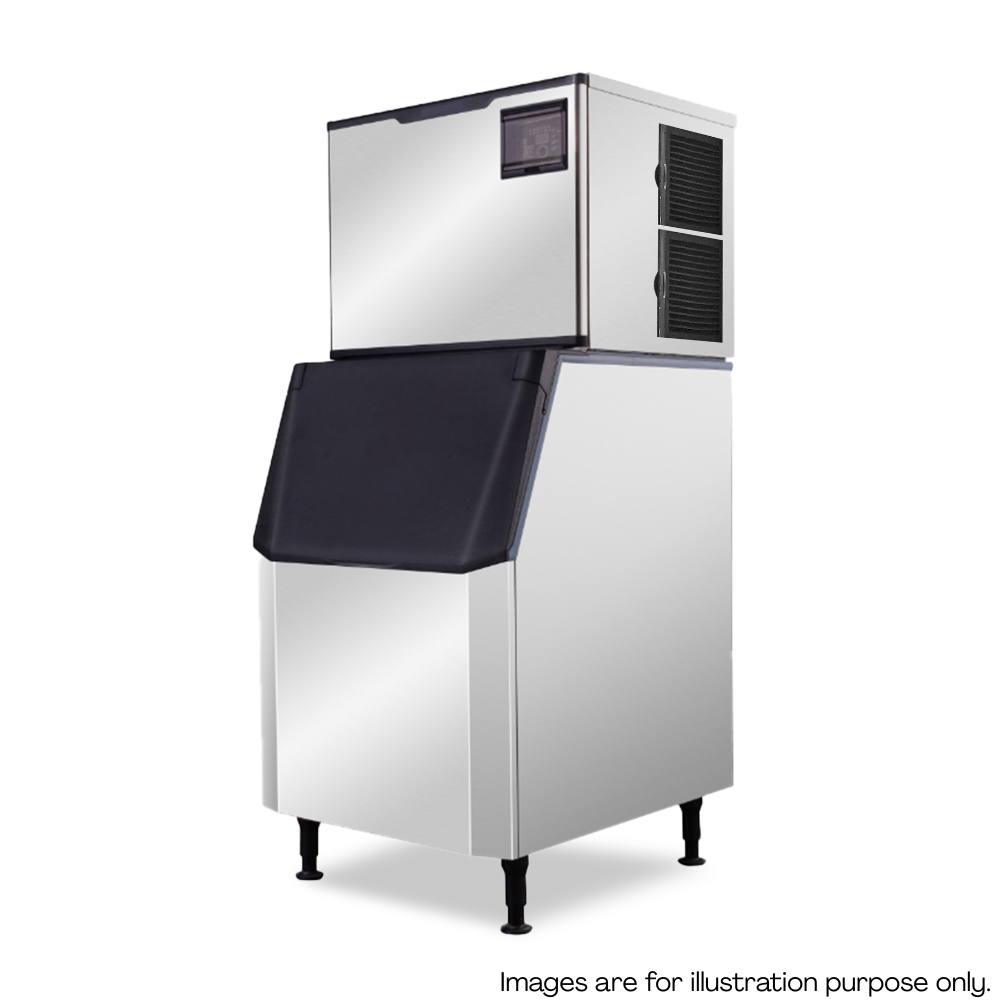

AG Equipment Free Standing Modular Ice Machine Cube Ice - 225Kg/24Hr AG-ICE227
Couldn't load pickup availability
Overview
Free Standing Modular Ice Machine Cube Ice - 225Kg/24Hr
When you have a business that refuses to compromise on ice supply, the AG Equipment ICE227 sets the new standard. Able to deliver a staggering 224kg of fresh ice every 24 hours, stored in a colossal 200kg insulated compartment. This ice machine ensures you are always prepared for the busiest shifts and biggest events.
Appearance
GMCC DSM215V2UDZ compressor.
Stainless Steel body with plastic door construction
Ventilation grills are around the whole appliance.
Construction
200 kg insulated ice storage compartment.
User-friendly design with easy maintenance.
R290/225g Refrigerant
220V-240V/50Hz
Input power is 960W
Australian 10 Amp Plug
Adjustable feet
CE / ISO 9001 certifications
Operation
225 kg / 24 hr ice production.
Energy Consumption 18.1kWh/24hr
Installation and Maintenance
1) It is critical to install a water filtration system, which is available locally at retailers like Reece.
2) When having a plumber install the ice maker, please adhere to the water pressure specification that is displayed on a sticker on the back of the unit.
3) This unit requires to be positioned with at least 15 cm of space around it for ventilation. For more information, please refer to the user manual.
4) The filter and ventilation grills on all sides must be cleaned once per month.
NOTE:- Product images are for illustration purposes only; actual products may differ in appearance.
Errors and omissions excepted (E&OE)
SPECIFICATION
AMBIENT TEMPERATURE 38°c
CAPACITY 200 kg
ENERGY CONSUMPTION 18.1 kWh/24h
FREQUENCY 50Hz
INPUT POWER 960W
PACKAGE DIMENSION MM 810(w) x 920(d) x 1800(h)
PRODUCT DIMENSION MM 760(w) x 860(d) x 1745(h)
PRODUCT WEIGHT 165kg
REFRIGERANT R290/225g
SHIPPING WEIGHT 175kg
VOLTAGE 220V - 240V
WARRANTY 12 Month Parts & Labour
All Ice machines MUST be maintained to ensure high performance.
The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.
This maintains the quality of the ice shape and thickness.
This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
-
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. -
Sanitise water reservoir, distribution tubes, and bin interior. -
Clean and flush condenser coils (air-cooled units). -
Inspect condenser fan motor and blades. -
Check inlet water valve, float, and filters for correct operation. -
Verify ice thickness probe or sensor calibration.
-
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. -
Test compressor amperage and general performance. -
Inspect water pump operation and clean pump housing. -
Check harvest cycle operation (heater or hot gas valve). -
Inspect electrical connections, relays, and contactors. -
Replace inline water filter cartridge.
