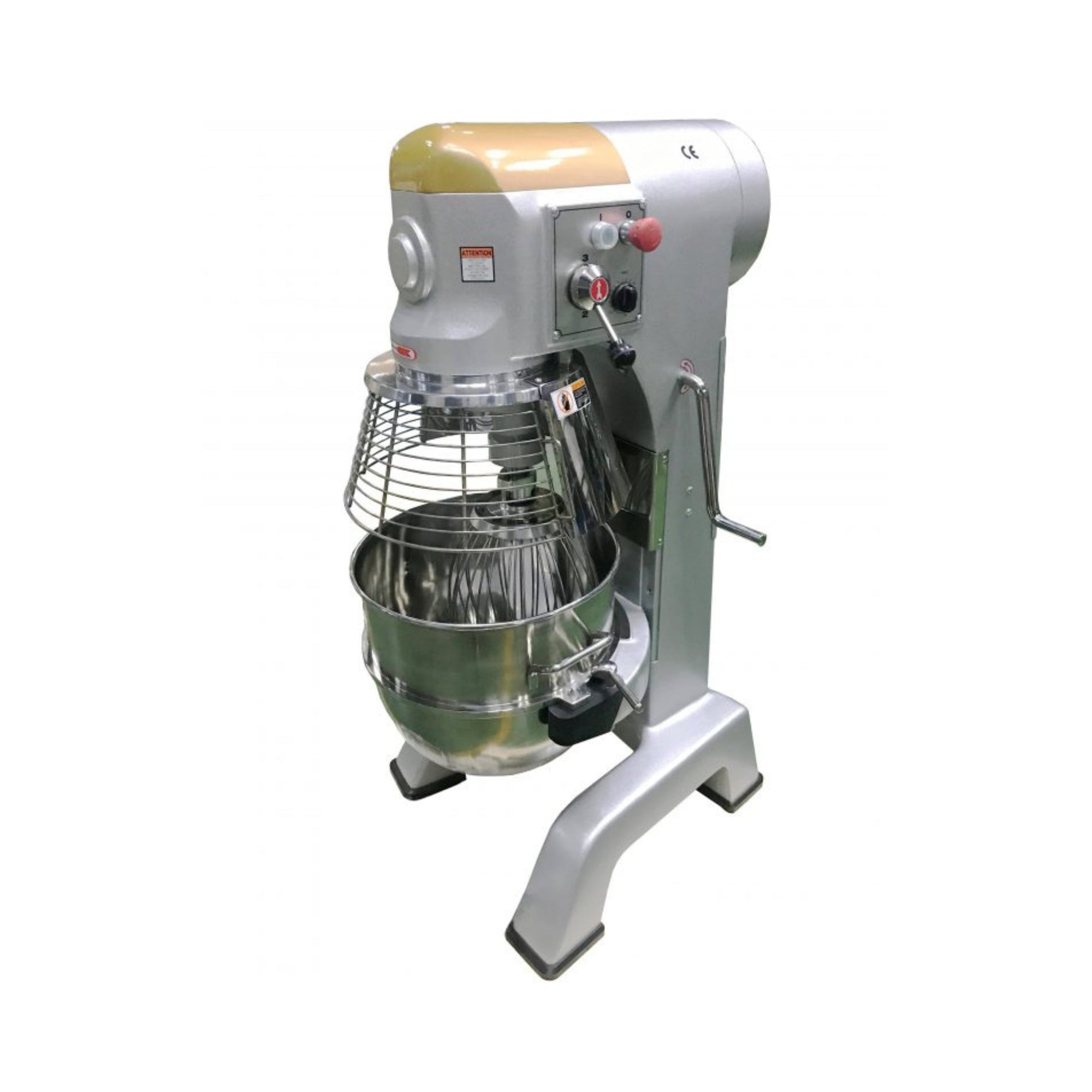

Anvil PMA1040 40 Quart Planetary Mixer

The Anvil PMA1040 is a heavy-duty 40 quart planetary mixer built to meet the demands of commercial bakeries, cafes, restaurants and busy catering operations. Driven by a 1.5HP air-cooled motor paired with a direct-drive, 100% gear-driven transmission, it delivers consistent, thorough mixing across three fixed speeds, handling everything from light batters and whipped creams through to stiff bread and roll doughs.

Long-term reliability is engineered into every component, with heat-treated alloy steel gears and shafts alongside grease-packed ball bearings keeping the gearbox running smoothly with minimal maintenance. Three standard attachments are included straight out of the box, and an optional 20 quart accessory set allows operators to mix smaller batches in the same machine, maximising versatility across a wide range of recipes.

Key Benefits

• Three fixed speeds with straightforward speed shifting let operators quickly match mixing intensity to the task at hand, from gentle folding through to high-speed whipping.
• The 1.5HP air-cooled motor and fully gear-driven direct-drive transmission work together to sustain power output during heavy loads without overheating.
• Heat-treated alloy steel gears and shafts provide exceptional durability under continuous commercial use, reducing the risk of costly transmission wear.
• Grease-packed ball bearings ensure smooth, quiet operation and minimise routine maintenance requirements.
• A stainless steel safety guard fitted with a micro-switch prevents the mixer from operating when the guard is open, protecting staff during attachment changes and bowl removal.
• Printed batch capacity references for common preparations are included, covering mashed potato (up to 13kg), waffle and pancake batter (up to 16L), pound cake (up to 20kg) and bread or roll dough (up to 10kg), helping kitchen teams plan production and maximise each run.
• Optional 20 quart bowl and attachment accessories comprising a bowl, whisk, hook and beater allow smaller batches to be prepared in the same machine, reducing the need for a second mixer.
• Backed by Anvil's Double Gold Star 2-year parts and labour warranty for added peace of mind in a commercial environment.

Key Features

• 40 quart mixing bowl capacity suitable for high-volume commercial production.
• 1.5HP (1.125kW) air-cooled motor for sustained performance under heavy loads.
• Direct-drive, 100% gear-driven transmission with heat-treated alloy steel gears and shafts.
• Grease-packed ball bearings for smooth, low-maintenance operation.
• Three fixed operating speeds: 127 / 261 / 478 RPM, with easy speed shifting.
• Stainless steel safety guard with integrated micro-switch to prevent operation when guard is open.
• Three attachments included: dough hook, flat paddle beater and wire whisk.
• Batch capacity guidance for key preparations: mashed potato 13kg, waffle and pancake batter 16L, pound cake 20kg, bread and roll dough 10kg.
• Optional 20 quart accessories available (bowl, whisk, hook and beater) to accommodate smaller batch production.
• 240V single-phase power supply.
• Manufactured in Taiwan.
• 2-year parts and labour warranty (Anvil Double Gold Star Warranty).

Specifications

• Width (mm): 610
• Depth (mm): 660
• Height (mm): 1215
• Weight (kg): 238
• Packed Width (mm): 710
• Packed Depth (mm): 820
• Packed Height (mm): 1430
• Shipping Cubic: 0.832546
• Shipping Weight: 238
• Voltage (V): 240
• Power (kW): 1.125
• Warranty (months): Double Gold Star Warranty - 2 Years Parts And Labour
• Country of Origin: Taiwan
