Overview

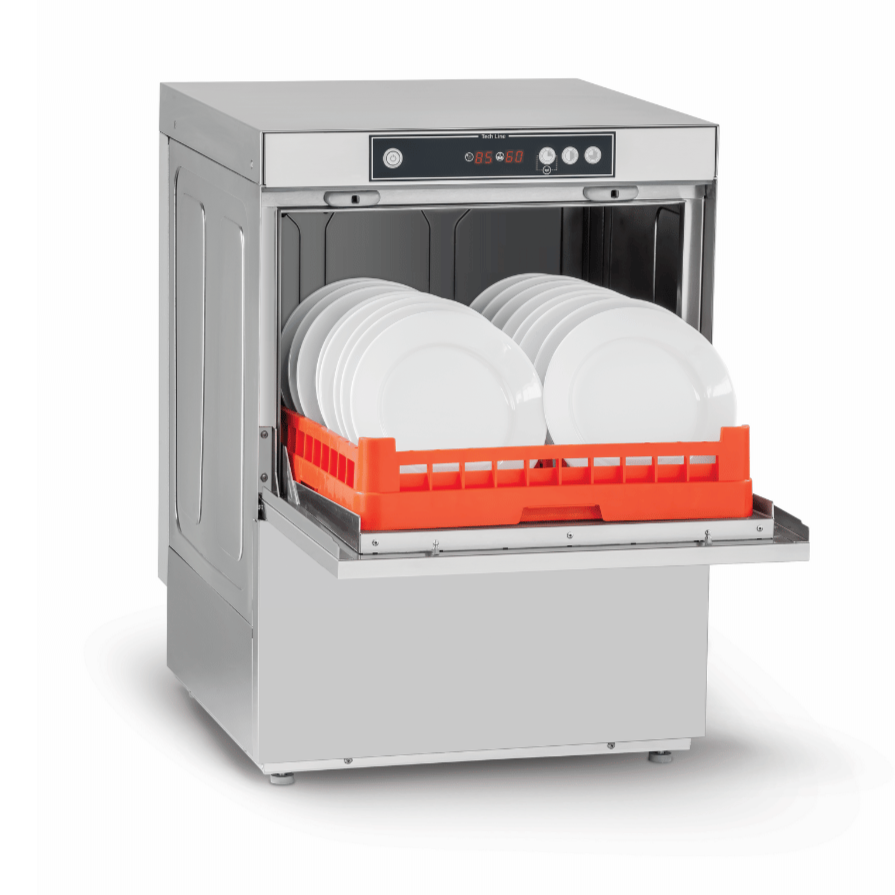

Asber GE-500BDD Tech Line Underbench Dishwasher

The Asber GE-500BDD is a Tech Line underbench dishwasher purpose-built for cafes, restaurants, bars and catering operations that need reliable, high-throughput dishwashing in a compact footprint. Its 500 x 500mm basket capacity and three selectable wash cycles handle everything from delicate glassware to heavily soiled crockery and utensils, while the double-skin door provides enhanced insulation for consistent wash and rinse temperatures.

Constructed with a stainless steel body and rotating upper and lower wash and rinse arms, the GE-500BDD delivers thorough coverage on every cycle. The machine requires connection to a hot water supply and runs on a standard 240V/15A circuit, making it straightforward to integrate into existing commercial kitchen or bar fitouts. It ships with two 500 x 500mm dishwasher baskets and one cutlery basket ready for immediate use, and carries Watermark certification backed by a two-year parts and labour warranty.

Key Benefits

• Processes up to 30 baskets per hour, keeping pace with service demand in busy hospitality venues without creating a backlog.
• Three wash cycles of 90, 120 and 180 seconds let staff match the programme to soil level, saving energy and water on lighter loads.
• Thermostop function holds the rinse temperature at 85°C until conditions are met, ensuring consistent hygiene on every cycle.
• Soft washing start ramps up water pressure gradually, reducing the risk of chipping or breaking glassware and crockery.
• Low rinse consumption of 2.7 litres per rinse keeps running costs and water usage down across a full service period.
• Integrated rinse aid and detergent dispensers eliminate the need for separate dosing equipment and help deliver streak-free results.
• Built-in drain pump simplifies installation by removing the requirement for a gravity drain, giving more flexibility in placement.
• Live wash tank and boiler temperature display allows staff to confirm the machine is at the correct operating temperature before commencing a cycle.
• Underbench dimensions of 600W x 600D x 820mm and a 320mm door clearance make the unit a practical fit for tight kitchen and bar spaces.

Key Features

• Electronic control panel with simple cycle selection
• Three wash cycles: 90, 120 and 180 seconds to suit varying soil levels
• Capacity of up to 30 baskets per hour
• 500 x 500mm basket format
• Double-skin door for improved thermal insulation
• Upper and lower stainless steel rotating wash and rinse arms for full coverage
• Thermostop function maintains rinse temperature at 85°C until hygiene conditions are satisfied
• Soft washing start protects fragile items by gradually increasing pump pressure
• Wash tank capacity 25L with 2.8kW heating element
• Boiler capacity 7L with 2.8kW heating element
• Wash pump rated at 0.6kW
• Rinse consumption of 2.7L per rinse
• Wash temperature adjustable to 60°C; rinse temperature adjustable to 85°C
• Wash tank and boiler temperature display on control panel
• Built-in rinse aid dispenser
• Built-in detergent dispenser
• Built-in drain pump
• Anti-backflow valve fitted as standard
• Safety thermostat in both the wash tank and boiler
• Door clearance of 320mm
• Requires connection to hot water supply

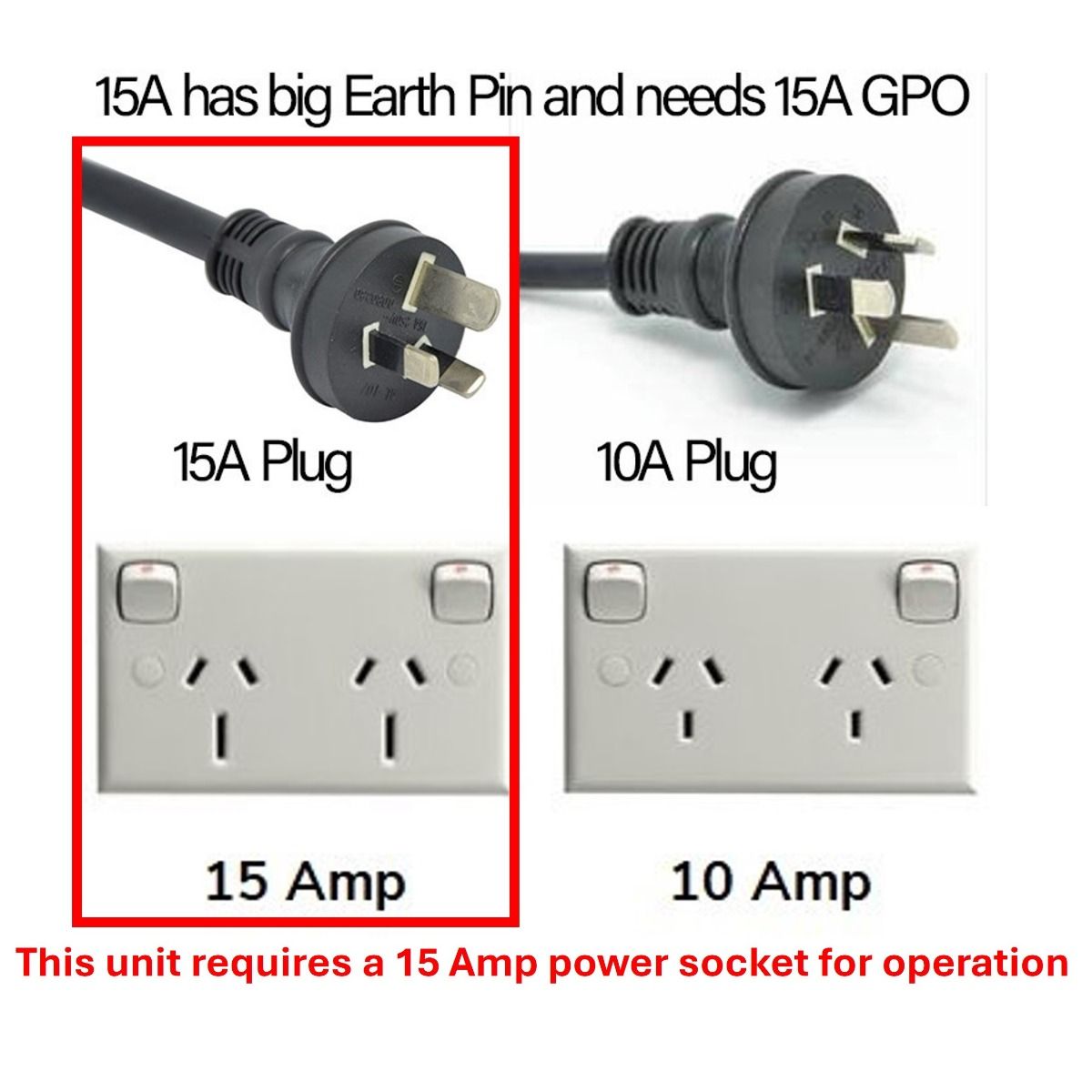

• Power supply: 240V, 3.4kW, 15A
• Stainless steel body construction
• Watermark certified
• Accessories included: 2 x 500 x 500mm dishwasher baskets and 1 cutlery basket
• Two-year parts and labour warranty

Specifications

• Width (mm): 600
• Depth (mm): 600
• Height (mm): 820
• Weight (kg): 61.2
• Packed Width (mm): 735
• Packed Depth (mm): 650
• Packed Height (mm): 1020
• Shipping Weight: 54
• Power Delivery: 240, 3.4kW/15A
• Power (kW): 240
• Warranty (months): Two Years Parts and Labour Warranty
