Overview

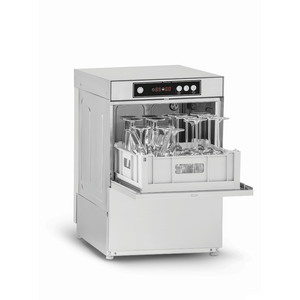

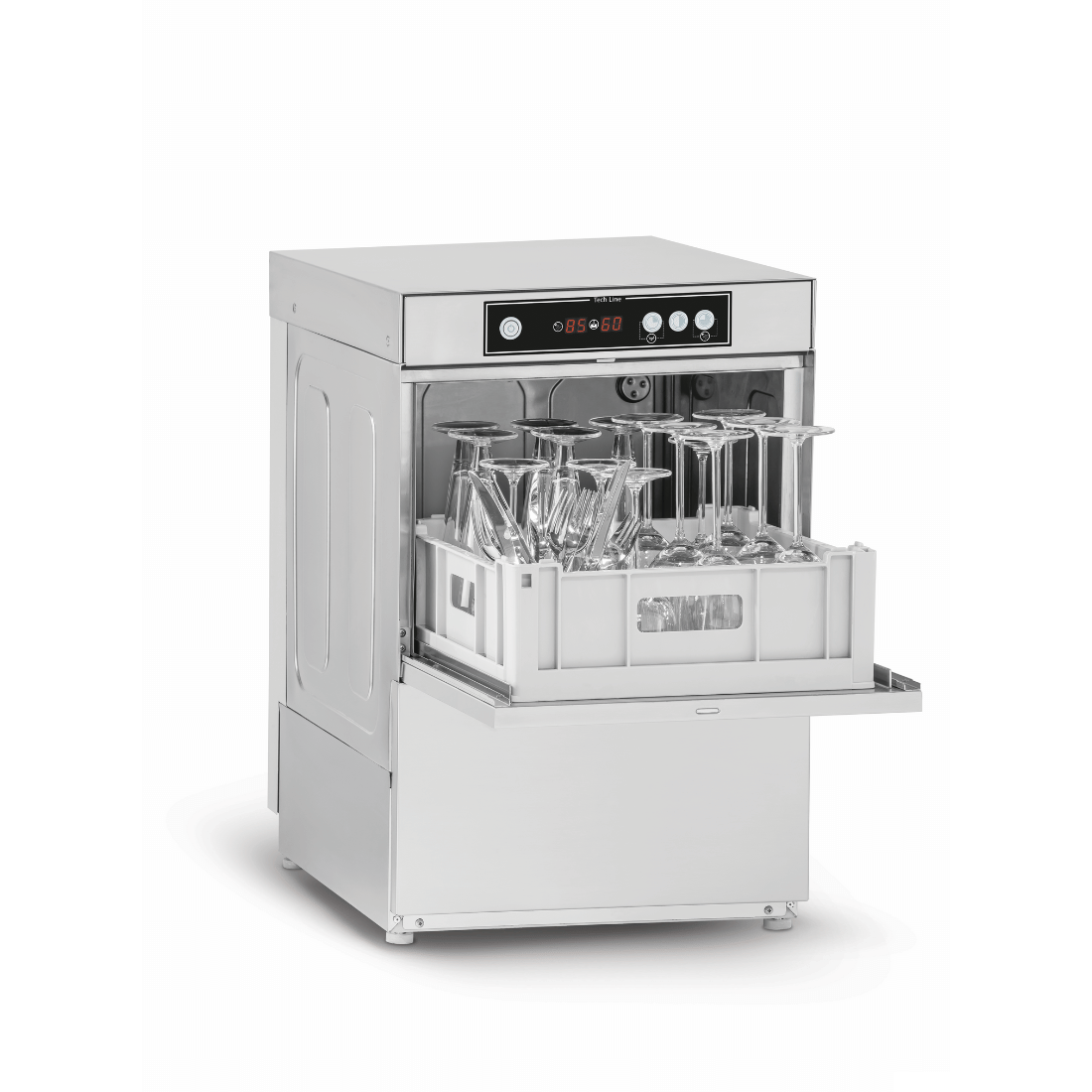

Asber GE-400BDD Tech Line Underbench Glass and Dishwasher

The Asber GE-400BDD is a compact underbench glass and dishwasher from the Tech Line range, purpose-built for bars, cafes, restaurants and catering venues where bench space is limited but throughput demands remain high. Operating on a standard 240V/15A supply, it handles up to 30 baskets per hour using a 400 x 400mm rack format, with three selectable wash cycles to suit everything from lightly soiled glassware to heavily used crockery and cutlery.

Constructed with a stainless steel exterior and a double-skin door for improved insulation, the GE-400BDD is built to withstand the rigours of continuous commercial service. Its electronic control panel provides at-a-glance wash tank and boiler temperature display, while thoughtful inclusions such as a thermostop function, independent cold rinse cycle, soft washing start and built-in rinse aid and detergent dispensers make it straightforward to operate and maintain. The unit ships with two 400 x 400mm baskets, a dish bracket and a cutlery basket, and is Watermark certified for the Australian market.

Key Benefits

• Throughput of up to 30 baskets per hour keeps pace with busy service periods in bars and small to medium hospitality venues.
• Three wash cycles of 90, 120 and 180 seconds let operators match cycle length to soil load, saving energy and water during quieter periods.
• Thermostop function holds the rinse temperature at 85°C until the required hygiene level is reached, delivering consistently sanitised results every cycle.
• Low rinse consumption of just 2.5L per rinse reduces water and chemical running costs compared with higher-consumption machines.
• Soft washing start gradually ramps up water pressure, protecting delicate glassware from shock and reducing breakage rates.
• Independent cold rinse cycle allows a fresh-water rinse without activating the boiler, offering flexibility and energy savings when full thermal rinsing is unnecessary.
• Built-in rinse aid and detergent dispensers, plus an integrated drain pump, simplify installation and daily operation with no external dosing equipment required.
• Double-skin door construction improves heat retention, reducing heat loss to the kitchen environment and contributing to more efficient boiler operation.
• Underbench footprint of 470W x 525D x 720H mm slots neatly under standard bench heights, freeing counter space in tight kitchen and bar layouts.

Key Features

• Electronic control panel with wash tank and boiler temperature display for real-time monitoring
• Three wash cycles: 90, 120 and 180 seconds to suit varying soil levels
• Capacity of up to 30 baskets per hour using 400 x 400mm rack format
• Upper and lower stainless steel rotating wash and rinse arms for thorough, even coverage
• Thermostop function maintains rinse temperature at 85°C for consistent hygiene compliance
• Wash temperature set at 60°C; rinse temperature set at 85°C
• Soft washing start to protect glassware and reduce mechanical stress
• Independent cold rinse cycle for energy-efficient rinsing when thermal sanitisation is not required
• Built-in rinse aid dispenser, detergent dispenser and drain pump
• 15L wash tank with 2.0kW heating element
• 5L boiler with 2.8kW heating element
• Wash pump rated at 0.3kW
• Rinse consumption of 2.5L per rinse
• Double-skin door for improved thermal insulation
• Door clearance of 270mm
• Anti-backflow valve fitted as standard
• Safety thermostat in both wash tank and boiler
• Stainless steel exterior construction for durability and ease of cleaning
• Requires connection to hot water supply

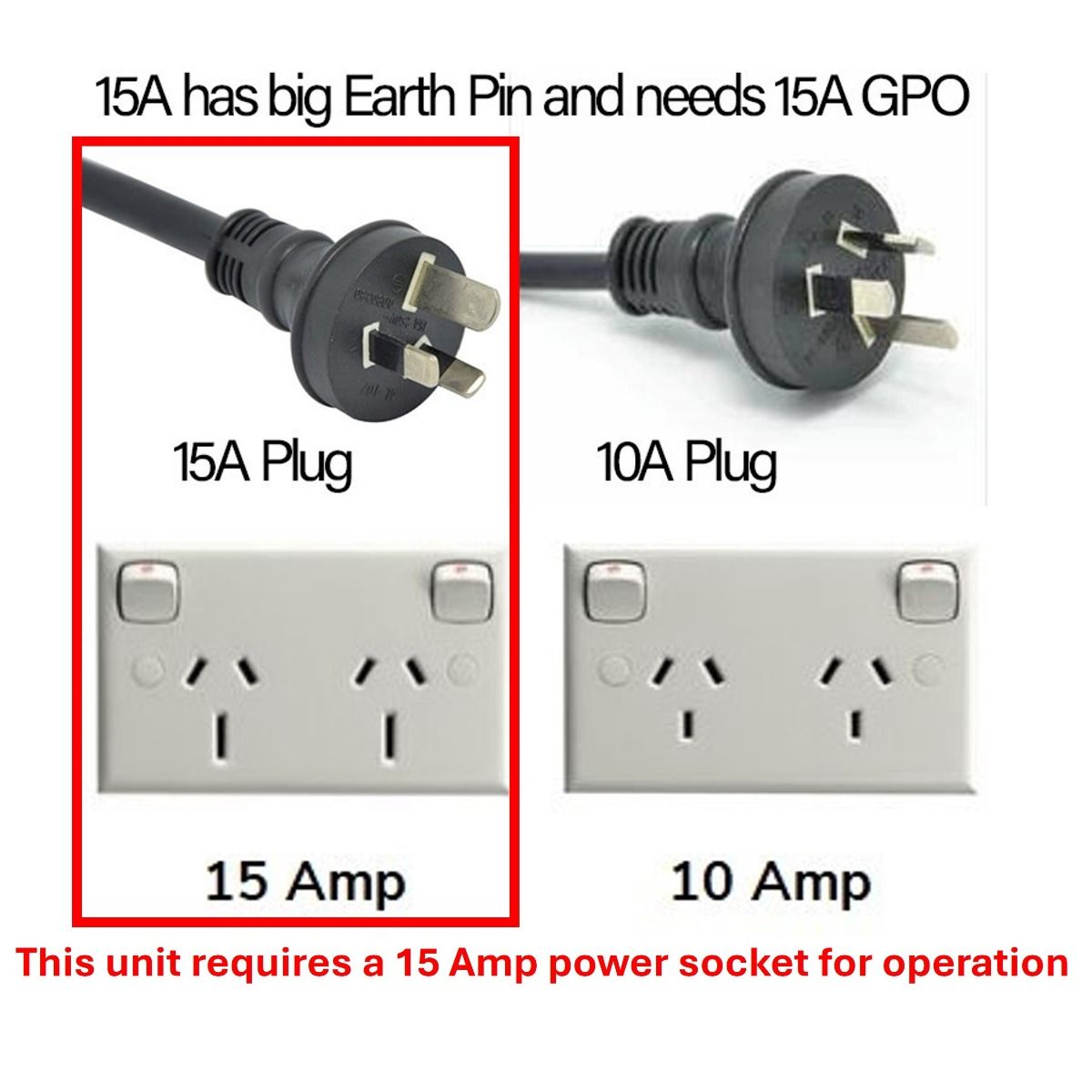

• Power supply: 240V, 3.05kW, 15A
• Watermark certified
• 2 Years Parts and Labour Warranty
• Supplied with 2 x 400 x 400mm dishwasher baskets, 1 dish bracket and 1 cutlery basket

Specifications

• Width (mm): 470
• Depth (mm): 525
• Height (mm): 720
• Weight (kg): 48.5
• Packed Width (mm): 720
• Packed Depth (mm): 570
• Packed Height (mm): 870
• Shipping Weight: 41
• Power Delivery: 240, 3.05kW/15A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour Warranty
